Description

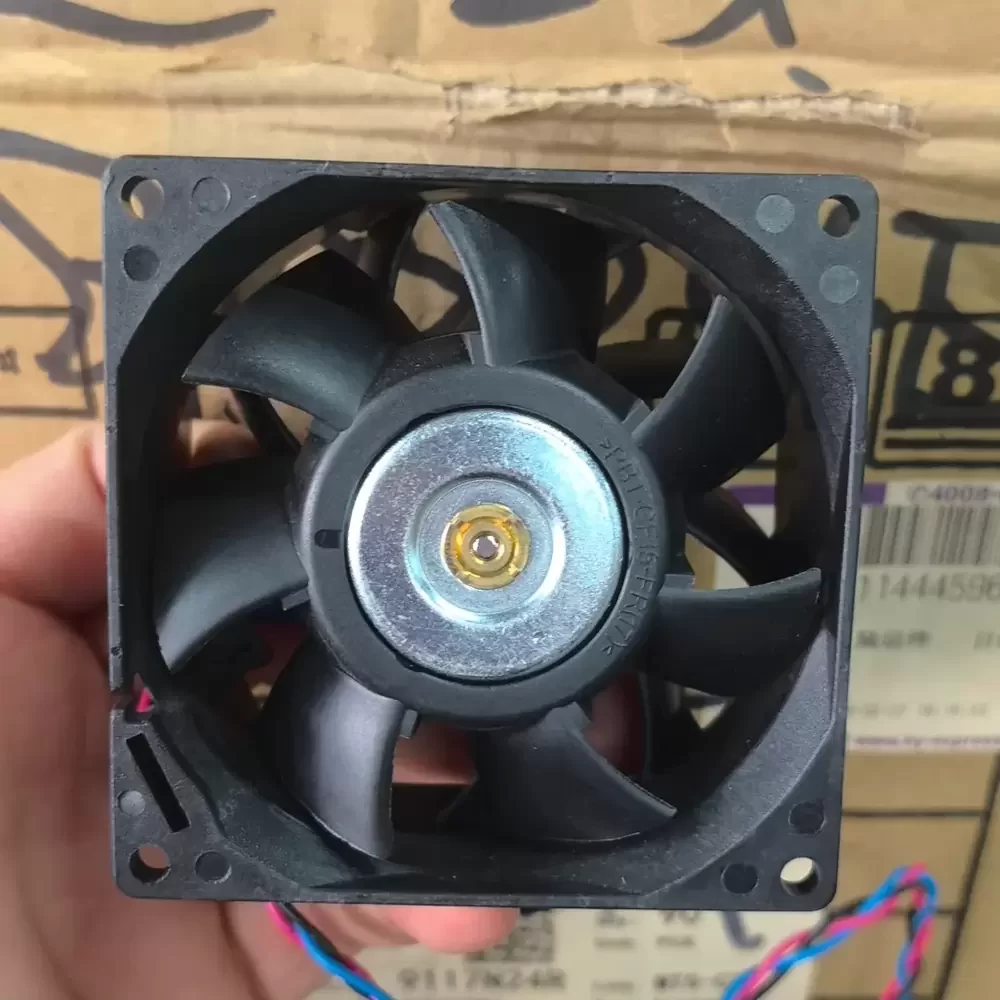

The Delta FFB0824EHE-R00 is a high-static pressure DC axial fan engineered for demanding industrial thermal management. Utilizing advanced brushless DC motor technology paired with a precision Dual Ball Bearing architecture, this unit ensures minimal friction and exceptional structural rigidity under continuous operation. The 80x80x38mm frame design optimizes aerodynamic throughput, significantly reducing thermal impedance in high-density enclosures. Featuring a specialized impeller profile, it delivers concentrated airflow to overcome system resistance, making it an ideal solution for critical cooling applications requiring reliability and robust performance.
Model Number: FFB0824EHE-R00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.75 A
Power: 18.00 W
Rated Speed: 5700 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 84.76 CFM (144.0 m³/h / 2.40 m³/min)
Max. Static Pressure: 20.63 mmH₂O (202.3 Pa / 0.812 inH₂O)
Dimensions: 80 x 80 x 38 mm
Weight: 170 g
Noise Level: 52.5 dB-A
Life Expectancy: 70,000 Hours @ 40°C
Output Signal: R00 (Locked Rotor Alarm / Rotation Detector)
Termination: 3-Wire Lead
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP55 (Optional configuration)
Safety Certifications: UL, cUL, TUV, CE
The FFB0824EHE-R00 is specifically calibrated for high-impedance environments such as variable frequency drives (VFDs) and industrial inverters where back-pressure resistance is a critical factor. Its robust airflow capabilities make it suitable for cooling server rack power supplies, telecommunications equipment, and precision CNC machinery electronics. By maintaining consistent thermal envelopes, the FFB0824EHE-R00 ensures the longevity of sensitive components in automation control panels and medical instrumentation, preventing thermal throttling in continuous-duty cycles.
