Description

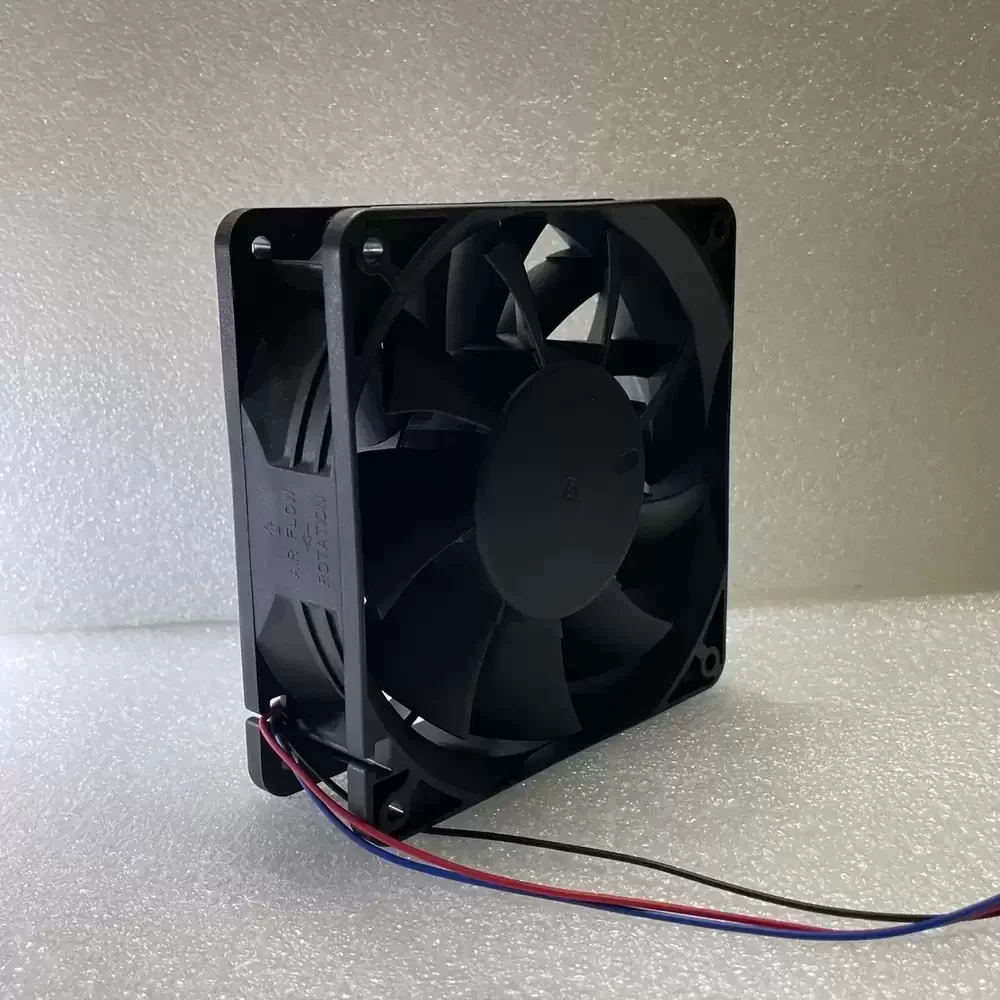

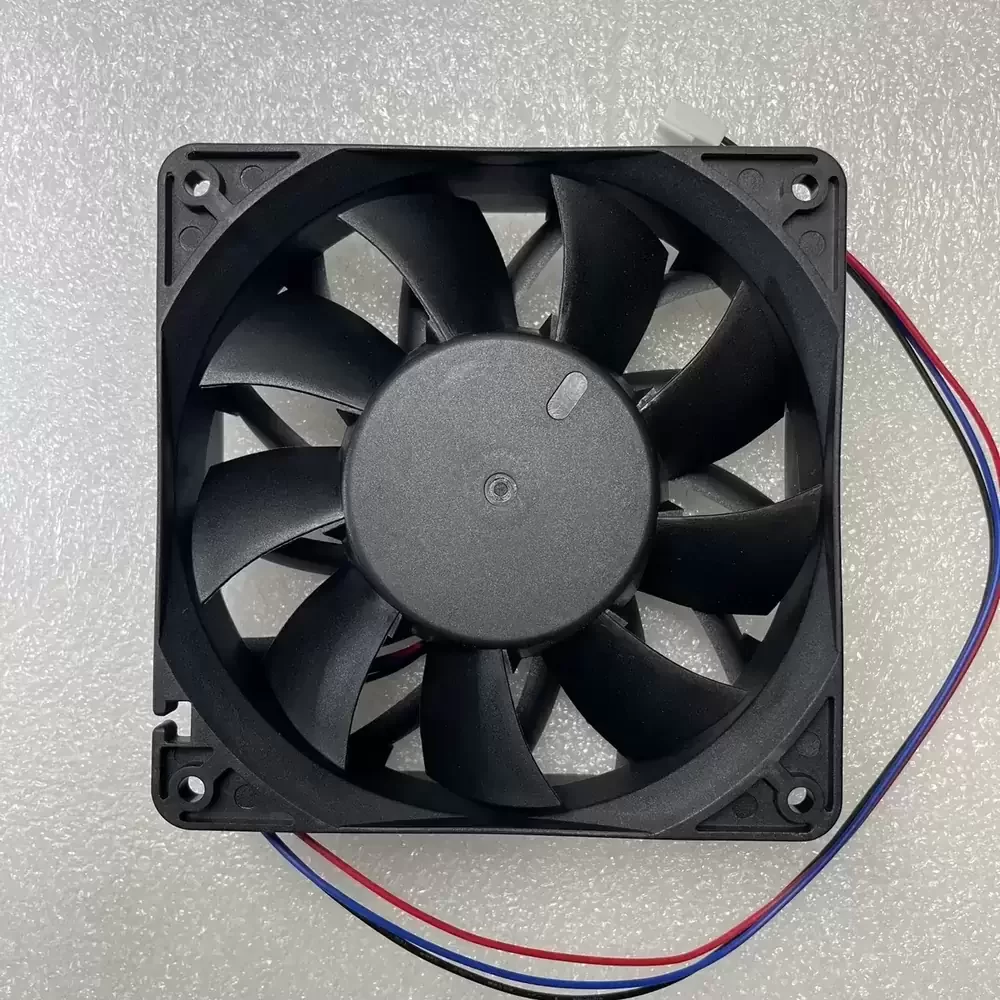

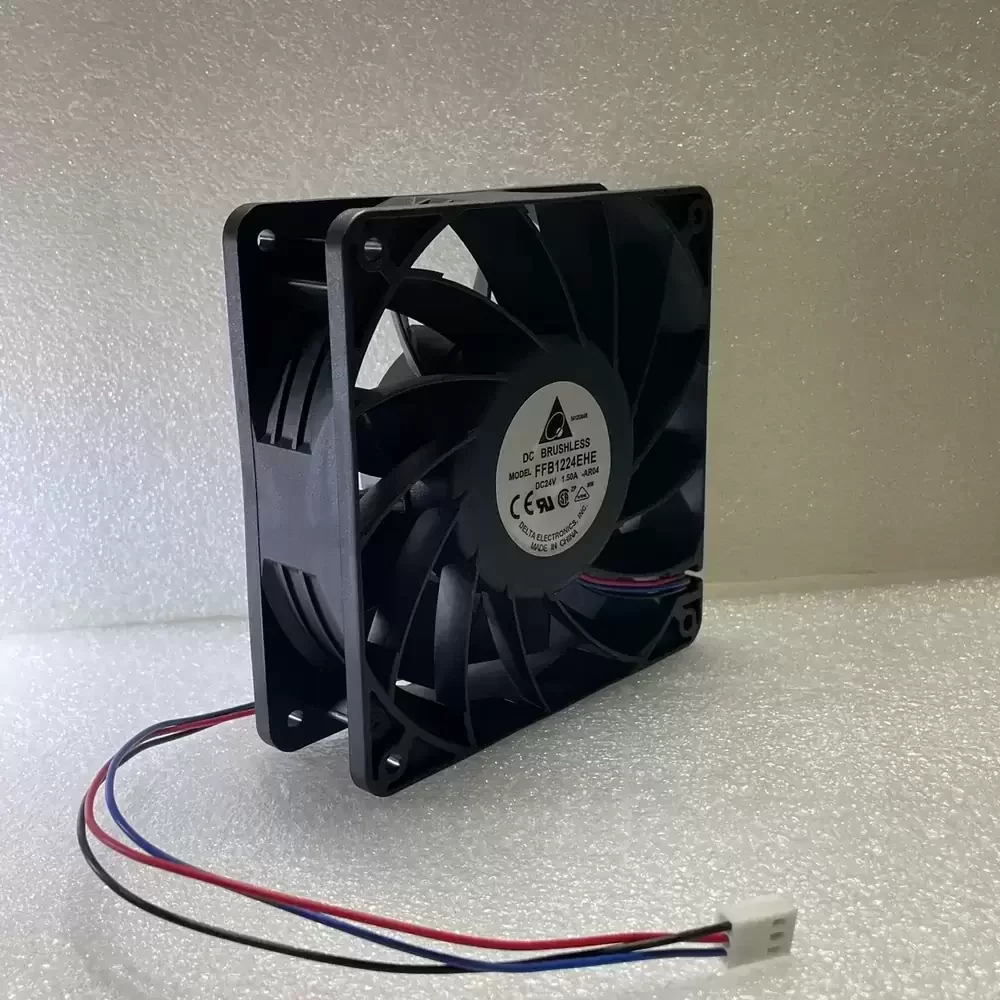

The Delta FFB1224EH-AR04 is a high-performance industrial axial fan engineered for extreme thermal management. Operating at a rated 24VDC with a robust 1.50A current draw, this 120x38mm unit delivers a massive airflow of 150.33 CFM and a static pressure of 0.489 inH2O. Equipped with a precision dual ball bearing system and a 3-wire configuration featuring a Lock Rotor Sensor (R04), it ensures long-term reliability (70,000 hours) and safety in high-density electronic environments. The glass-fiber reinforced plastic construction (UL 94V-0) provides structural integrity under high-speed 4000 RPM operation while maintaining a noise profile of 56.4 dB(A).
FFB1224EH-AR04 Specifications
Model Number: FFB1224EH-AR04
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 26.4VDC
Rated Current: 1.50A (Label) / 0.63A (Standard)
Power Consumption: 36.0W (Max)
Rated Speed: 4000 RPM
Max Airflow: 150.33 CFM (4.257 m³/min)
Max Static Pressure: 0.489 inH2O (12.43 mmH2O)
Noise Level: 56.4 dB(A)
Bearing Type: Dual Ball Bearing
Dimensions: 120 x 120 x 38 mm
Weight: 205g
Material Frame: Plastic (UL 94V-0)
Material Impeller: Plastic (UL 94V-0)
Life Expectancy: 70,000 Hours @ 40°C
Signal Output: R04 (Lock Rotor Sensor / Alarm)
Termination: 3-Wire Lead Wires
Operating Temperature: -10°C to +60°C
FFB1224EH-AR04 Applications
1. Industrial Frequency Converters: Provides high-velocity cooling for power modules and heat sinks in variable frequency drives (VFD).
2. 2U/3U Server Enclosures: High static pressure overcomes internal resistance in densely packed rack-mount hardware.
3. Telecom Power Supplies: Reliable 24V operation for outdoor base station rectifiers and battery cooling systems.
4. Industrial Automation: Essential for cooling control cabinets where high-volume air exchange is required to prevent component derating.
