Description

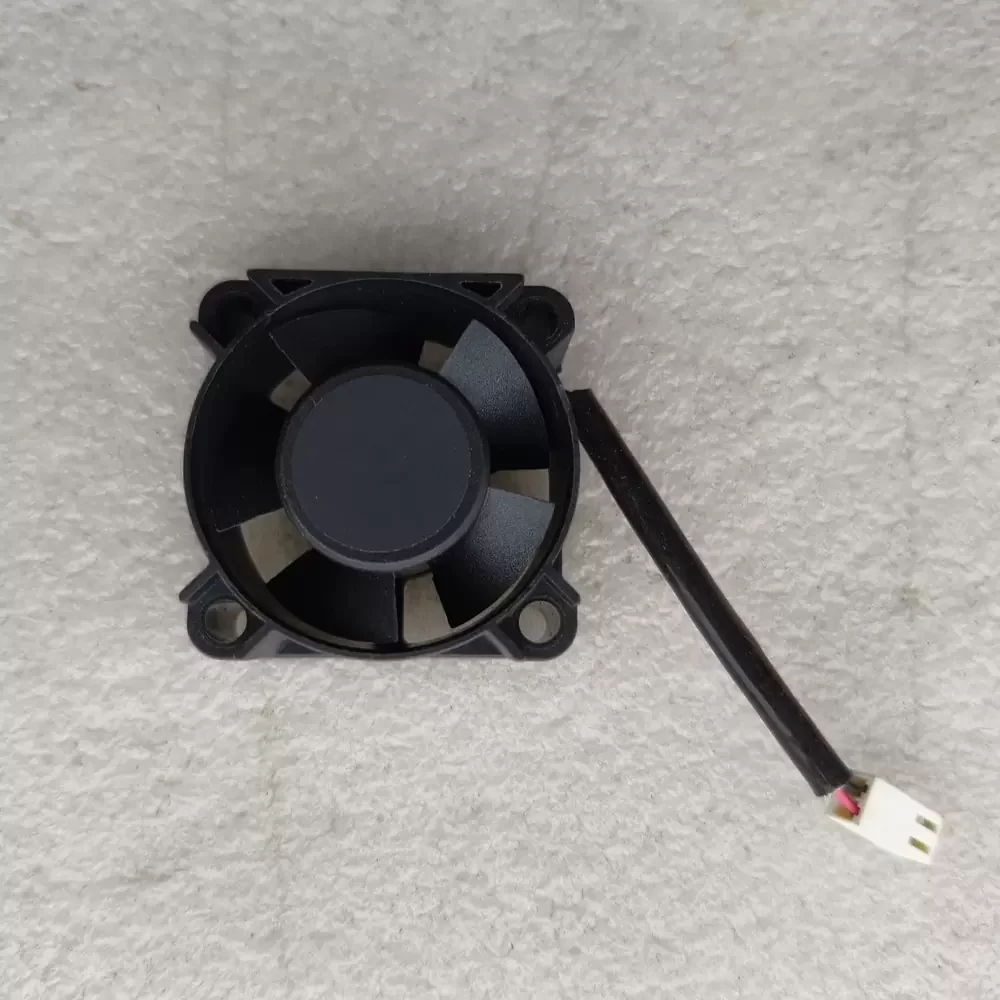

The Sunon GM1204PKVX-8A 40 x 40 x 20 mm DC axial cooling fan operates at 12 VDC and 2.4 W, delivering a maximum airflow of 6.5 CFM. Engineered with a durable plastic frame and a high-performance MagLev (magnetic levitation) bearing system, this tubeaxial fan achieves a rotational speed of 5300 RPM while maintaining an acoustic profile of 24 dBA. The unit features a standard 2-wire interface for straightforward integration and incorporates an auto-restart function to protect the motor during locked-rotor conditions.
GM1204PKVX-8A Specifications
Model Number: GM1204PKVX-8A
Brand: Sunon
Product Category: DC Axial Cooling Fan
Dimensions: 40 x 40 x 20 mm
Nominal Voltage: 12 VDC
Power Consumption: 2.4 W
Current Rating: 0.20 A
Rotational Speed: 5300 RPM
Maximum Airflow: 6.5 CFM
Acoustic Noise: 24 dBA
Bearing Type: MagLev (Magnetic Levitation / Vapo-Bearing)
Frame Material: Plastic
Impeller Material: Plastic
Termination: 2-Wire Leads
Fan Type: Tubeaxial
Motor Protection: Auto-Restart (-8A)
Operating Temperature: -10 to 70 °C
Approvals: CE, CUR, TUV, UL
GM1204PKVX-8A Applications
Primary applications include integration into 1U server racks, industrial control panels, and telecommunications base station power supplies. Deployed within compact CNC spindle cooling modules and automated routing equipment, the fan provides critical thermal management for high-density electronic enclosures.
