Description

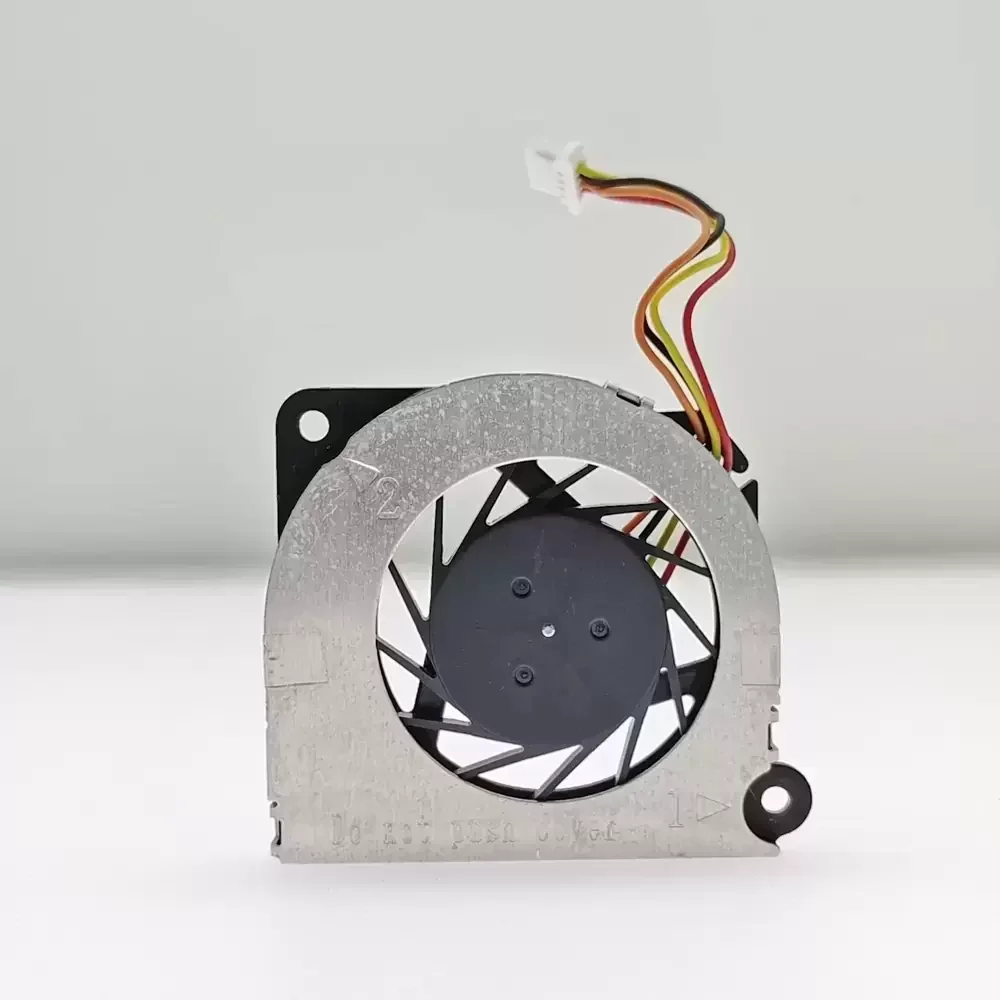

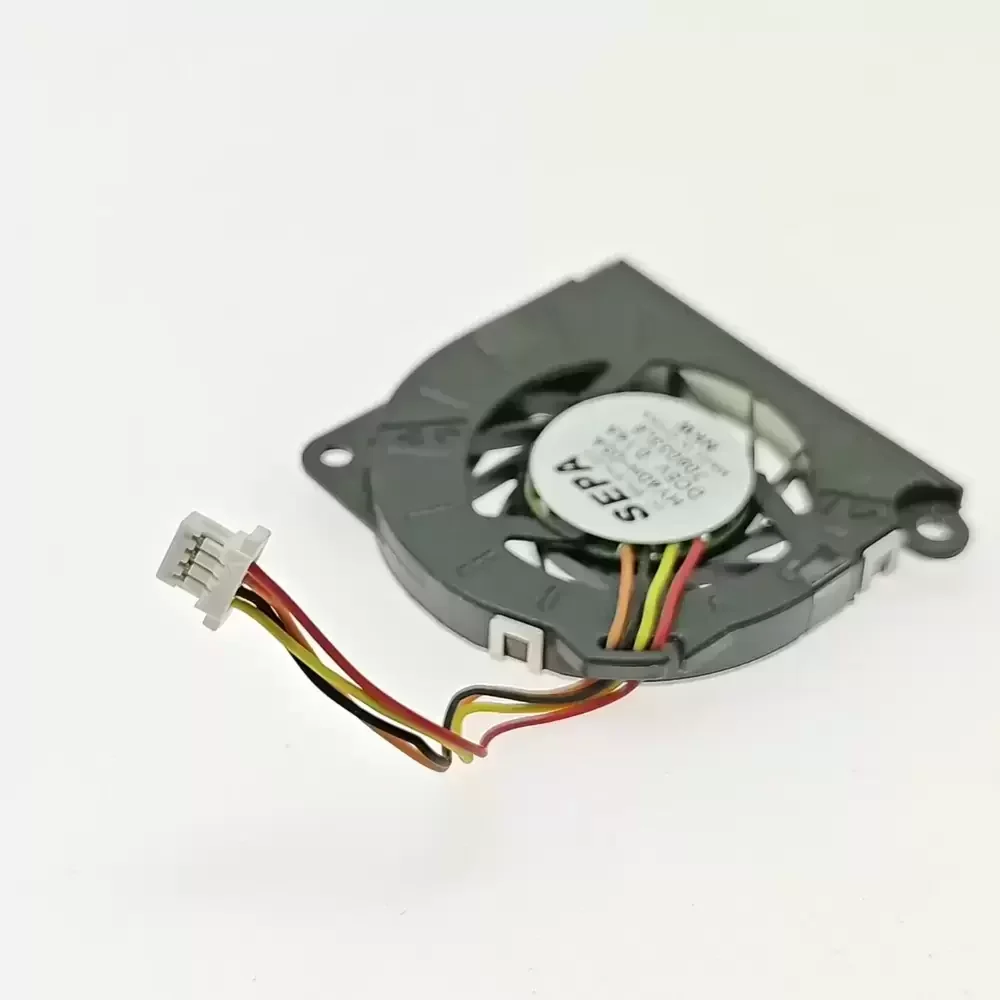

The SEPA HY40H-05A is a DC Brushless Blower engineered for ultra-compact thermal management solutions where vertical clearance is critically limited. Featuring a slim 5mm profile, this centrifugal fan utilizes SEPA’s proprietary bearing technology to minimize friction and acoustic resonance while maintaining structural rigidity under thermal load. The aerodynamic impeller design optimizes static pressure generation, making it ideal for overcoming high thermal impedance in restricted enclosures such as ultrabooks and portable electronics.
Model Number: HY40H-05A
Brand: SEPA
Product Type: DC Centrifugal Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.14 A
Power Consumption: 0.70 W
Dimensions: 40x40x5mm
Bearing Type: Hypro Bearing
Termination: 4-Wire (PWM/Tachometer)
Connector: 4-Pin Micro
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Mounting: Flange Mount
Application: Notebook/Laptop Cooling
The HY40H-05A is specifically designed for integration into ultra-thin electronic devices requiring active cooling within confined geometries. Common deployment scenarios include high-performance ultrabooks, portable media players, and compact projection units where the HY40H-05A ensures efficient heat dissipation from processors and chipsets. Its low profile also makes it suitable for VR headsets and handheld instrumentation.
