Description

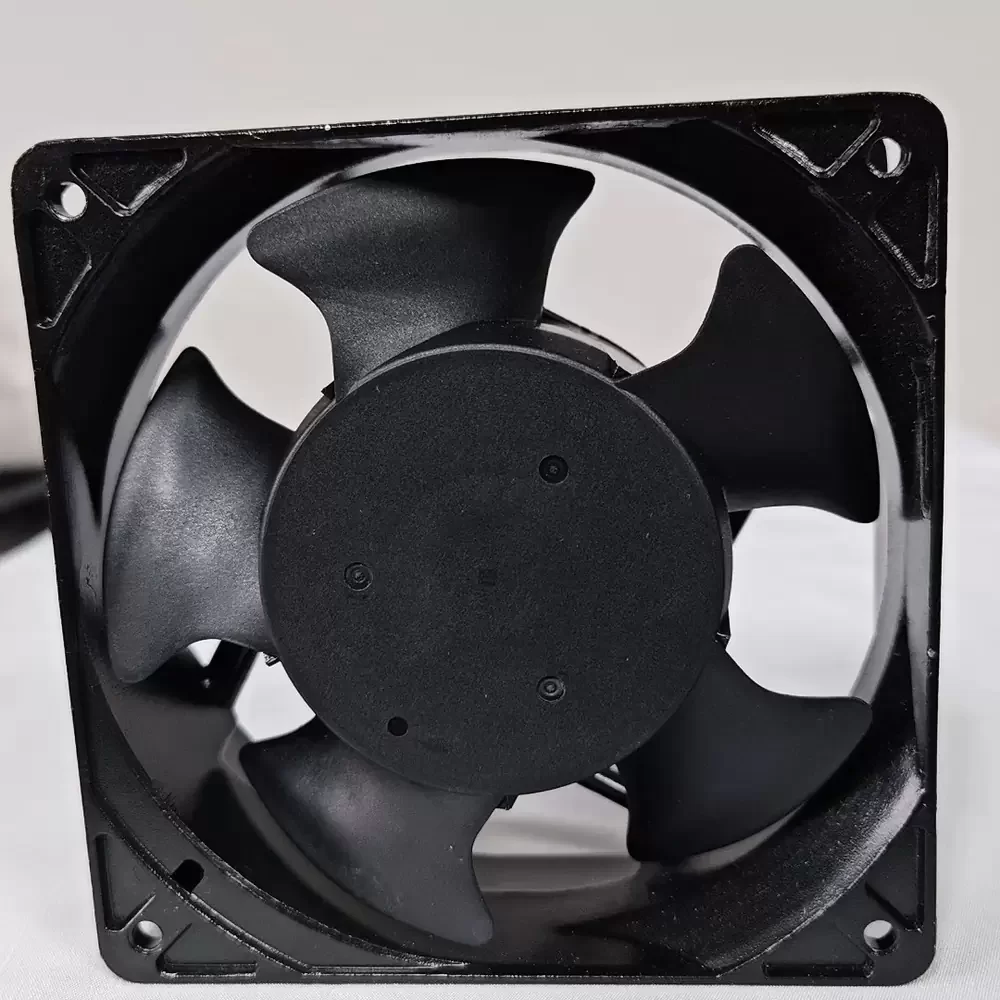

The JAMICON JA1238L2S0N is a precision-engineered AC Axial Fan designed to deliver reliable thermal management in industrial environments. Featuring a robust motor assembly and an aerodynamically optimized impeller, this unit ensures consistent airflow with minimal turbulence. The fan is constructed with high-grade materials to maintain structural rigidity and thermal stability under continuous operation. Its impedance-protected motor design enhances safety and longevity, making it a dependable component for critical cooling applications requiring a balance of performance and durability.
Model Number: JA1238L2S0N
Brand: JAMICON
Product Type: AC Axial Fan
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Rated Current: 0.07 A
Input Power: 14.0 W
Rated Speed: 2000 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 72.0 CFM (122.3 m³/h)
Max. Static Pressure: 5.8 mmH₂O (56.8 Pa / 0.23 inH₂O)
Dimensions: 120x120x38mm
Weight: 520 g
Noise Level: 38 dBA
Frame Material: Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Motor Type: Single Phase Induction Motor
Ingress Protection: IP20
Insulation Resistance: > 100M Ohm at 500VDC
Dielectric Strength: 1500VAC for 1 min
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C

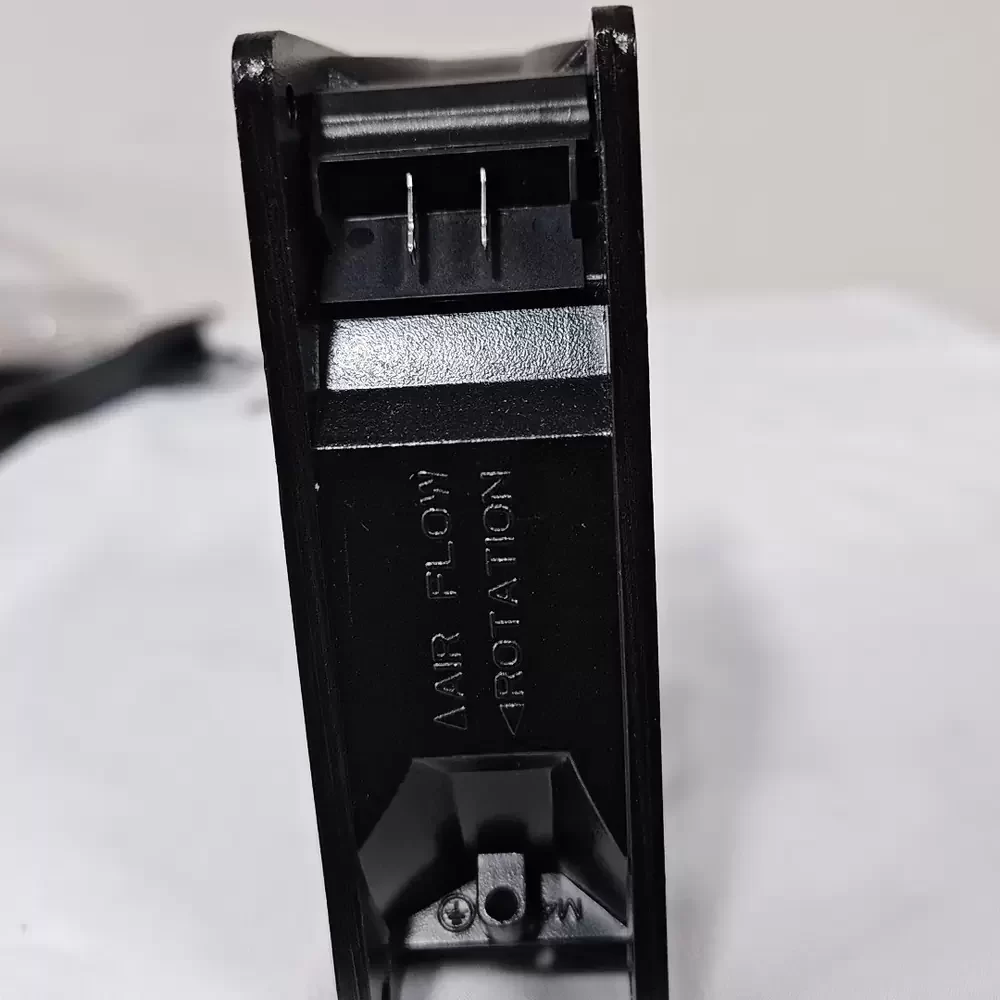

Termination: Lead Wires
Life Expectancy: 50,000 Hours at 25°C
Safety Protection: Impedance Protected
The JA1238L2S0N is engineered for versatile integration into industrial equipment, including server racks, telecommunications cabinets, and power distribution units. This cooling solution effectively dissipates heat in CNC machinery and automation control panels, preventing thermal throttling. The JA1238L2S0N ensures operational stability in medical devices and instrumentation where reliable, continuous airflow is mandatory for component longevity.
