Description

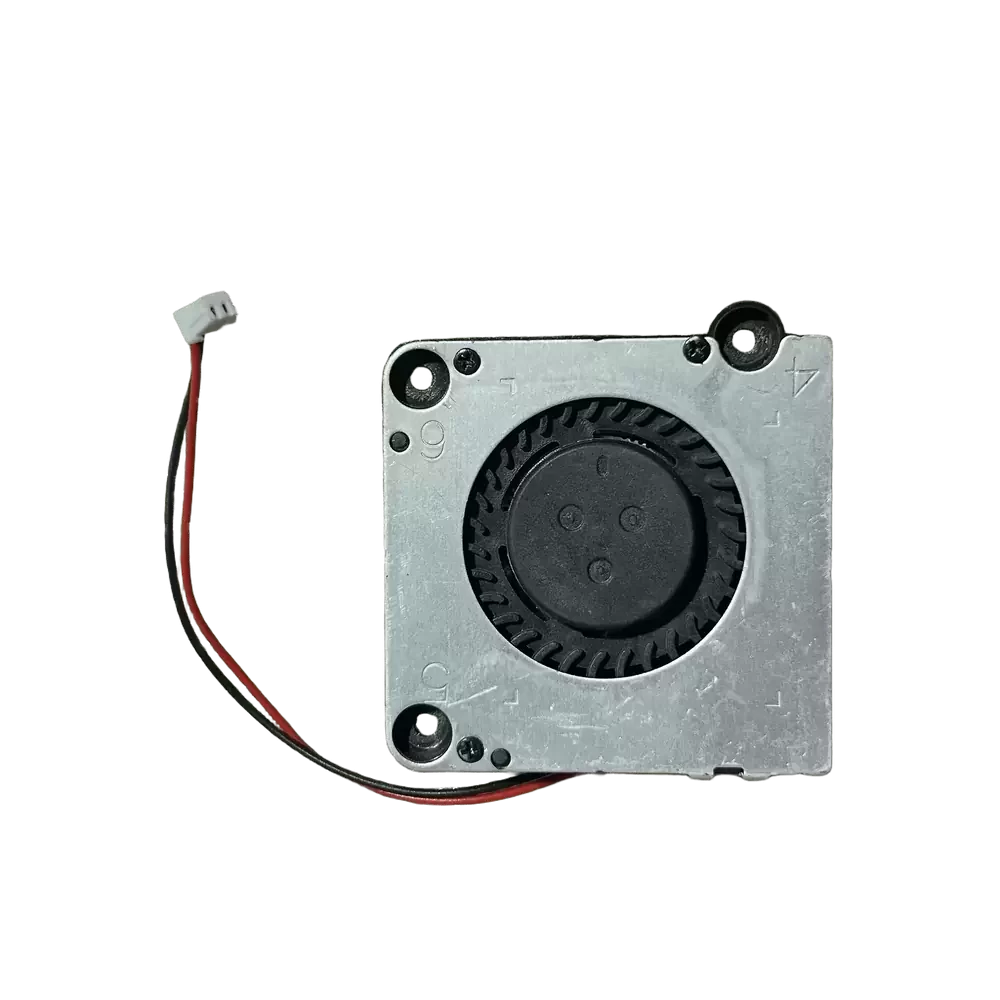

The SUNON MF40071V1-1Q01C-A99 is a high-precision DC centrifugal blower designed for compact thermal management in space-constrained environments. Operating at a rated 12VDC with a power consumption of 2.21W, this 40x40x7mm industrial cooling fan delivers a concentrated airflow of 2.1 CFM and a significant static pressure of 0.41 inH2O. Utilizing Sunon’s proprietary Vapo Bearing system, the MF40071V1-1Q01C-A99 ensures long-term reliability and quiet operation at 8000 RPM. This ultra-thin 40mm blower is engineered for high-density electronic cooling where directional airflow is critical for maintaining optimal operating temperatures.
Model Number: MF40071V1-1Q01C-A99
Brand: SUNON
Product Type: Centrifugal Blower
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Rated Current: 0.185 Amps
Power: 2.21 Watts
Rated Speed: 8000 RPM
Bearing Type: Vapo Bearing
Max. Air Flow: 2.1 CFM (0.06 m³/min)
Max. Static Pressure: 0.41 inH₂O (102.1 Pa)
Dimensions: 40x40x7mm
Weight: 15.5g
Life Expectancy: 60,000 Hours at 40C
Noise Level: 34.8 dB(A)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: 2 Lead Wires (UL1571, 28AWG)
Operating Temperature: -10 to +70 Celsius
Storage Temperature: -40 to +70 Celsius
Insulation Resistance: 10M ohm at 500VDC
Dielectric Strength: 500VAC for 1 minute
Protection Features: Auto Restart, Polarity Protection
Certifications: CE, TUV, UL, CUR
The SUNON MF40071V1-1Q01C-A99 is specifically designed for integration into ultra-thin laptops, portable medical diagnostic equipment, and compact network routers. Due to its slim 7mm profile, the MF40071V1-1Q01C-A99 excels in handheld devices and micro-projectors where traditional axial fans cannot provide sufficient static pressure. Engineers frequently specify the MF40071V1-1Q01C-A99 for localized cooling of high-performance chipsets and VRM modules in embedded industrial computing systems.
