Description

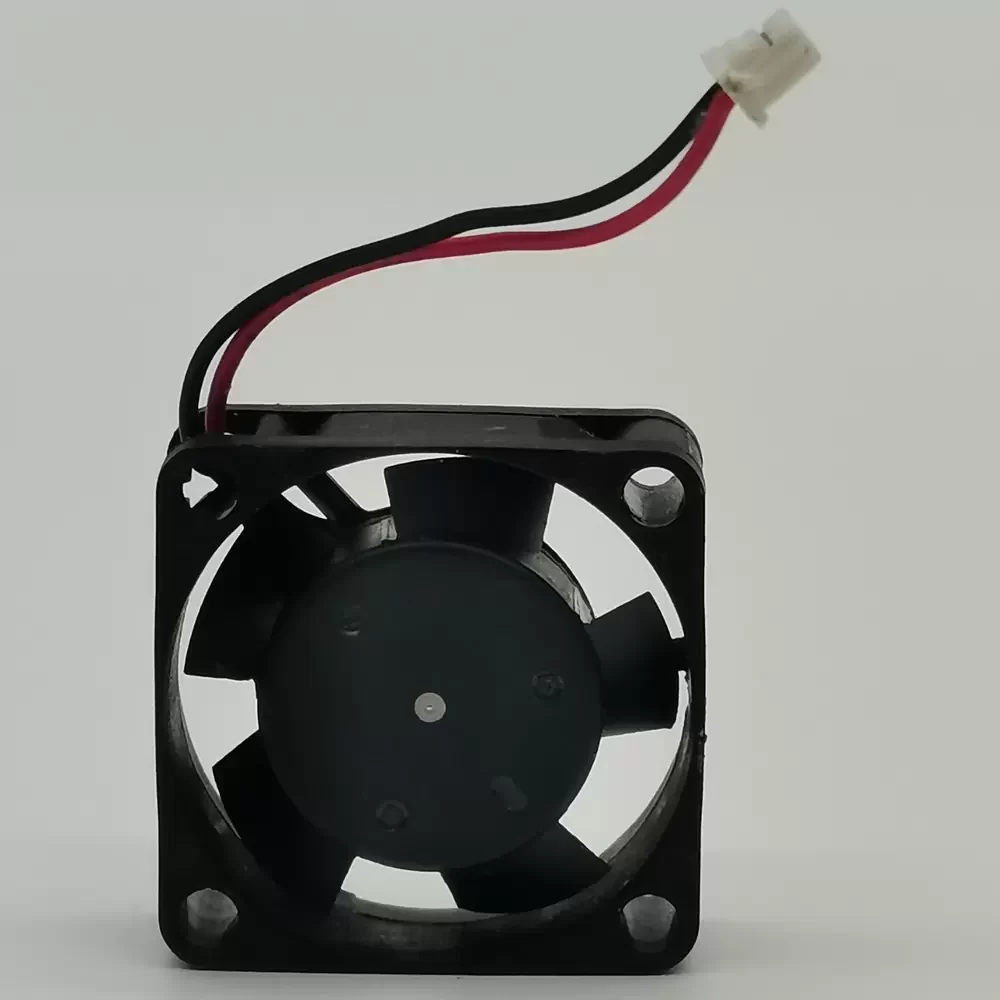

The MAGIC MGA2512HS-O10 is a compact DC axial fan engineered for precision thermal management in space-constrained electronic assemblies. Utilizing advanced brushless DC motor technology, this unit optimizes electromagnetic efficiency while minimizing cogging torque. The rotor is supported by a sintered sleeve bearing architecture, designed to maintain structural rigidity and reduce mechanical friction during operation. Its aerodynamic impeller profile enhances airflow delivery, effectively lowering thermal impedance within high-density enclosures. Constructed with durable thermoplastic housing, the MGA2512HS-O10 ensures reliable heat dissipation performance, making it a critical component for maintaining the operational stability of sensitive industrial and consumer electronics.
Model Number: MGA2512HS-O10
Brand: MAGIC (Magic Precision Inc.)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.07 A
Power Consumption: 0.84 W
Rated Speed: 8500 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 2.20 CFM (3.74 m³/h / 0.06 m³/min)
Max. Static Pressure: 3.81 mmH₂O (37.36 Pa / 0.15 inH₂O)
Noise Level: 24.0 dB(A)
Dimensions: 25x25x10mm
Weight: 8.0 g
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Leads
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 30,000 Hours at 40°C
Mounting Orientation: Any
This compact cooling solution is extensively utilized in miniature electronic applications where space is at a premium. The MGA2512HS-O10 is frequently integrated into chipset cooling modules, portable hard drive enclosures, and small form-factor power supplies to prevent thermal throttling. Additionally, the MGA2512HS-O10 serves as an active cooling component in surveillance DVR systems and embedded IoT devices, ensuring continuous operation by effectively evacuating waste heat from critical semiconductor components.
