Description

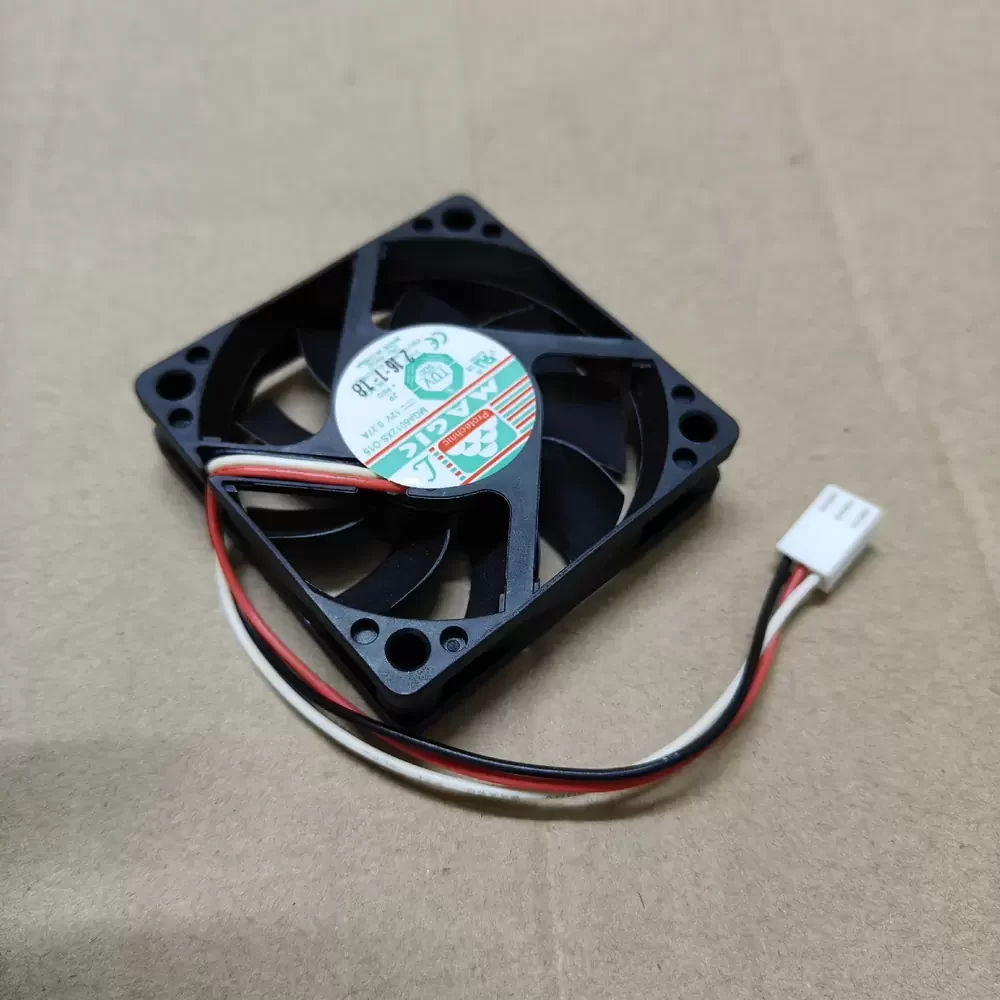

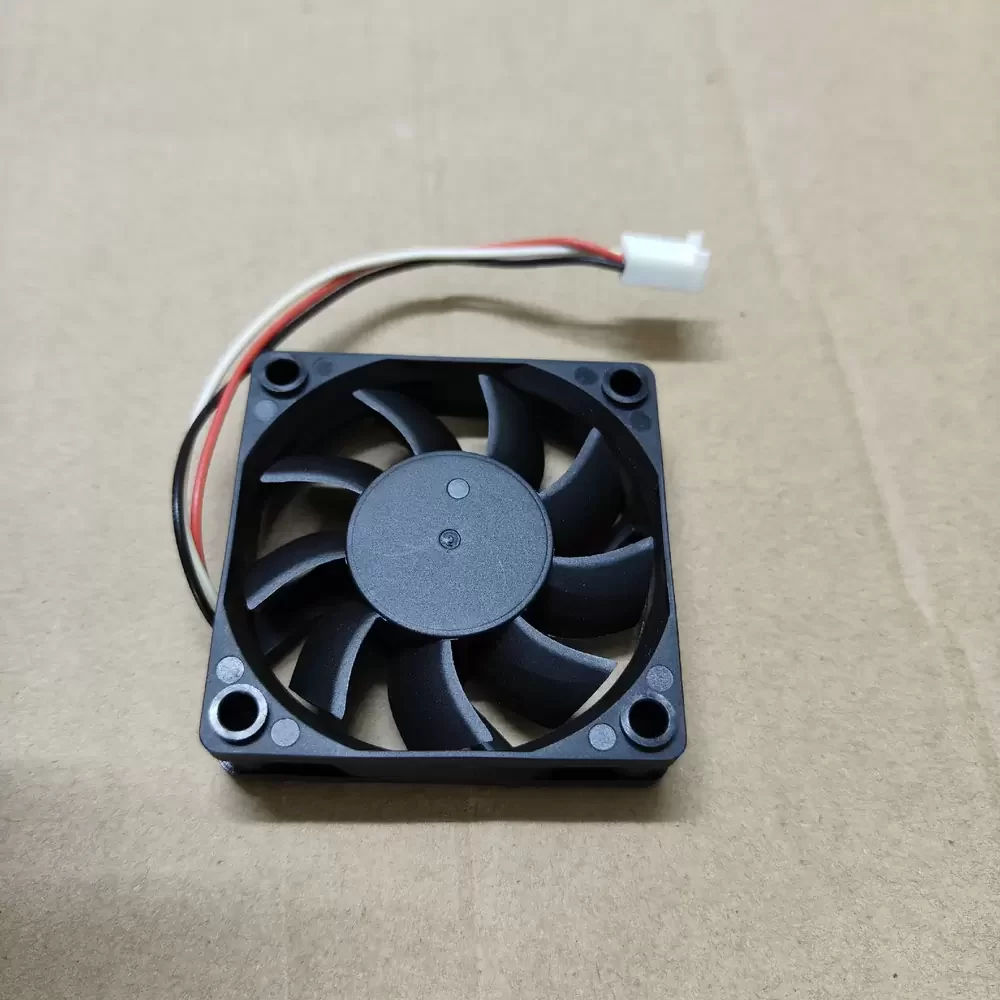

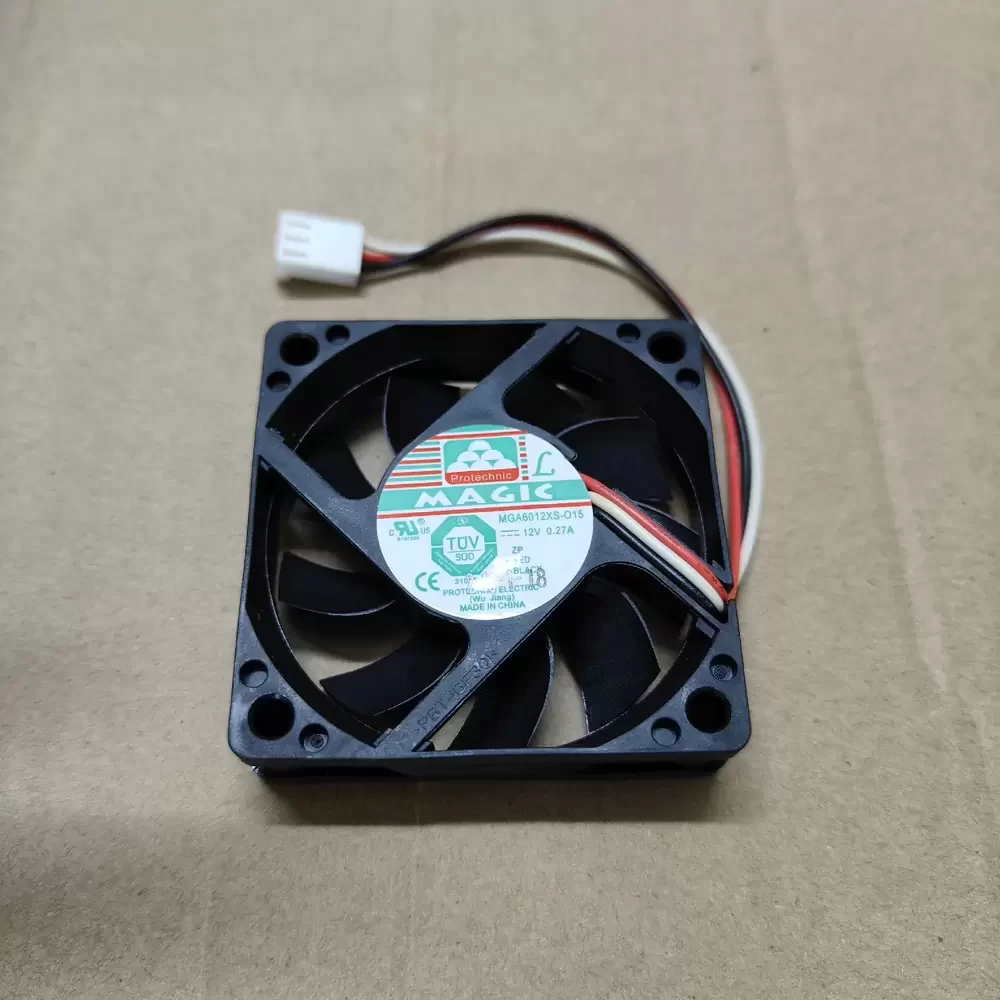

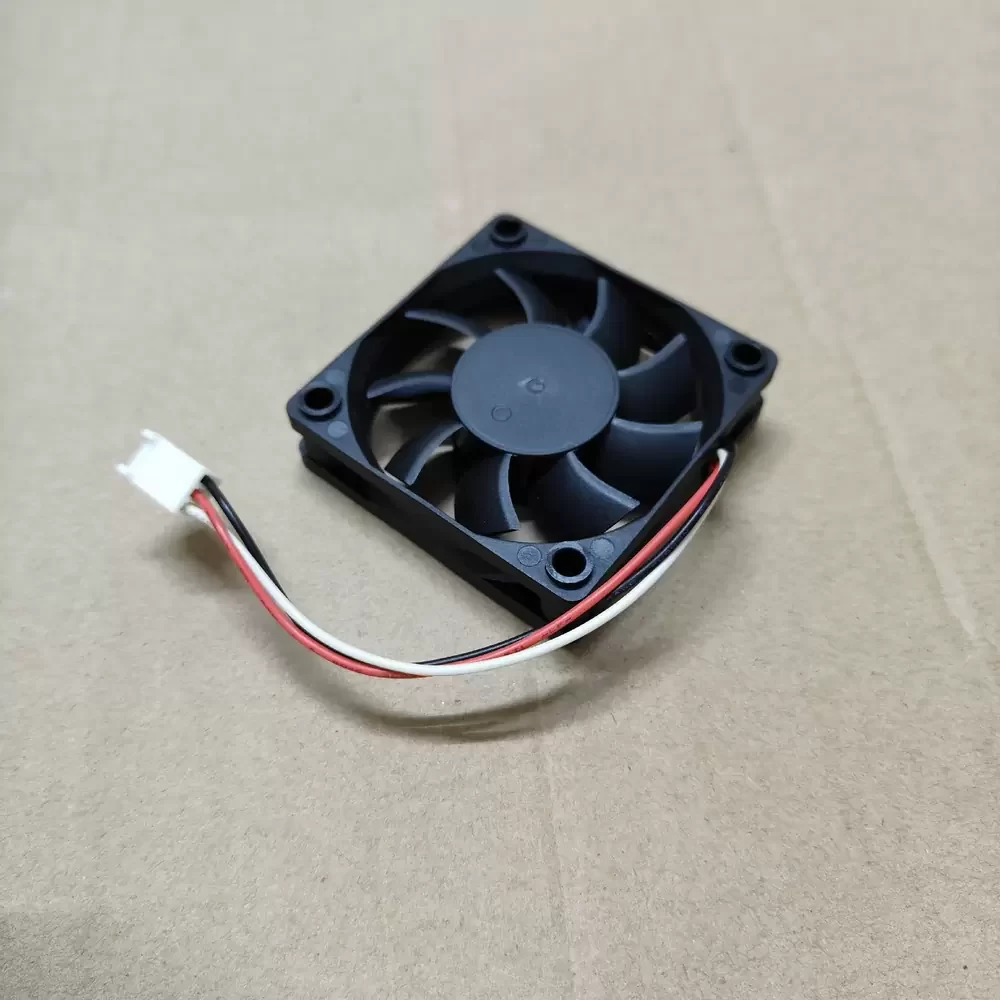

The Magic MGA6012XS-O15 is a precision-engineered DC Axial Fan designed for applications requiring consistent thermal management within a compact form factor. Leveraging advanced sleeve bearing architecture, this unit minimizes mechanical friction while maintaining structural rigidity under continuous operation. The motor assembly utilizes a 12VDC drive system to deliver optimized aerodynamic performance, characterized by efficient airflow delivery and managed thermal impedance. Engineered for reliability, the MGA6012XS-O15 integrates a 3-wire tachometer signal output, allowing for real-time speed monitoring and feedback loops in critical industrial electronics. Its housing is constructed to withstand standard operational stresses, ensuring longevity in chassis cooling and power supply ventilation scenarios.
Model Number: MGA6012XS-O15
Brand: Magic (Protechnic)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.27 A
Power Consumption: 3.24 W
Rated Speed: 4500 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 22.4 CFM (38.0 m³/h)
Max. Static Pressure: 3.8 mmH₂O (37.2 Pa)
Dimensions: 60x60x15mm
Weight: 45 g
Noise Level: 32.0 dBA
Speed Control: Tachometer Output (Speed Sensor)
Termination: 3-Wire Leads
Wire Definition: Red(+), Black(-), Yellow/White(Tach)
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Vertical or Horizontal
Certifications: CE, UL, TUV
The MGA6012XS-O15 is extensively utilized in compact electronic enclosures where efficient heat dissipation is critical to system stability. Common deployment environments include 1U/2U server rack chassis, industrial power supply units, and telecommunications switchgear that demand reliable airflow in confined spaces. Additionally, the MGA6012XS-O15 serves as a vital component in network storage appliances and medical instrumentation, providing necessary cooling to prevent thermal throttling of sensitive processors and power regulators.
