Description

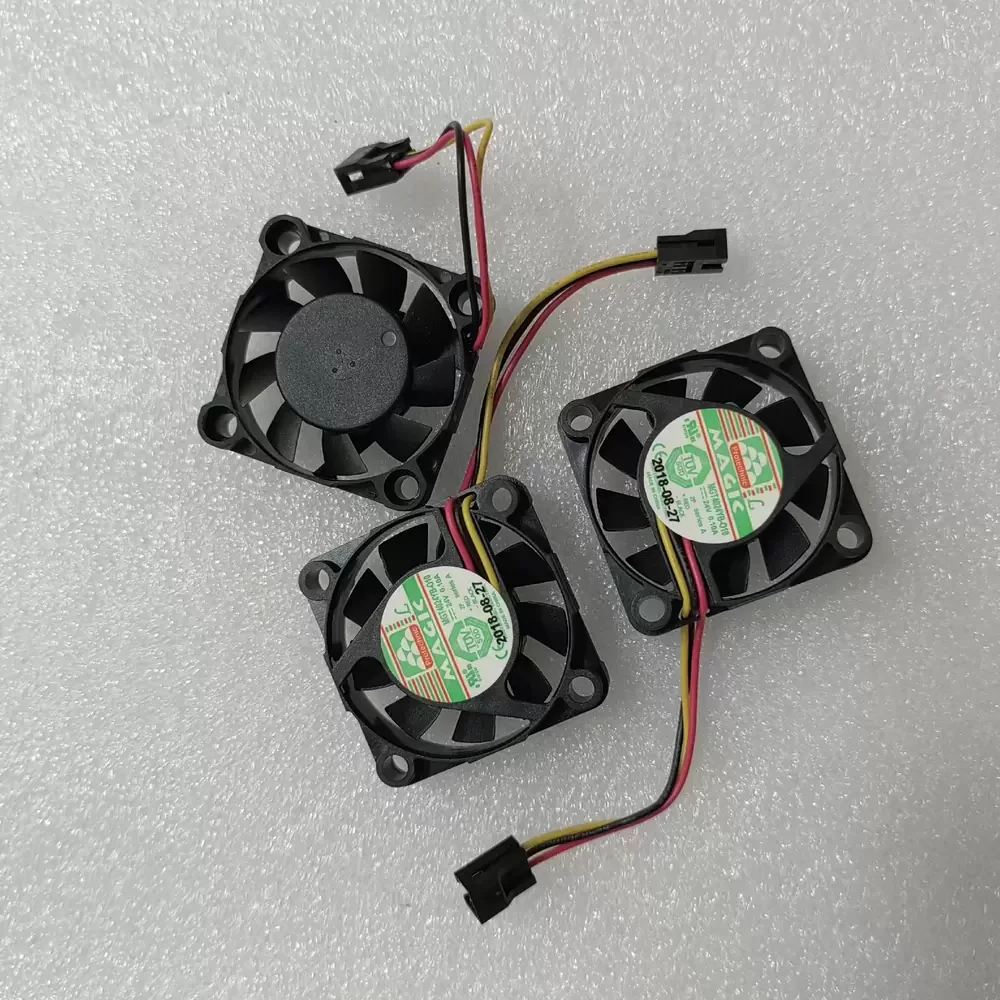

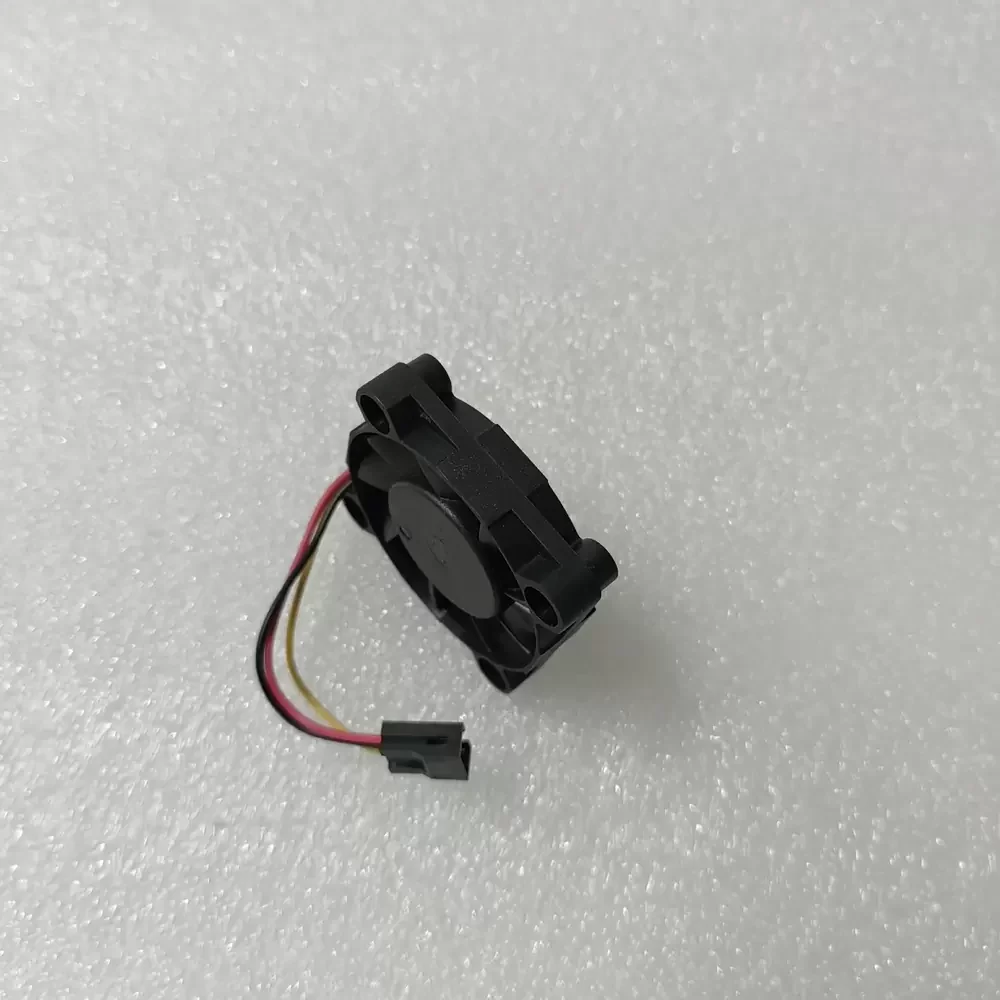

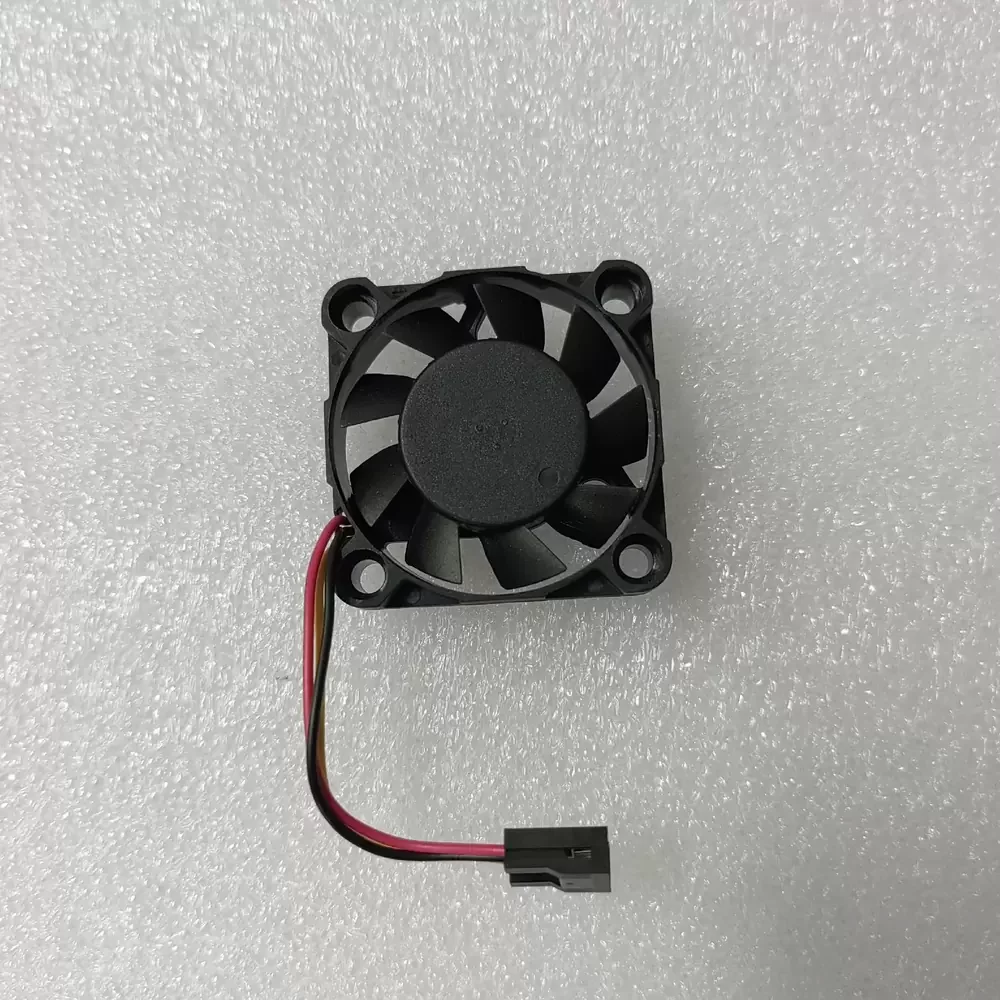

The Magic MGT4024YB-O10 is a specialized DC Axial Fan engineered for critical thermal management in precision electronics and industrial instrumentation. Utilizing advanced DC brushless motor technology and a robust dual ball bearing architecture, this unit ensures minimal frictional resistance and extended operational longevity under continuous load. The aerodynamic impeller design optimizes static pressure generation while maintaining a balanced acoustic profile, effectively reducing thermal impedance in space-constrained enclosures. Its high structural rigidity and UL94V-0 rated thermoplastic construction make it suitable for demanding operating environments requiring consistent airflow reliability.
Model Number: MGT4024YB-O10
Brand: Magic (Magic Precision)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.10 A
Power Consumption: 2.40 W
Rated Speed: 7500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 8.50 CFM (14.44 m³/h / 0.24 m³/min)
Max. Static Pressure: 5.84 mmH₂O (57.27 Pa / 0.23 inH₂O)
Dimensions: 40 x 40 x 10 mm
Weight: 25 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 32.0 dB(A)
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Wire Configuration: 3-Wire (+, -, Tachometer/FG)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Dielectric Strength: 500VAC for 1 Minute
Insulation Resistance: 10M Ohm at 500VDC
Motor Protection: Polarity Protection, Impedance Protected
Safety Certifications: UL, cUL, TUV, CE
This cooling solution is specifically calibrated for precision instrumentation, prominently utilized in laser equipment cooling systems where stable airflow is paramount to maintain optical stability. The MGT4024YB-O10 excels in compact medical devices, telecommunication hardware, and industrial power supplies, providing reliable heat dissipation for sensitive components. Furthermore, the MGT4024YB-O10 is frequently integrated into 1U server rack enclosures and optical drive bays, ensuring optimal thermal regulation for high-density electronic circuits.
