MGT5012YB-O20B Protechnic 12VDC 0.30A 50x50x12mm Cooling Fan

Description

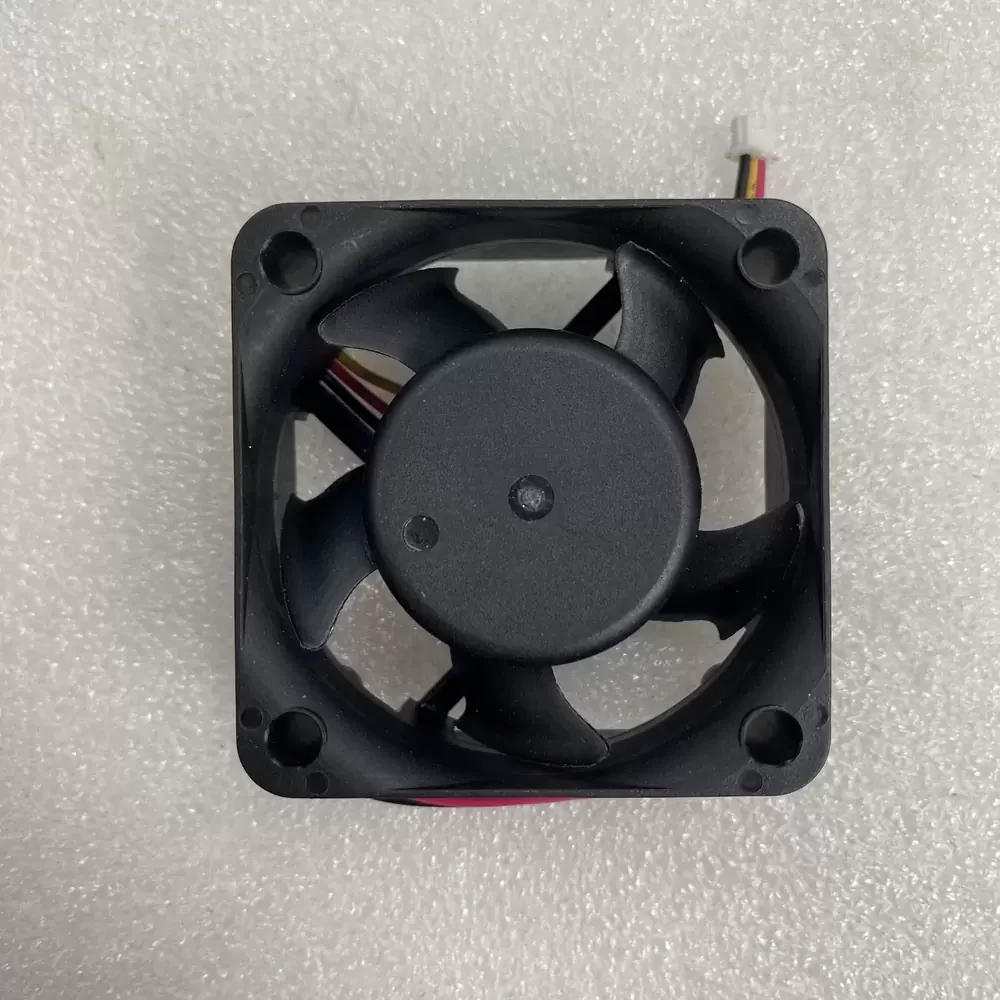

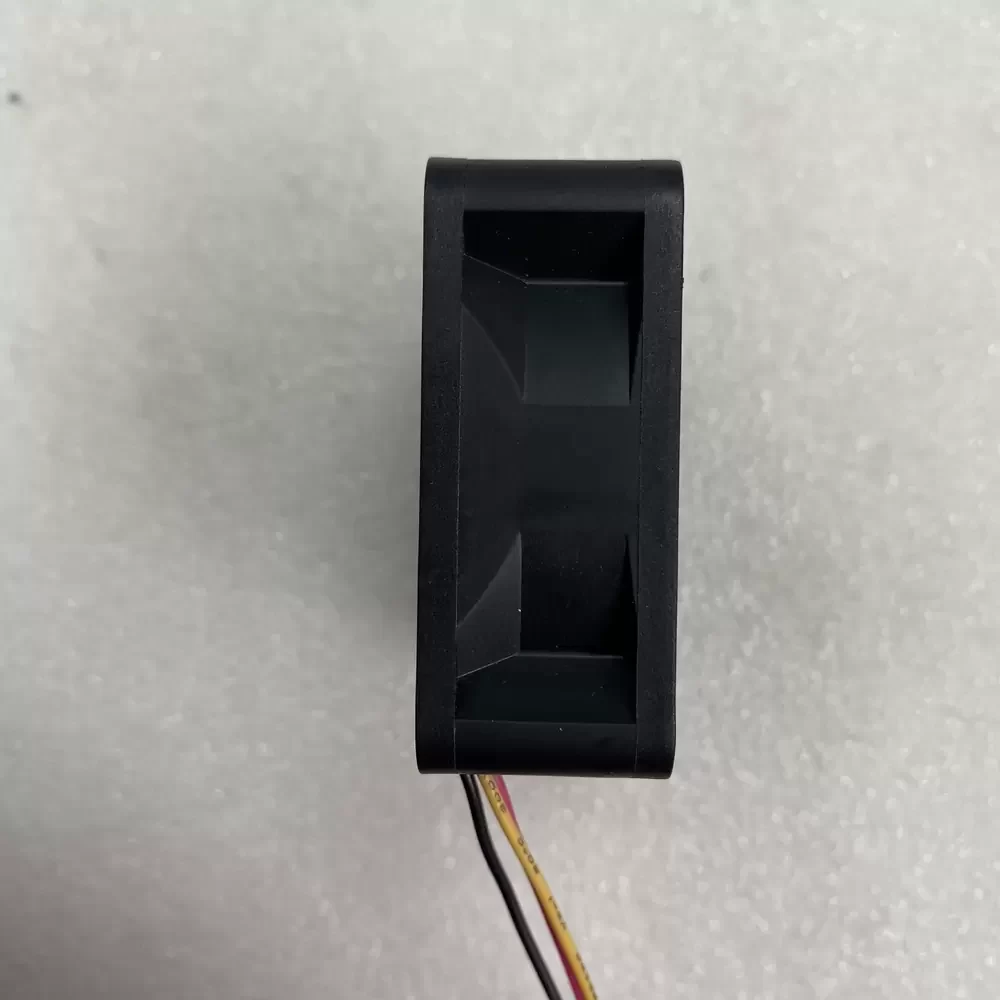

Protechnic MGT5012YB-O20B is a 50 x 50 x 12 mm axial cooling fan operating at a nominal 12 VDC with a 0.30 A current draw. The unit features a dual ball bearing system and a PBT plastic housing and impeller rated to UL 94V-0 standards. It utilizes a 3-wire interface providing power and a frequency generator (FG) signal for speed monitoring. The internal brushless DC motor is designed for high-static pressure performance with a compact 12 mm profile.

MGT5012YB-O20B Specifications
Model: MGT5012YB-O20B
Brand: Protechnic Electric
Dimensions: 50 x 50 x 12 mm
Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Current: 0.30 A
Power Consumption: 3.6 W
Bearing Type: Dual Ball Bearing
Termination: 3-Wire Lead Wires
Signal Output: Tachometer / FG Signal
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Motor Type: Brushless DC
Insulation Resistance: 10 M Ohm min. at 500 VDC
Dielectric Strength: 5 mA max. at 500 VAC for 1 minute

MGT5012YB-O20B Applications
Primary applications include integration into 1U rackmount servers, high-fidelity audio power amplifiers, and compact network switch enclosures. Deployed within industrial CNC control cabinets and medical diagnostic imaging equipment requiring localized thermal management in space-constrained chassis.
