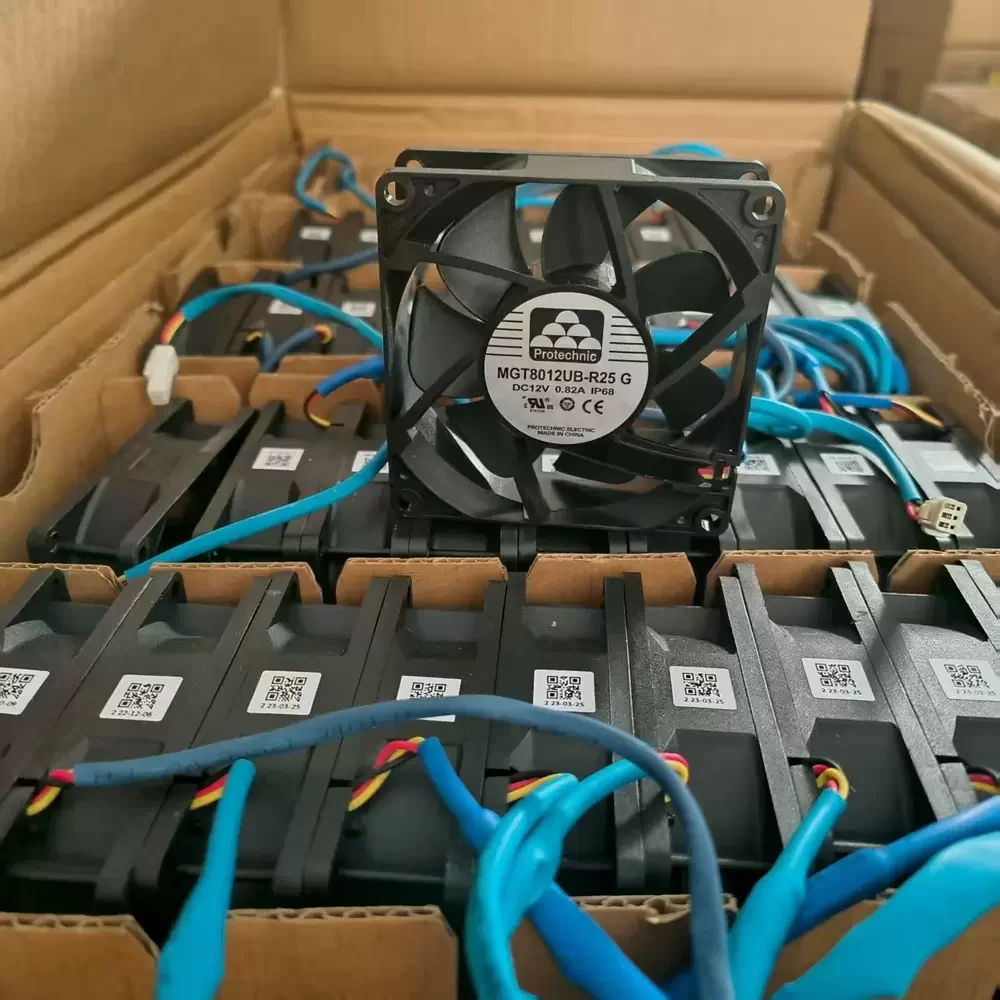

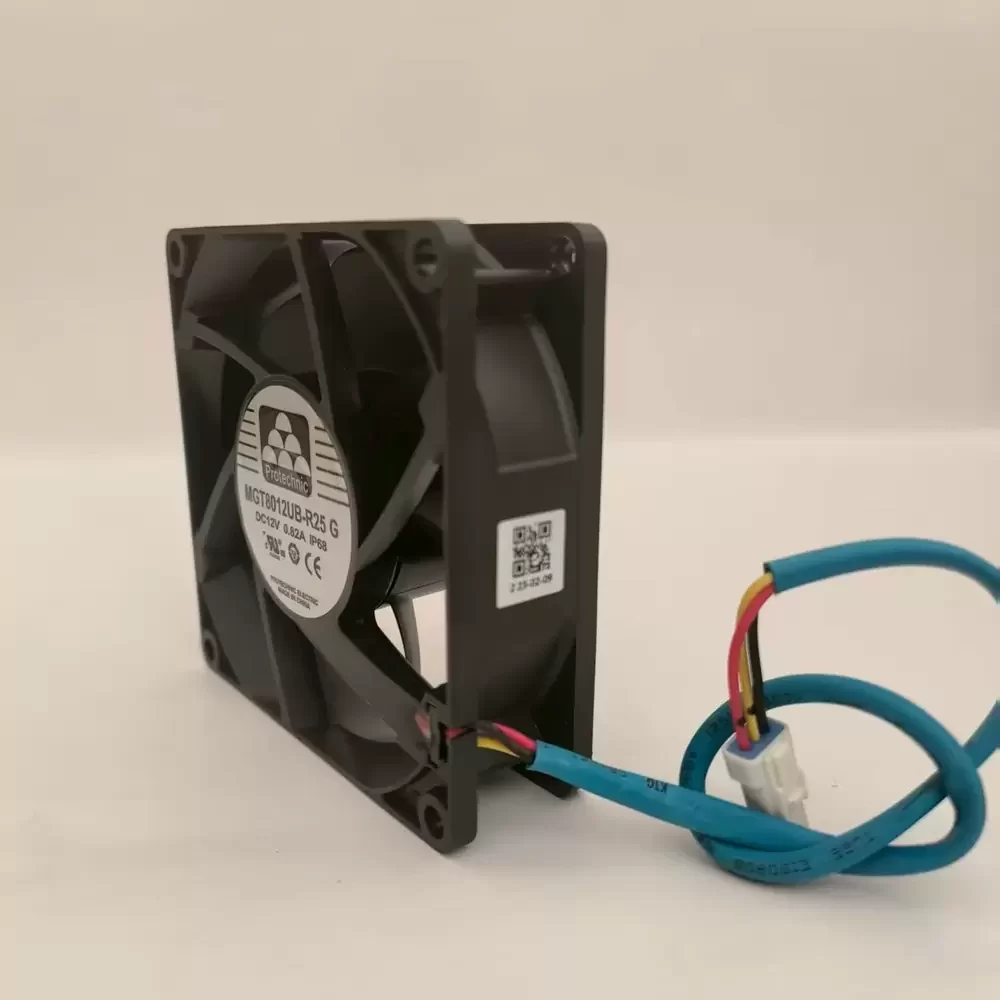

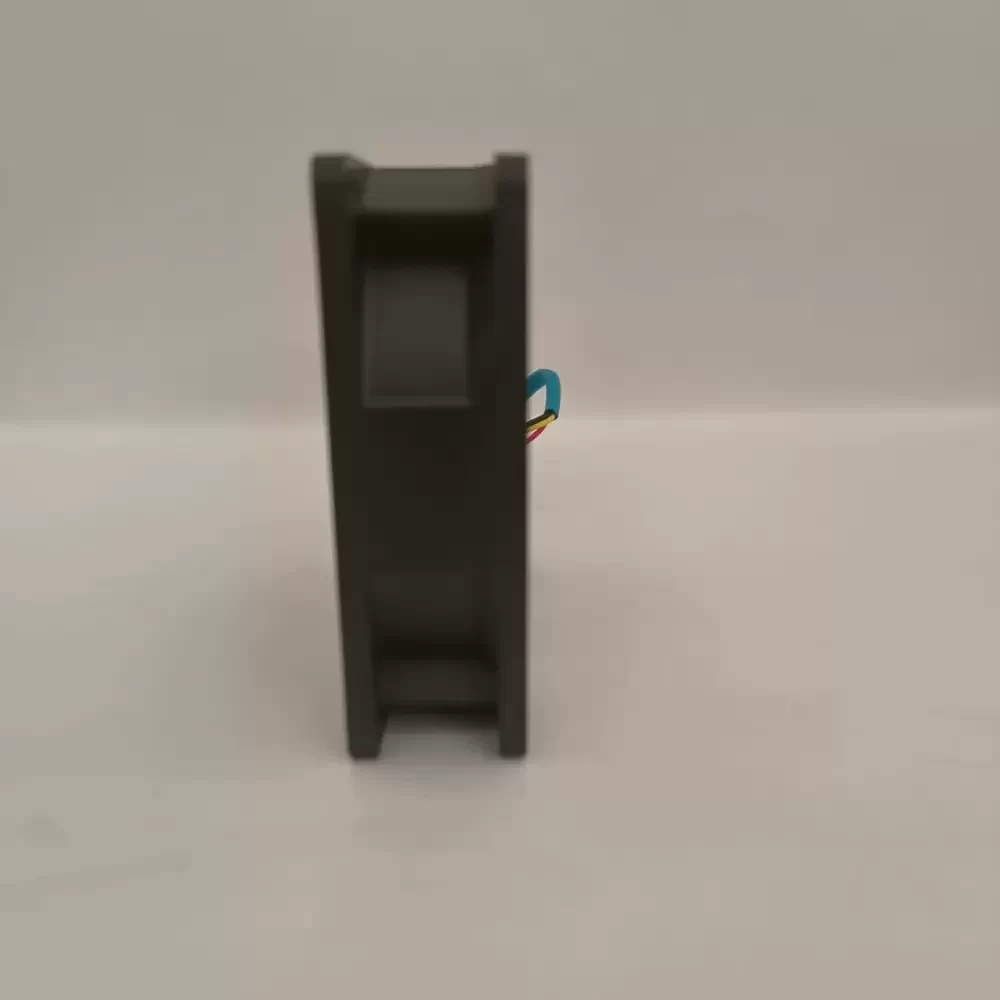

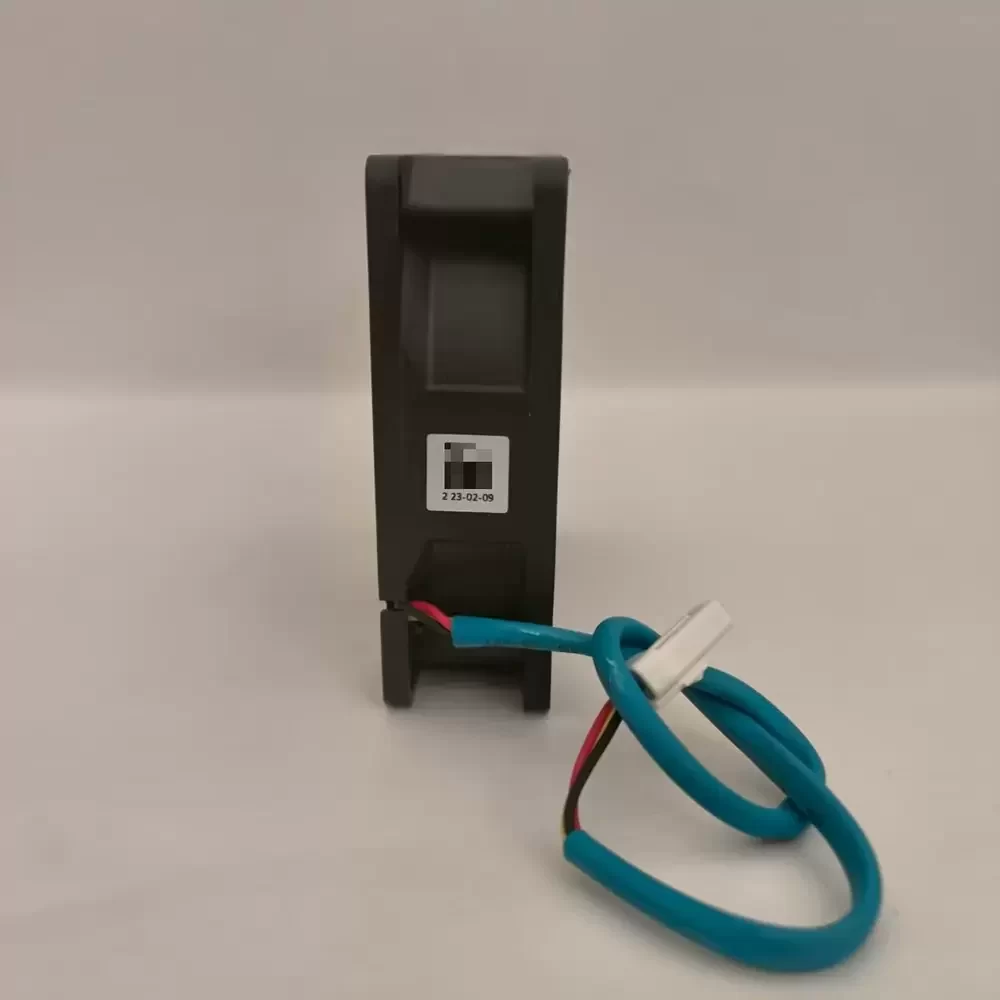

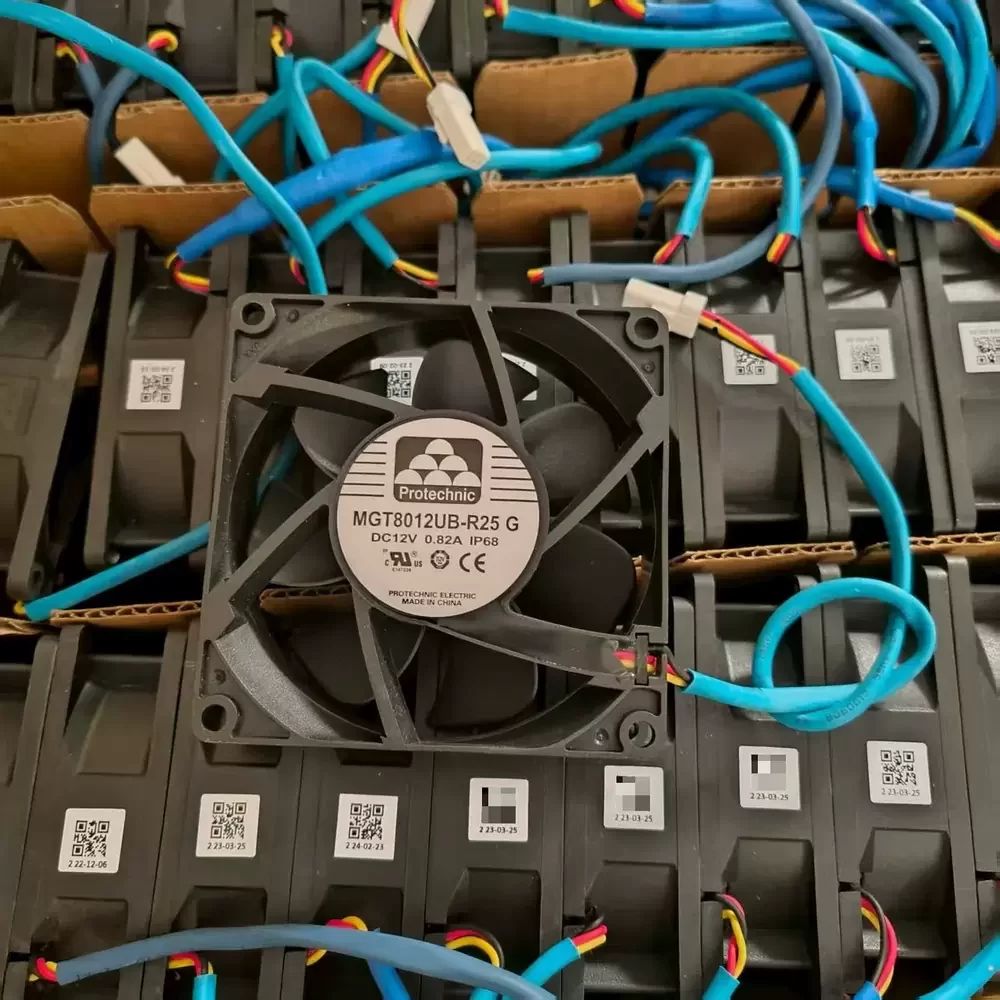

MGT8012UB-R25G Protechnic 12VDC 0.82A 80x80x25mm IP68 Axial Fan

Description

Protechnic MGT8012UB-R25G 80 x 80 x 25 mm 12 VDC 0.82 A 68.88 CFM axial fan. The unit features a dual ball bearing system and a PBT thermoplastic flange mount housing and impeller rated to UL 94V-0 flammability standards. It incorporates an IP68-rated encapsulation for complete protection against dust ingress and long-term immersion in water. The internal motor utilizes a brushless design with integrated auto-restart, locked rotor protection, and reverse connection protection mechanisms with a 3-wire lead wire interface.

MGT8012UB-R25G Specifications
Model: MGT8012UB-R25G
Brand: Protechnic Electric
Category: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 4.0 to 13.8 VDC
Rated Current: 0.82 A
Input Power: 9.84 W
Rated Speed: 4800 RPM
Maximum Airflow: 68.88 CFM
Static Pressure: 0.361 in H2O
Noise Level: 45.2 dBA
Bearing Type: Dual Ball Bearing
Ingress Protection: IP68
Material: PBT Plastic (UL 94V-0)
Termination: 3-wire lead wires
Operating Temperature: -10 to +70 °C
Life Expectancy: 50,000 hours at 70 °C
Weight: 90 g
Safety Certifications: UL, TUV, CE

MGT8012UB-R25G Applications
Primary applications include integration into high-density server rack enclosures, industrial workstation chassis, and telecommunications base station cooling modules. Deployed within CNC control cabinets and outdoor power inverter thermal management systems requiring IP68 environmental resistance.
