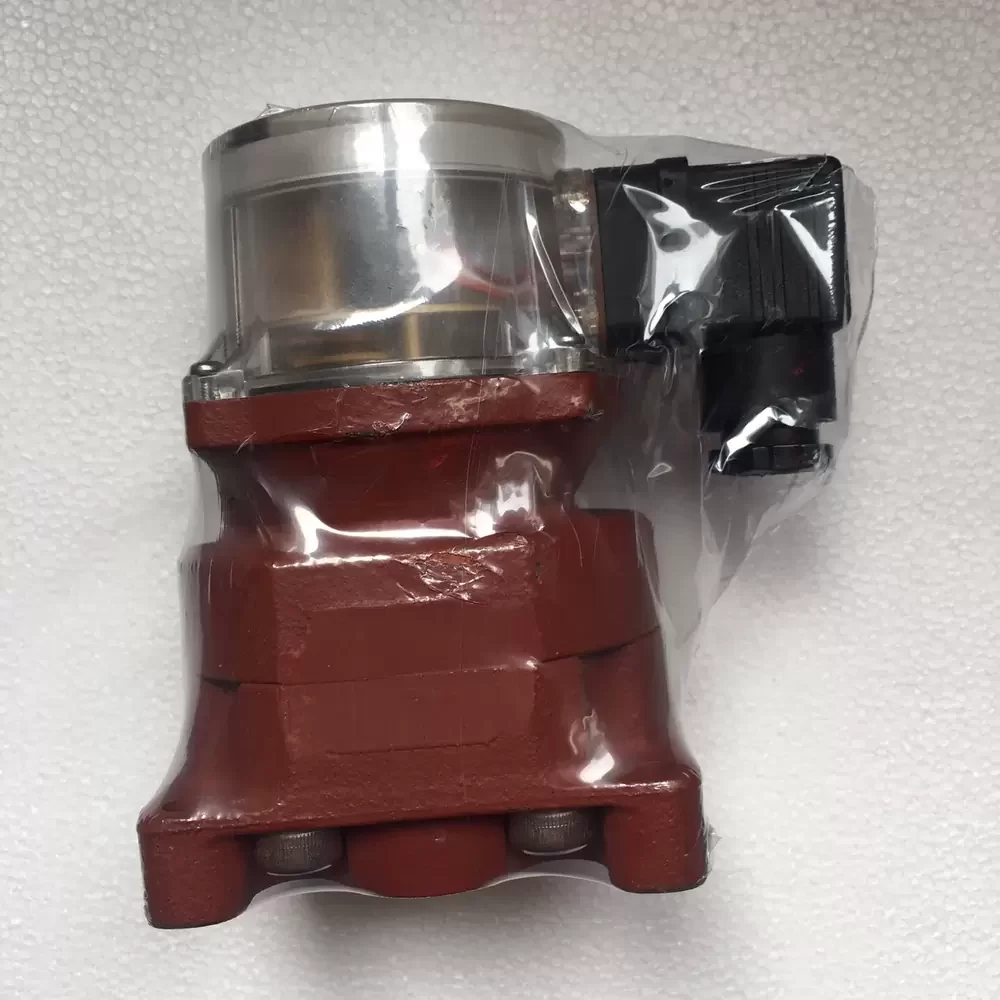

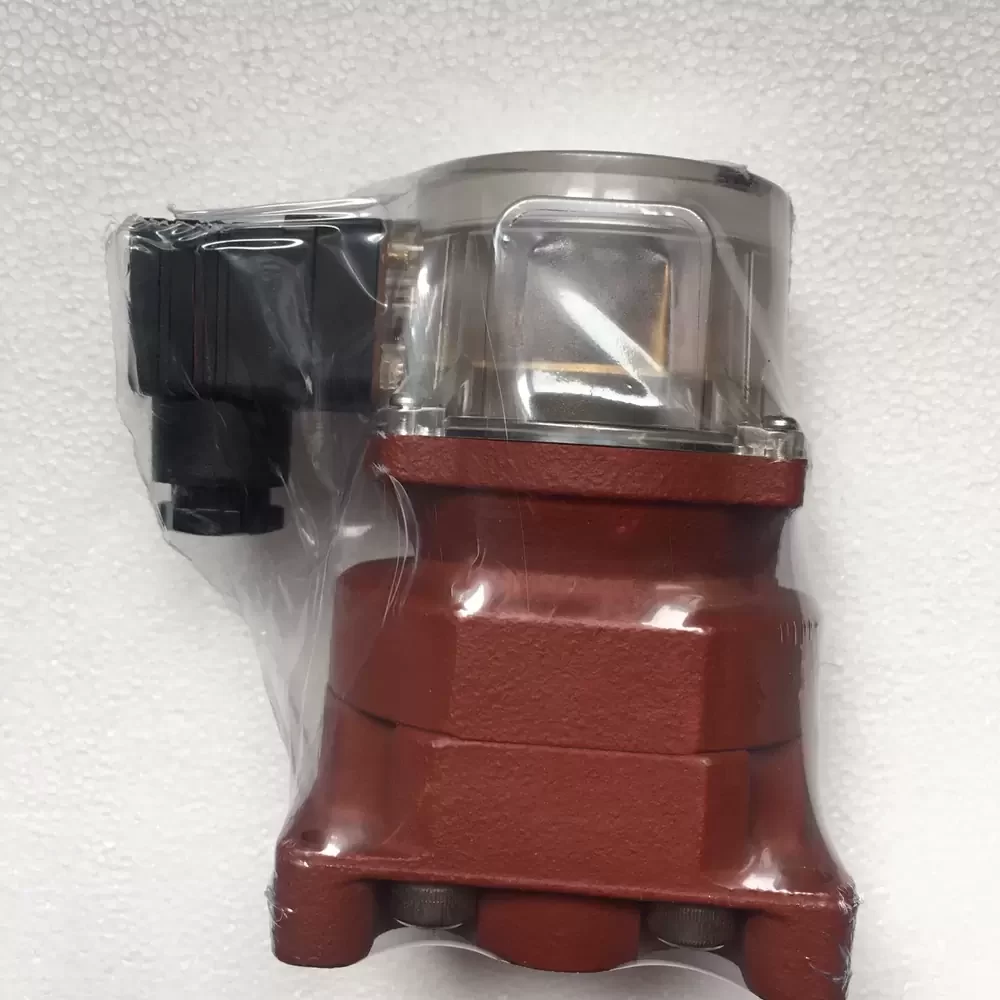

NPI45B10 1157CC OVAL 13.7MPa 1157cc Valve Position Indicator

Description

OVAL NPI45B10 1157CC is a positive displacement valve position indicator featuring a 1157 cc chamber capacity, 13.7 MPa maximum pressure rating, and dual SPDT microswitches. The unit utilizes high-precision oval gear rotors to measure hydraulic fluid displacement, translating volumetric flow into a direct-reading visual pointer with ±0.3 % accuracy. Constructed with an FC 250 cast iron body and a slip friction clutch mechanism, it automatically synchronizes the pointer at 97 % to 100 % of the actuator stroke. The internal assembly includes a reduction gear train and a magnetic coupling to isolate the register from the high-pressure hydraulic circuit.

NPI45B10 1157CC Specifications
Model: NPI45B10 1157CC
Brand: OVAL Corporation
Product Category: Valve Position Indicator
Measurement Principle: Positive Displacement (Oval Gear)
Chamber Capacity: 1157 cc
Maximum Operating Pressure: 13.7 MPa
Indicating Accuracy: 0 to +3 %
Flow Accuracy: ±0.3 %
Switch Type: Micro Switch (SPDT) x 2
Switch Rating: 250 V AC / 1 A
Body Material: FC 250 Cast Iron
Rotor Material: Stainless Steel / Special Alloy
Shaft Material: Stainless Steel
Operating Temperature: -10 to +80 °C

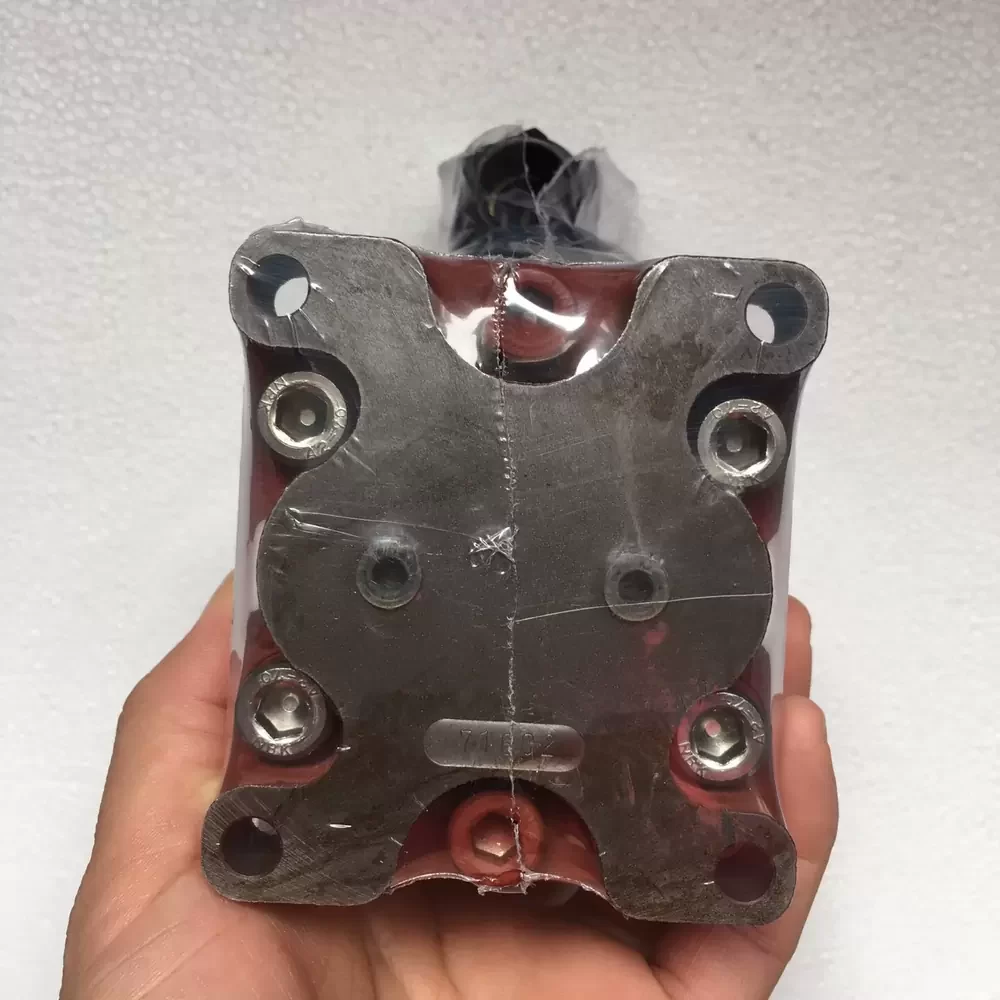

Connection Size: Rc 3/8
Cable Entry: G 1/2
Weight: 2.2 kg
Feature: Slip Friction Clutch for Auto-Correction

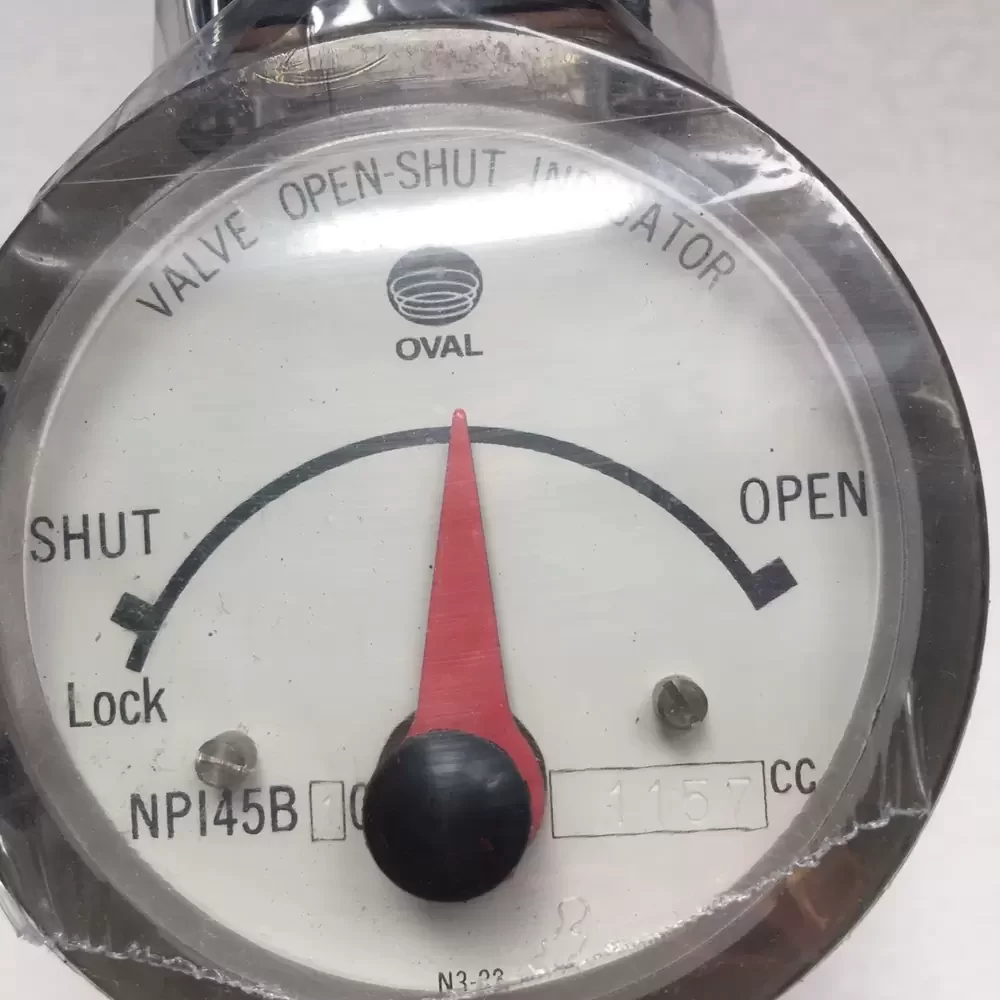

Indicator: 0-100 % Scale with Direct-Reading Pointer

NPI45B10 1157CC Applications
Primary applications include integration into hydraulic actuator lines for remote position feedback in marine ballast water management and oil tanker cargo systems. Deployed within centralized supervisory systems for monitoring the open/shut status of high-pressure hydraulic valves in offshore platforms and shipboard engine rooms.
