Description

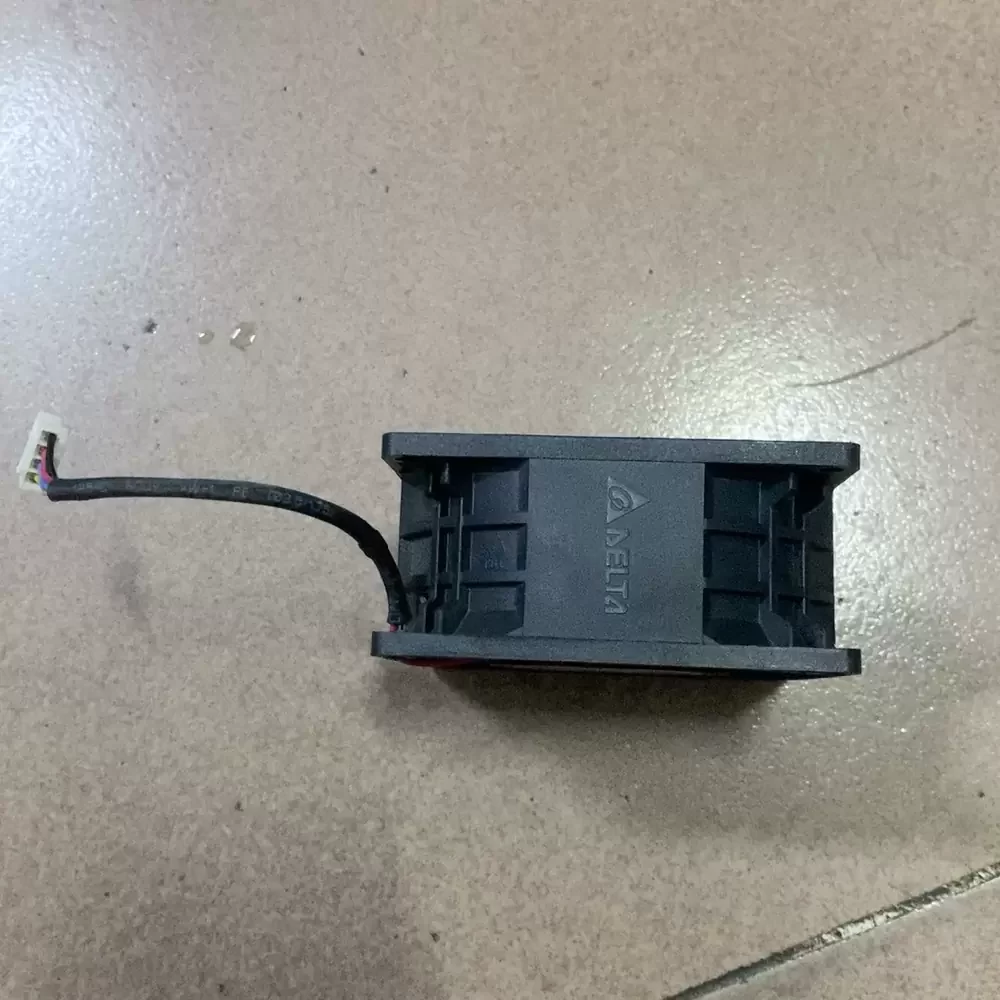

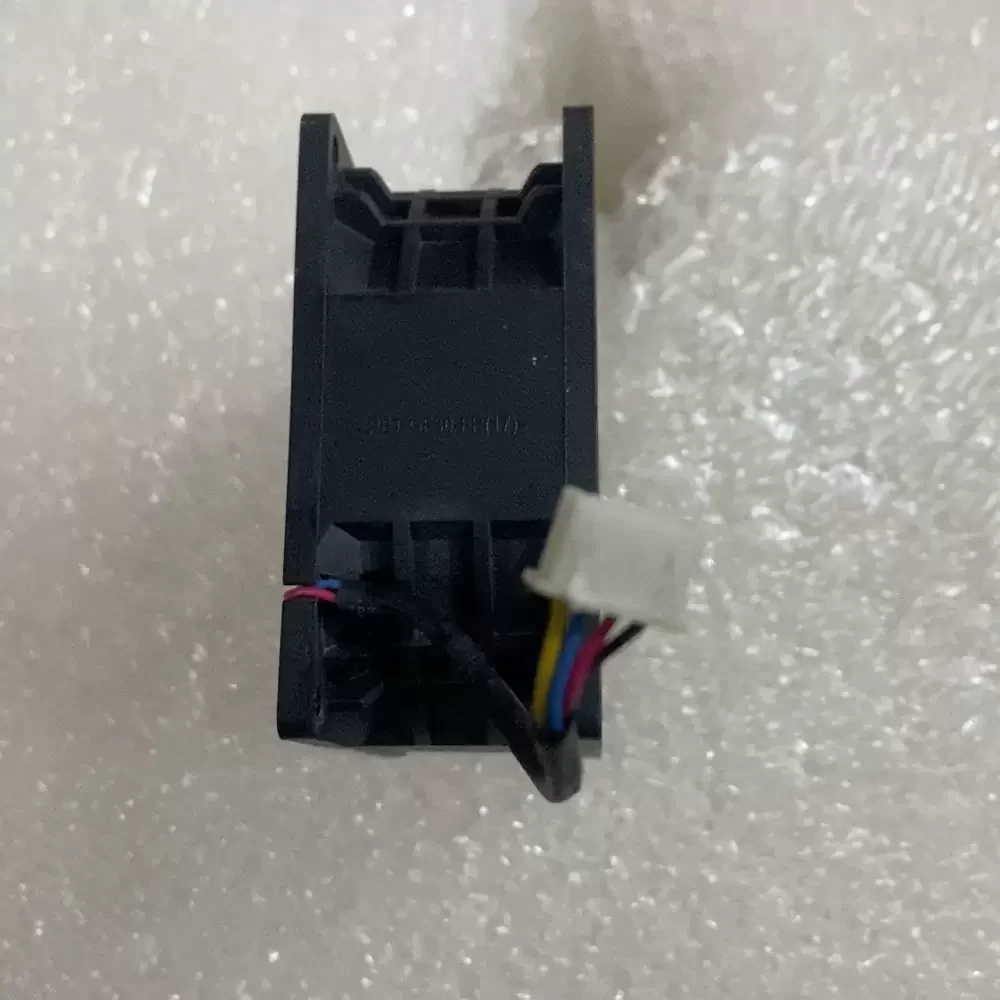

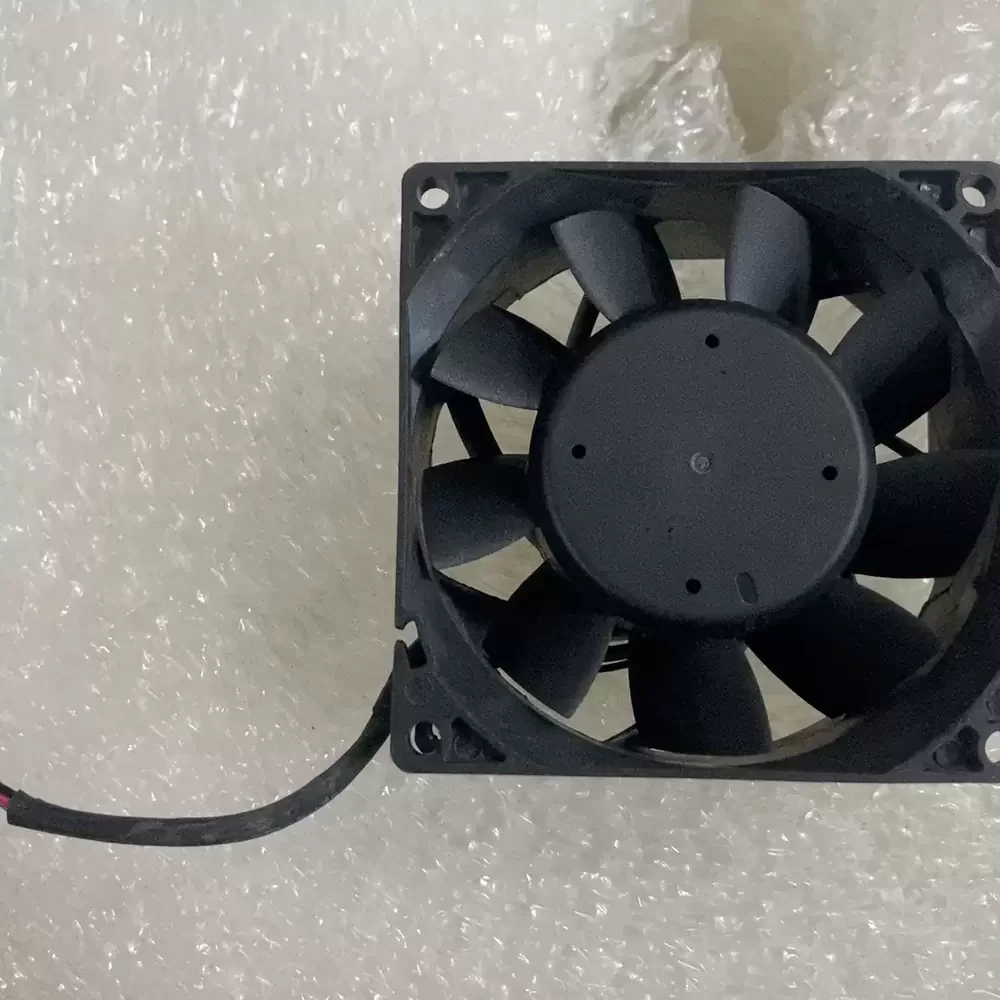

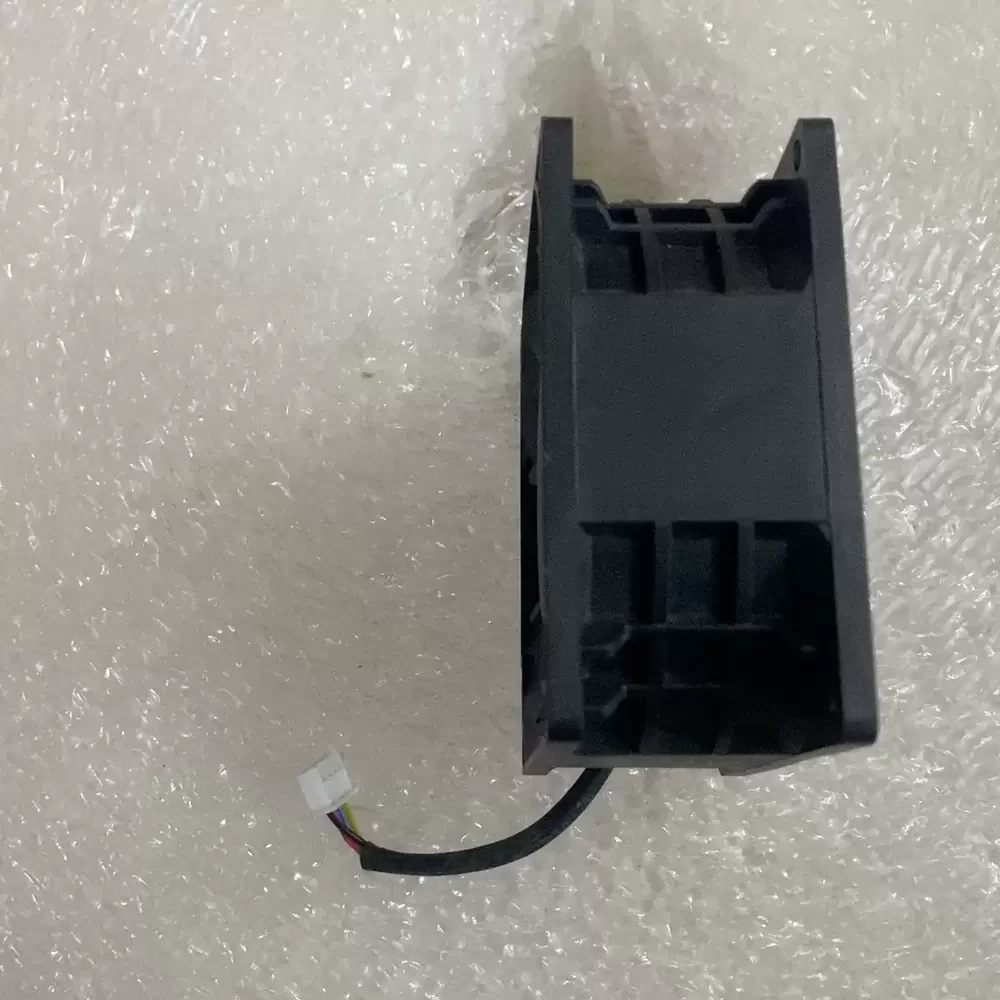

The Delta PFB0824DHE-W52 is a high-density DC axial fan engineered for mission-critical thermal management where structural rigidity and low thermal impedance are paramount. Utilizing a brushless DC motor architecture, this unit incorporates a dual ball bearing system designed to withstand high radial loads and maintain rotational stability at extreme velocities. The aerodynamic impeller geometry is optimized to maximize static pressure, ensuring efficient airflow through high-resistance heat sinks and densely packed electronic enclosures. Its robust PBT thermoplastic housing meets UL94V-0 flammability standards, providing a durable chassis for industrial-grade deployment.
Model Number: PFB0824DHE-W52
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 26.4 VDC
Rated Current: 1.63A
Power: 39.12W
Rated Speed: 9000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 132.56 CFM (3.753 m³/min)
Max. Static Pressure: 51.17 mmH₂O (2.014 inH₂O)
Noise Level: 65.0 dB-A
Dimensions: 80x80x38mm
Weight: 200g
Life Expectancy: 70,000 Hours at 40C
Speed Control: PWM Signal
Output: Tachometer / Frequency Generator
Termination: 4-Lead Wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature: -10C to +60C
Storage Temperature: -40C to +70C
Insulation Class: Class A
The Delta PFB0824DHE-W52 is specifically designed for high-performance computing environments and industrial automation systems. Given its significant static pressure capabilities, the PFB0824DHE-W52 is frequently integrated into 2U server chassis, telecommunications base stations, and high-speed network switches. The PFB0824DHE-W52 also serves as a critical cooling component in power supply units and medical diagnostic equipment where rapid heat dissipation is required to maintain system integrity.
