Description

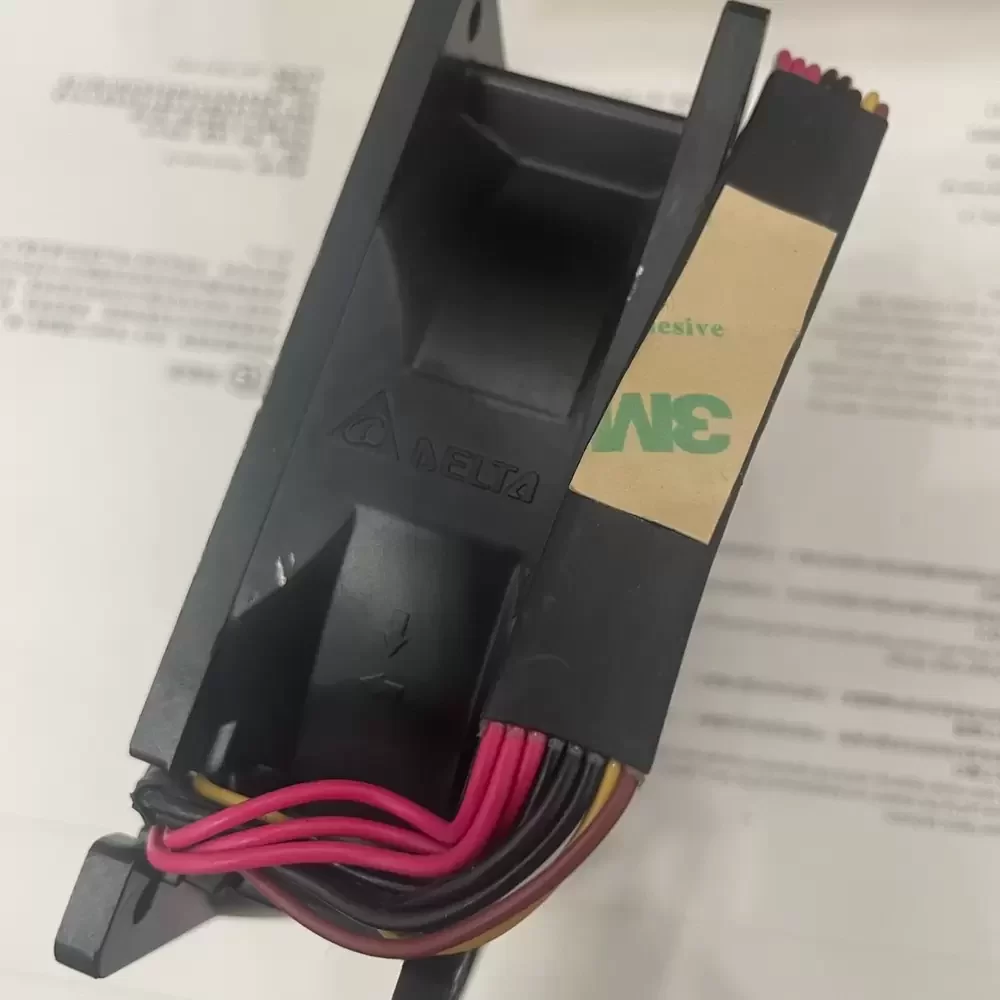

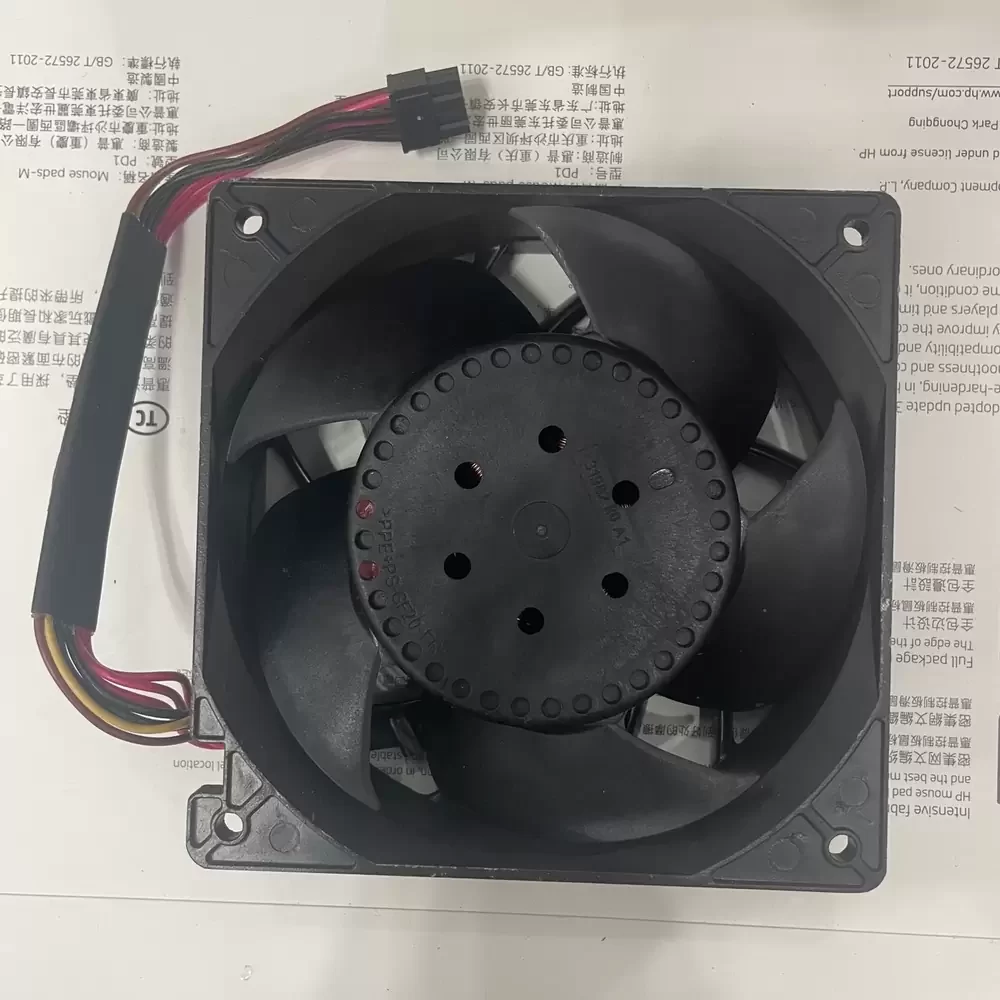

The Delta THD1212HE-00BLM is a robust industrial axial fan designed for demanding thermal management applications requiring substantial airflow and durability. Featuring a specialized metal housing and a precision-engineered dual ball bearing system, this unit ensures exceptional structural rigidity and operational longevity under high-stress conditions. The aerodynamic blade design optimizes airflow efficiency while maintaining significant static pressure, making it an ideal solution for critical cooling requirements in power electronics and variable frequency drives where thermal impedance must be minimized.
Model Number: THD1212HE-00BLM
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 12.0 A
Power Input: 144.0 W
Rated Speed: 6500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 260.5 CFM (442.6 m³/h)
Max. Static Pressure: 32.4 mmH₂O (317.7 Pa)
Dimensions: 120 x 120 x 38 mm
Housing Material: Metal (Aluminum Die-Cast)
Blade Material: Reinforced Plastic UL94V-0
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy: 70,000 Hours at 40°C
Ingress Protection: IP55 (Estimated)
Safety Certifications: UL, CUL, TUV, CE
The THD1212HE-00BLM is engineered for high-density industrial environments, specifically excelling in the thermal regulation of variable frequency drives (VFDs) and power inverters. Its robust metal construction allows for reliable operation in machinery where vibration and heat are prevalent, such as CNC control cabinets, heavy-duty power supplies, and telecom rectifiers. By integrating the THD1212HE-00BLM into critical infrastructure, operators ensure consistent airflow delivery, preventing thermal throttling in sensitive electronic components.
