Description

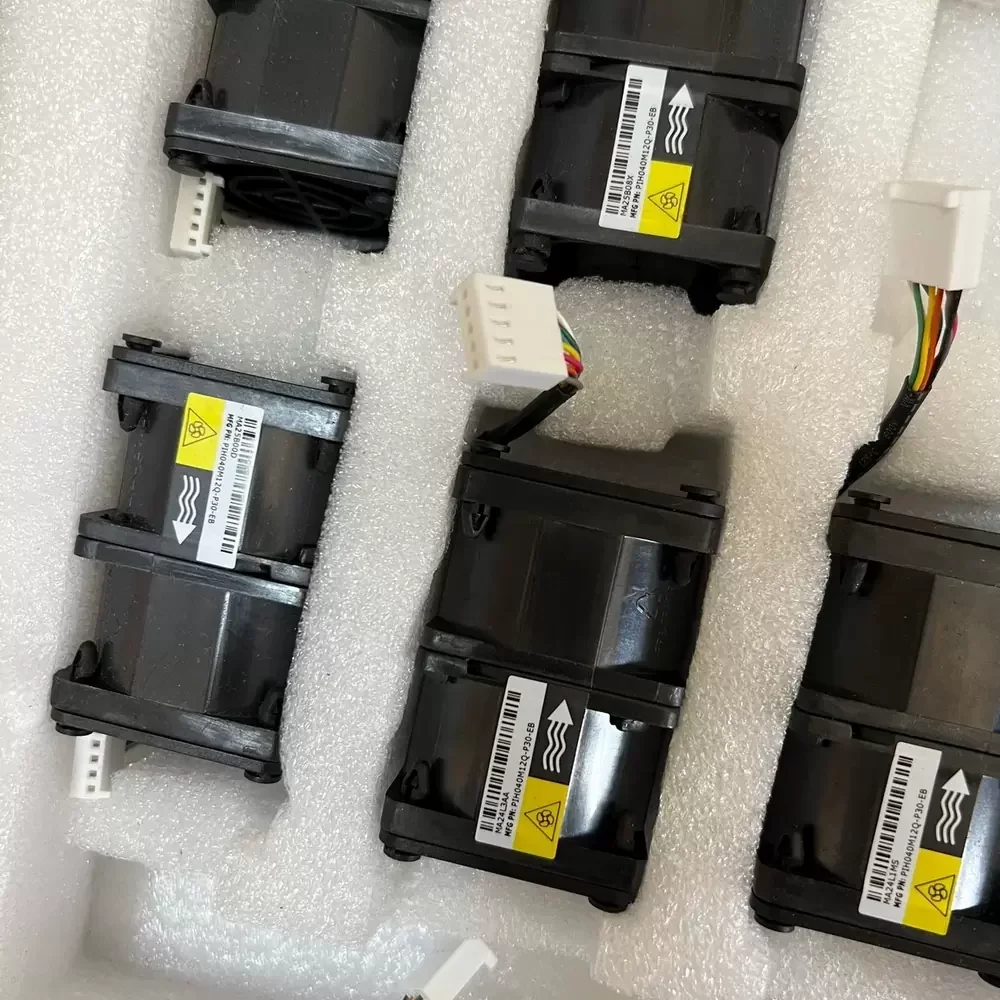

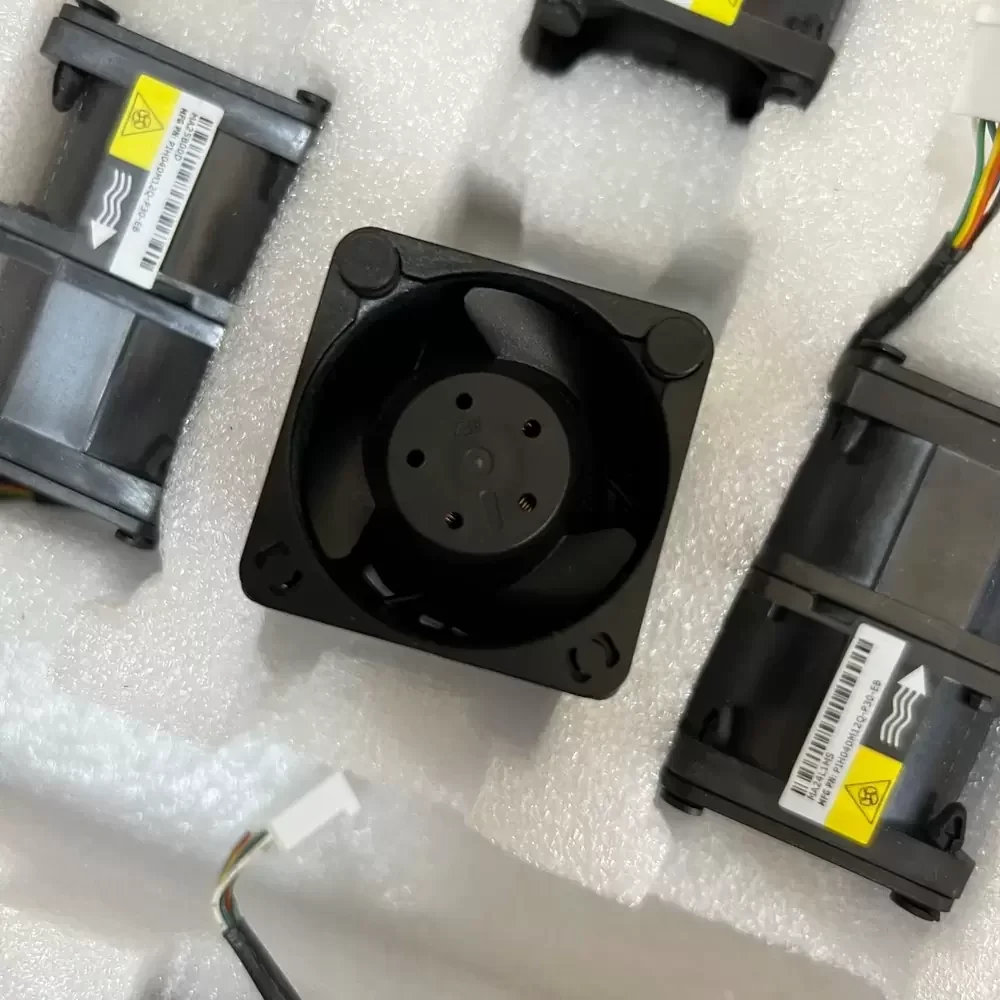

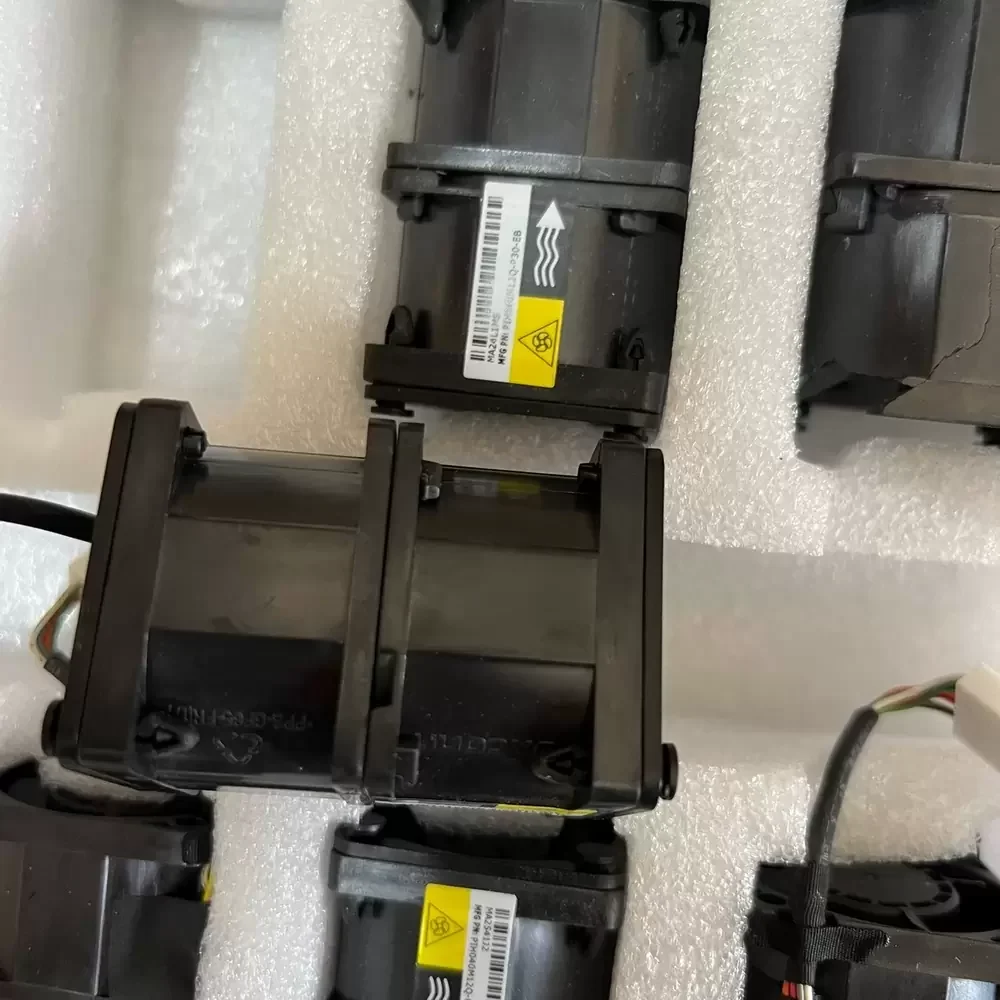

The Foxconn PIH040M12Q-P30-EB is a specialized counter-rotating axial fan designed for high-density server environments requiring extreme static pressure capabilities. This unit features a dual-motor architecture housed within a compact 40x40x56mm frame, utilizing advanced DC motor technology to deliver exceptional aerodynamic performance. Engineered with precision ball bearings, the fan ensures structural rigidity and long-term reliability under continuous high-speed operation. The design optimizes thermal impedance management, making it ideal for forcing air through restrictive heatsinks and dense chassis configurations where standard single-rotor fans fail to overcome system resistance.
Model Number: PIH040M12Q-P30-EB
Brand: Foxconn
Product Type: Counter-Rotating Axial Fan (Dual Motor)
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 5.00 A
Power Consumption: 60.0 W
Rated Speed: High Speed (Dual Rotor Configuration)
Bearing Type: Dual Ball Bearing
Max. Air Flow: High Output (Supercharging Profile)
Max. Static Pressure: High Static Pressure (Server Grade)
Dimensions: 40 x 40 x 56 mm
Weight: Approx. 85g
Life Expectancy: 70,000 Hours @ 40°C
Speed Control: PWM (Pulse Width Modulation)
Ingress Protection: IP40
Insulation Class: Class A
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: 4-Wire / 8-Wire Interface
Operating Temperature: -10°C to +70°C
Mounting Orientation: Any
Motor Protection: Locked Rotor Protection, Polarity Protection
The PIH040M12Q-P30-EB is engineered primarily for 1U server racks and blade chassis systems where space is limited but cooling requirements are critical. Due to its high static pressure capabilities, the PIH040M12Q-P30-EB is effectively deployed in telecommunications equipment, network switches, and high-performance computing clusters to drive airflow through dense component layouts and restrictive heatsinks.
