Description

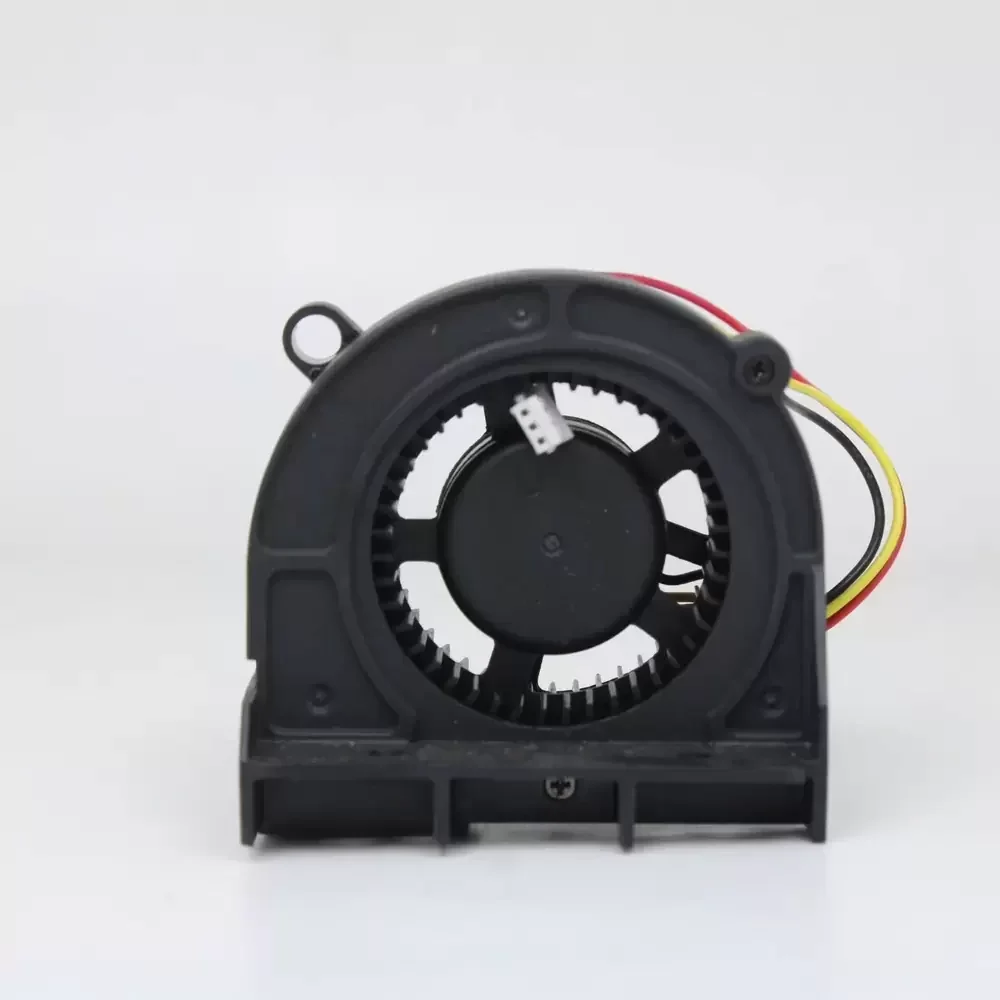

The SUNON EF50201S1-C000-G99 is a DC Blower Fan engineered for high-static pressure applications where airflow must be concentrated through restricted ducts or heatsinks. Utilizing a precision Sleeve Bearing architecture, this 50mm centrifugal unit delivers reliable thermal impedance management within a compact footprint. The aerodynamic impeller design optimizes air intake and exhaust velocity, ensuring efficient cooling for densely packed electronic components. Operating at 12VDC with a power consumption of 1.02W, it balances structural rigidity with acoustic performance, making it suitable for precision industrial equipment requiring consistent directed airflow.
Model Number: EF50201S1-C000-G99
Brand: SUNON
Product Type: DC Blower Fan
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Rated Current: 0.085 A
Power Consumption: 1.02 W
Rated Speed: 5000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 4.6 CFM (7.8 m³/h / 0.13 m³/min)
Max. Static Pressure: 0.48 inH₂O (12.2 mmH₂O / 119.5 Pa)
Dimensions: 50x50x20mm
Weight: 33 g
Noise Level: 36.0 dB(A)
Termination: 3-Wire Leads with Connector
Output Signal: Tachometer (FG)
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Insulation Class: Class A
Safety Certifications: UL, CUR, TUV, CE
The EF50201S1-C000-G99 is specifically designed for applications requiring directed airflow and high static pressure, such as compact projectors, humidifiers, and 3D printer hotend cooling systems. Its centrifugal design allows the EF50201S1-C000-G99 to effectively push air through 90-degree turns and restricted ventilation ducts in rack-mounted servers and portable medical instrumentation.
