Description

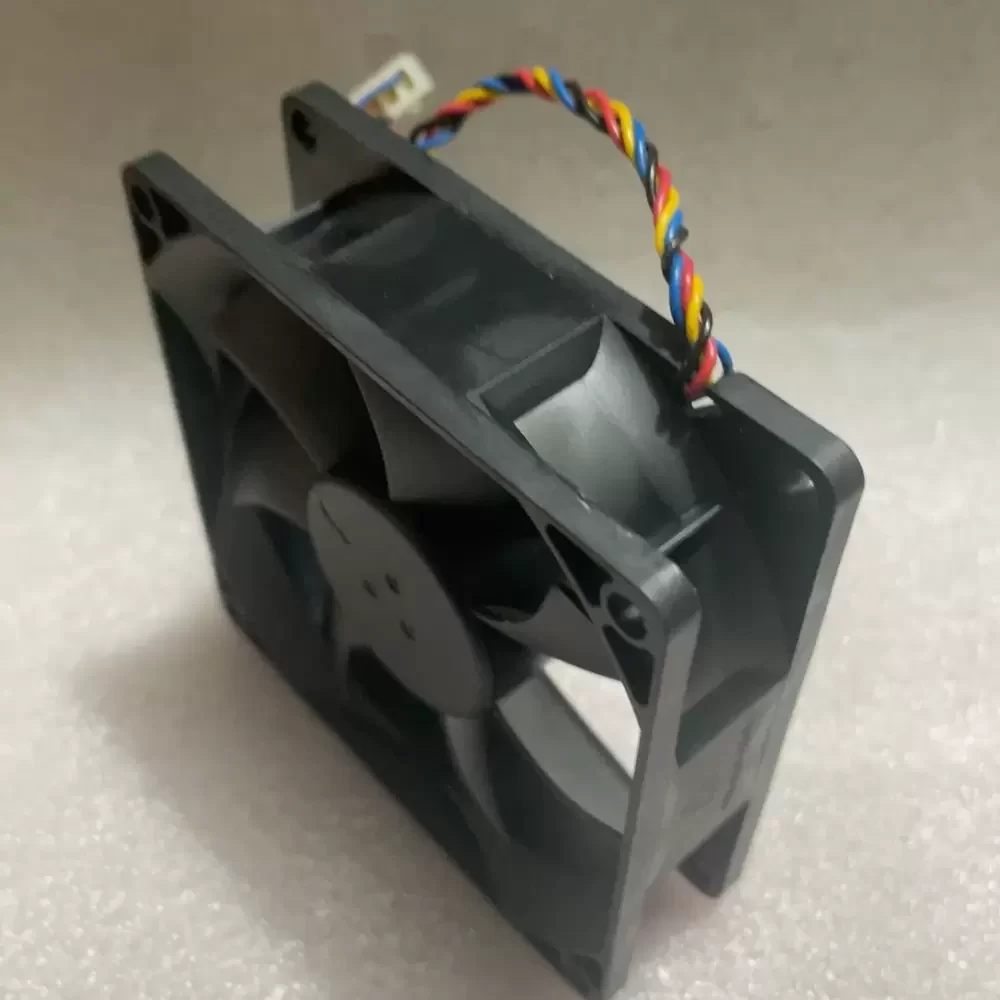

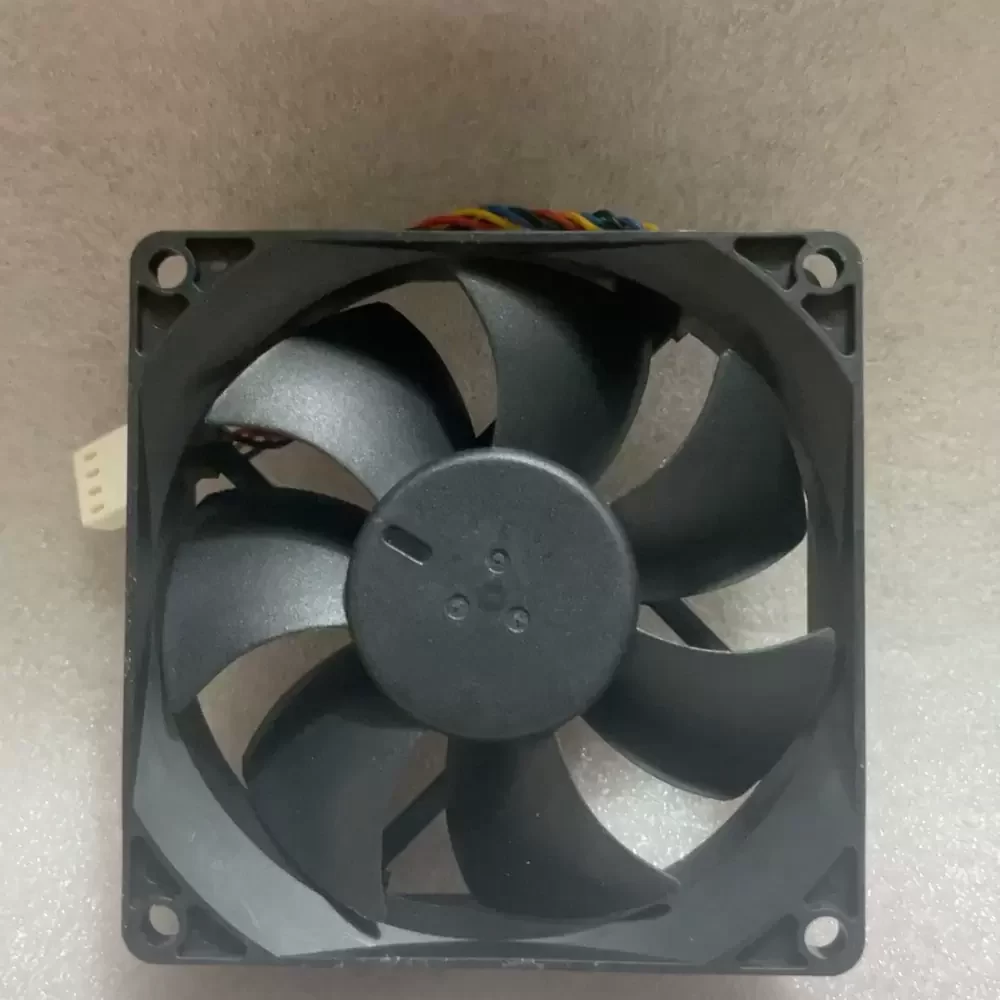

The Foxconn PVA080G12R-P30-AB is a high-performance Axial Fan engineered for critical thermal management in dense electronic environments. Utilizing a robust DC motor architecture paired with a precision Dual Ball Bearing system, this unit ensures exceptional structural rigidity and operational longevity under continuous load. The aerodynamic impeller design is optimized to deliver high static pressure, effectively overcoming thermal impedance in restricted chassis layouts. Featuring a 4-wire interface, the PVA080G12R-P30-AB supports PWM speed modulation, allowing for dynamic airflow adjustment to balance cooling efficiency with acoustic performance in industrial and server-grade applications.
Model Number: PVA080G12R-P30-AB
Brand: Foxconn
Product Type: Axial Fan
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.80 A
Power Consumption: 9.60 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 62.0 CFM (105.3 m³/h / 1.75 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 95 g
Noise Level: 46.5 dBA
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Lead with Connector
Wire Assignment: Red (+), Black (-), Yellow (Tach), Blue (PWM)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Mounting Orientation: Any
This cooling solution is specifically designed for high-density hardware deployments, including enterprise server racks, network switches, and industrial automation controllers. The PVA080G12R-P30-AB excels in applications requiring forced air convection through restrictive heatsinks and power supply units. Furthermore, the PVA080G12R-P30-AB is frequently utilized in telecommunications infrastructure and medical instrumentation where reliable, high-pressure airflow is essential to prevent component throttling and ensure system stability.
