Description

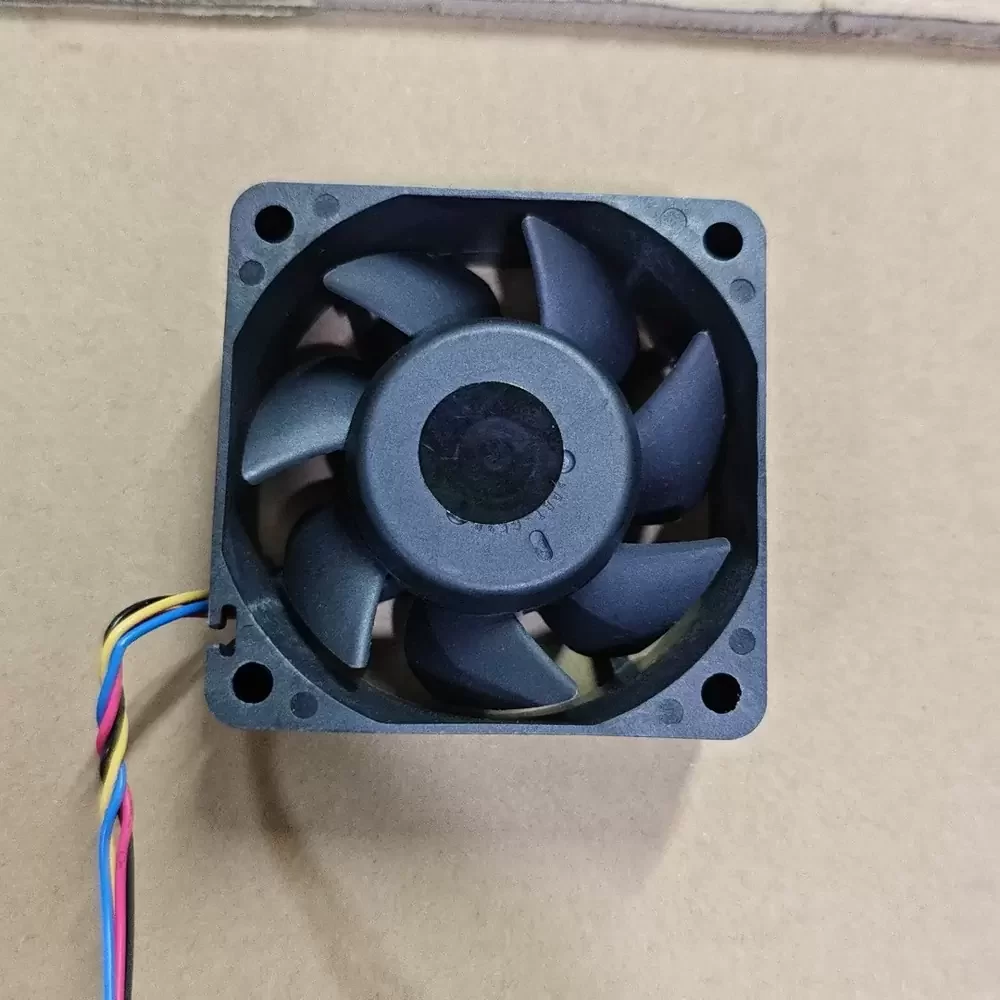

The Delta QFR0612UH-EZ6 is a high-density DC axial fan engineered for demanding thermal management environments requiring precision cooling. This unit features a sophisticated brushless DC motor architecture paired with a high-performance dual ball bearing system, ensuring minimal friction and extended operational longevity. The aerodynamic impeller design is optimized to reduce turbulence and maximize static pressure, effectively overcoming the thermal impedance found in densely packed electronic enclosures. Constructed with structural rigidity in mind, the housing and blades utilize UL94V-0 rated materials to ensure safety and durability under continuous high-speed operation, making it a reliable component for critical infrastructure cooling.
Model Number: QFR0612UH-EZ6
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.70A
Power: 8.4W
Rated Speed: 6000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 39.24 CFM (1.111 m³/min)
Max. Static Pressure: 13.94 mmH₂O (0.549 inH₂O)
Dimensions: 60x60x25.4mm
Weight: 80g
Life Expectancy: 70,000 Hours at 40C
Noise Level: 44.5 dB-A
Speed Control: PWM Control
Output Signal: Tachometer (Frequency Generator)

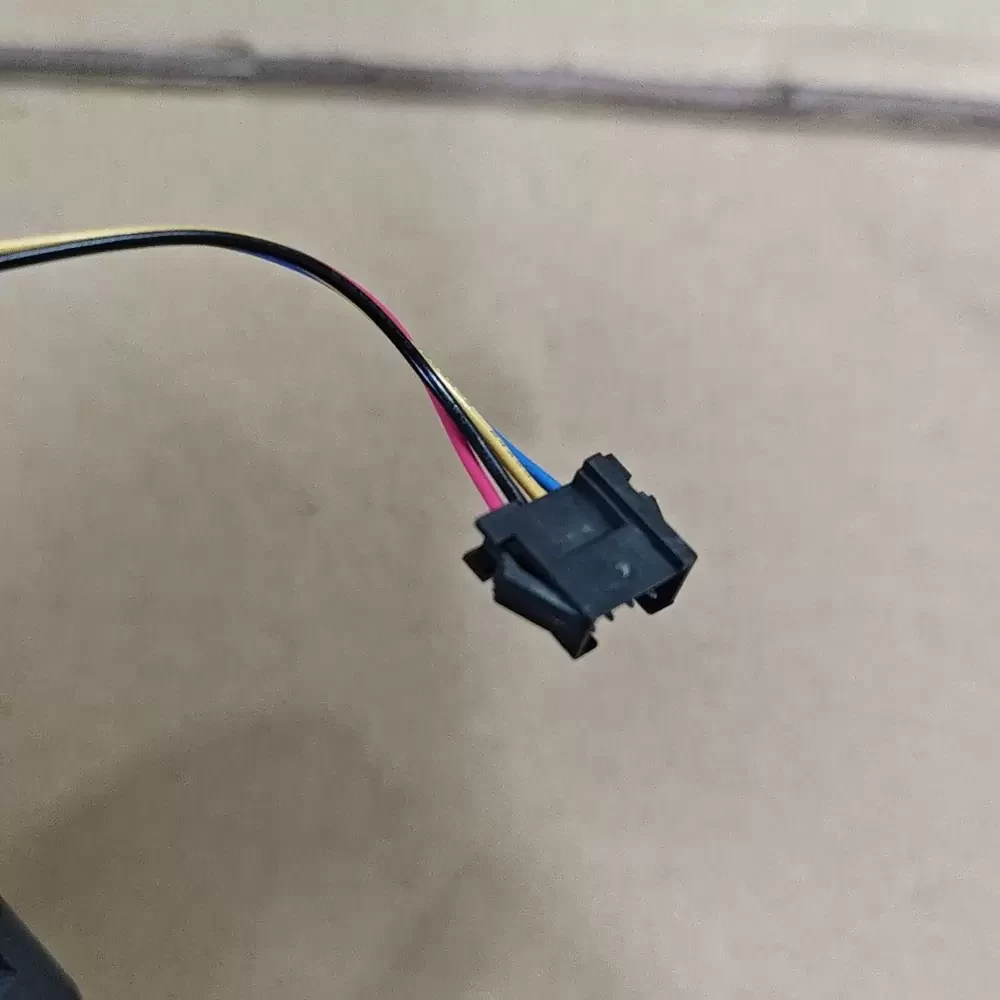

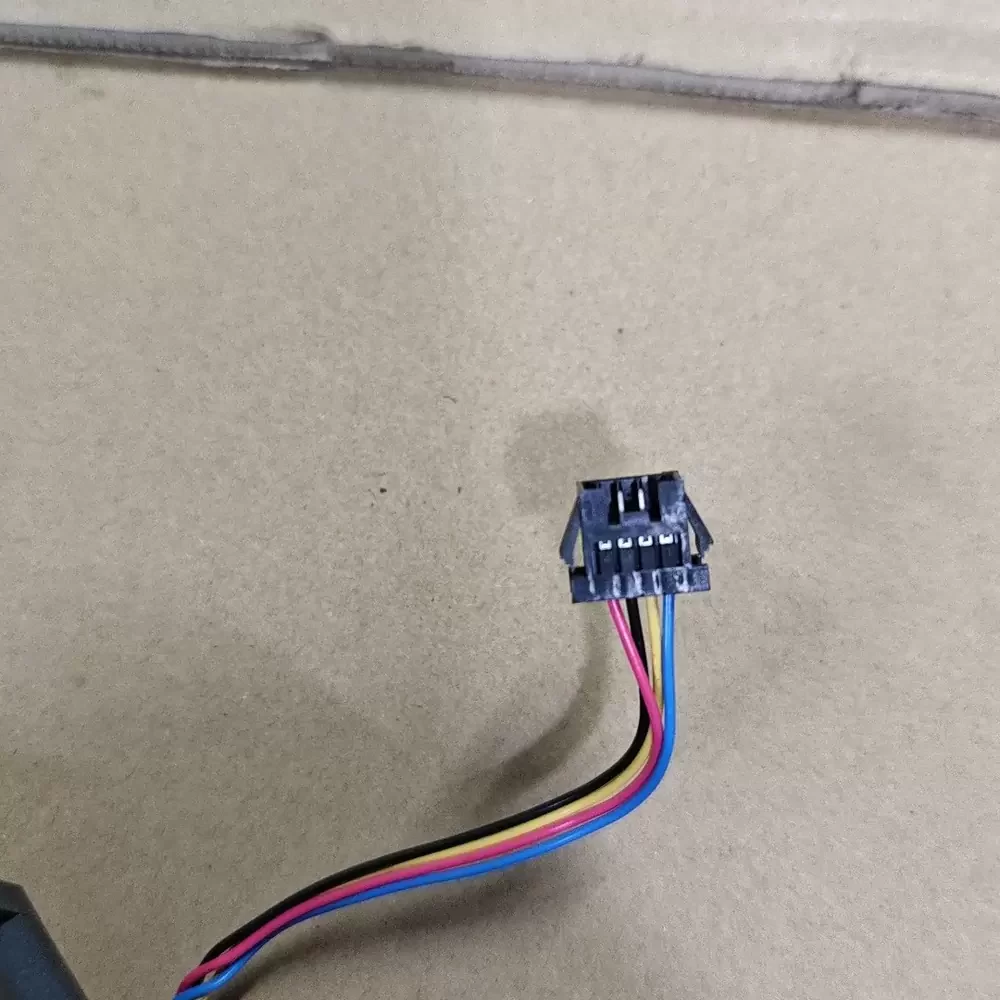

Termination: 4-Wire Lead Wires
Housing Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Insulation Class: Class A
The Delta QFR0612UH-EZ6 is specifically designed for integration into high-performance server chassis and network switch environments where space is limited but heat dissipation requirements are extreme. Due to its high static pressure capabilities, the QFR0612UH-EZ6 excels in cooling dense blade servers and telecommunications equipment. It is also frequently utilized in industrial automation controllers and medical diagnostic imaging systems that require consistent airflow. The QFR0612UH-EZ6 provides the necessary thermal regulation for power supply units and compact workstations, ensuring system stability during peak processing loads.
