Description

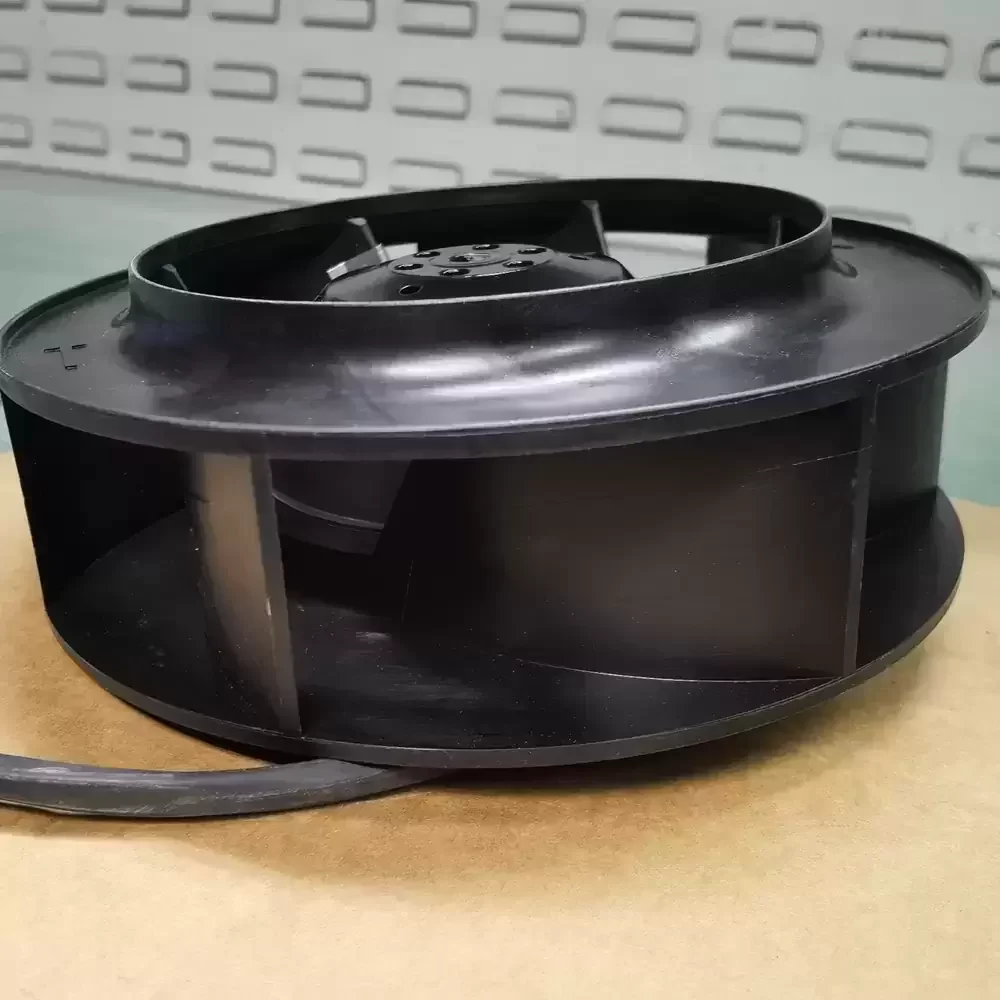

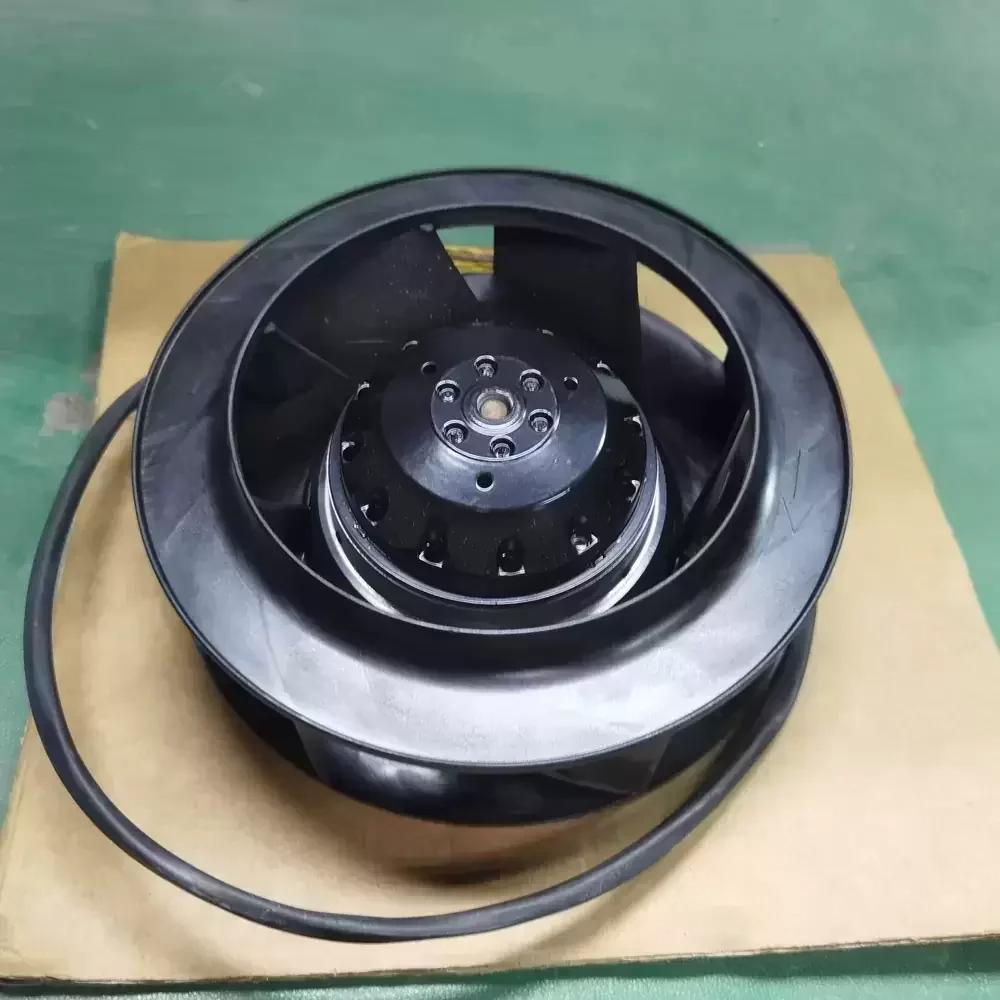

The ebm-papst R2D190-AC08-10 is a high-efficiency backward-curved centrifugal fan engineered for demanding industrial cooling applications. This unit utilizes a robust 3-phase AC external rotor motor design, ensuring superior thermal management and operational longevity. The aerodynamic profile of the impeller is optimized to deliver high airflow while maintaining significant static pressure capabilities, making it ideal for overcoming high system impedance. Constructed with precision-balanced components, the fan minimizes vibration and acoustic noise, while its ball bearing architecture supports continuous duty cycles under varying thermal loads. The structural rigidity of the housing and impeller ensures reliability in harsh environments, providing consistent cooling performance critical for sensitive electronics and automation controllers.

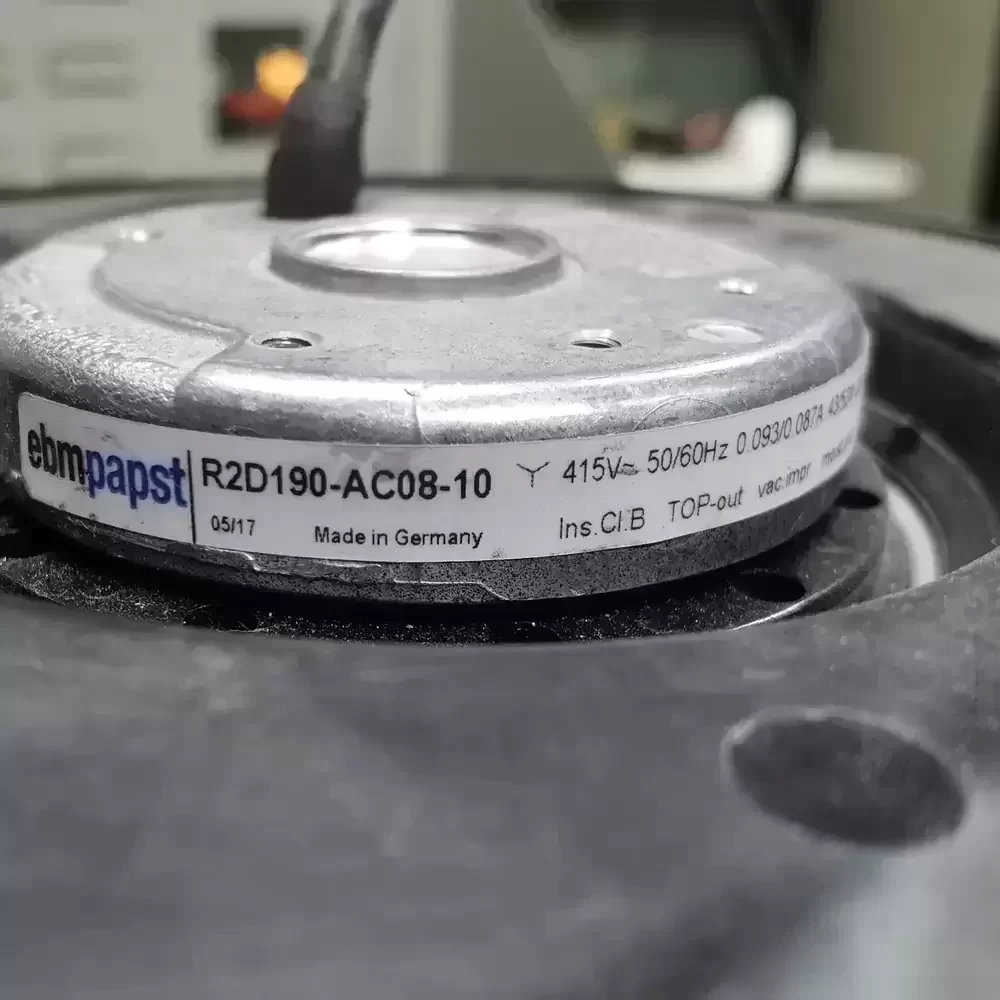

Model Number: R2D190-AC08-10
Brand: ebm-papst
Product Type: Backward Curved Centrifugal Fan
Motor Type: M2D068-BC
Rated Voltage: 400 VAC (3-Phase / Star Connection)
Frequency: 50 / 60 Hz
Rated Current: 0.14 A (50Hz) / 0.13 A (60Hz)
Power Consumption: 58 W (50Hz) / 75 W (60Hz)
Rated Speed: 2700 RPM (50Hz) / 3050 RPM (60Hz)
Max. Air Flow: 570 m³/h (335.5 CFM)
Max. Static Pressure: Approx. 380 Pa
Impeller Diameter: 190 mm
Bearing Type: Ball Bearing
Weight: 1.3 kg
Material Impeller: Plastic PA6, fiberglass-reinforced
Direction of Rotation: Clockwise, seen on rotor
Insulation Class: B
Ingress Protection: IP44
Motor Protection: Thermal overload protector (TOP) wired internally
Operating Temperature: -25°C to +65°C
Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensate Discharge Holes: None
Cable Exit: Variable
Certifications: CE, CCC
The R2D190-AC08-10 is specifically designed for critical thermal regulation within industrial automation systems, most notably serving as a replacement cooling component for Kuka KRC2 robot controllers. Its high-pressure capabilities make it suitable for densely packed electronic cabinets where airflow resistance is significant. Beyond robotics, the R2D190-AC08-10 is frequently deployed in telecommunications infrastructure, variable frequency drive (VFD) cooling, and large-scale power supply units. The reliability of the R2D190-AC08-10 ensures that mission-critical machinery maintains optimal operating temperatures, preventing thermal shutdowns in continuous manufacturing processes.
