Description

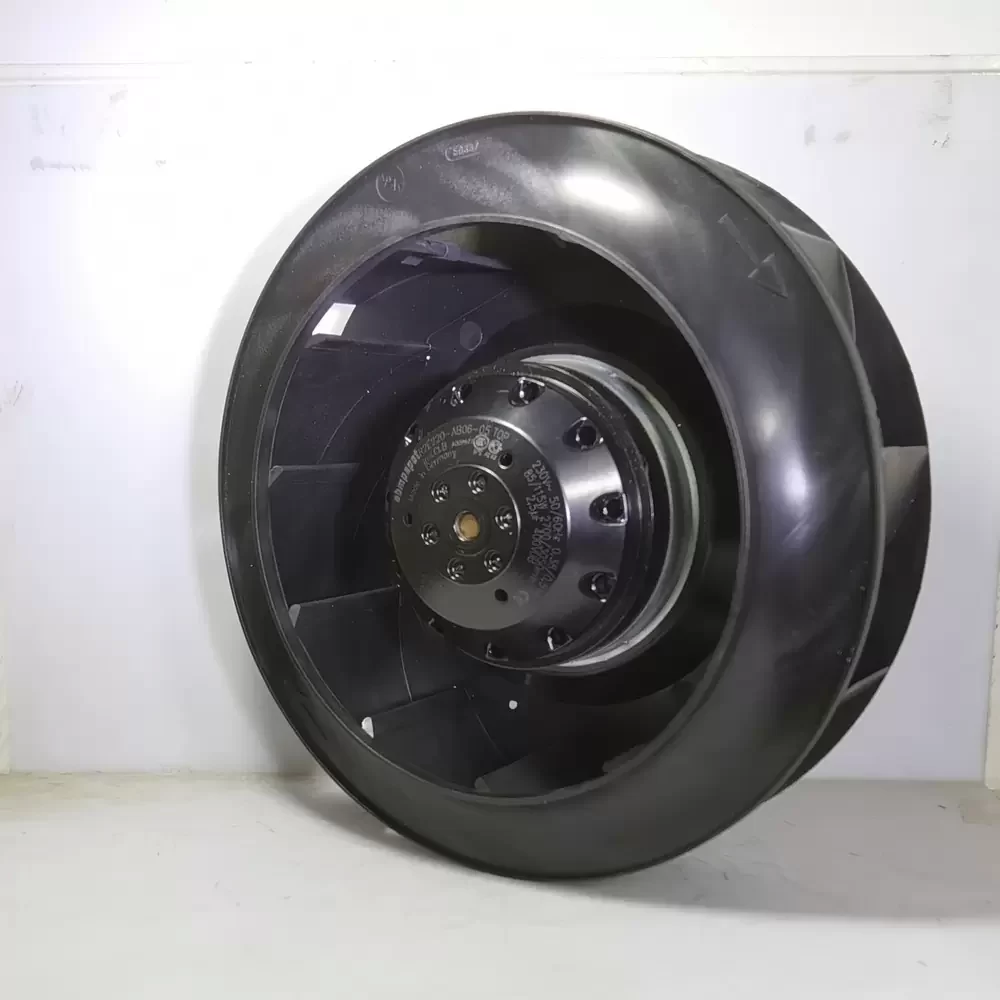

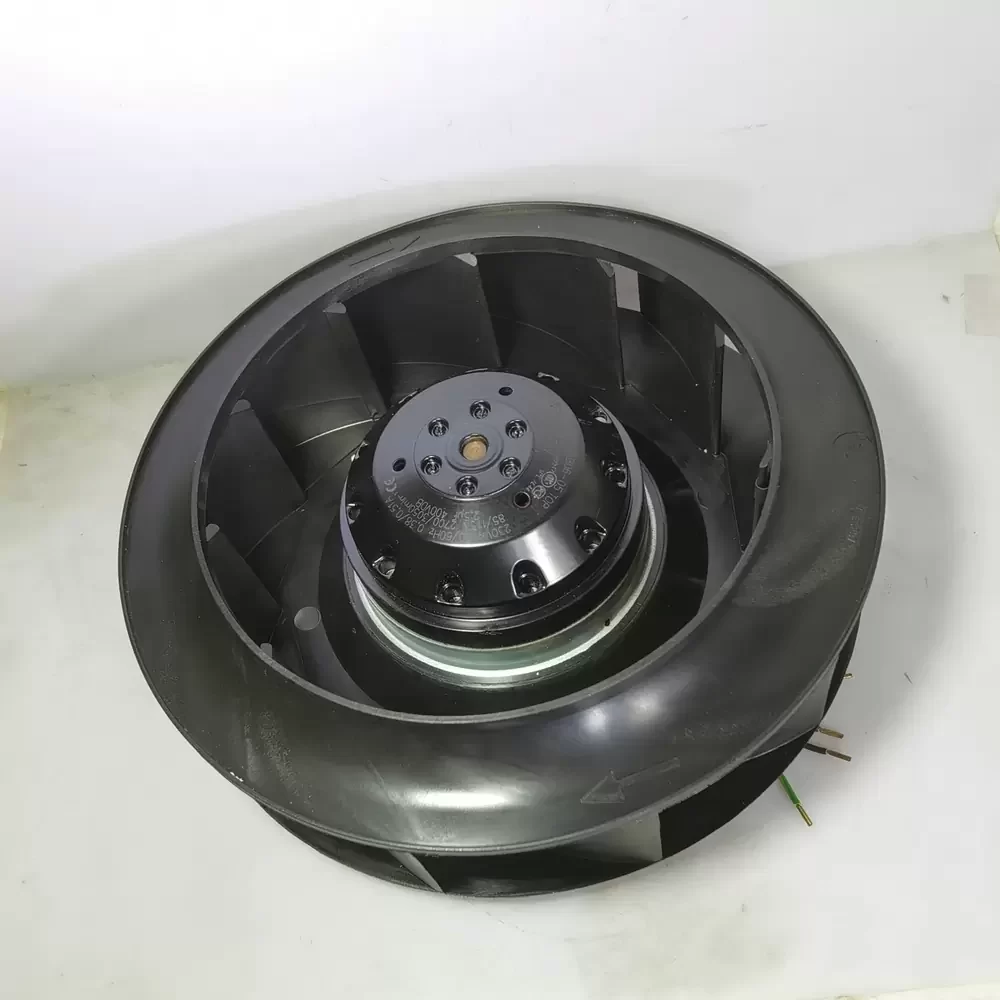

The ebm-papst R2E220-AB06-05 is a high-efficiency Centrifugal Fan engineered for demanding industrial thermal management applications. Featuring an advanced external rotor AC motor integrated with a backward-curved impeller, this unit optimizes aerodynamic performance while minimizing acoustic resonance. The construction utilizes robust materials to ensure structural rigidity and long-term reliability under continuous operation. Its precision-balanced assembly reduces vibration, while the ball bearing system enhances longevity and lowers thermal impedance, making it suitable for high-back-pressure environments requiring consistent airflow delivery.
Model Number: R2E220-AB06-05
Brand: ebm-papst
Product Type: Motorized Impeller / Centrifugal Fan
Motor Type: M2E068-EC
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.38 A / 0.45 A
Power Input: 85 W / 100 W
Rated Speed: 2550 RPM / 2800 RPM
Max. Air Flow: 506.1 CFM (860 m³/h)
Max. Static Pressure: 38.7 mmH₂O (380 Pa / 1.52 inH₂O)
Impeller Diameter: 220 mm
Bearing Type: Ball Bearing
Capacitor: 3 µF / 400 VDB
Insulation Class: Class B
Ingress Protection: IP44
Motor Protection: Thermal Overload Protector (TOP) wired internally
Impeller Material: PA Plastic (Polyamide), fiberglass-reinforced
Operating Temperature: -25°C to +60°C
Mounting Orientation: Any
Weight: 1.3 kg
Compliance: CE, CCC, EAC
This motorized impeller is extensively utilized in industrial ventilation systems, control cabinet cooling, and precision HVAC units. The R2E220-AB06-05 excels in applications such as variable frequency drive (VFD) cooling, cleanroom filtration modules, and telecommunications infrastructure where space is constrained but high static pressure is required. Additionally, the R2E220-AB06-05 is frequently deployed in heat exchangers and electronic equipment racks to maintain optimal operating temperatures for sensitive components.
