RG130/0800-3612-031111 EBM 27VDC 21.6W Centrifugal Fan

Description

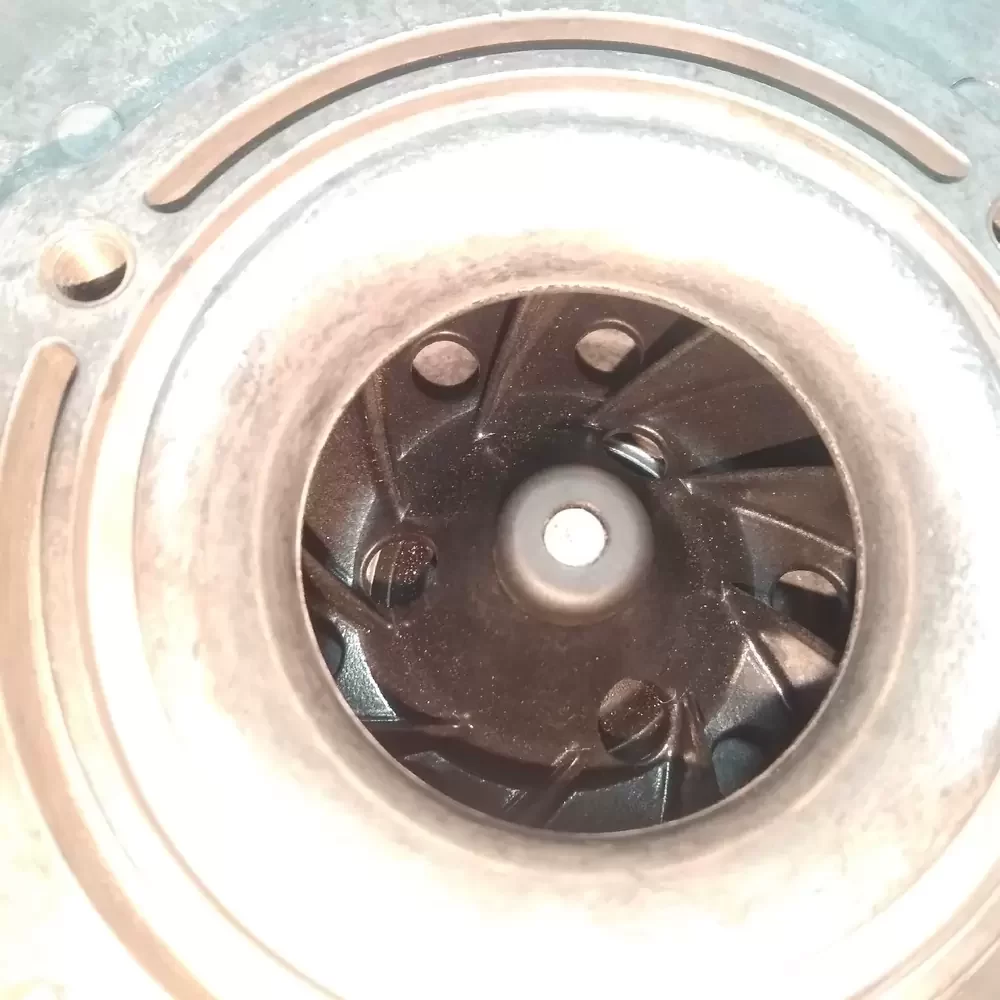

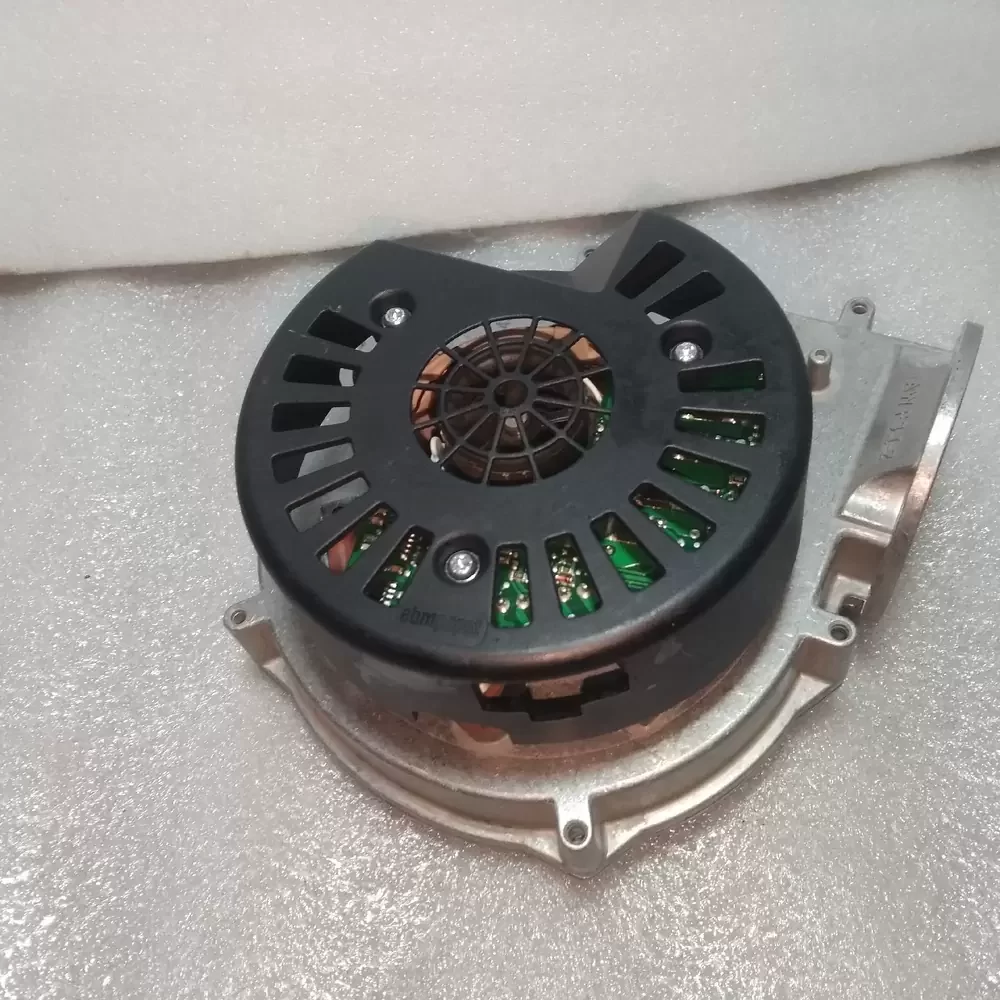

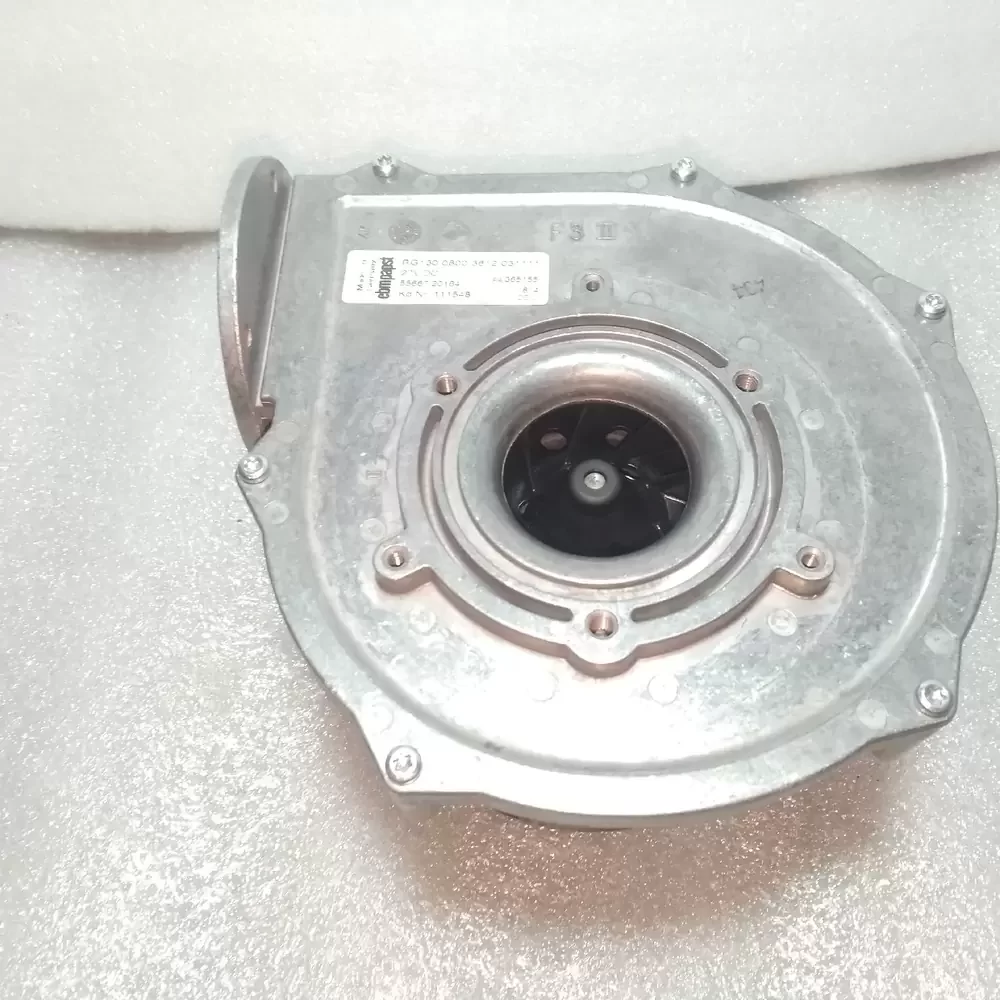

EBM RG130/0800-3612-031111 130 mm 27 VDC 21.6 W 105 m3/h Centrifugal Fan is a high-performance gas blower featuring a die-cast aluminum housing and a glass-fiber reinforced plastic impeller. The unit utilizes a brushless DC motor with integrated electronics and maintenance-free dual ball bearings. It incorporates a PWM control interface and a tachometer signal output for precise operational monitoring.

RG130/0800-3612-031111 Specifications

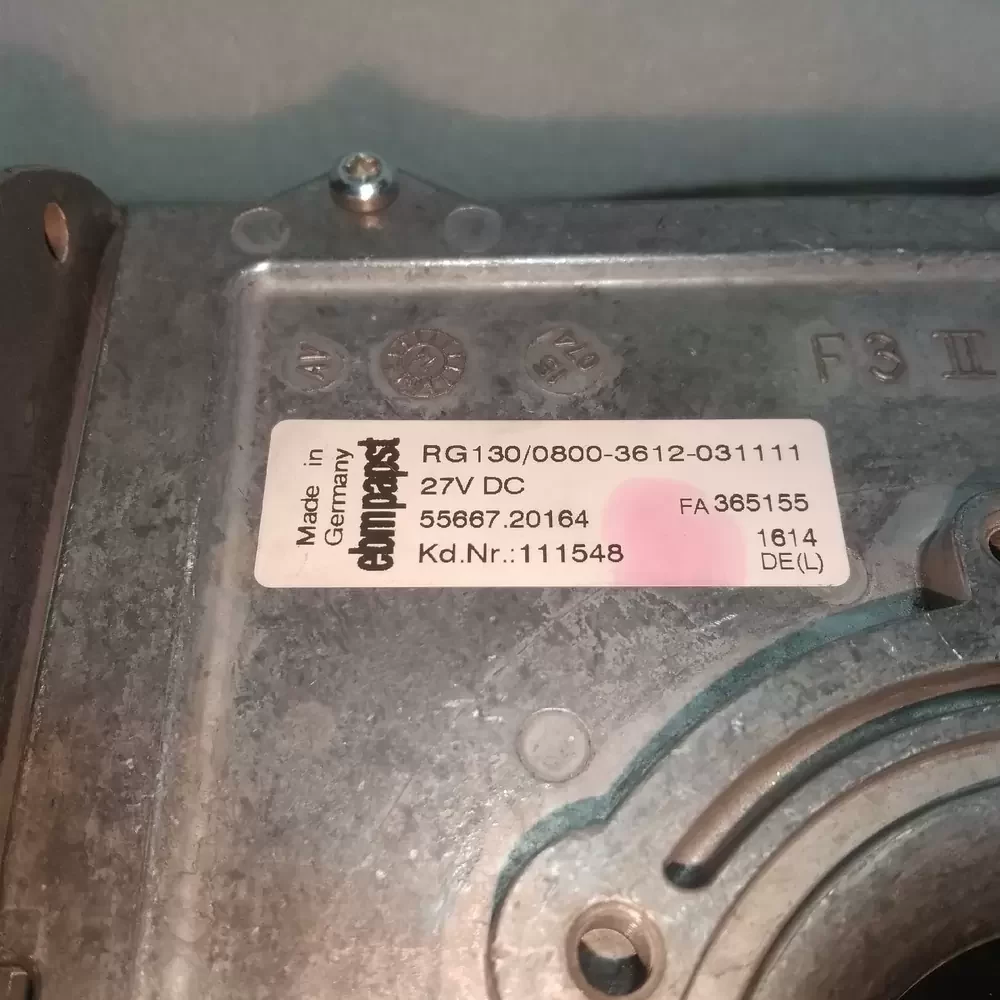

Model: RG130/0800-3612-031111
Brand: EBM-PAPST
Nominal Voltage: 27 VDC
Voltage Range: 16 to 30 VDC
Power Consumption: 21.6 W
Current Draw: 0.8 A
Nominal Speed: 3000 RPM
Max Airflow: 105 m3/h
Max Pressure: 800 Pa
Impeller Diameter: 130 mm

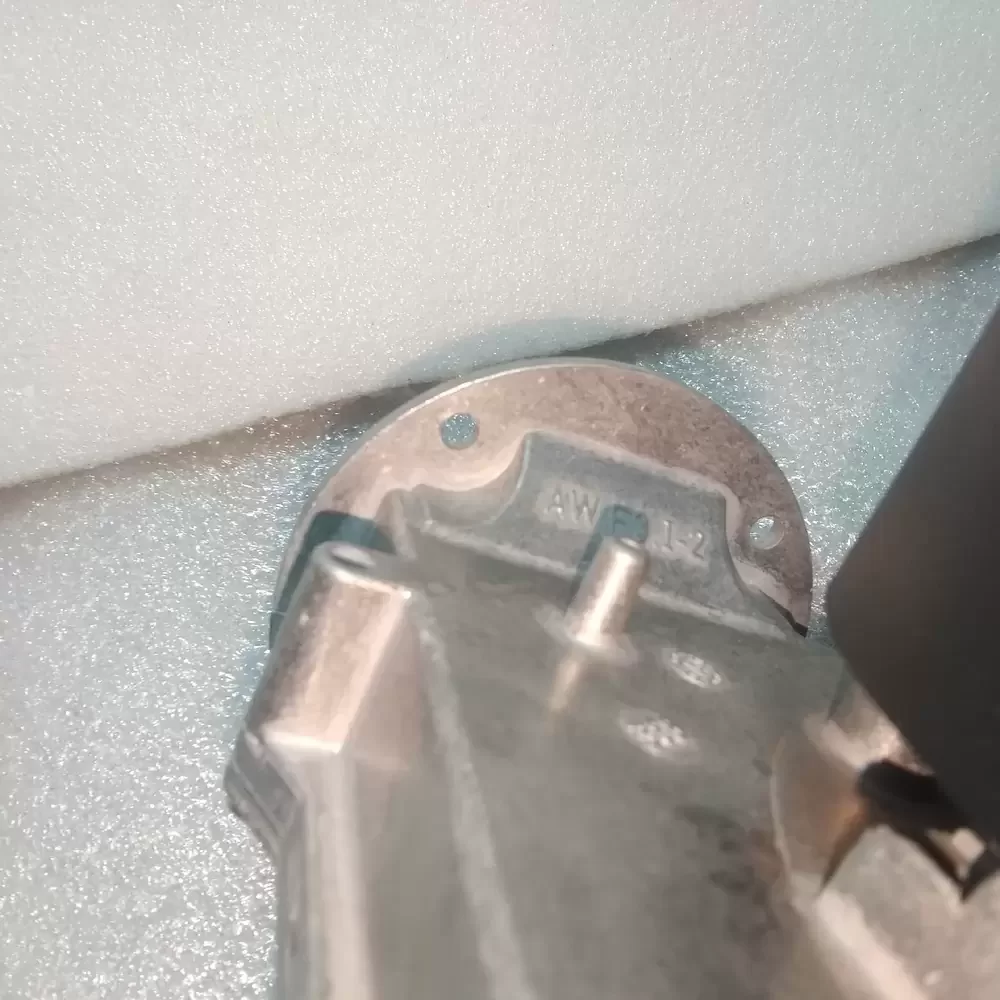

Housing Material: Die-cast aluminum
Impeller Material: Plastic PA 6.6
Bearing Type: Ball bearings
Direction of Rotation: Clockwise
Insulation Class: B
Protection Class: IP20

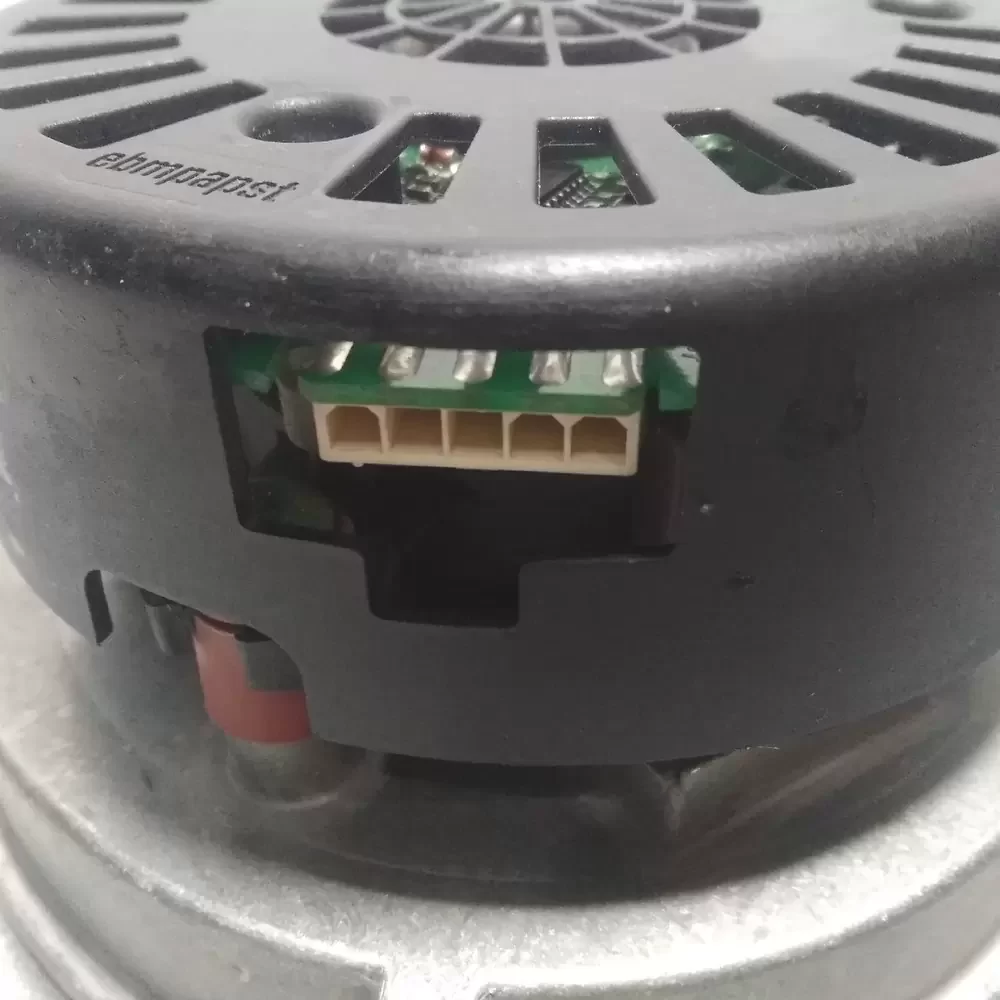

Control Input: PWM / 0-10 V
Weight: 1.3 kg
Operating Temperature: -25 to +70 °C
Service Life: 30000 h at 40 °C

RG130/0800-3612-031111 Applications
Primary applications include integration into De Dietrich, Baxi, and Chappée condensing gas boilers for air-gas premixing. Deployed within residential and commercial heating systems to regulate combustion air supply and exhaust gas recirculation.
