Description

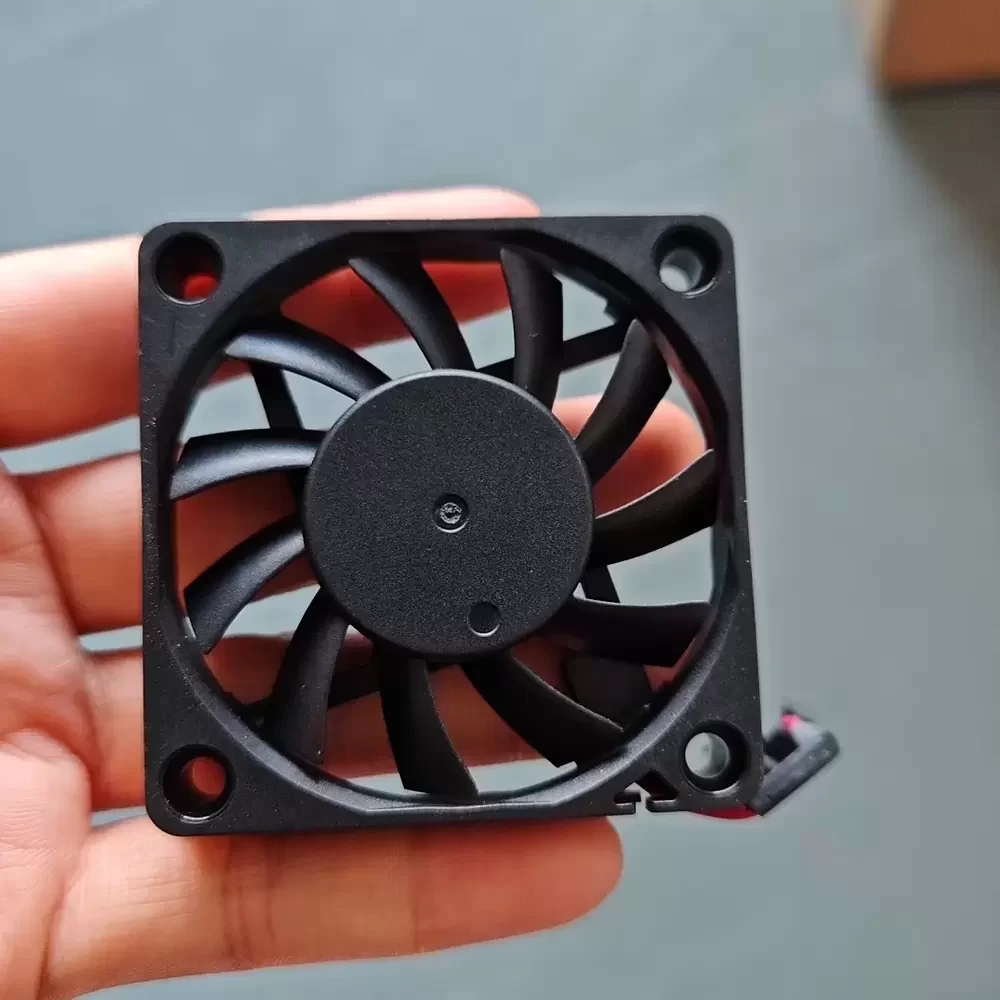

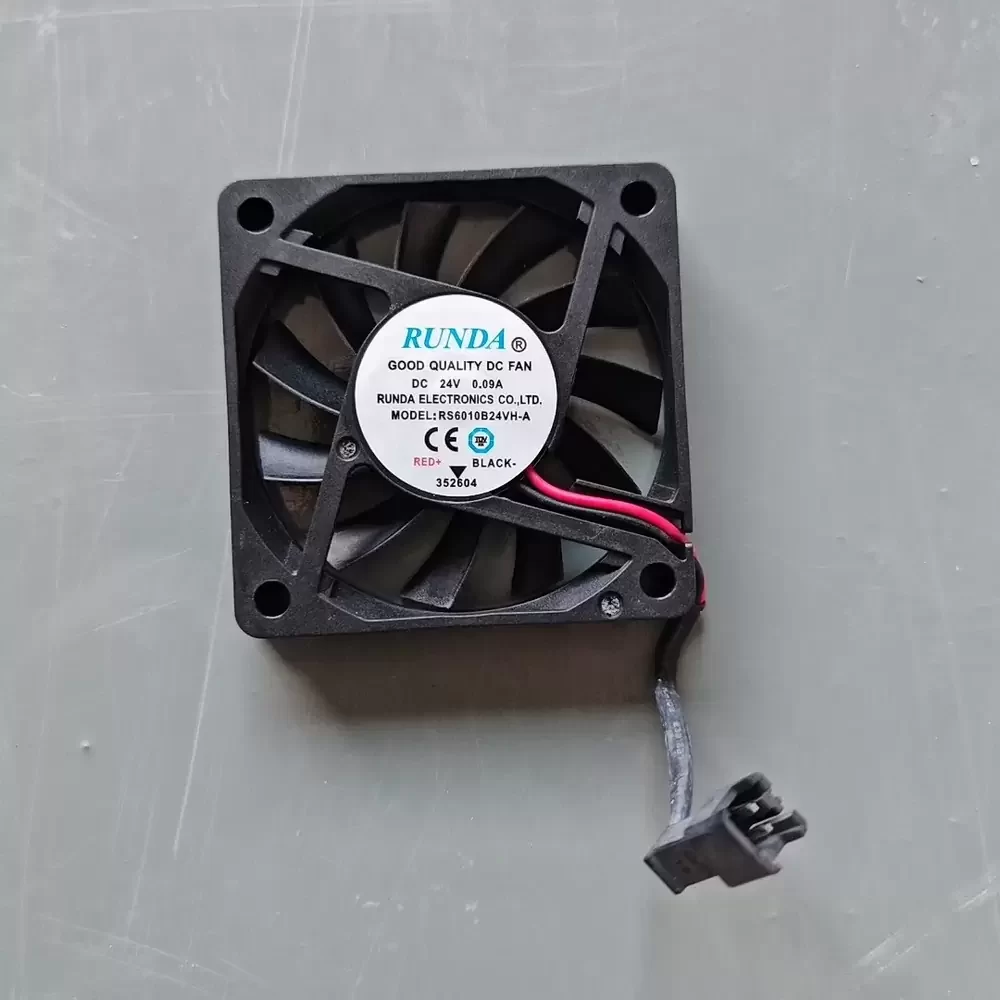

The RUNDA RS6010B24VH-A is a precision-engineered DC Axial Fan designed for compact industrial thermal management. Utilizing advanced Dual Ball Bearing architecture, this unit ensures minimized frictional coefficients and extended operational longevity under continuous load. The rotor assembly features an optimized impeller geometry that balances static pressure generation with volumetric airflow, effectively reducing thermal impedance in restricted enclosures. Constructed with a durable thermoplastic frame, the RS6010B24VH-A maintains structural rigidity while delivering consistent cooling performance for sensitive electronic components.
Model Number: RS6010B24VH-A
Brand: RUNDA
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.09 A
Power: 2.16 W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.50 CFM (31.43 m³/h / 0.52 m³/min)
Max. Static Pressure: 3.20 mmH₂O (31.38 Pa / 0.13 inH₂O)
Dimensions: 60x60x10mm
Weight: 26 g
Life Expectancy: 50,000 Hours @ 40°C
Noise Level: 32.0 dBA
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: 2-Wire with Standard Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP40
Designed for high-reliability environments, the RS6010B24VH-A is frequently integrated into variable frequency drives (VFDs) and industrial welding equipment where space is at a premium but thermal dissipation is critical. The compact profile allows the RS6010B24VH-A to fit seamlessly into dense server cabinets and telecommunication racks, ensuring optimal airflow circulation. Its robust construction also makes it suitable for CNC control modules and power supply units requiring consistent forced convection.
