S4E360-EC20-51 ebm-papst 230VAC 120W 1556CFM AC Axial Fan

Description

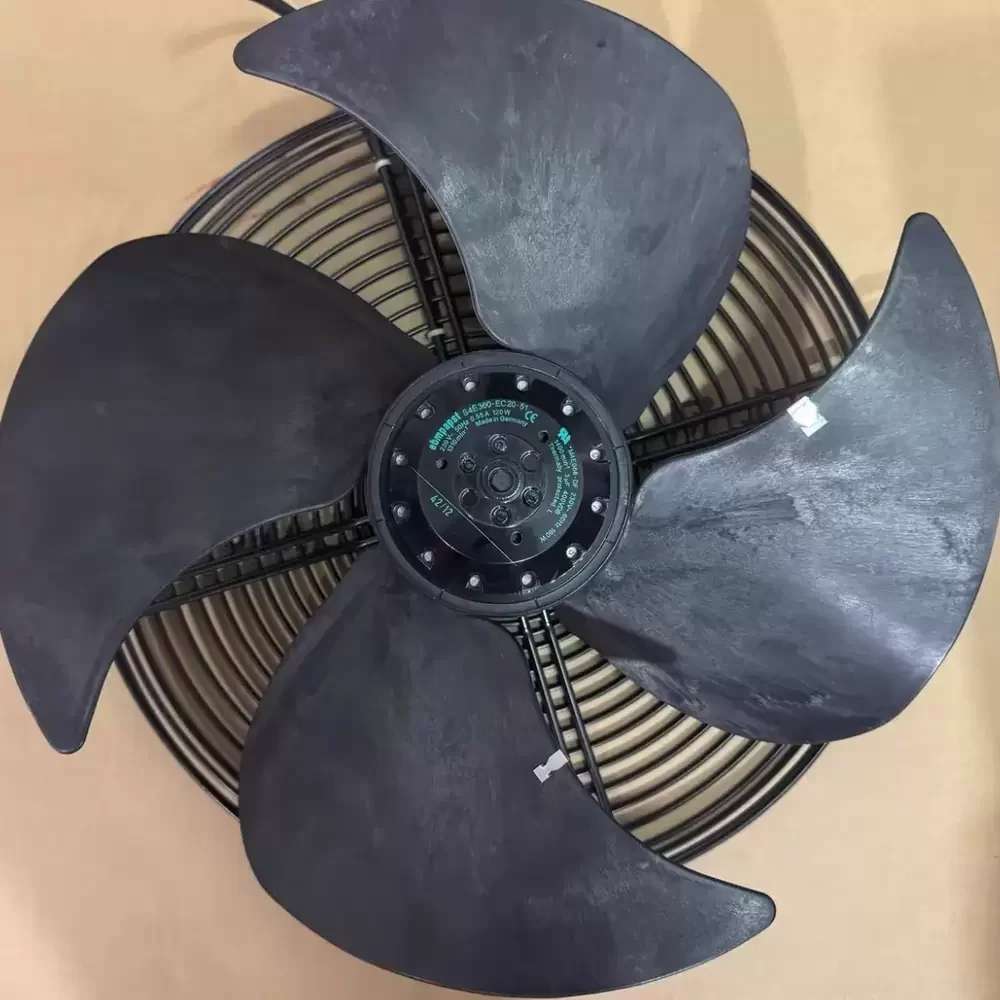

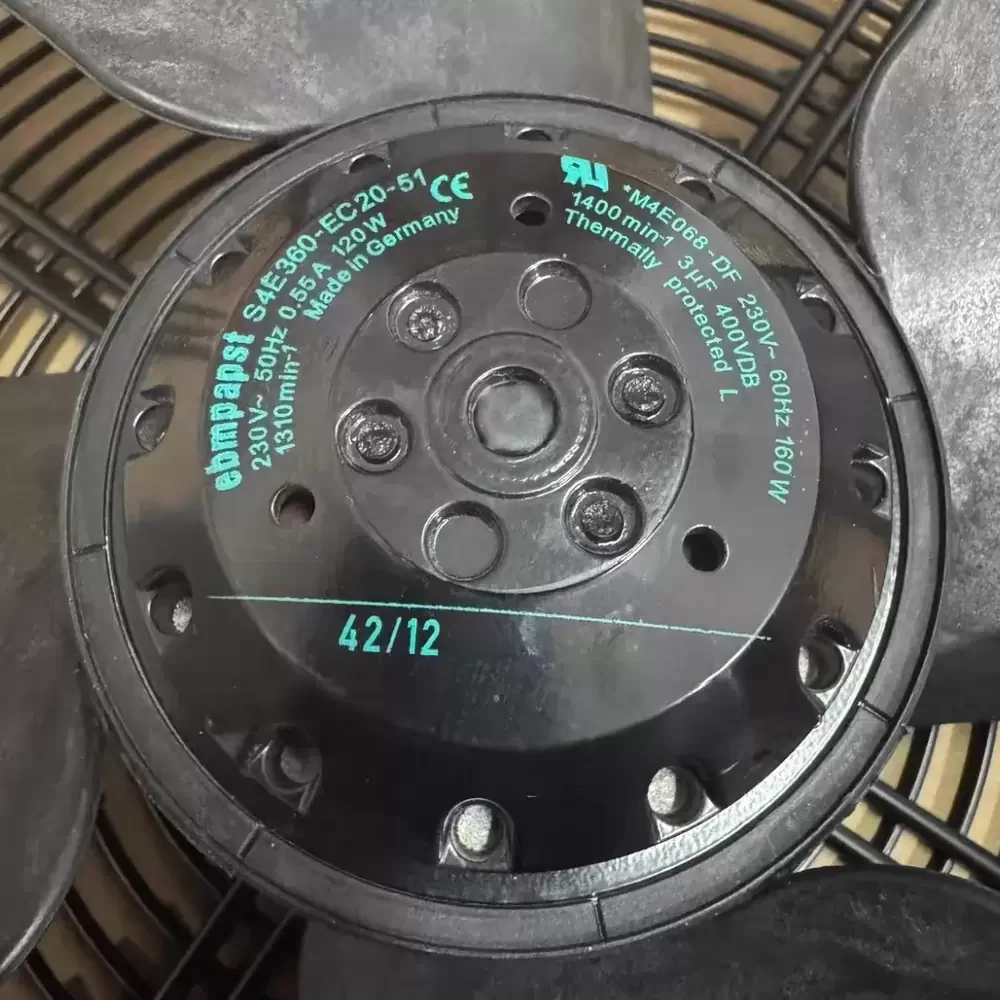

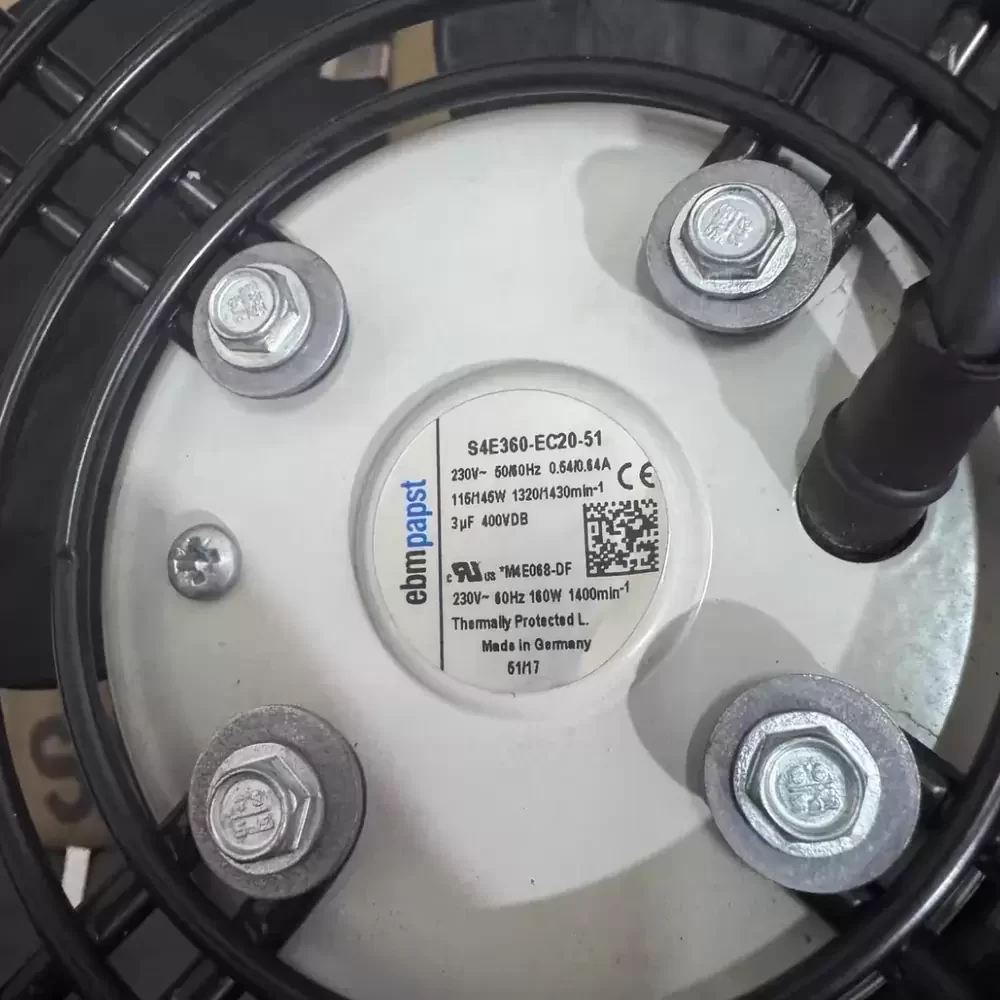

ebm-papst S4E360-EC20-51 is a 360 mm diameter AC axial fan operating at 230 VAC and 120 W, delivering a primary output of 1556 CFM. This unit features a robust M4E068-DF motor with dual ball bearings, ensuring stable rotational speeds up to 1400 RPM across 50 Hz and 60 Hz frequencies. The hardware is constructed with an IP44-rated enclosure, utilizing a 4-wire lead termination for direct electrical integration, and generates a maximum acoustic profile of 59 dBA under standard operational loads.

S4E360-EC20-51 Specifications
Model Number: S4E360-EC20-51
Motor Model: M4E068-DF
Brand: ebm-papst
Product Category: AC Axial Fan
Nominal Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Power Consumption: 120 W ( 145 W Max )
Current Draw: 0.55 A ( 640 mA Max )
Rated Speed: 1310 RPM ( 50 Hz ) / 1400 RPM ( 60 Hz )
Maximum Airflow: 1556 CFM
Acoustic Noise: 59 dBA
Fan Diameter: 360 mm
Frame Size: 400 mm
External Depth: 90 mm
Weight: 6.65 lbs
Bearing Type: Ball Bearing
Ingress Protection: IP44
Termination Type: 4 Lead Wires
Maximum Operating Temperature: 40 °C
Approvals: CE, UL, CSA, RoHS Compliant

S4E360-EC20-51 Applications
Primary applications include integration into industrial variable frequency drives, rotary screw air compressors, and heavy-duty heat exchangers. Deployed within telecommunication base station cooling arrays and CNC spindle thermal management systems, this component provides continuous forced-air dissipation for high-load electronic enclosures.
