Description

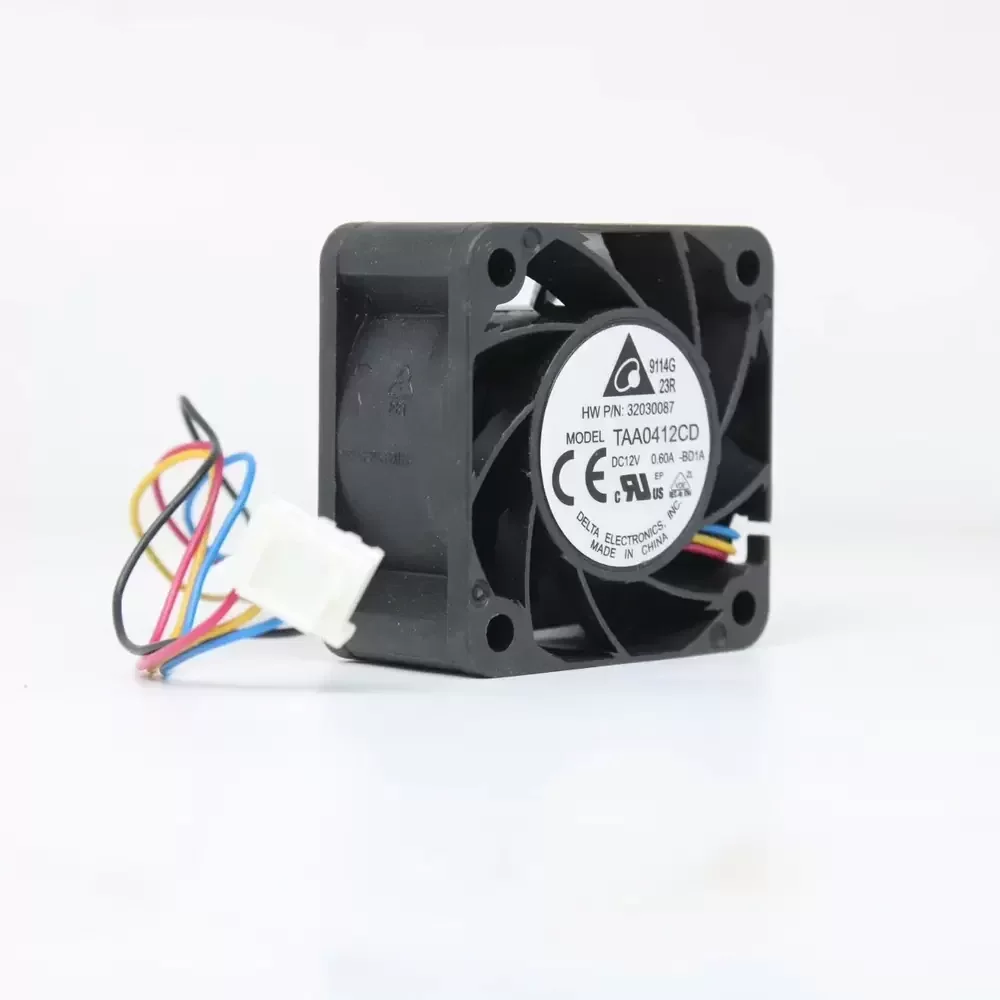

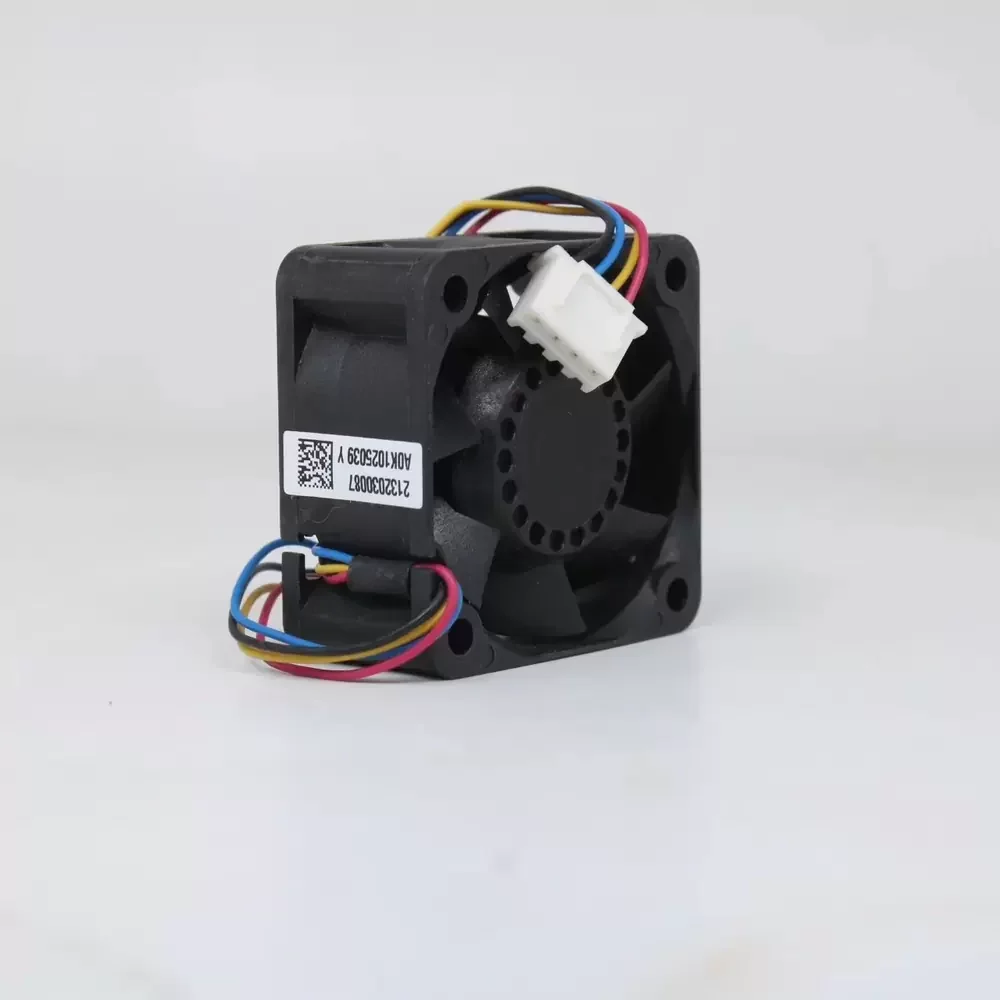

The Delta TAA0412CD-BD1A is a high-performance DC Axial Fan engineered for demanding thermal management environments requiring substantial static pressure in a compact footprint. Utilizing advanced DC motor technology and a robust Dual Ball Bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous load. The aerodynamic impeller design is optimized to reduce thermal impedance while maintaining structural rigidity at high rotational speeds. Designed for precision cooling, the TAA0412CD-BD1A delivers exceptional airflow efficiency, making it an ideal solution for high-density electronic enclosures where space is constrained but thermal dissipation requirements are critical.
Model Number: TAA0412CD-BD1A
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.60 A
Power Input: 7.20 W
Rated Speed: 14500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 24.8 CFM (42.1 m³/h / 0.70 m³/min)
Max. Static Pressure: 28.5 mmH₂O (279 Pa / 1.12 inH₂O)
Dimensions: 40 x 40 x 20 mm
Weight: 48 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 54.5 dB-A
Speed Control: PWM / 4-Wire Tachometer
Ingress Protection: IP55 (Optional)
Insulation Class: Class A
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Termination: 4-Wire Leads (Red +, Black -, Blue PWM, Yellow Tach)
Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
The TAA0412CD-BD1A is specifically designed for high-density server applications, 1U rackmount systems, and telecommunications equipment where high static pressure is necessary to overcome system impedance. Its compact 40mm form factor allows for integration into tight spaces within network switches and industrial power supplies. The TAA0412CD-BD1A ensures reliable thermal regulation in mission-critical hardware, preventing overheating in continuous-duty environments such as RAID arrays and precision medical instrumentation.
