Description

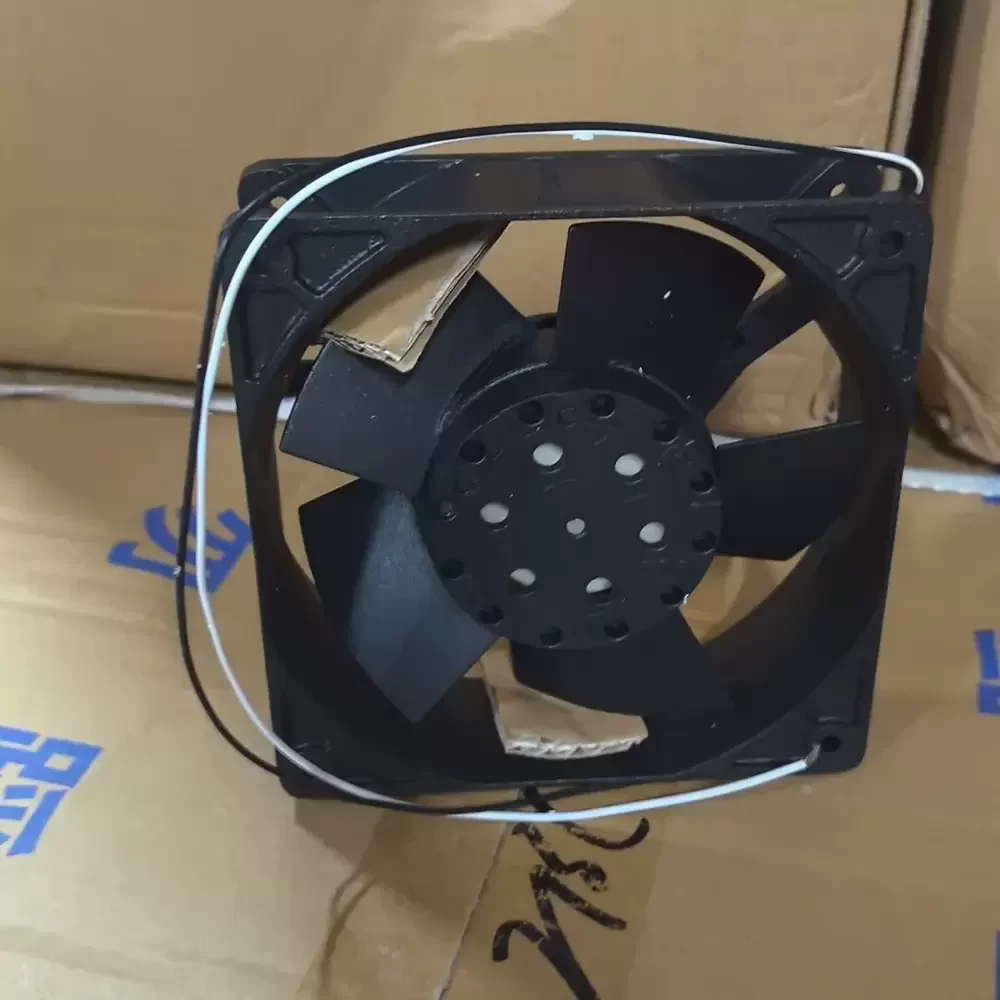

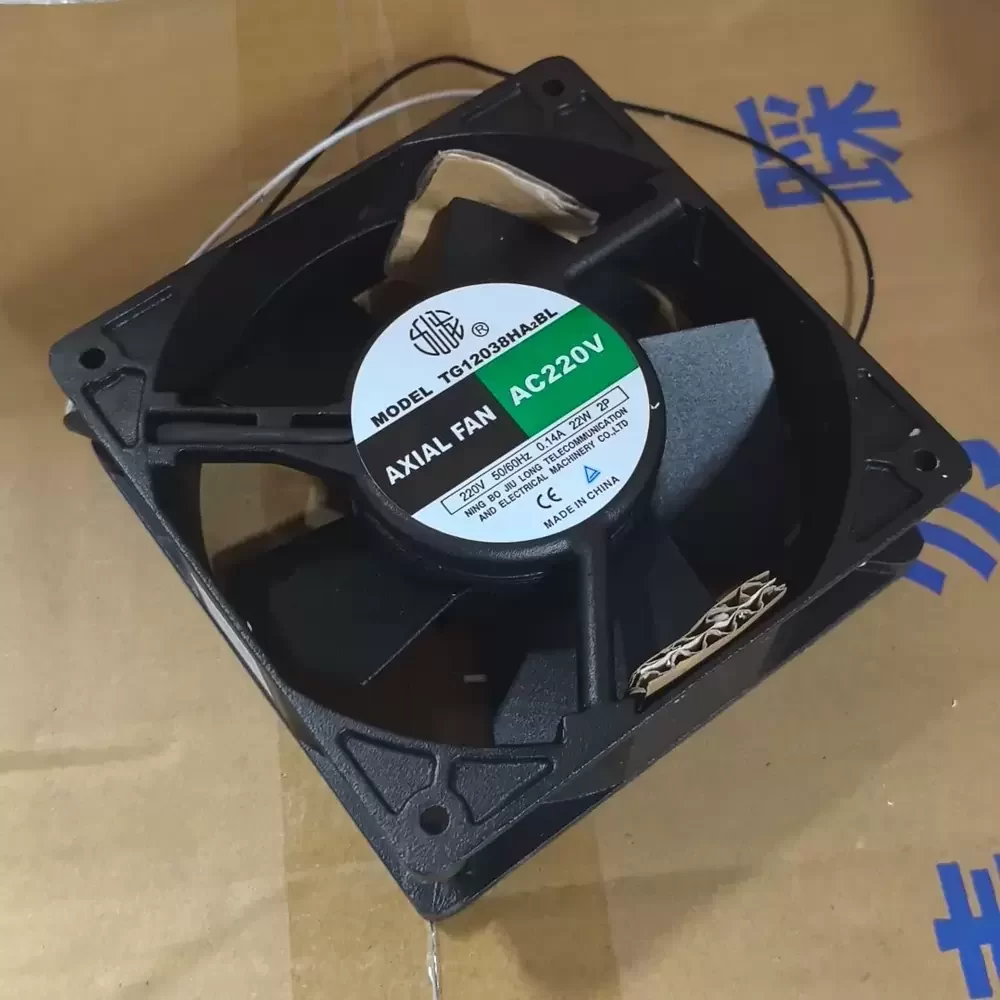

The Jiulong TG12038HA2BL is a robust AC Axial Fan engineered for industrial environments requiring superior thermal impedance management. Featuring a high-efficiency AC shaded pole motor structure, this unit utilizes precision dual ball bearing architecture to ensure operational longevity under elevated temperatures. The aerodynamic design incorporates a full metal frame and impeller, optimized for structural rigidity and consistent airflow delivery. This fan is specifically calibrated to withstand harsh conditions, offering reliable kinetic performance and high static pressure capabilities for critical cooling applications.
Model Number: TG12038HA2BL
Brand: Jiulong
Product Type: AC Axial Fan
Rated Voltage: 220VAC
Frequency: 50/60 Hz
Voltage Range: 200 – 240 VAC
Rated Current: 0.14 A
Power Input: 22 W
Rated Speed: 2600 RPM ±10%
Bearing Type: Dual Ball Bearing
Max. Air Flow: 95.0 CFM (161.4 m³/h / 2.69 m³/min)
Max. Static Pressure: 7.6 mmH₂O (74.5 Pa / 0.30 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 530 g
Life Expectancy: 50,000 Hours @ 40°C
Housing Material: Die-Cast Aluminum Alloy
Blade Material: Metal
Termination: 2-Pin Lead Wires
Operating Temperature: -20°C to +85°C
Ingress Protection: IP44
Noise Level: 45 dBA
Insulation Class: Class B
Mounting Orientation: Any
The TG12038HA2BL is deployed in demanding industrial sectors where heat dissipation is critical for system reliability. Common integration points include heavy-duty welding machines, electrical distribution boxes, and industrial automation chassis. The rugged metal construction allows the TG12038HA2BL to operate effectively in high-temperature environments, making it an ideal solution for manufacturing plant machinery, cabinet cooling, and power supply ventilation systems.
