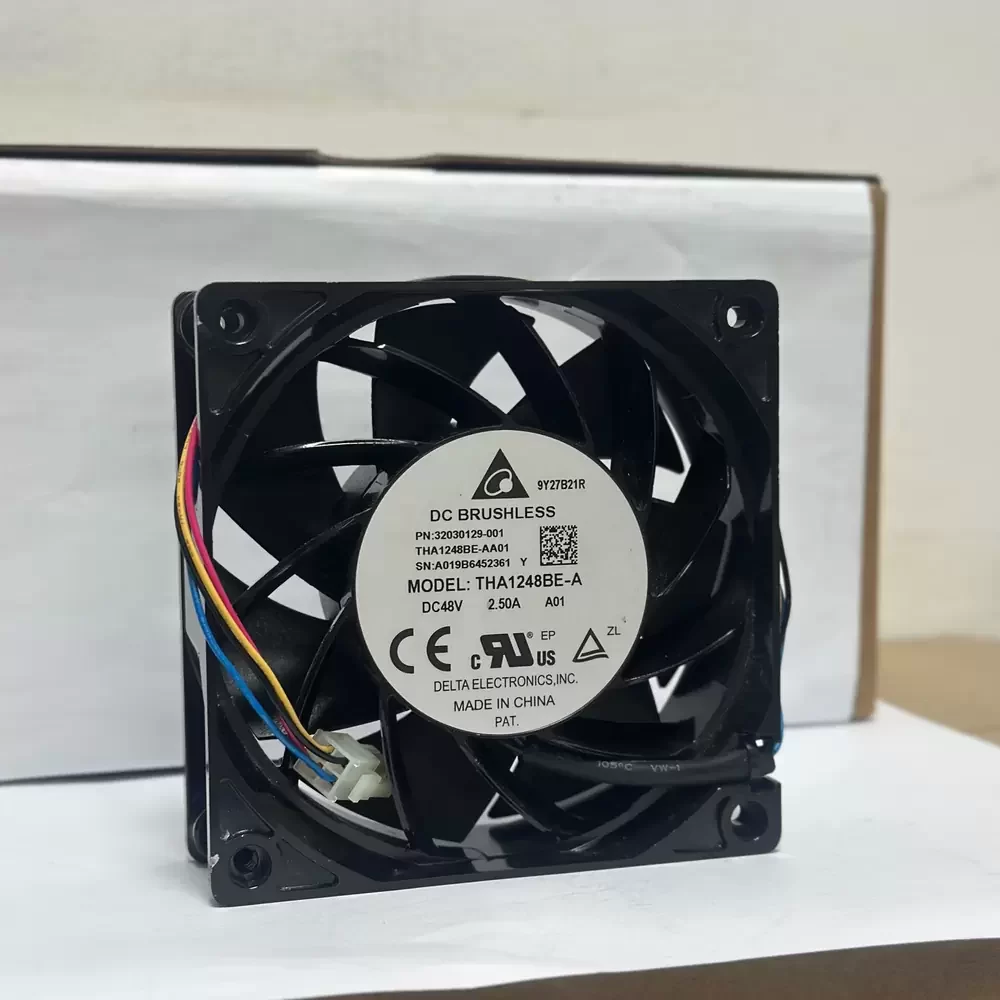

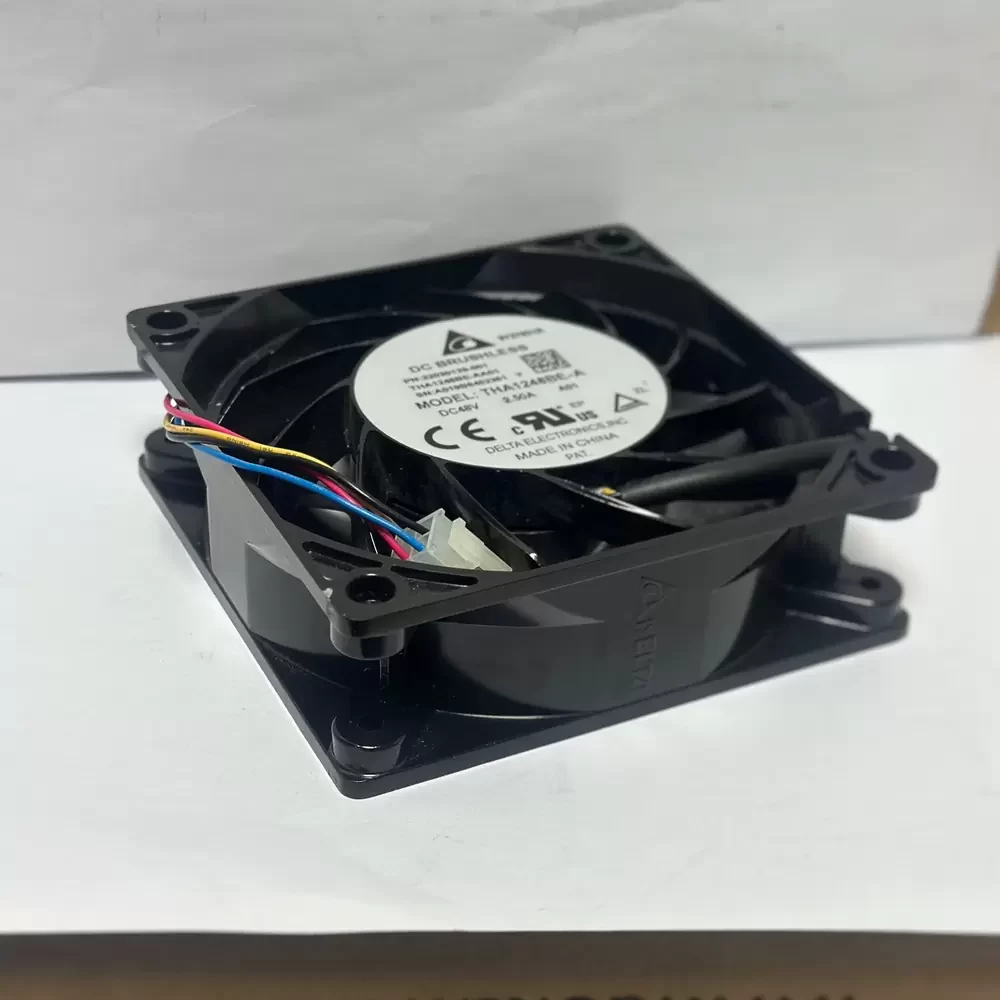

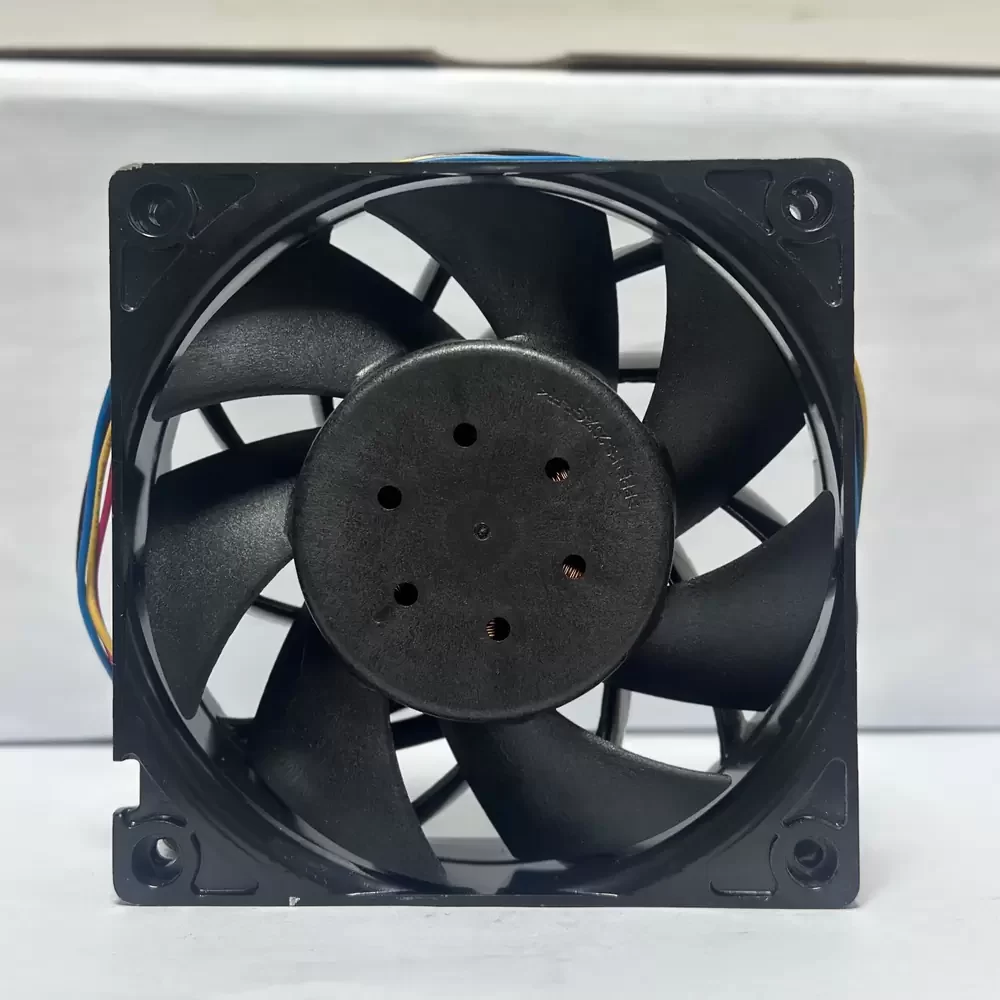

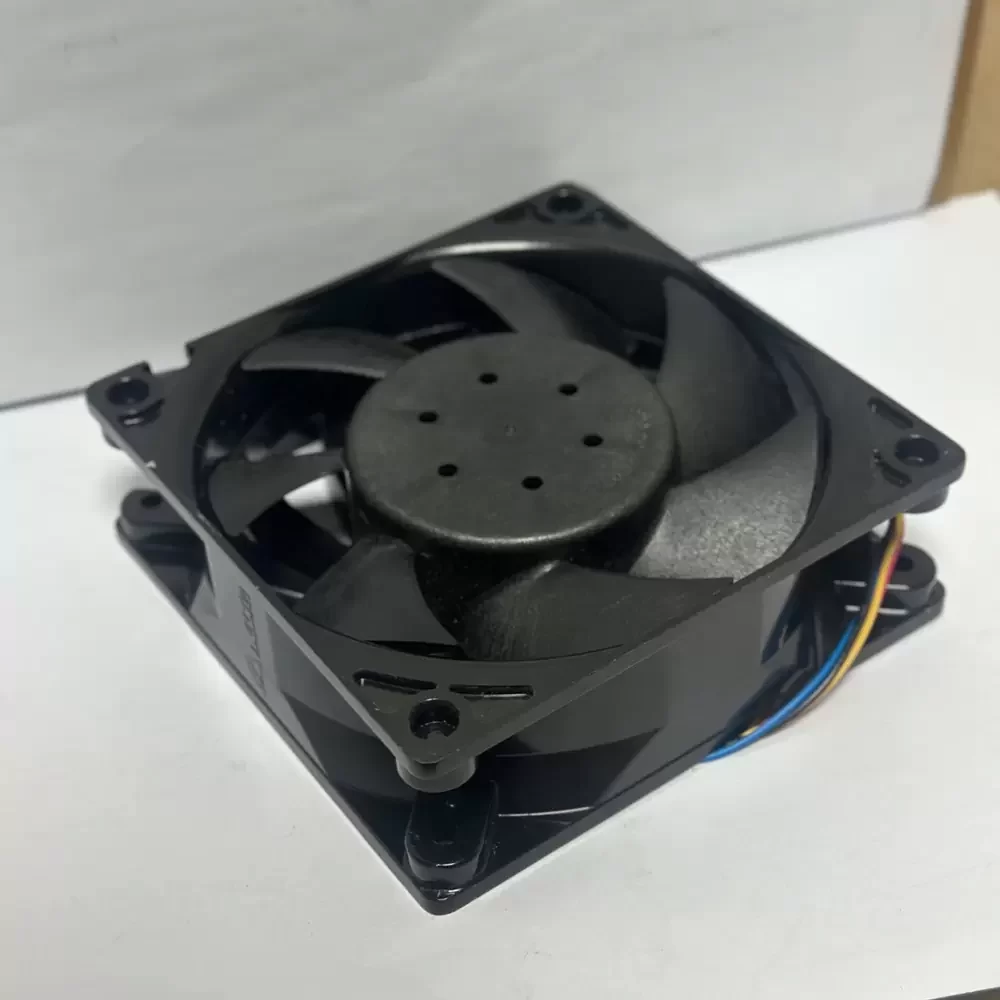

THA1248BE-AA01 Delta 48VDC 99.4W 120x38mm Axial Fan

Description

Delta THA1248BE-AA01 120 x 120 x 38 mm 48 VDC 99.4 W 318.19 CFM. This high-performance axial fan is constructed with a die-cast aluminum frame and plastic UL 94V-0 impellers. It utilizes a dual ball bearing system and a 4-wire interface supporting PWM speed control and tachometer signal output. The internal mechanism includes stationary blades designed to regulate high-density airflow and minimize vibration.

THA1248BE-AA01 Specifications
Model: THA1248BE-AA01
Brand: Delta Electronics
Category: DC Axial Fan
Rated Voltage: 48 VDC
Operating Voltage Range: 36.0 to 60.0 VDC
Rated Current: 2.07 A
Maximum Current: 2.50 A
Rated Power: 99.36 W
Rated Speed: 7600 RPM
Maximum Airflow: 318.19 CFM
Maximum Static Pressure: 3.091 inchH2O
Noise Level: 72.0 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Plastic (UL 94V-0)
Termination: 4-wire leads
Features: PWM Speed Control, Speed Sensor (Tachometer)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours @ 40 °C
Weight: 500 g
Dimensions: 120 x 120 x 38 mm

THA1248BE-AA01 Applications
Primary applications include integration into telecom base stations, high-density server racks, and networking equipment enclosures. Deployed within industrial power supply cooling systems and CNC control cabinet thermal management units.
