Description

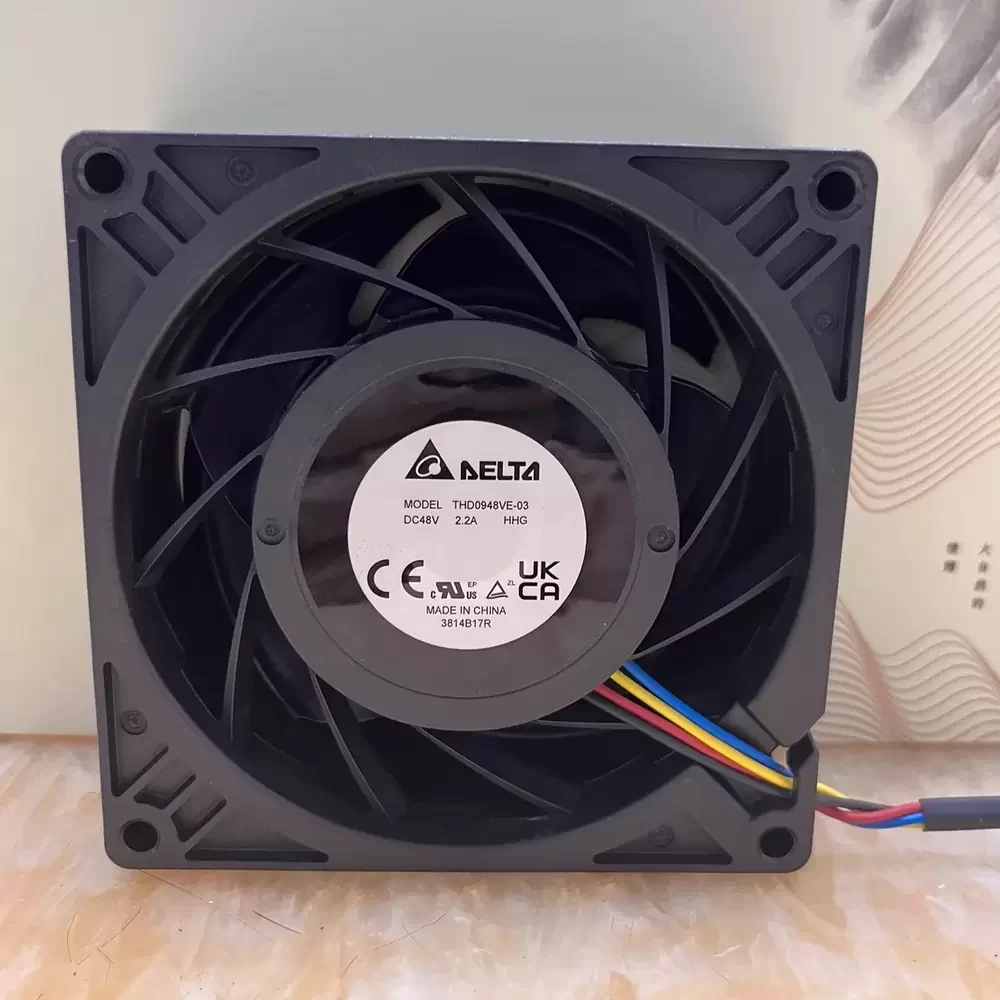

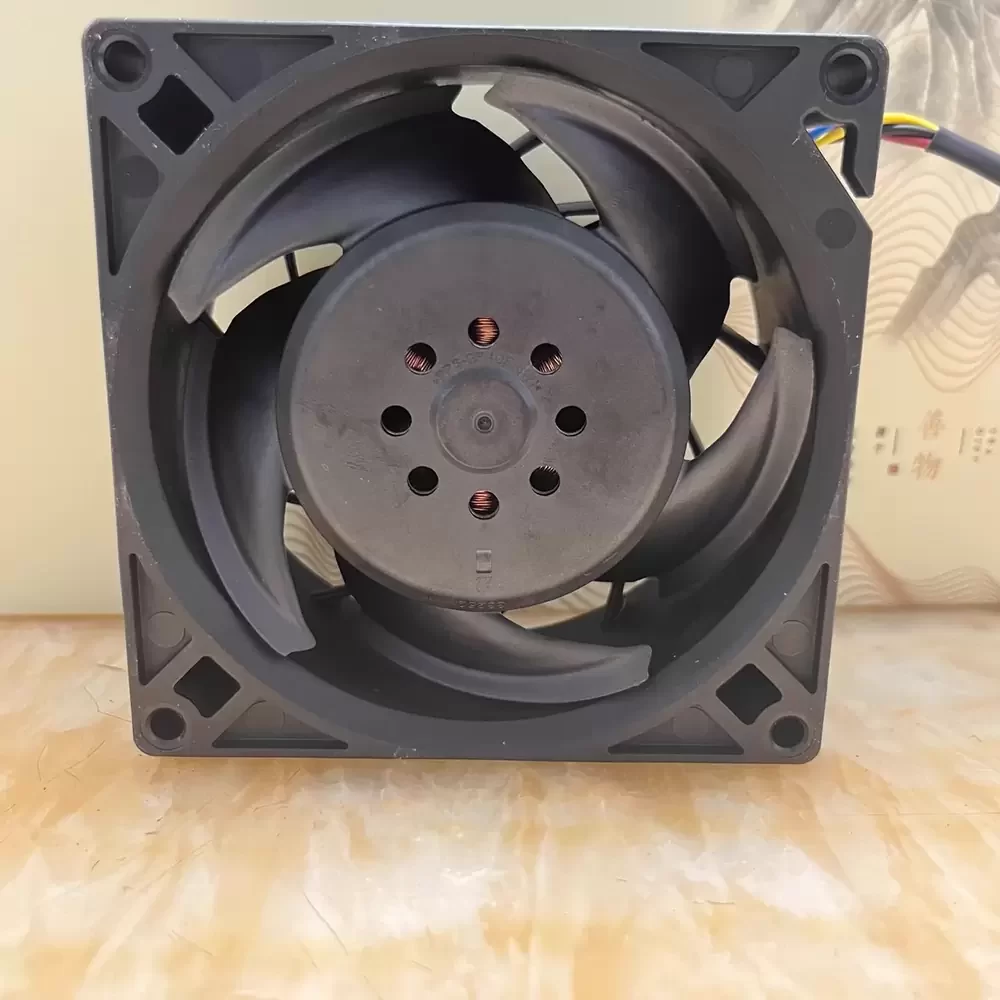

The Delta THD0948VE-03HHG is a high-performance DC Axial Fan engineered for critical thermal management in industrial environments. Featuring a robust 48VDC motor architecture, this unit delivers exceptional airflow dynamics through its precision-molded impeller designed to minimize thermal impedance. The chassis is constructed for maximum structural rigidity, housing a durable ball bearing system that ensures operational stability at a rotational speed of 14500 RPM. This cooling solution is optimized for high-static pressure applications, ensuring efficient heat dissipation in densely packed electronic enclosures.
Model Number: THD0948VE-03HHG
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 60.0 VDC
Rated Current: 2.20 A
Operating Current: 1.30 A (Max 1.56 A)
Power: 105.6 W
Rated Speed: 14500 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 260.5 CFM (442.6 m³/h / 7.37 m³/min)
Max. Static Pressure: 58.2 mmH₂O (570.7 Pa / 2.29 inH₂O)
Dimensions: 90 x 90 x 38 mm
Weight: 250 g
Frame Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Ingress Protection: IP20
Insulation Class: Class A
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C

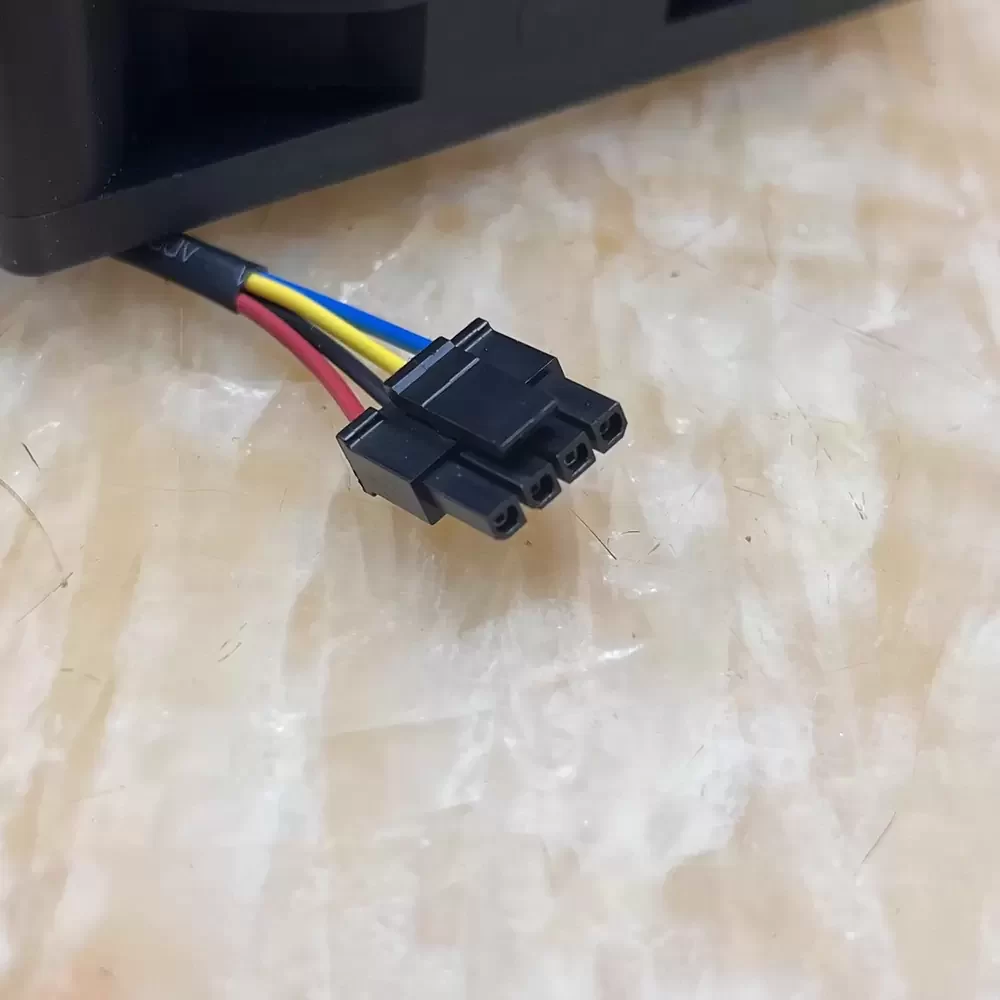

Termination: Lead Wires
Mounting Orientation: Any
Production Year: 2023
The THD0948VE-03HHG is specifically engineered for high-demand industrial applications requiring substantial static pressure to overcome system resistance. Common deployments include high-density server racks, telecommunications base stations, and precision CNC machinery where consistent airflow is paramount. The THD0948VE-03HHG excels in cooling power supplies and rectifiers, ensuring component longevity by effectively managing thermal loads in restricted spaces.
