YDH6015B12 YCCFAN 12VDC 0.3A 60x60x15mm Axial Cooling Fan

Description

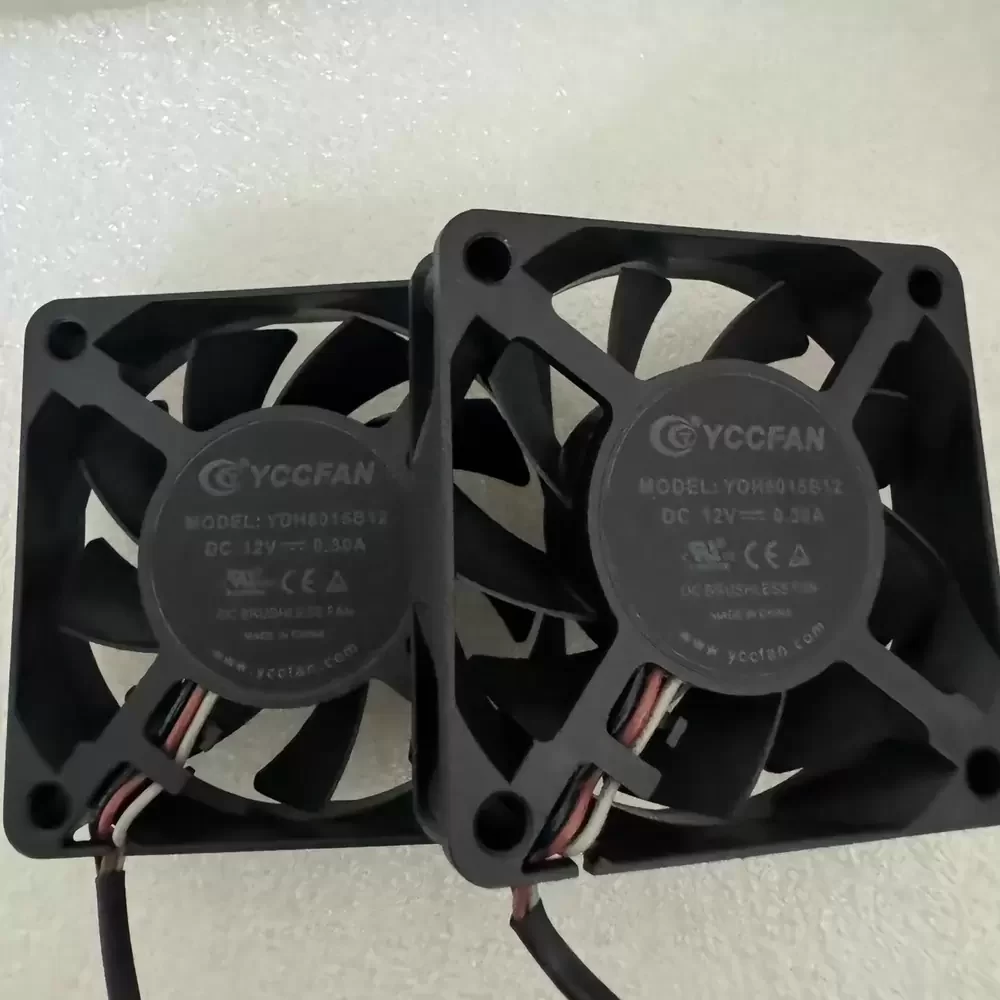

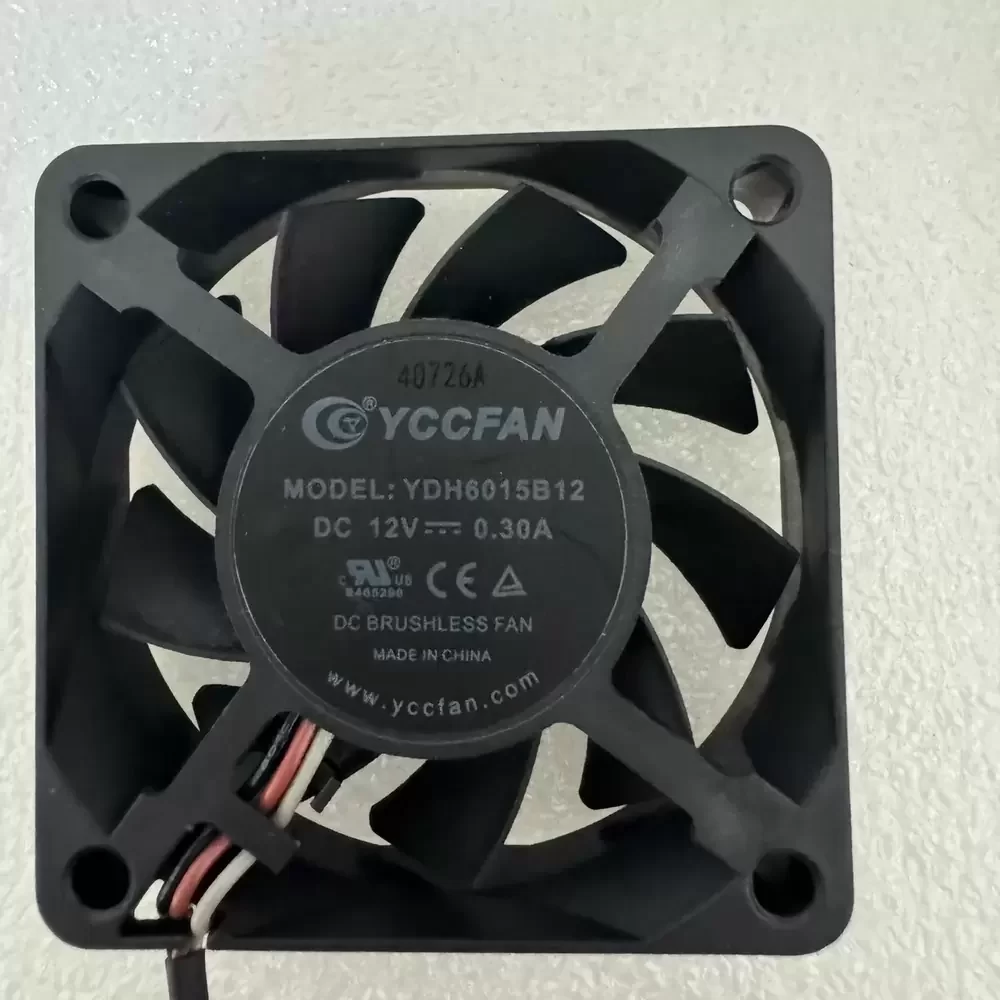

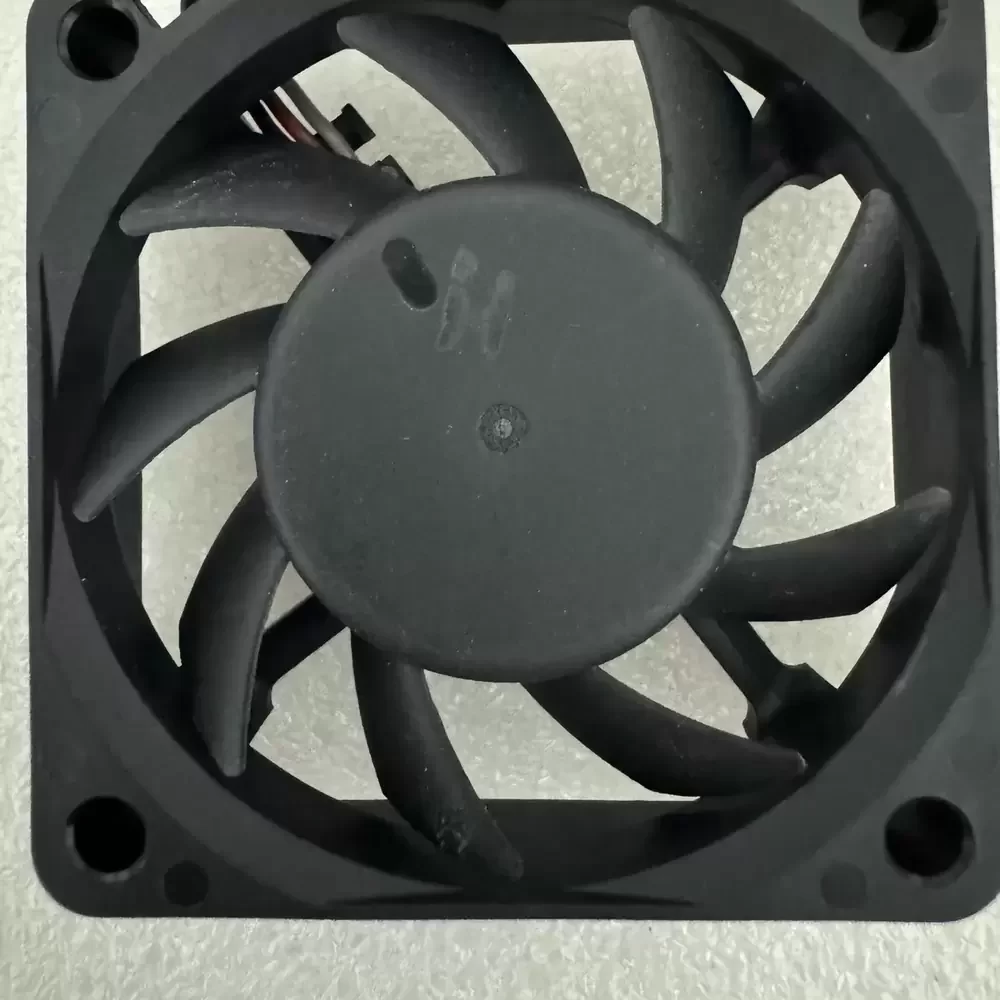

YCCFAN YDH6015B12 is a 60 x 60 x 15 mm axial cooling fan operating at 12 VDC with a 0.3 A current rating and 3.6 W power consumption. The unit features a dual ball bearing system housed within a PBT plastic (UL 94V-0) frame and impeller. It utilizes a 3-wire interface for power and signal feedback, delivering a rotational speed of 5500 RPM. The internal brushless DC motor is protected by impedance and polarity safeguards, ensuring consistent airflow of 24.22 CFM and a static pressure of 5.85 mmH2O.

YDH6015B12 Specifications
Model: YDH6015B12
Brand: YCCFAN
Category: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage: 7.0 to 13.8 VDC
Rated Current: 0.3 A
Input Power: 3.6 W
Rated Speed: 5500 RPM
Maximum Airflow: 24.22 CFM
Static Pressure: 5.85 mmH2O
Noise Level: 40.5 dBA
Bearing Type: Dual Ball Bearing

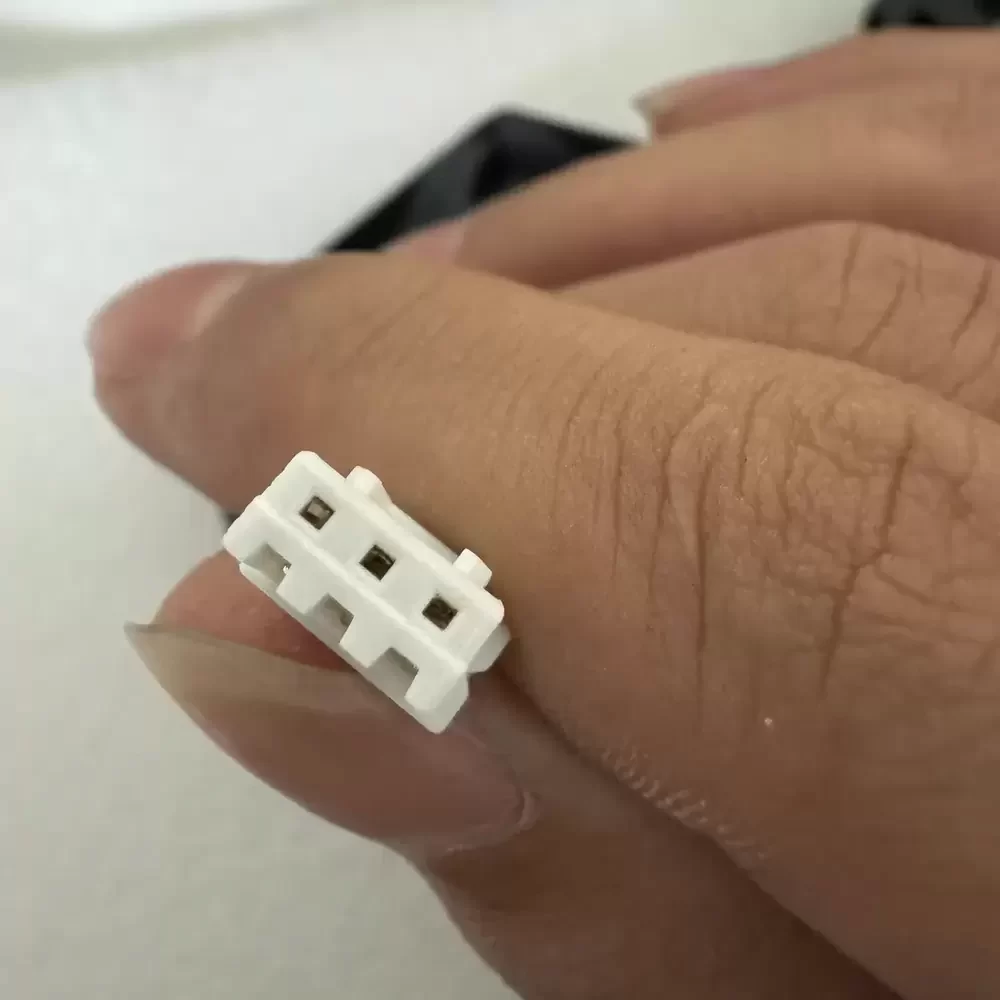

Interface: 3-wire (Lead wires)
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +80 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 35 g
Insulation Resistance: 10 M Ohm at 500 VDC
Dielectric Strength: 5 mA Max at 500 VAC for 1 minute
Certifications: CE, TUV, UL, RoHS

YDH6015B12 Applications
Primary applications include integration into server rack enclosures, network switch chassis, and industrial power supply units requiring compact thermal management. Deployed within medical diagnostic equipment, CNC controller cabinets, and telecommunication base station cooling modules to maintain optimal operating temperatures for sensitive electronic components.
