Description

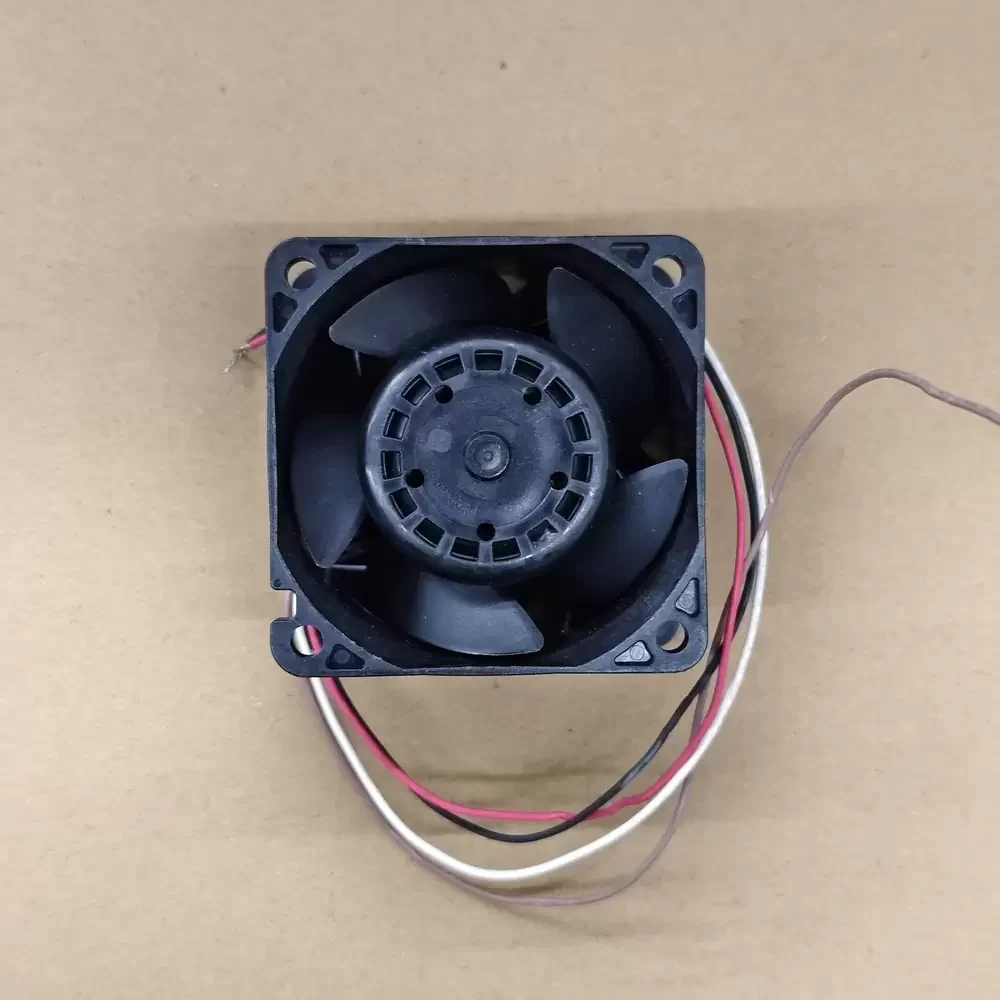

The NMB 06038DA-12S-EWF-D is a high-performance DC axial cooling fan engineered for extreme thermal management in space-constrained industrial environments. Operating at a nominal 12VDC with a high current draw of 2.80A, this 60x38mm unit delivers a massive 73.1CFM airflow and 887Pa static pressure. It features a precision dual ball bearing system for a 70,000-hour service life and a 4-wire interface supporting PWM speed control and tachometer output for real-time system monitoring.
06038DA-12S-EWF-D Specifications
Model Number: 06038DA-12S-EWF-D
Brand: NMB Technologies (MinebeaMitsumi)
Category: DC Axial Fan / PWM Speed Control Fan
Frame Size: 60mm x 60mm
Frame Depth: 38mm
Nominal Voltage: 12VDC
Operating Voltage Range: 10.8V to 13.2VDC
Rated Current: 2.80A (Max)
Input Power: 33.6W
Rated Speed: 17000 RPM
Maximum Air Flow: 73.1 CFM (2.07 m³/min)
Maximum Static Pressure: 3.56 In H2O (887 Pa)
Noise Level: 66.5 dB
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Output Signal: Tachometer / Locked Rotor Sensor
Wiring: 4-Wire Lead (Red: +, Black: -, White: Tach, Brown: PWM)
Mass: 125g
Life Expectancy: 70,000 Hours at 40°C (L10)
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Protection: Auto Restart, Polarity Protection
06038DA-12S-EWF-D Applications
High-density thermal regulation for 1U/2U rack-mount servers, enterprise network switches, industrial frequency inverters, and high-capacity power supply units (PSU).
