Description

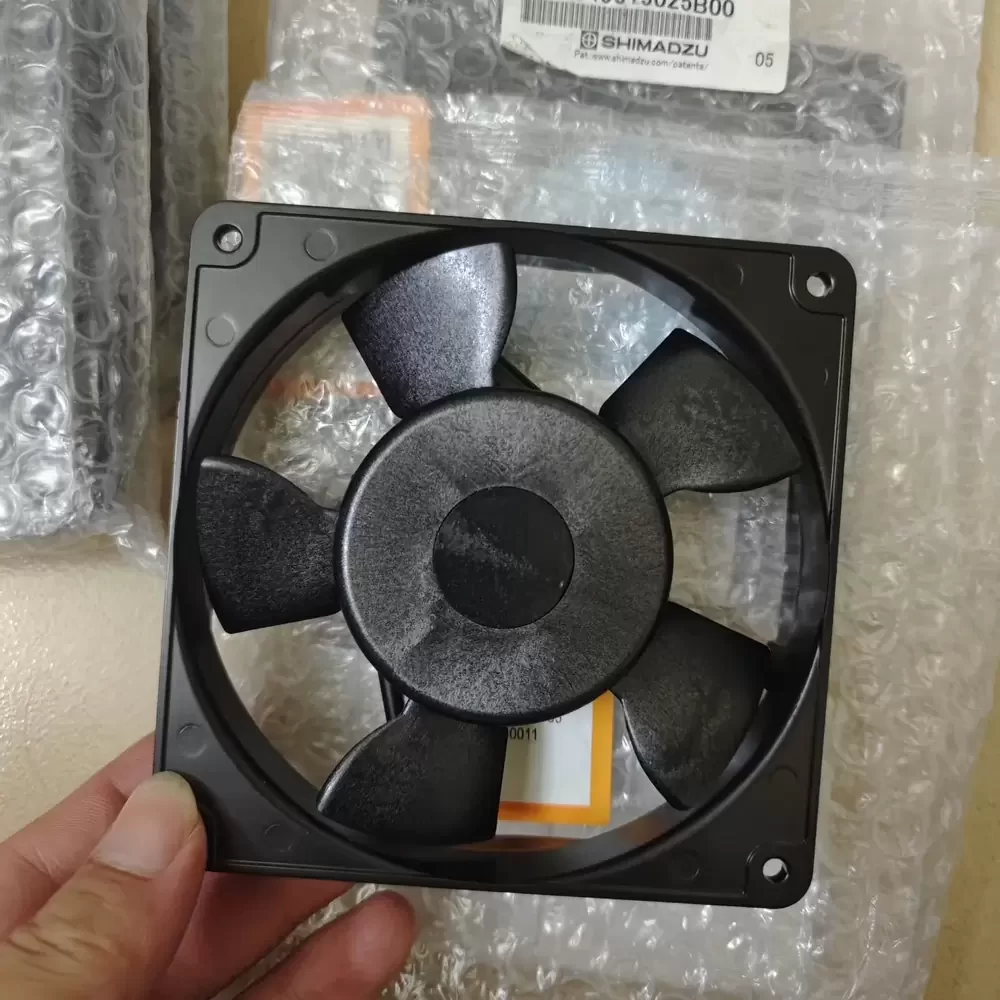

The NMB 11925PB-A0L-EA-00 is a robust AC Axial Fan engineered for high-reliability industrial thermal management. Utilizing MinebeaMitsumi’s advanced precision ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous loads. The design features a structurally rigid aluminum die-cast frame coupled with an aerodynamically optimized impeller to maximize airflow efficiency while maintaining low acoustic signatures. It operates on a single-phase AC induction motor system, providing consistent thermal impedance reduction in demanding environments.

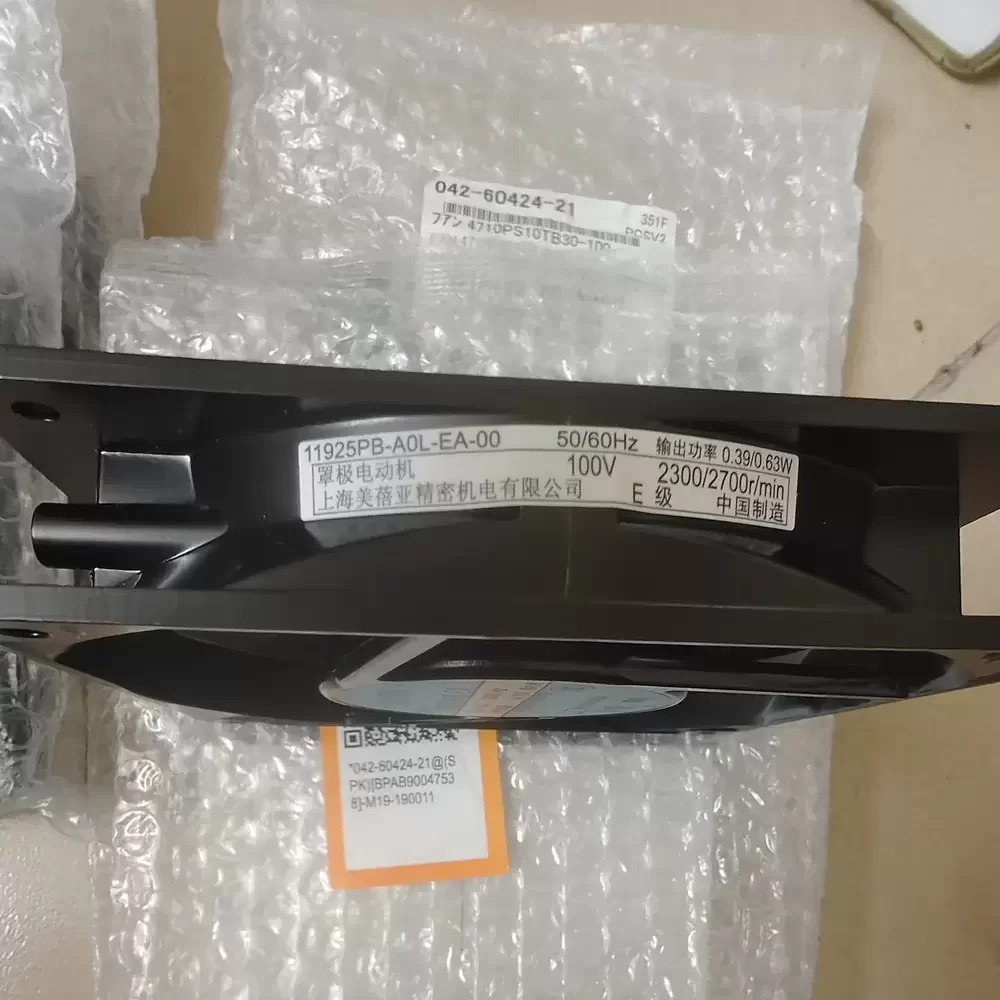

Model Number: 11925PB-A0L-EA-00
Brand: NMB (MinebeaMitsumi)
Product Type: AC Axial Fan
Rated Voltage: 100 VAC
Frequency: 50/60 Hz
Input Power: 14W / 11W
Phase: 1 Phase
Rated Speed: 2600 / 3000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 84.7 CFM (144 m³/h / 2.4 m³/min)
Max. Static Pressure: 6.8 mmH₂O (66.7 Pa / 0.27 inH₂O)
Dimensions: 119 x 119 x 25 mm
Weight: 320 g
Frame Material: Aluminum Die-Cast
Impeller Material: Reinforced Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 Hours (at 25°C)

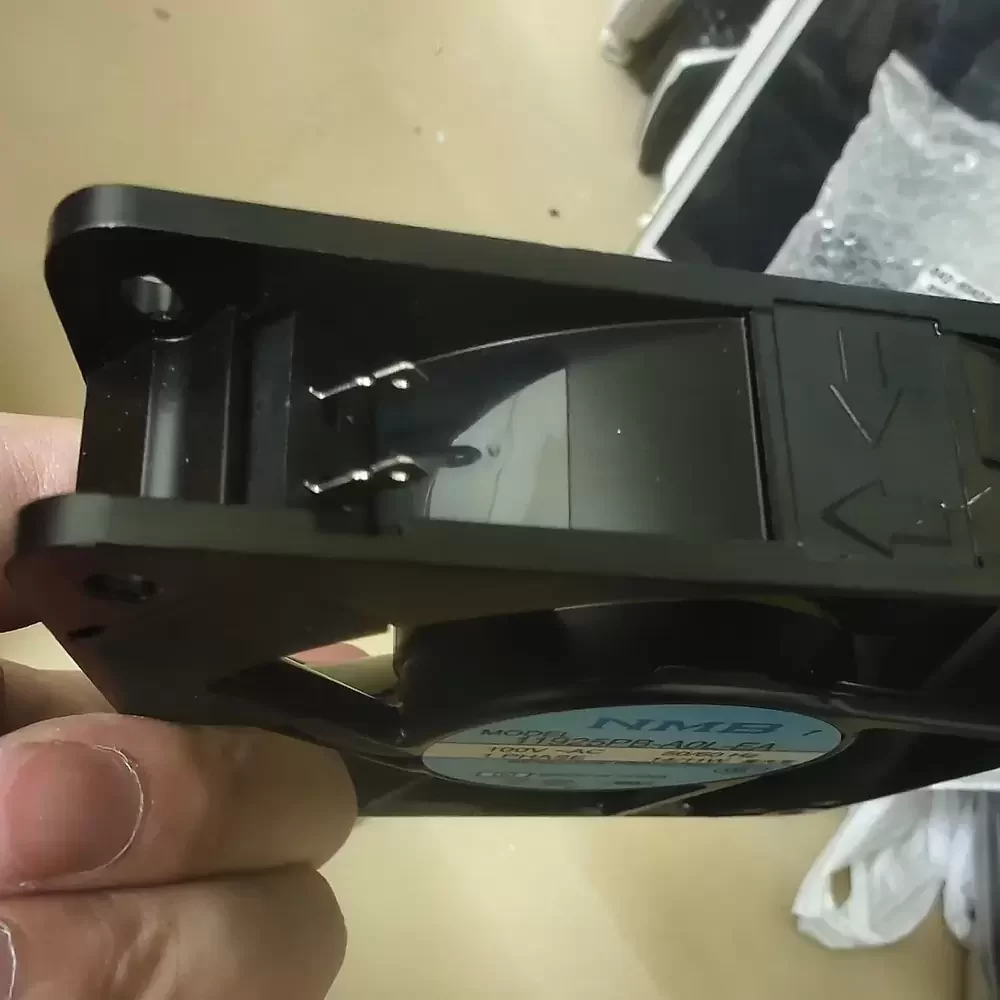

Termination: Terminal / Lead Wire
Ingress Protection: IP20
Noise Level: 38 / 42 dBA
Insulation Resistance: 10M Ω min. at 500 VDC
Dielectric Strength: 1500 VAC for 1 minute
Designed for critical ventilation in electronic enclosures, the 11925PB-A0L-EA-00 serves as a primary cooling solution for server cabinets and telecommunication racks. Its compact profile allows for seamless integration into industrial automation control panels and CNC machinery where space is at a premium but airflow cannot be compromised. The 11925PB-A0L-EA-00 is also frequently utilized in medical instrumentation and power supply units, ensuring stable operating temperatures for sensitive components.
