Description

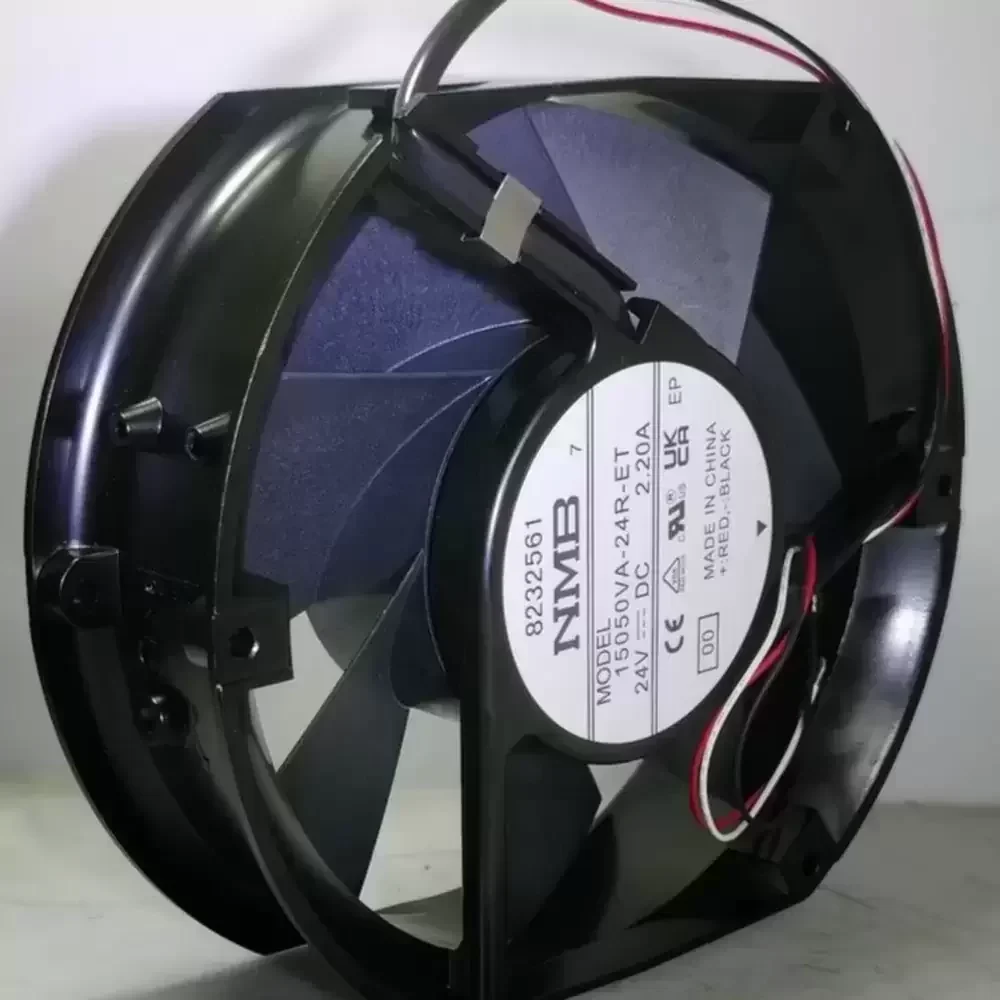

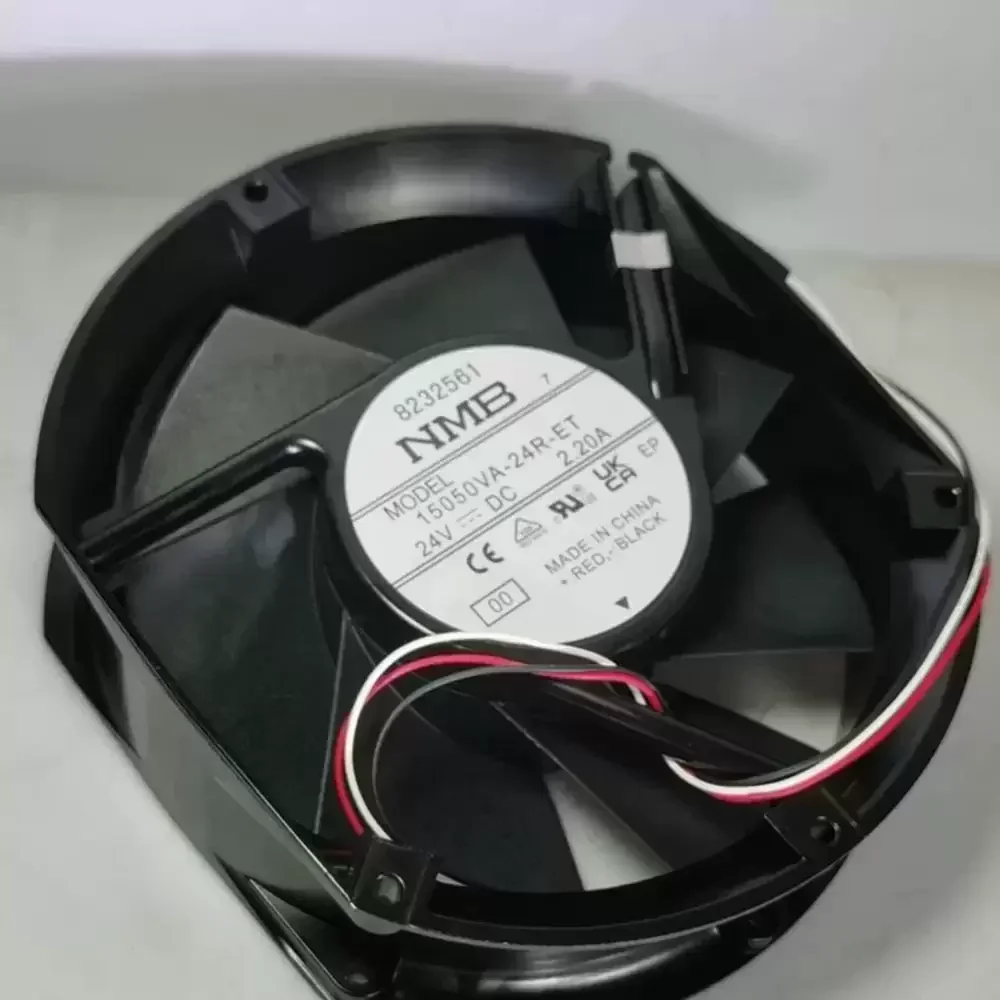

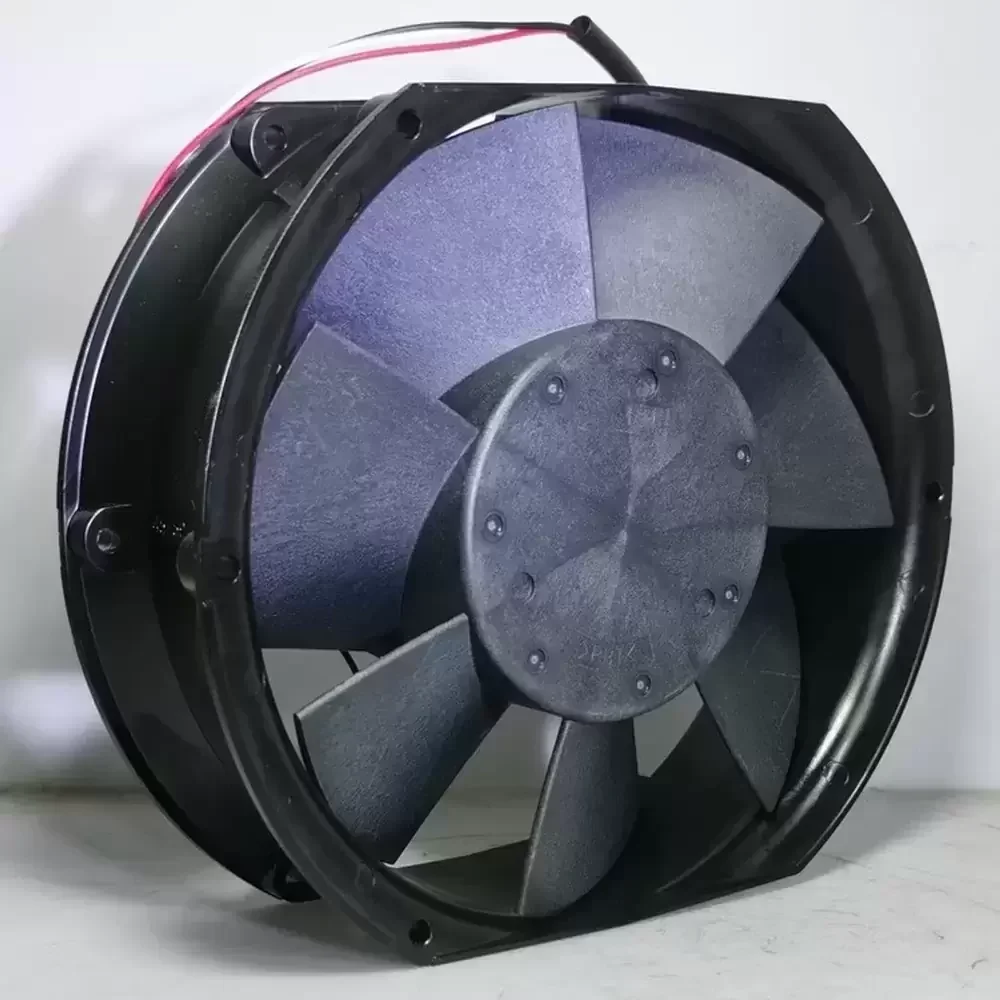

The NMB 15050VA-24R-ET-00 is a robust DC Axial Fan engineered for high-static pressure industrial environments requiring superior thermal management. Utilizing advanced dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous high-speed load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance in densely packed electronic enclosures. Designed with a precision-wound DC motor, the 15050VA-24R-ET-00 delivers consistent torque and reliability, making it an essential component for critical cooling applications where component stability and heat dissipation are paramount.
Model Number: 15050VA-24R-ET-00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 18.0 – 27.6 VDC
Rated Current: 2.20 A
Input Power: 52.8 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 345.0 CFM (586.1 m³/h / 9.76 m³/min)
Max. Static Pressure: 32.5 mmH₂O (318.7 Pa / 1.28 inH₂O)
Dimensions: 172x150x50mm
Weight: 850 g
Life Expectancy: 100,000 Hours (L10 at 25°C)
Noise Level: 68.0 dB(A)
Housing Material: Aluminum Die-Cast
Impeller Material: Reinforced Plastic (UL94V-0)
Termination: 3-Wire Lead (Red +, Black -, White/Yellow Sensor)
Speed Control: Tachometer Output (Frequency Generator)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Class: Class E
Safety Certifications: UL, CSA, TUV, CE
Protection: Locked Rotor Protection, Reverse Polarity Protection
The 15050VA-24R-ET-00 is engineered for high-demand thermal regulation in mission-critical infrastructure such as telecommunications base stations, high-density server racks, and industrial automation control panels. Its robust airflow capabilities make it ideal for forced convection in power inverters and medical imaging equipment where reliability is non-negotiable. By integrating the 15050VA-24R-ET-00, facility managers ensure consistent cooling performance in variable frequency drive (VFD) cabinets and large-scale network switches, effectively mitigating thermal runaway risks in continuous-duty environments.
