Description

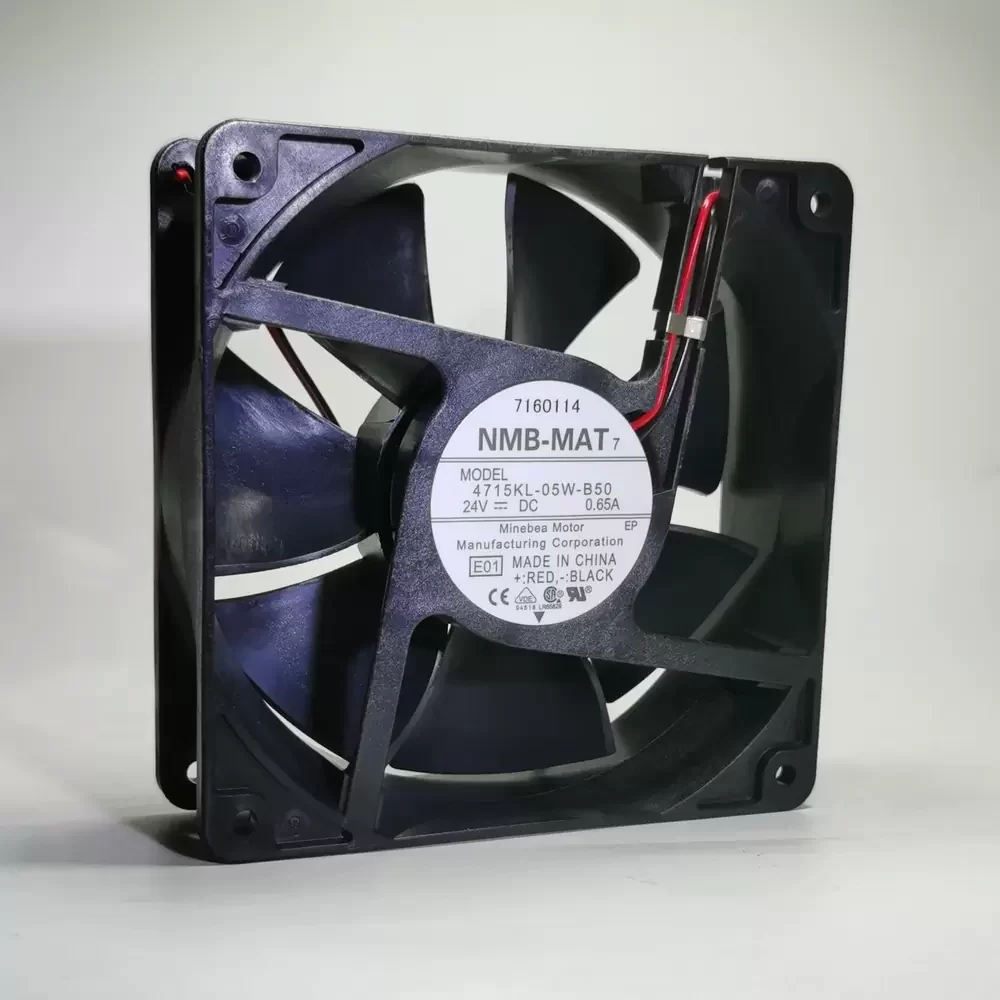

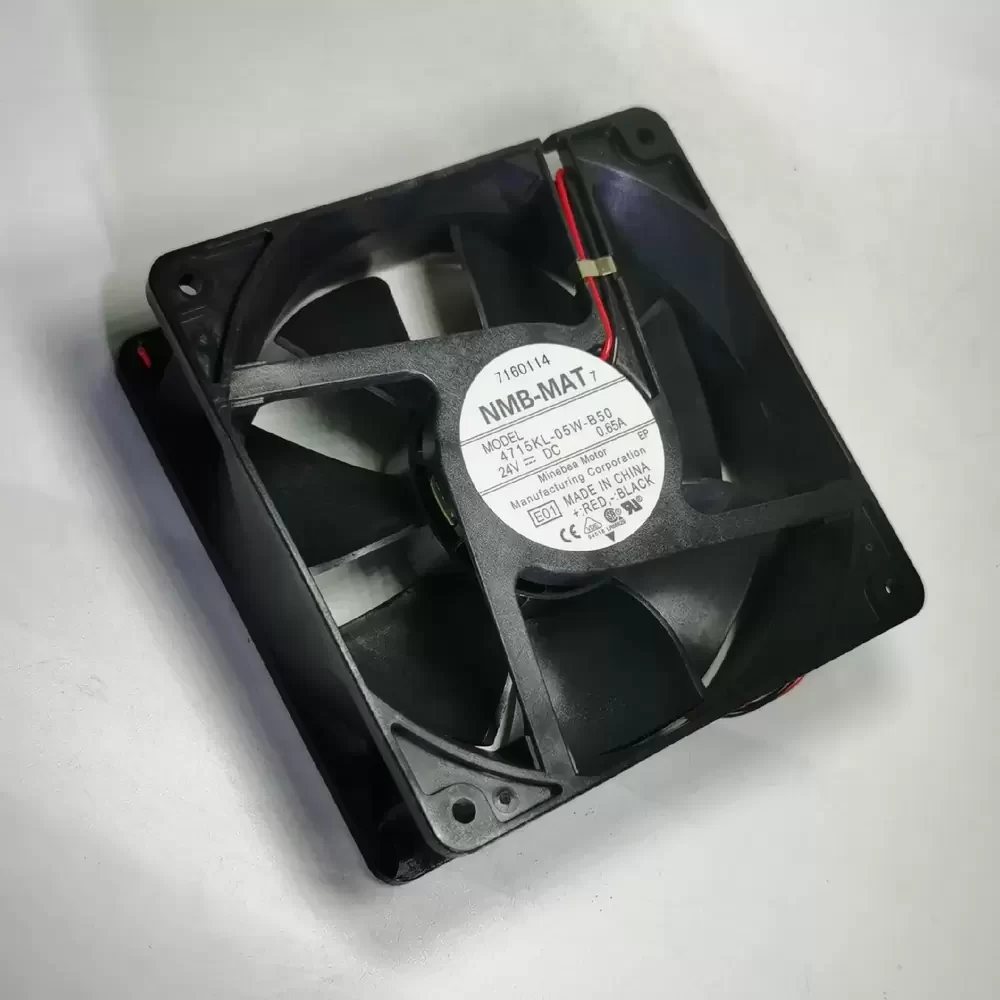

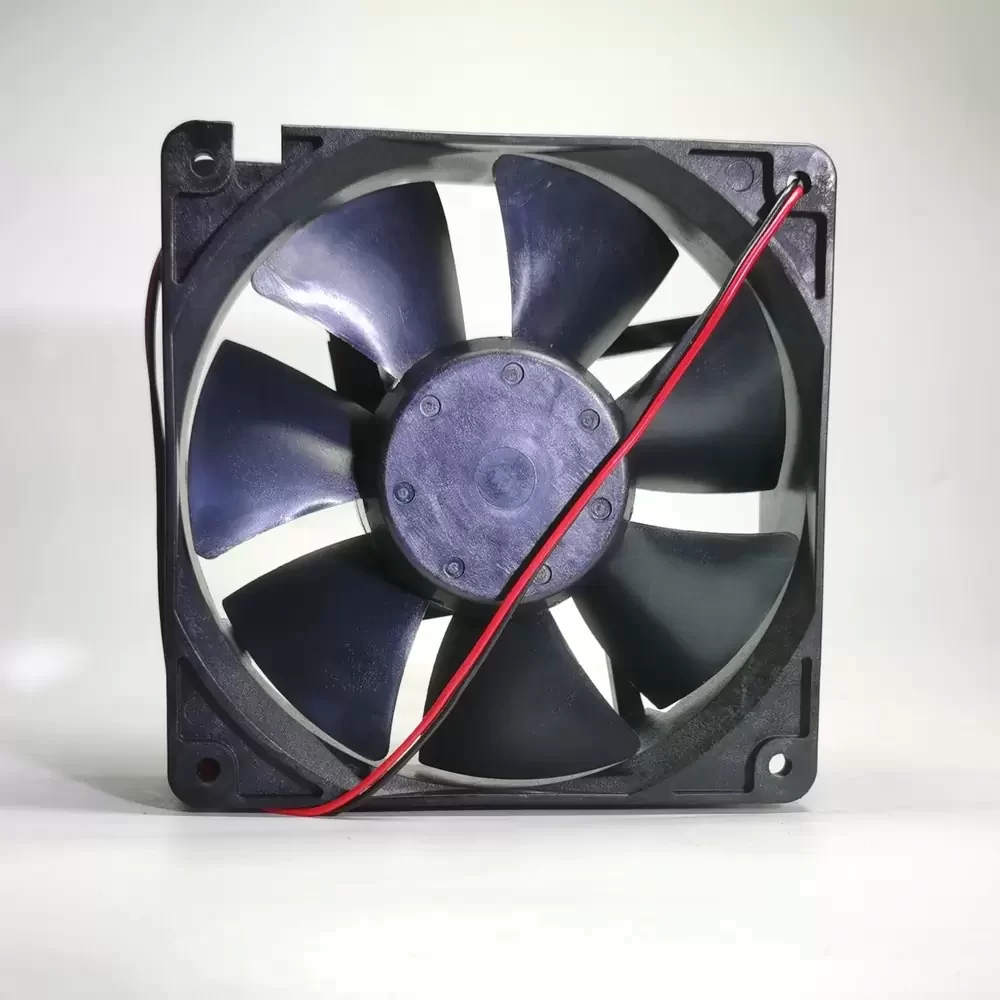

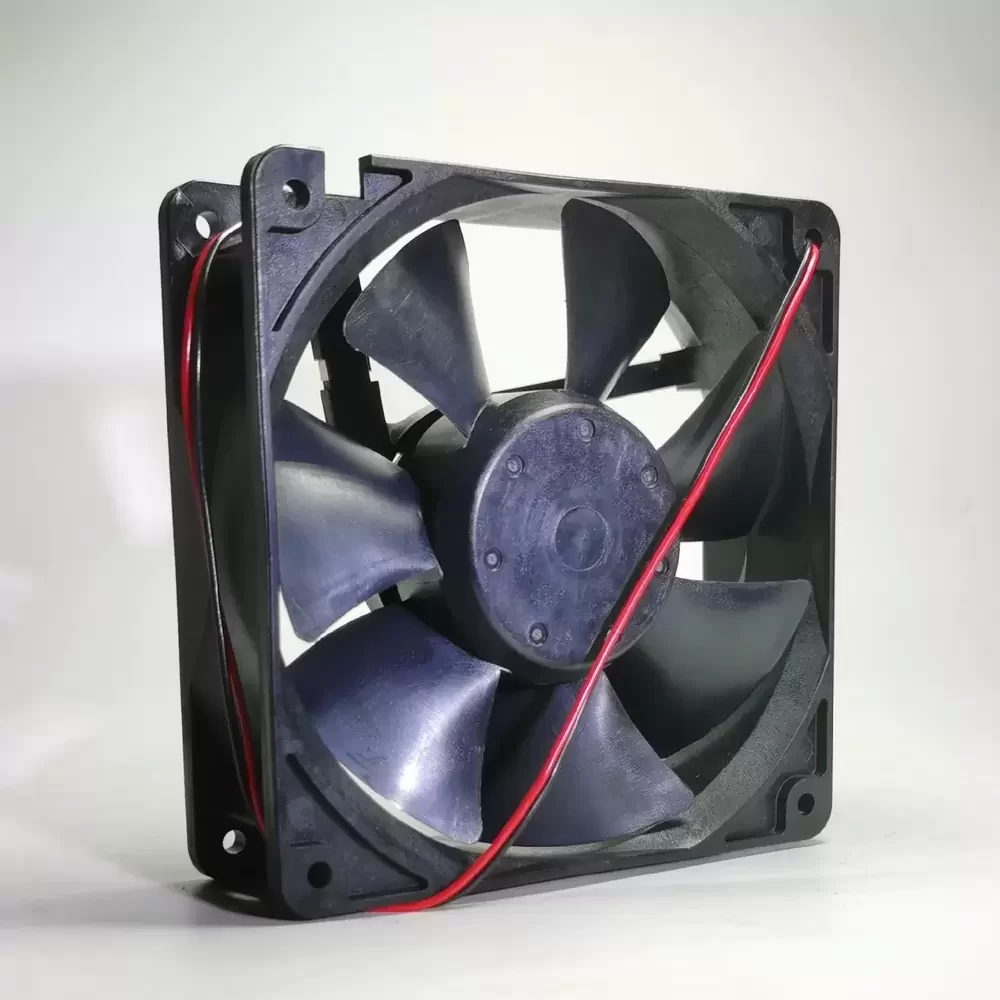

The NMB 4715KL-05W-B50-E01 is a DC Axial Fan engineered by MinebeaMitsumi (NMB-MAT) for precision industrial cooling applications. This unit features advanced aerodynamic impeller geometry designed to minimize thermal impedance while maintaining structural rigidity under continuous operation. Utilizing a robust Dual Ball Bearing architecture, the motor assembly ensures exceptional rotational stability and longevity. The 4715KL-05W-B50-E01 is optimized for high static pressure environments, delivering reliable airflow throughput essential for maintaining thermal equilibrium in sensitive electronic enclosures and power conversion systems.
Model Number: 4715KL-05W-B50-E01
Brand: NMB (NMB-MAT)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.65 A
Power Consumption: 15.6 W
Rated Speed: 3300 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 118.0 CFM (200.5 m³/h / 3.34 m³/min)
Max. Static Pressure: 10.2 mmH₂O (100.0 Pa / 0.40 inH₂O)
Dimensions: 120x120x38mm
Weight: 260g
Life Expectancy: 100,000 Hours (at 25°C)
Noise Level: 46.5 dBA
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 2-Wire Lead
Motor Protection: Auto Restart / Polarity Protection
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 700VAC for 3 seconds
Designed for demanding thermal management tasks, the 4715KL-05W-B50-E01 is widely utilized in variable frequency drive (VFD) inverters and large-scale power supply units where consistent heat dissipation is critical. This fan is also frequently deployed in server rack enclosures, telecommunication cabinets, and industrial automation control panels. The 4715KL-05W-B50-E01 ensures component reliability by preventing thermal throttling in CNC machinery and medical diagnostic equipment requiring sustained air exchange.
