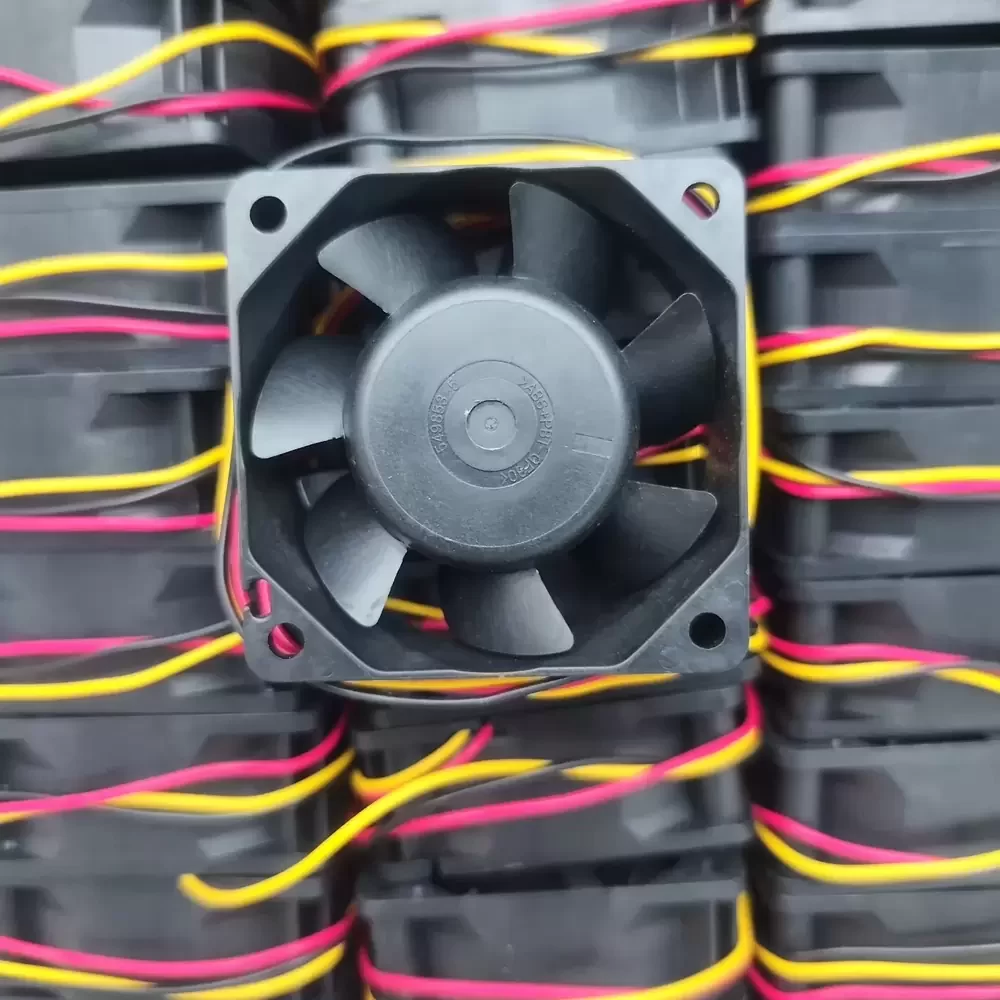

9A0624F4D01 Sanyo Denki 24VDC 1.2W 60x60x25mm Axial Fan

Description

The Sanyo Denki 9A0624F4D01 is a high-reliability San Ace 60 series DC axial fan engineered for precision thermal management in space-constrained industrial environments. Operating at a nominal 24VDC with a low current draw of 0.05A, this 60x60x25mm unit delivers a consistent airflow of 15.5 CFM (0.44 m³/min) while maintaining a low acoustic profile of 24 dBA. It features a dual ball bearing system for extended service life and integrated locked rotor burnout protection to ensure operational safety under mechanical stall conditions.

9A0624F4D01 Specifications
Model Number: 9A0624F4D01
Brand: Sanyo Denki
Series: San Ace 60 (San Cooler)
Product Type: DC Axial Fan
Frame Size: 60 x 60 mm
Thickness: 25 mm
Rated Voltage: 24VDC
Operating Voltage Range: 12 to 27.6VDC
Rated Current: 0.05A
Rated Input: 1.2W
Rated Speed: 3200 RPM
Max Airflow: 15.5 CFM (0.44 m³/min)
Max Static Pressure: 32.4 Pa (0.13 inchH2O)
Noise Level: 24 dBA
Bearing Type: Dual Ball Bearing

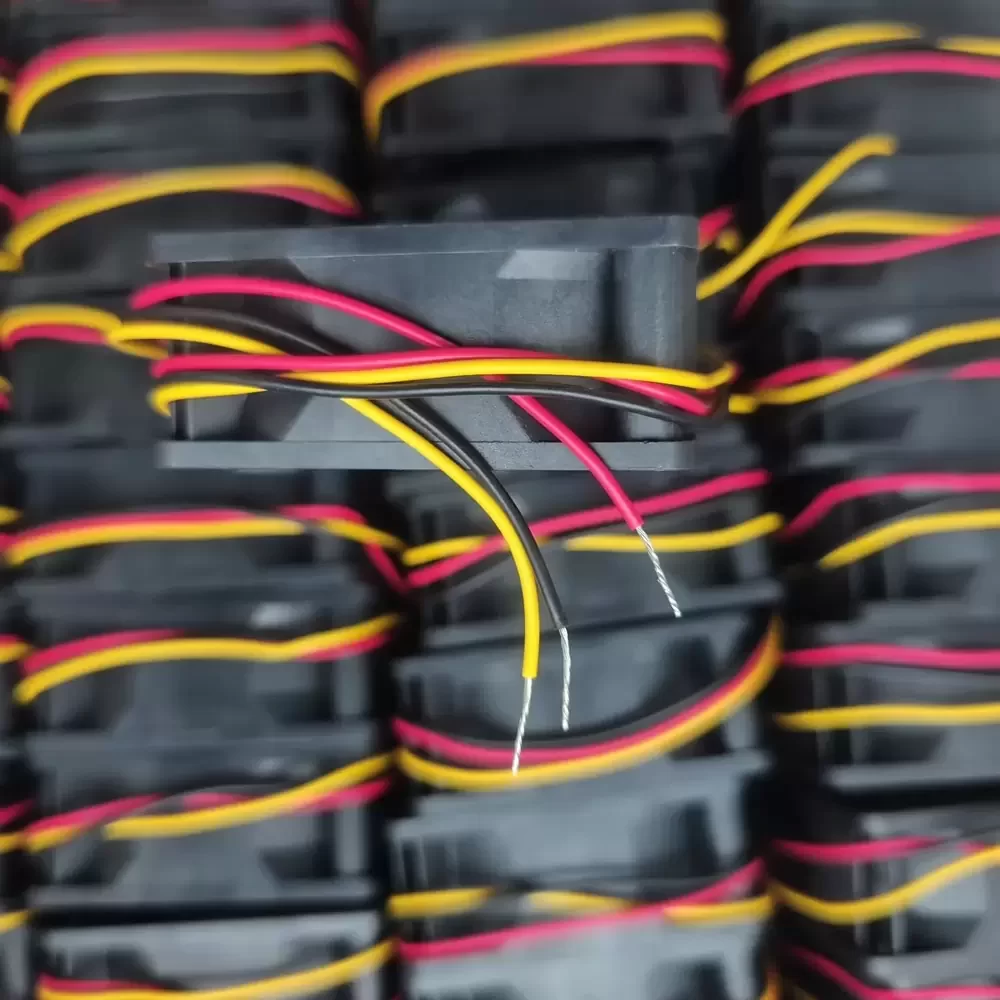

Termination: 3-Wire Leads (Red/Black/Yellow)
Sensor Type: Locked Rotor Sensor (RD)
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -20 to +70°C
Expected Life: 60,000 Hours @ 60°C
Mass: 80g
Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Approvals: UL, CSA, TÜV, RoHS

9A0624F4D01 Applications
Active thermal regulation for industrial control cabinets, medical diagnostic equipment, and telecommunications networking hardware. Mandatory cooling for switch-mode power supplies (SMPS), laboratory instrumentation, and high-density 2U rack-mount server enclosures requiring low-noise operation.
