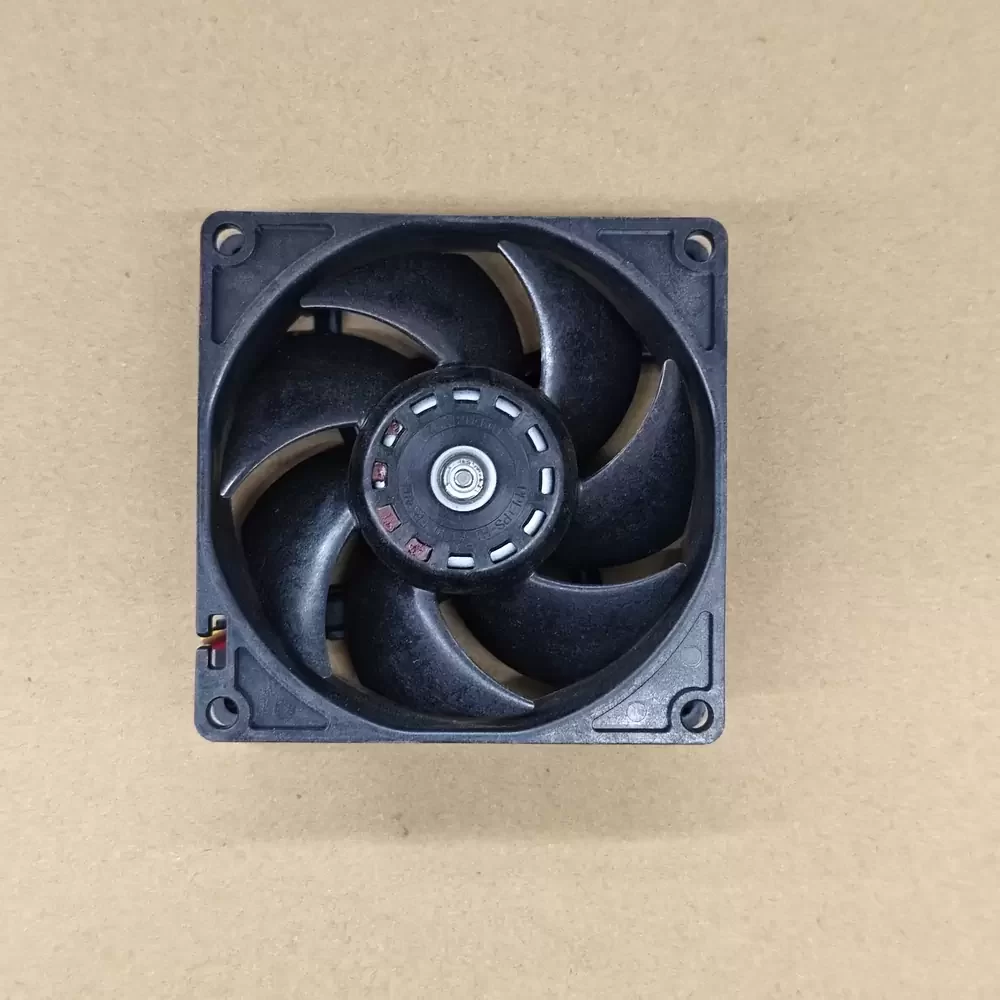

9RA0848P4G0011 Sanyo Denki 48VDC 80x80x25mm DC Axial Fan

Description

The Sanyo Denki 9RA0848P4G0011 is a high-performance San Ace 80 9RA type DC axial fan engineered for precision thermal management in high-reliability environments. Operating at a rated voltage of 48VDC with a low current draw of 0.07A, this unit delivers a maximum airflow of 49.4CFM (1.4 m³/min) and a static pressure of 83Pa. It features an integrated PWM control function for dynamic speed adjustment and a pulse sensor for real-time RPM monitoring. Built with a dual ball bearing system, it ensures an expected life of 60,000 hours at 60°C, maintaining a noise level of 37dB(A) at its peak speed of 5000RPM.

9RA0848P4G0011 Specifications
Model Number: 9RA0848P4G0011
Brand: Sanyo Denki
Series: San Ace 80 9RA Type
Product Category: DC Axial Fan
Rated Voltage: 48VDC
Operating Voltage Range: 43.2 to 52.8VDC
Rated Current: 0.07A
Rated Input: 3.36W
Rated Speed: 5000 RPM
Max. Airflow: 1.4 m³/min (49.4 CFM)
Max. Static Pressure: 83 Pa (0.33 inchH2O)
Sound Pressure Level: 37 dB(A)
Operating Temperature: -20 to +70°C
Expected Life: 60,000 hours @ 60°C (90,000 hours @ 40°C)
Dimensions: 80 x 80 x 25 mm
Mass: 110 g
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-1)
Sensor Type: Pulse Sensor
Control Function: PWM Control
Interface: 4-Wire
Ribbed: No
Certifications: RoHS, UL, CSA, TÜV

9RA0848P4G0011 Applications
Thermal regulation for medical diagnostic equipment, built-in switch-mode power supplies (SMPS), industrial control cabinets, and high-density server rack cooling systems.
