Description

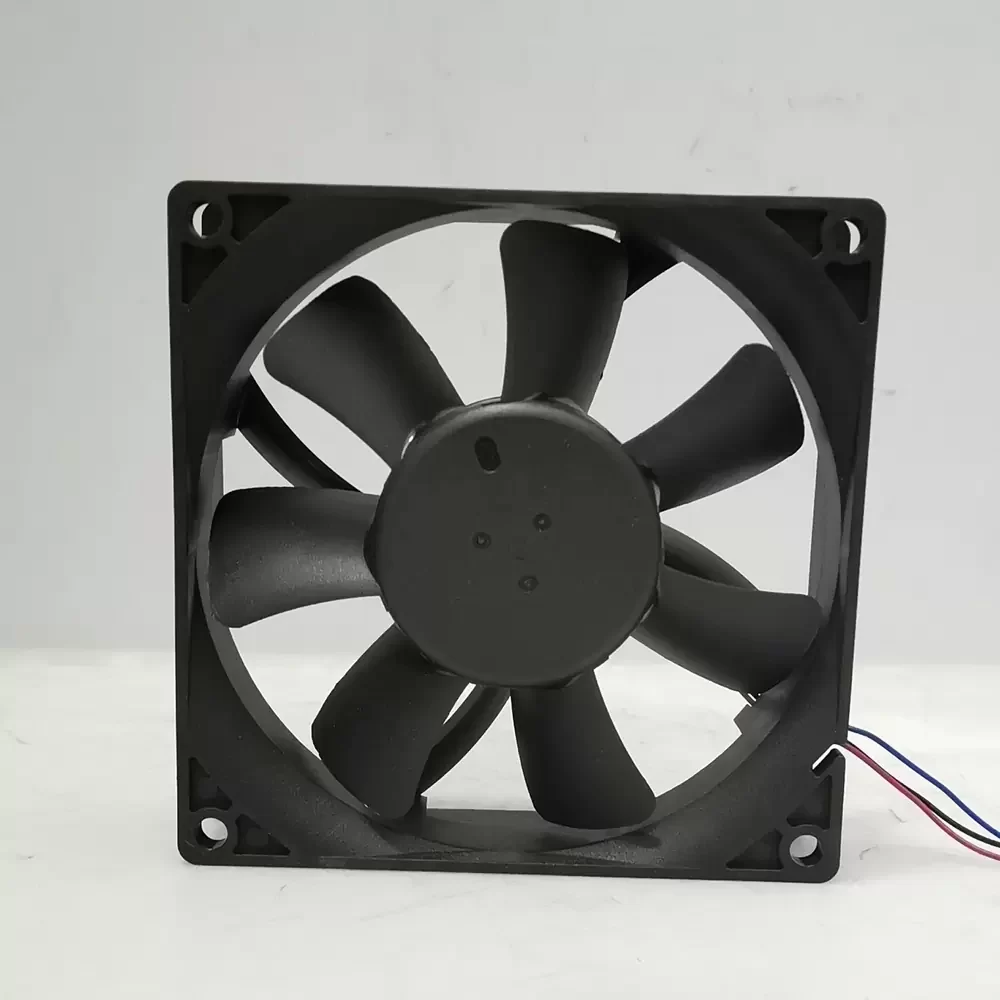

The Delta AFB0912H-A is a precision-engineered DC axial fan designed for critical thermal management in electronic enclosures. Utilizing advanced aerodynamic blade geometry and a robust two-ball bearing architecture, this unit ensures sustained airflow with minimal structural vibration. The 12VDC motor integrates specialized circuitry to optimize torque delivery while maintaining low thermal impedance. Constructed with UL94V-0 rated thermoplastic, the AFB0912H-A offers superior durability and resistance to environmental stress, making it an ideal solution for systems requiring reliable, continuous cooling performance under demanding operational loads.
Model Number: AFB0912H-A
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.30 A
Input Power: 3.60 W
Rated Speed: 2850 RPM
Max. Air Flow: 51.21 CFM (1.45 m³/min)
Max. Static Pressure: 4.50 mmH₂O (0.177 inH₂O)
Noise Level: 34.0 dB-A
Bearing Type: Two Ball Bearing
Dimensions: 92 x 92 x 25 mm
Weight: 99 g
Life Expectancy: 70,000 Hours at 40°C
Termination: 3-Wire (Lead Wire)
Wire Gauge: AWG24
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Safety Protection: Electronic Locked Rotor Protection
Output Signal: Tachometer (Frequency Generator)
The AFB0912H-A is frequently deployed in high-density computing environments, including server chassis and workstation power supply units, where consistent airflow is paramount. Industrial automation equipment and telecommunications racks also utilize the AFB0912H-A to dissipate heat generated by sensitive components. Its balanced profile allows for integration into medical instrumentation and network switches, ensuring component longevity through effective thermal regulation.
