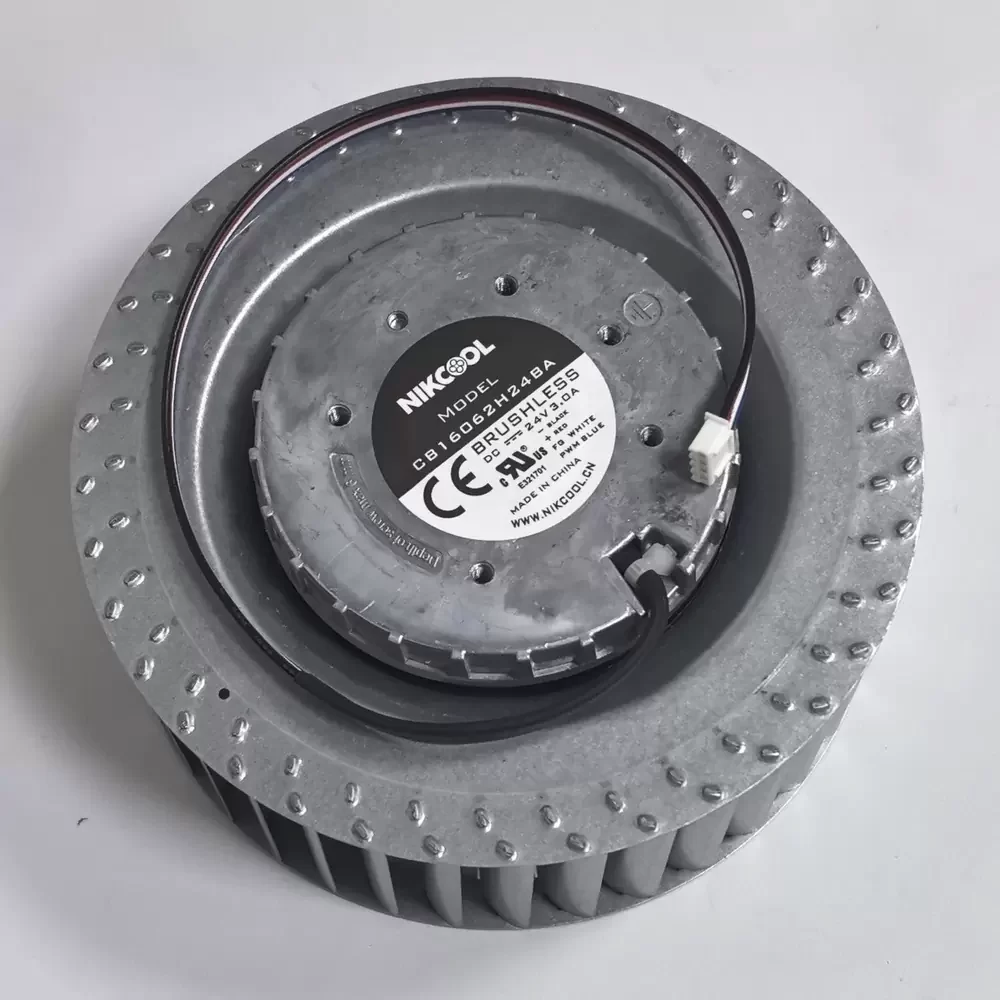

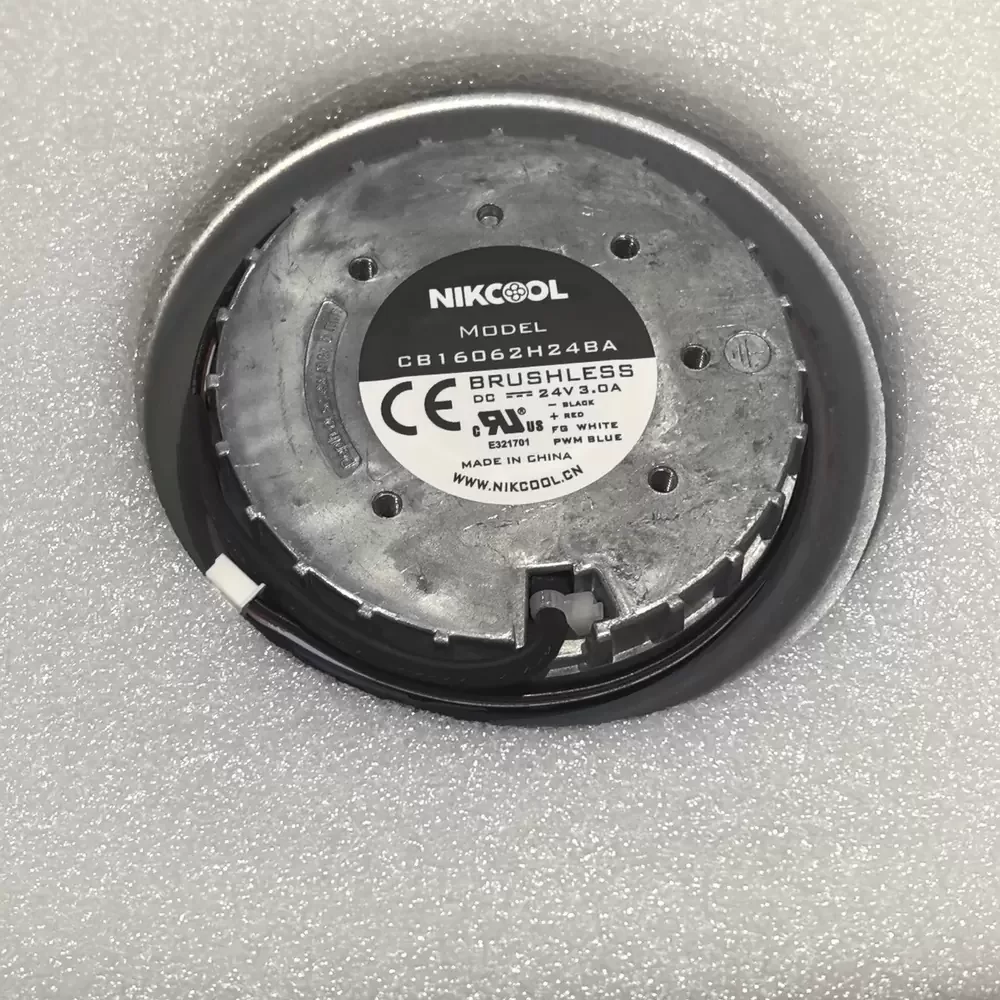

CB16062H24BA NIKCOOL 24VDC 3.0A 160x62mm Centrifugal Fan

Description

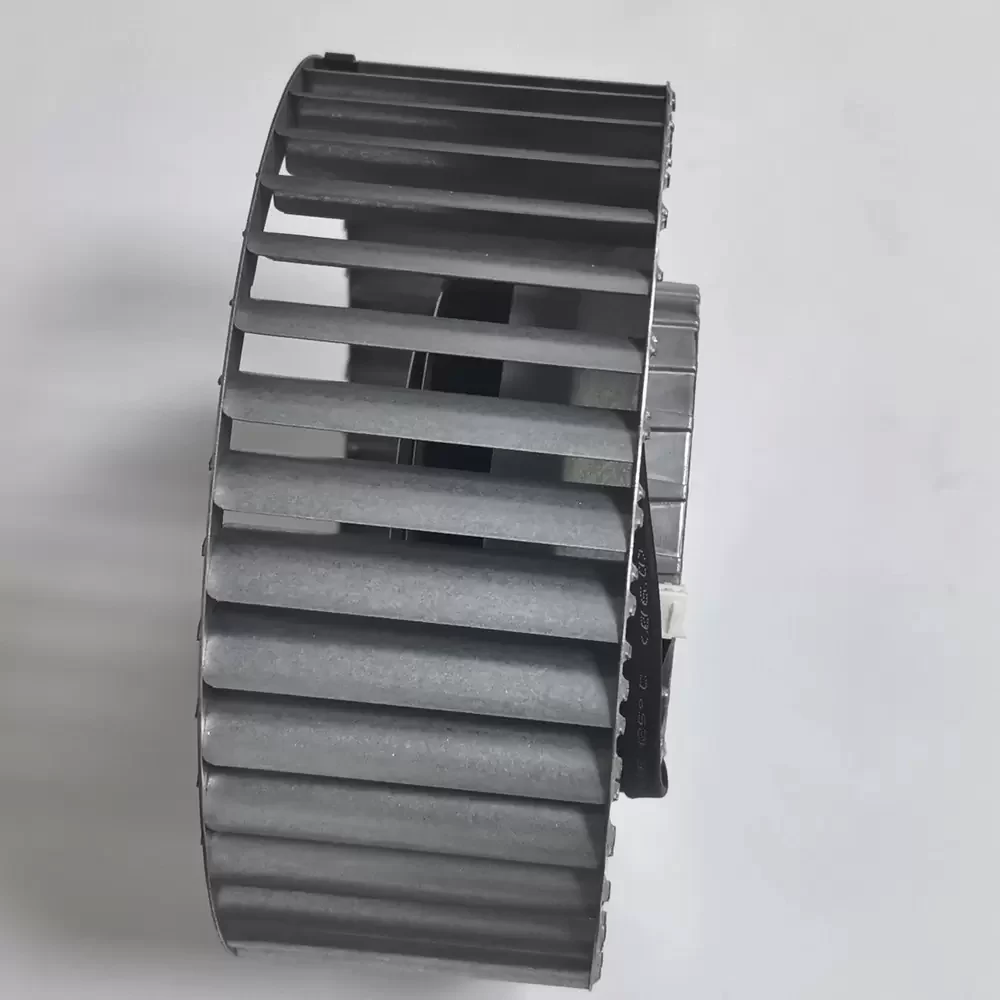

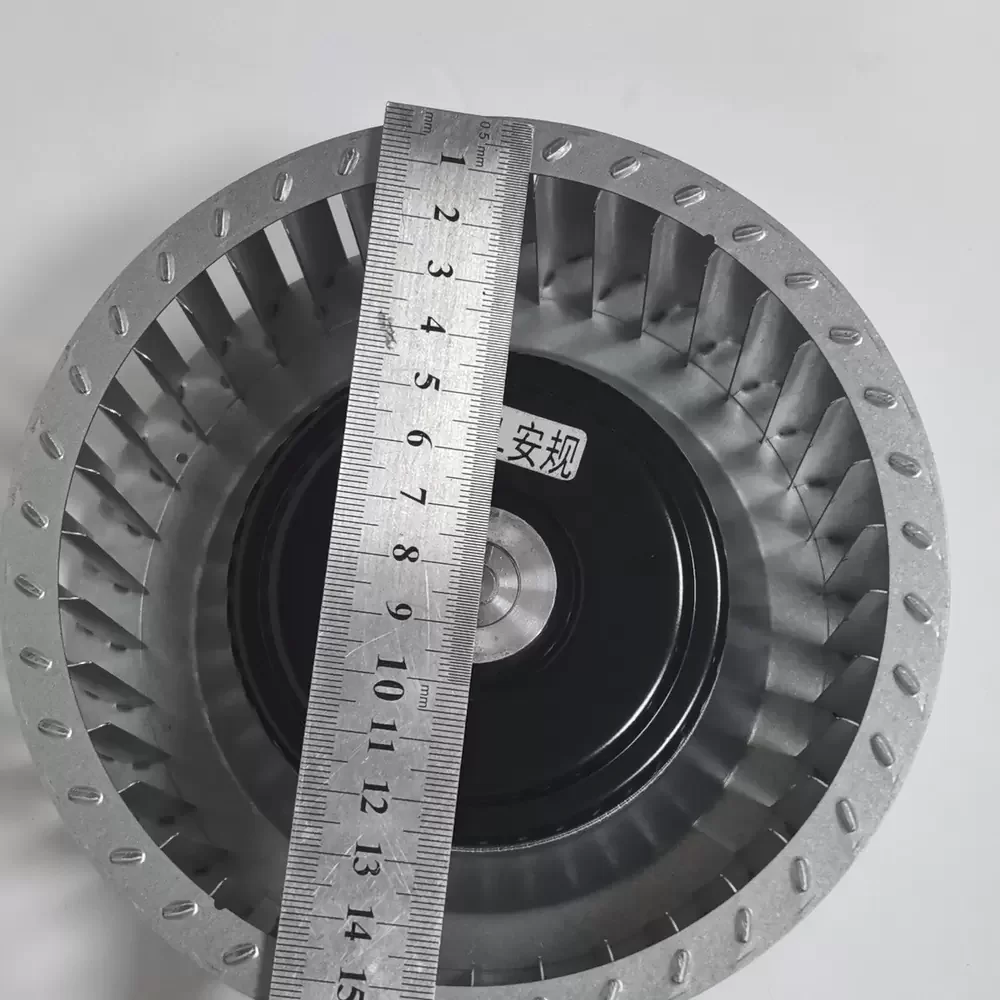

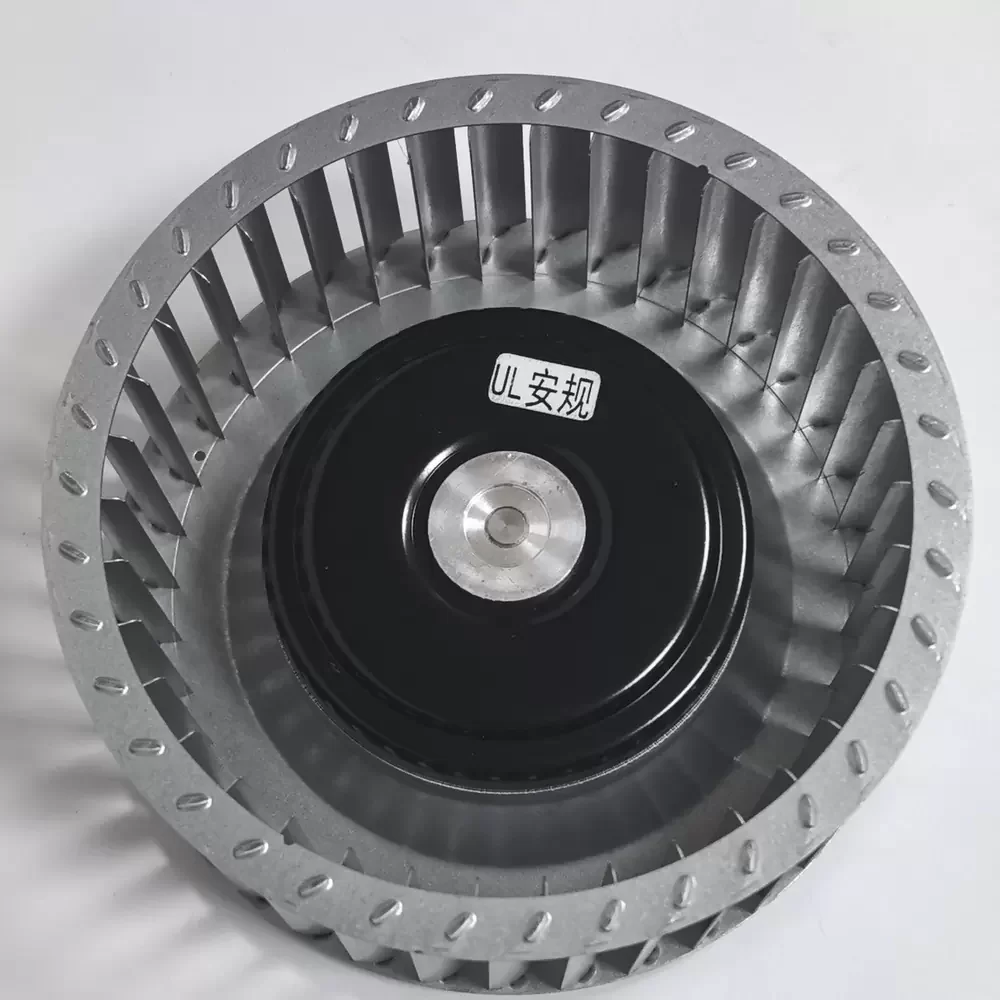

NIKCOOL CB16062H24BA 160 x 62 mm, 24 VDC, 3.0 A, 380 CFM Centrifugal Fan. This blower is engineered with a high-torque brushless DC motor and a dual ball bearing assembly to ensure mechanical stability and longevity. The 160 mm diameter impeller is precision-balanced to minimize vibration while generating a maximum static pressure of 2.5 in H2O. The unit features a 4-wire interface supporting pulse width modulation for variable speed control and a frequency generator signal for tachometer feedback. Its structural design incorporates a die-cast aluminum housing and a reinforced thermoplastic impeller, optimized for high-resistance airflow paths.

CB16062H24BA Specifications
Model: CB16062H24BA
Brand: NIKCOOL
Category: Centrifugal Fan
Nominal Voltage: 24 VDC
Rated Current: 3.0 A
Input Power: 72 W
Dimensions: 160 x 160 x 62 mm
Rated Speed: 3200 RPM
Maximum Airflow: 380 CFM
Static Pressure: 2.5 in H2O
Noise Level: 68 dBA
Bearing Type: Dual Ball Bearing
Impeller Material: PBT Plastic
Housing Material: Aluminum
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 80 °C
Life Expectancy: 70,000 hours
Interface: 4-wire
Weight: 950 g
Certifications: CE, RoHS

CB16062H24BA Applications
Primary applications include integration into industrial frequency converters, telecommunication base station cabinets, and high-density server cooling arrays. Deployed within medical imaging systems, CNC control panels, and large-scale uninterruptible power supplies for targeted thermal management of high-power electronics.
