D04R-24TS203EX Nidec 24VDC 40x40x15mm Axial Fan

Description

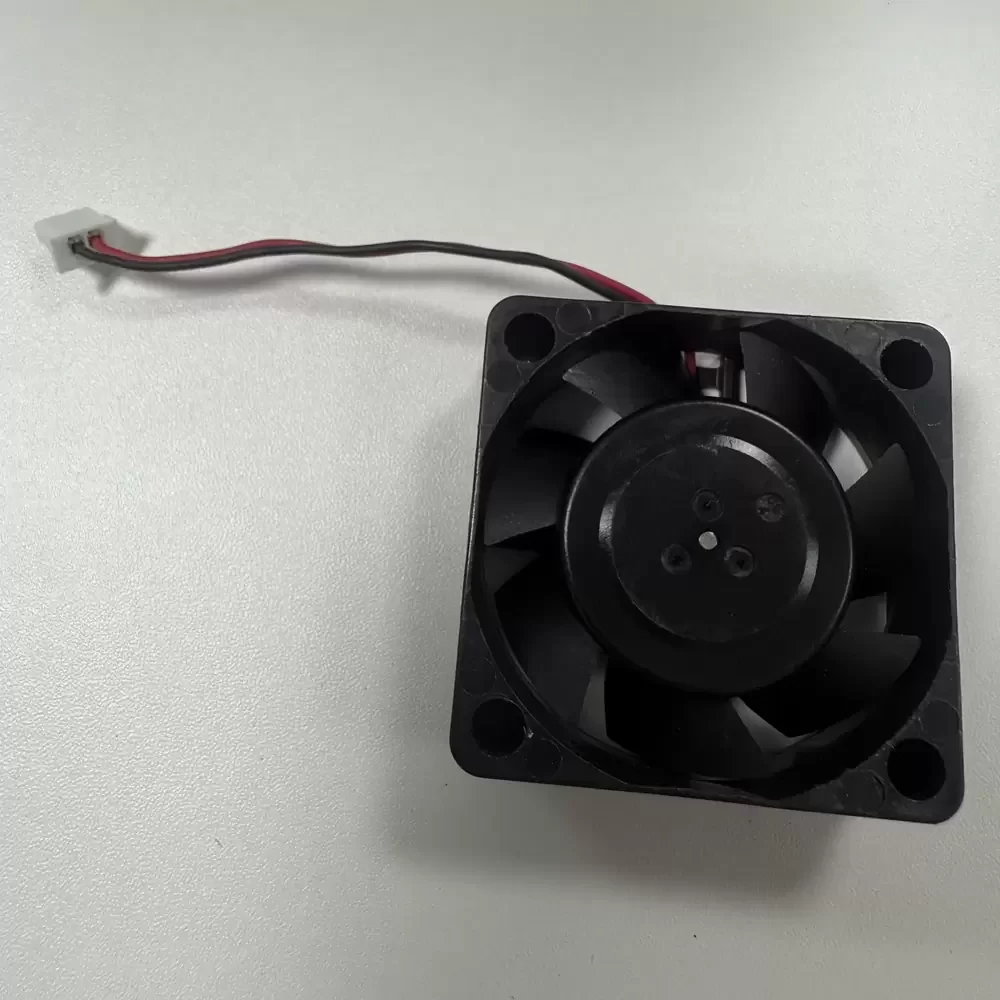

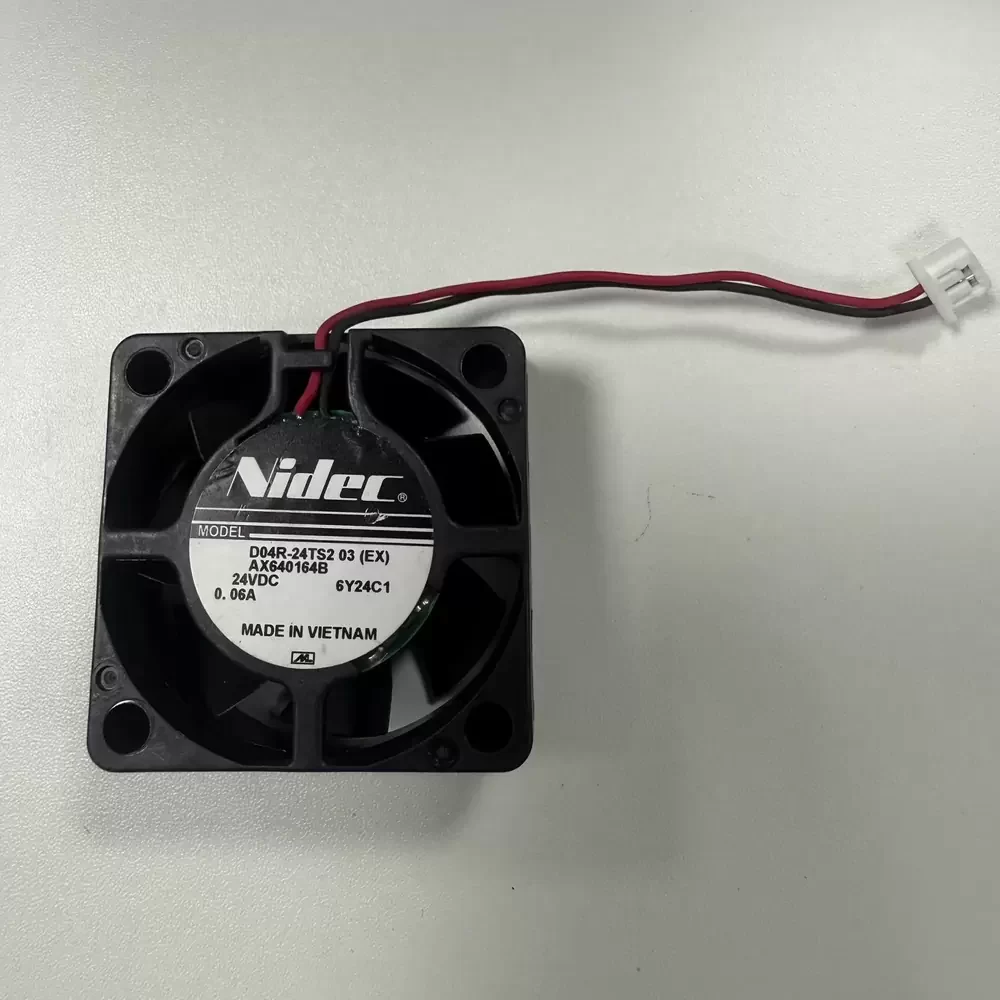

Nidec D04R-24TS203EX is a 40 x 40 x 15 mm axial cooling fan operating at a nominal 24 VDC with a 0.06 A current draw. The unit features a hydraulic bearing system housed within a PBT thermoplastic frame and impeller. It utilizes a 2-wire lead interface for power delivery. The internal motor architecture is designed for low-vibration operation with a power consumption of 1.44 W.

D04R-24TS203EX Specifications
Model: D04R-24TS203EX
Brand: Nidec
Category: DC Axial Fan
Frame Size: 40 x 40 x 15 mm
Voltage: 24 VDC
Current: 0.06 A
Power: 1.44 W
Bearing Type: Hydraulic Bearing
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)

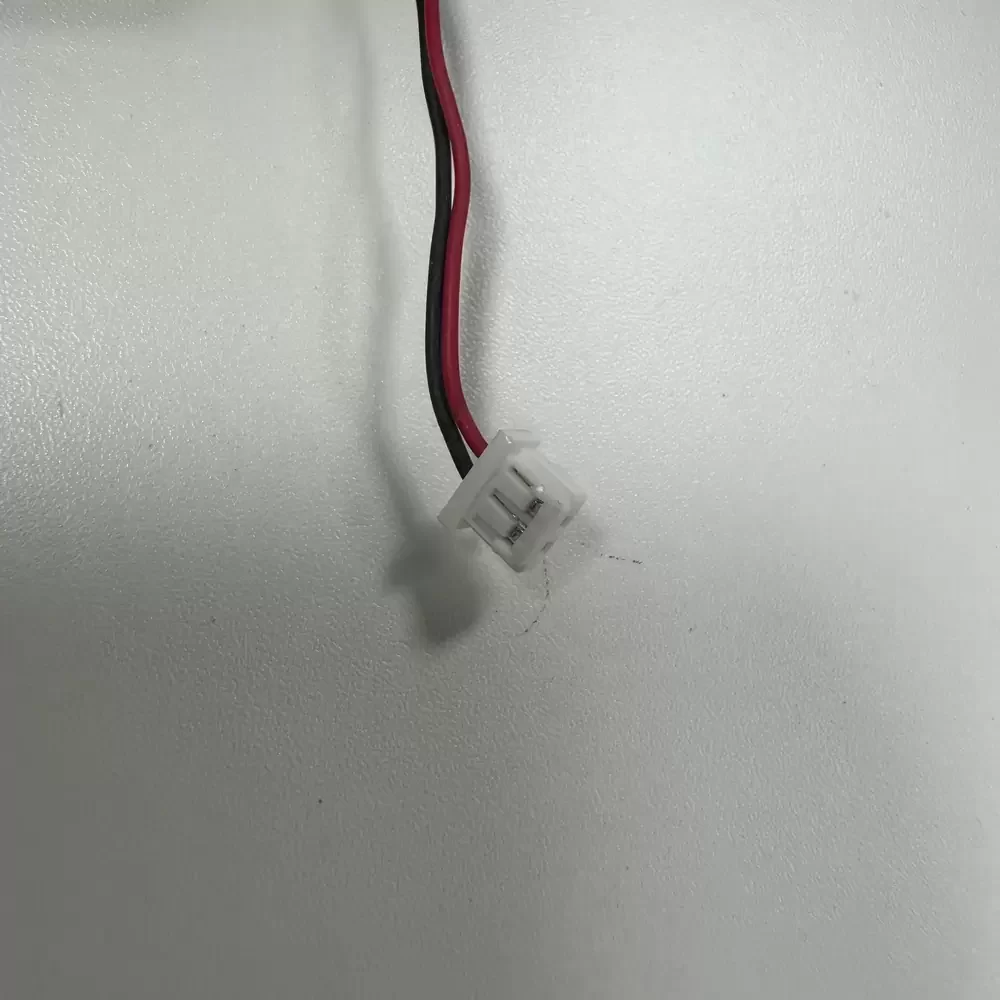

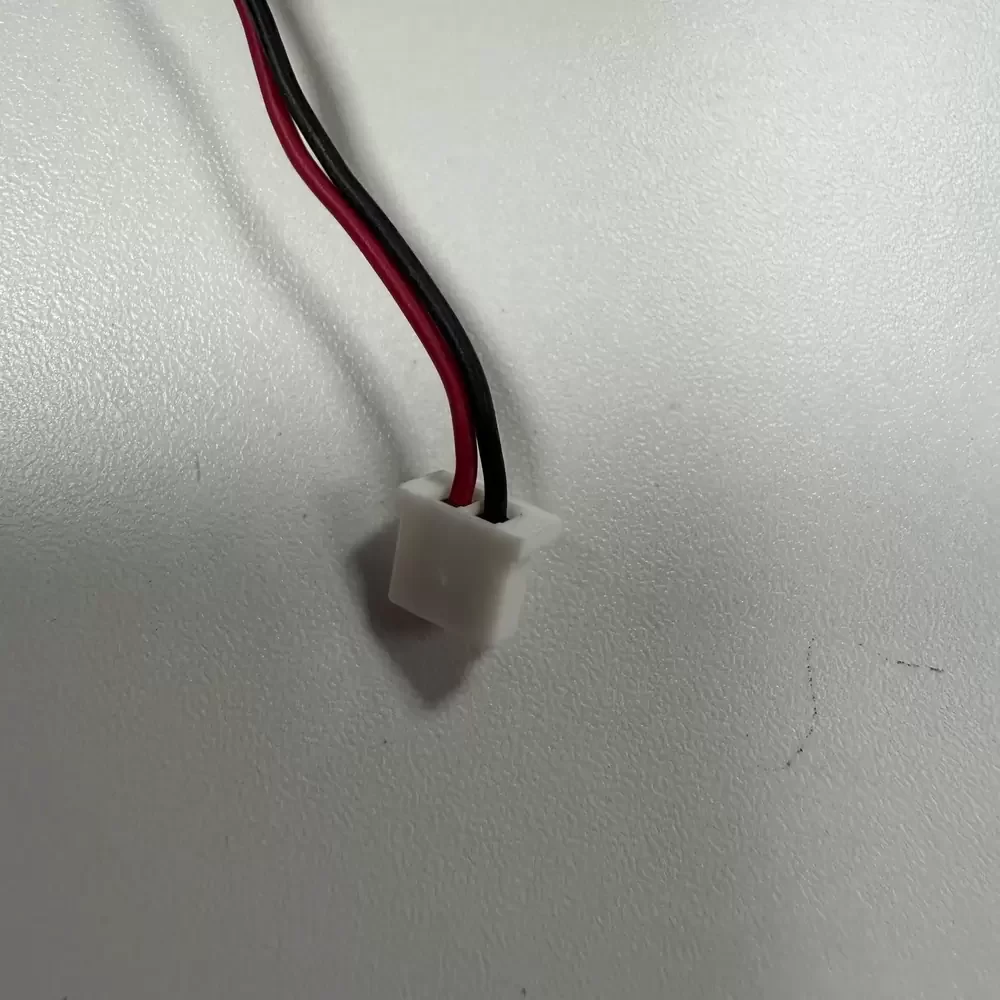

Termination: 2-wire lead
Operating Voltage Range: 20.4 to 27.6 VDC
Insulation Resistance: 10 MΩ min at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Weight: 25 g

D04R-24TS203EX Applications
Primary applications include integration into frequency inverter cooling modules, industrial PC (IPC) chassis, and telecommunications switching equipment. Deployed within power supply units and compact electronic control cabinets requiring localized thermal management.
