Description

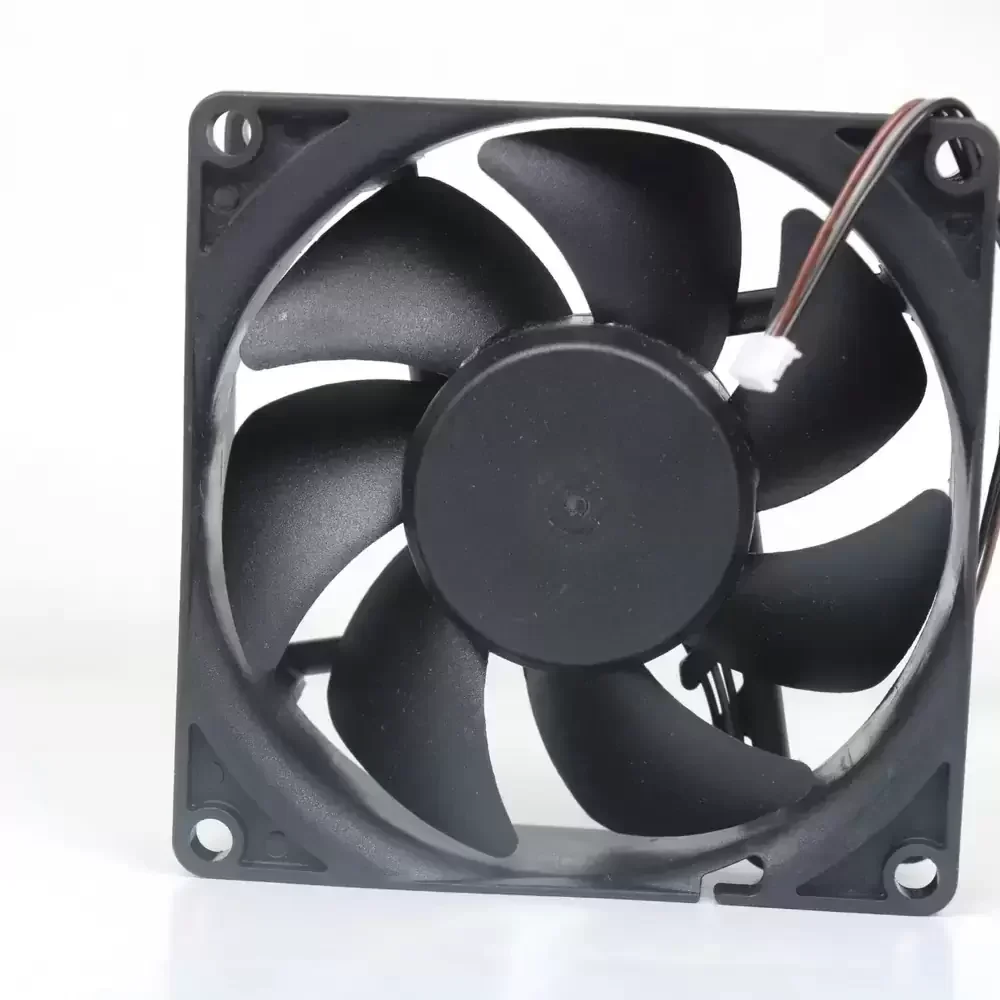

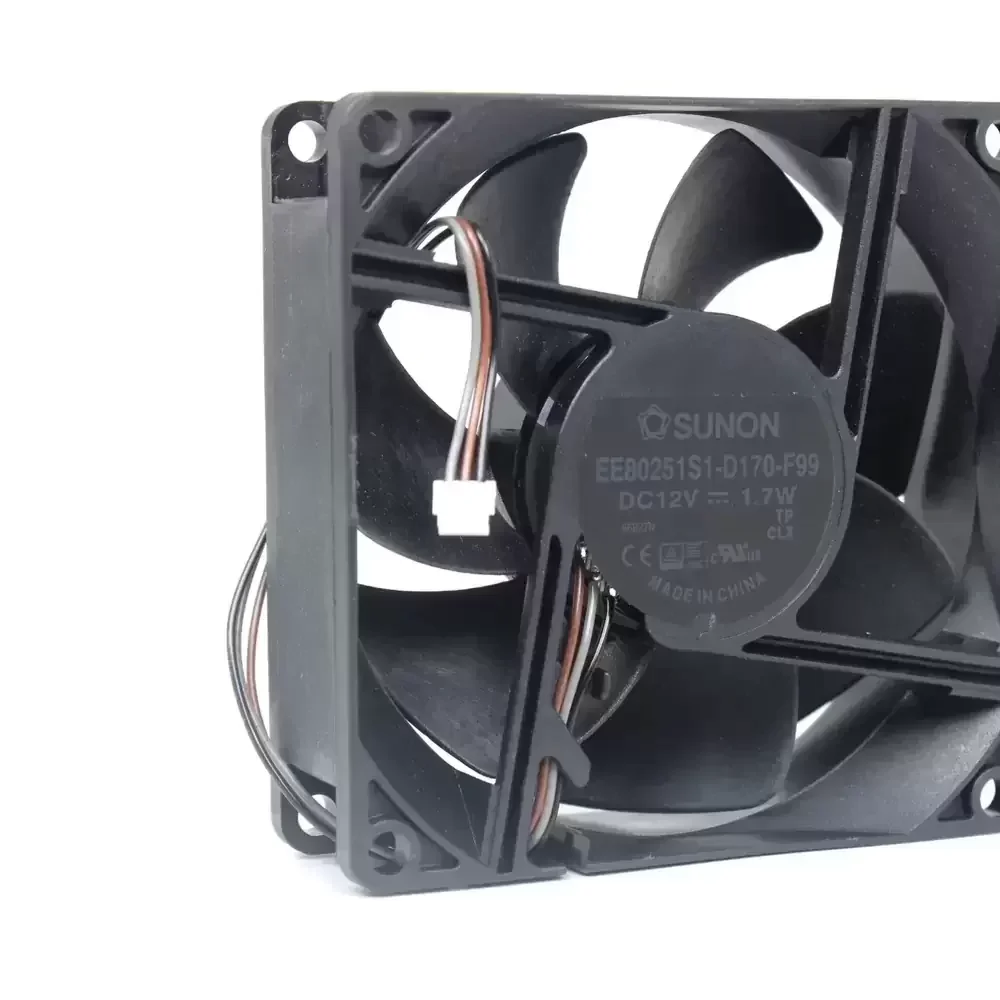

The SUNON EE80251S1-D170-F99 is a precision-engineered DC Axial Fan designed for optimal thermal management in compact electronic assemblies. Utilizing advanced motor technology and a durable Sleeve Bearing architecture, this unit delivers consistent airflow while maintaining low mechanical noise. The 80mm frame is constructed to ensure structural rigidity, minimizing vibration during operation. With a power rating of 1.7W, it balances energy efficiency with high static pressure capabilities, making it suitable for reducing thermal impedance in sensitive equipment like projectors and power supplies.
Model Number: EE80251S1-D170-F99
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Rated Current: 0.14 A
Power Consumption: 1.7 W
Rated Speed: 3200 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 41.0 CFM (69.66 m³/h / 1.16 m³/min)
Max. Static Pressure: 4.57 mmH₂O (44.8 Pa / 0.18 inH₂O)
Dimensions: 80x80x25mm
Weight: 75 g
Life Expectancy: 35,000 Hours at 40°C
Noise Level: 33.0 dBA
Speed Control: Tachometer Output (3-Wire)
Signal Output: Frequency Generator (F Type)
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 3-Wire Lead (Red +, Black -, Yellow Signal)
Ingress Protection: IP20
Insulation Class: Class A
Safety Certifications: UL, CUR, TUV
Designed for versatility, the EE80251S1-D170-F99 excels in applications requiring reliable forced-air cooling. It is frequently integrated into multimedia projectors, ensuring lamp longevity by dissipating heat efficiently. Additionally, the EE80251S1-D170-F99 is suitable for network switchgear, compact power supply units, and industrial automation enclosures where space constraints demand a high-performance cooling solution with signal monitoring capabilities.
