Description

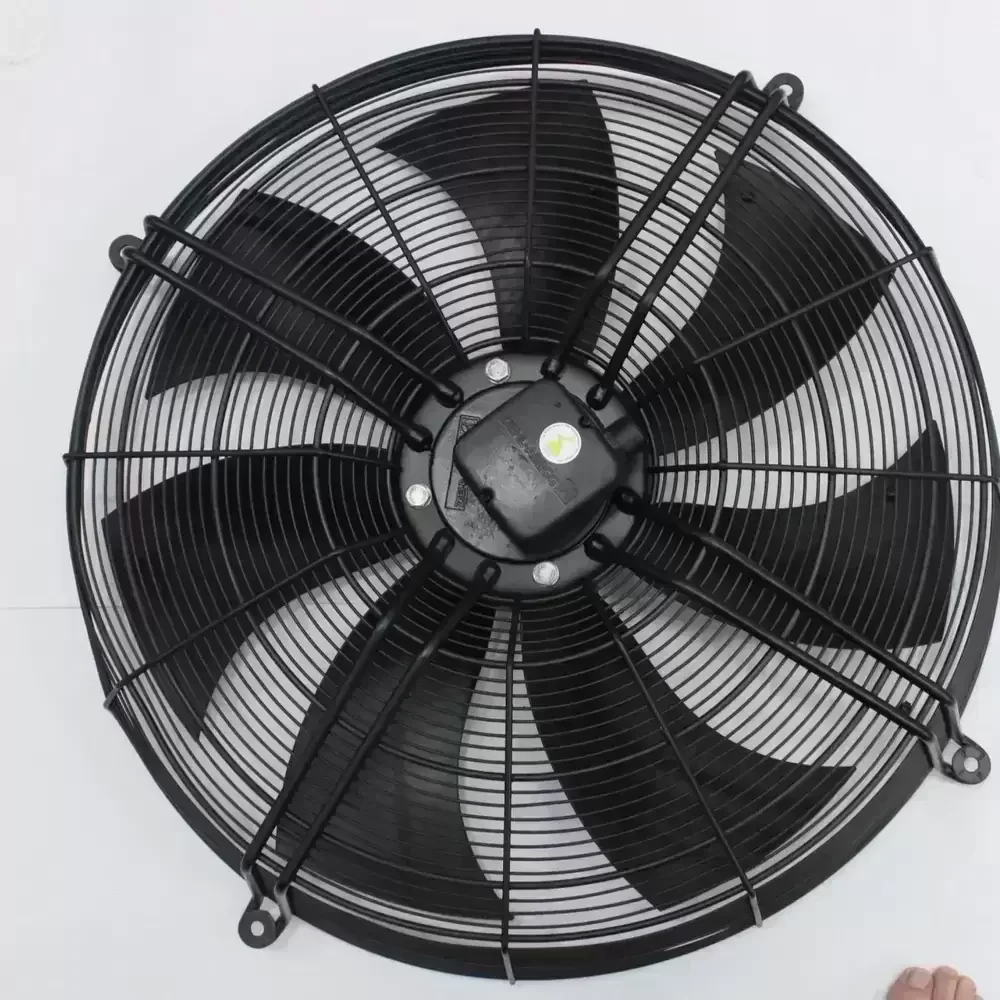

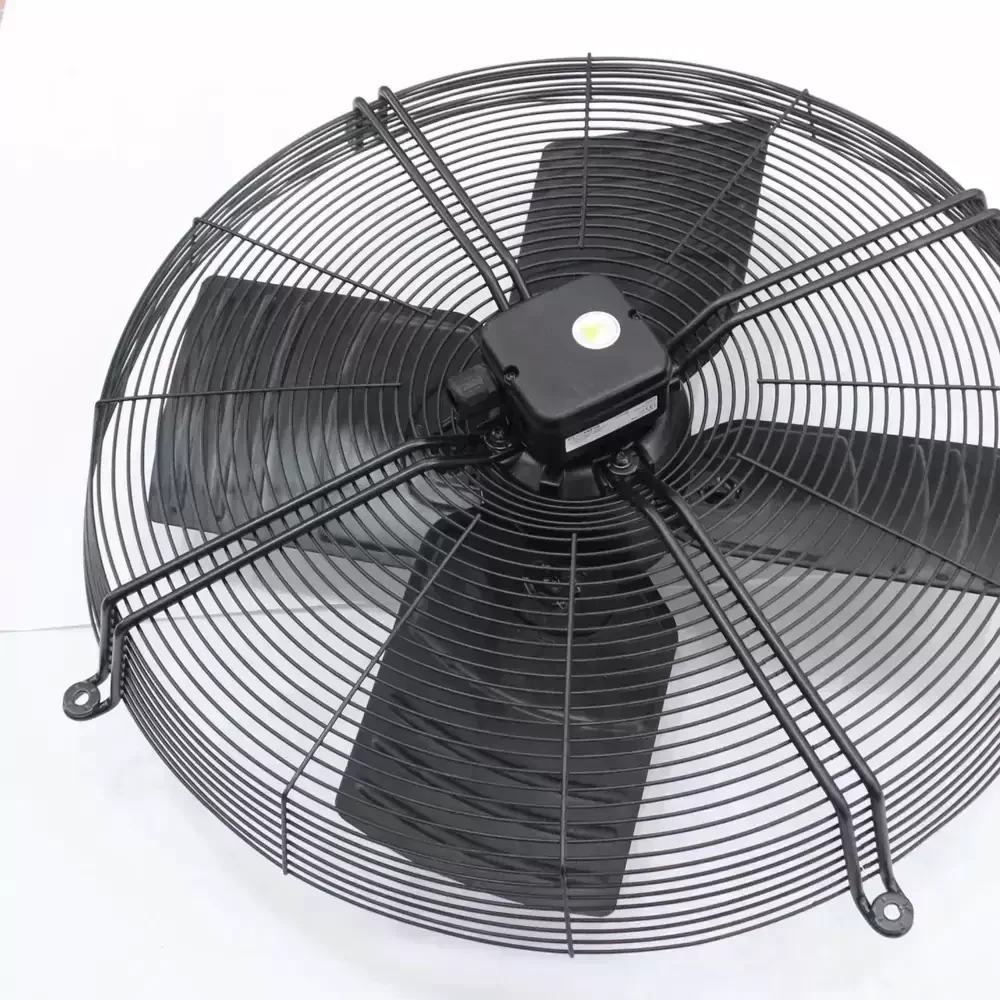

The Ziehl-Abegg FB063-6EK.41.V4P is a high-efficiency axial fan engineered for demanding industrial ventilation and cooling applications. Utilizing advanced external rotor motor technology, this unit delivers optimal aerodynamic performance with reduced acoustic emissions. The 630mm impeller is precision-balanced to minimize vibration, ensuring long-term structural rigidity and operational reliability. Designed with a robust IP54 enclosure, the motor is protected against dust ingress and splashing water, making it suitable for harsh environments. The system features low thermal impedance and high efficiency, significantly reducing energy consumption while maintaining consistent airflow. This single-phase AC fan integrates seamlessly into complex HVAC systems, providing superior thermal management and durability.

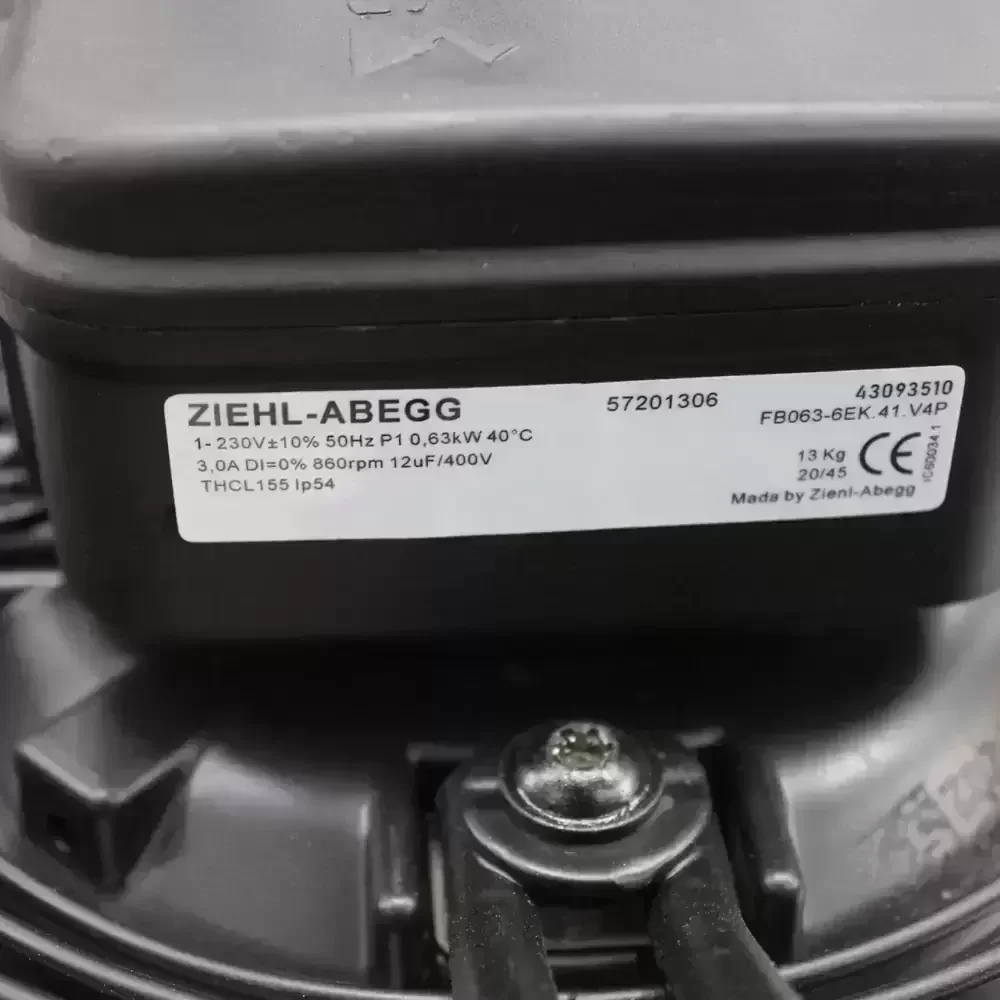

Model Number: FB063-6EK.41.V4P
Brand: Ziehl-Abegg
Product Type: Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 Hz
Phase: 1-Phase
Rated Power: 0.63 kW
Rated Speed: 860 RPM
Max. Air Flow: 6768 CFM (11500 m³/h / 191.6 m³/min)
Max. Static Pressure: 0.60 inH₂O (150 Pa / 15.3 mmH₂O)
Blade Diameter: 630 mm
Bearing Type: Ball Bearing
Ingress Protection: IP54
Motor Technology: AC External Rotor
Number of Poles: 6
Insulation Class: F
Blade Material: Sheet Steel / Aluminum
Operating Temperature: -25°C to +65°C
Mounting Orientation: Any
Termination: Terminal Box
Weight: 14.5 kg
The FB063-6EK.41.V4P is widely utilized in large-scale air conditioning systems, refrigeration condensers, and evaporators where reliable air movement is critical. In agricultural ventilation, the FB063-6EK.41.V4P ensures consistent climate control for livestock and greenhouse operations. Additionally, this model serves as a primary cooling component in industrial heat exchangers and transformer cooling arrays, offering durability in continuous duty cycles.
