FDC10U12S9-C FirstD 12VDC 0.45A 95mm GPU Cooling Fan

Description

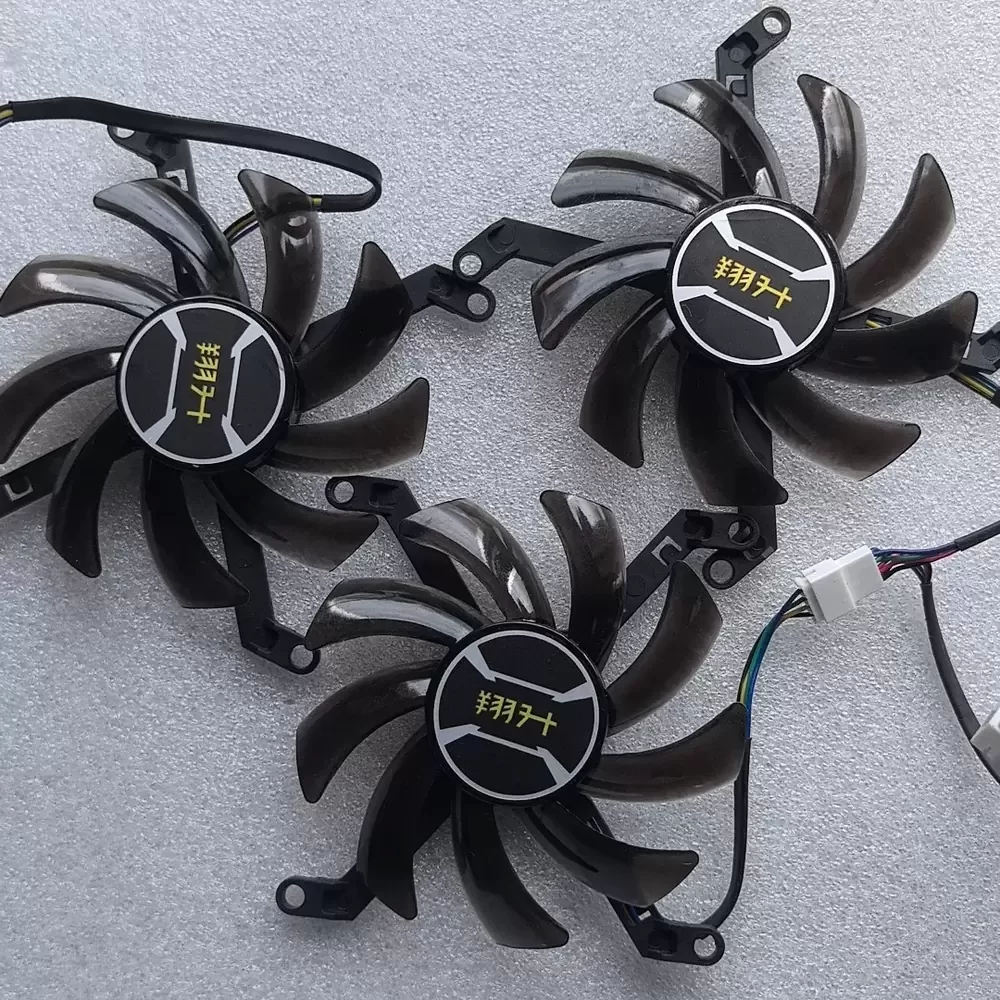

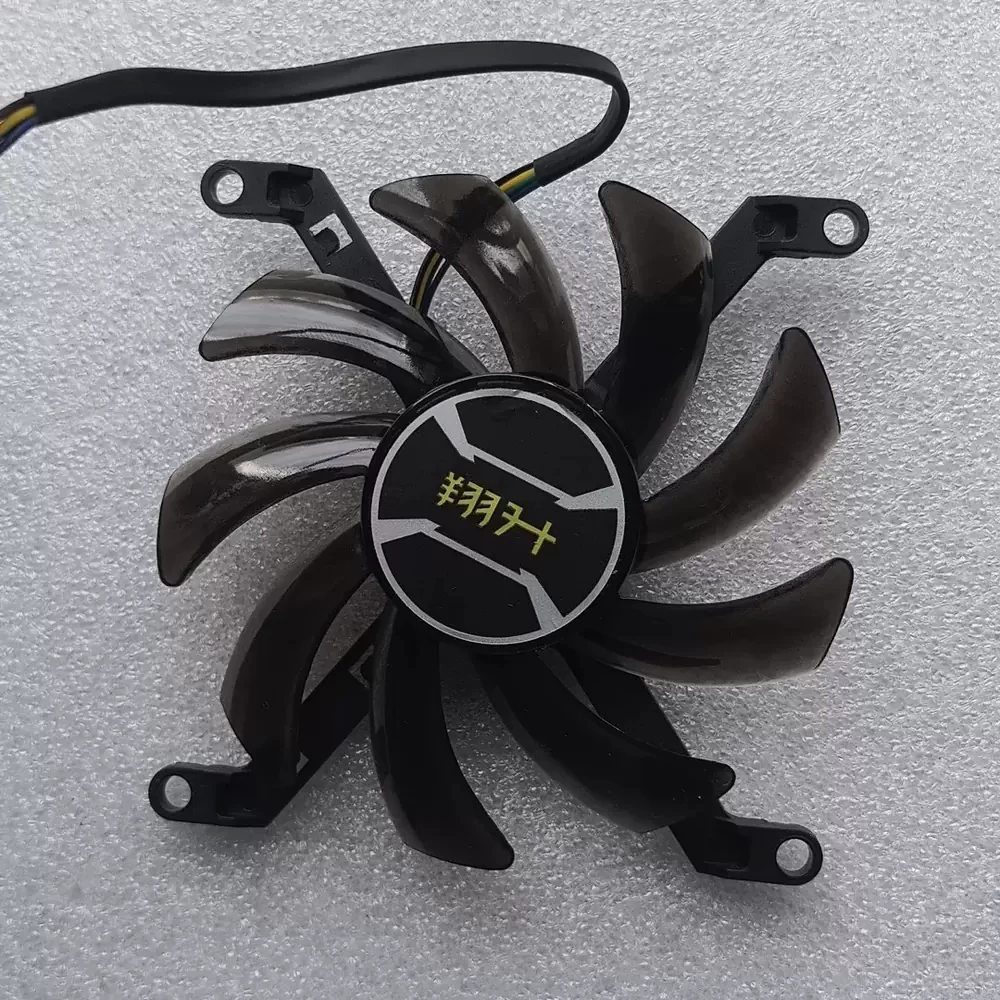

FirstD FDC10U12S9-C is a 95 mm diameter DC brushless cooling fan operating at 12 VDC with a 0.45 A current rating. The unit features an 11-blade impeller design optimized for high static pressure and a 4-pin PWM interface for precise rotational speed modulation. Constructed with a hydraulic bearing system, the assembly includes a 40 mm triangular mounting hole configuration and a three-fan serial wiring harness for synchronized thermal management across multi-fan heatsinks.

FDC10U12S9-C Specifications
Model: FDC10U12S9-C
Brand: FirstD
Category: GPU Cooling Fan
Voltage: 12 VDC
Current: 0.45 A
Power: 5.4 W
Blade Diameter: 95 mm
Mounting Hole Distance: 40 mm

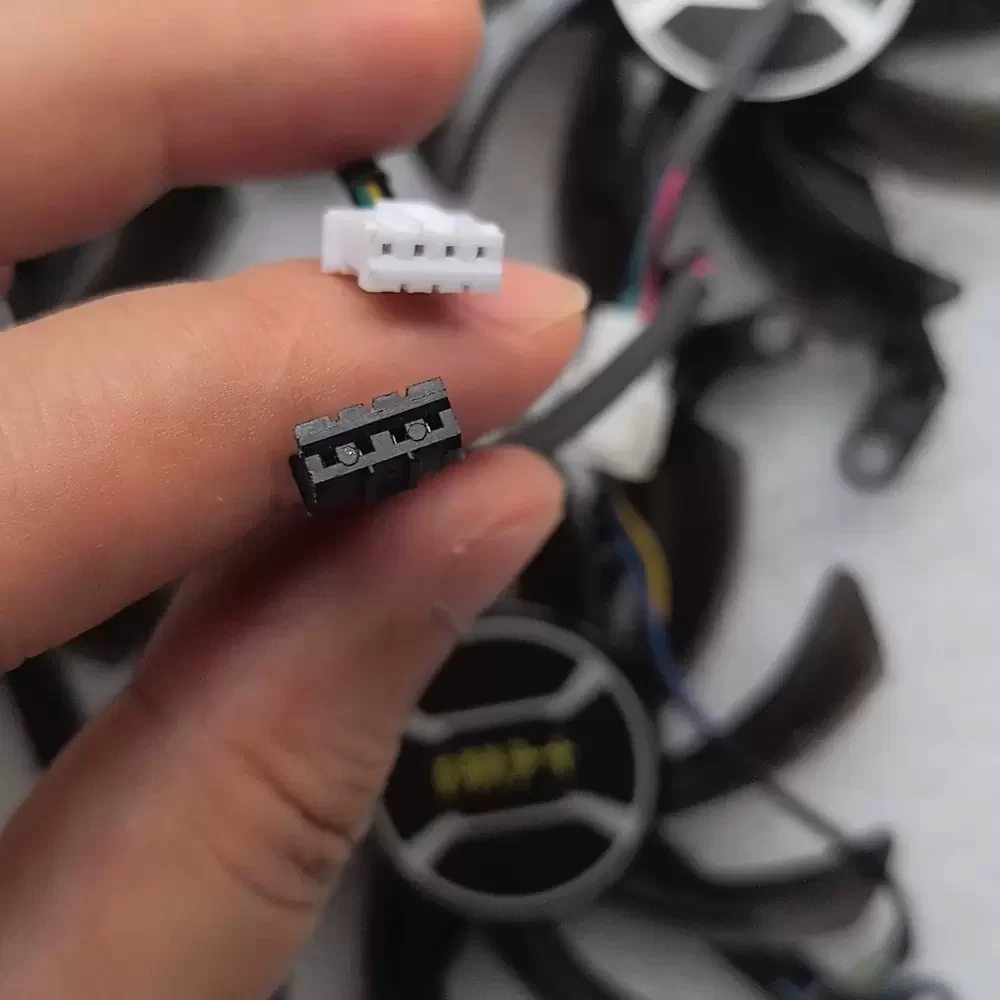

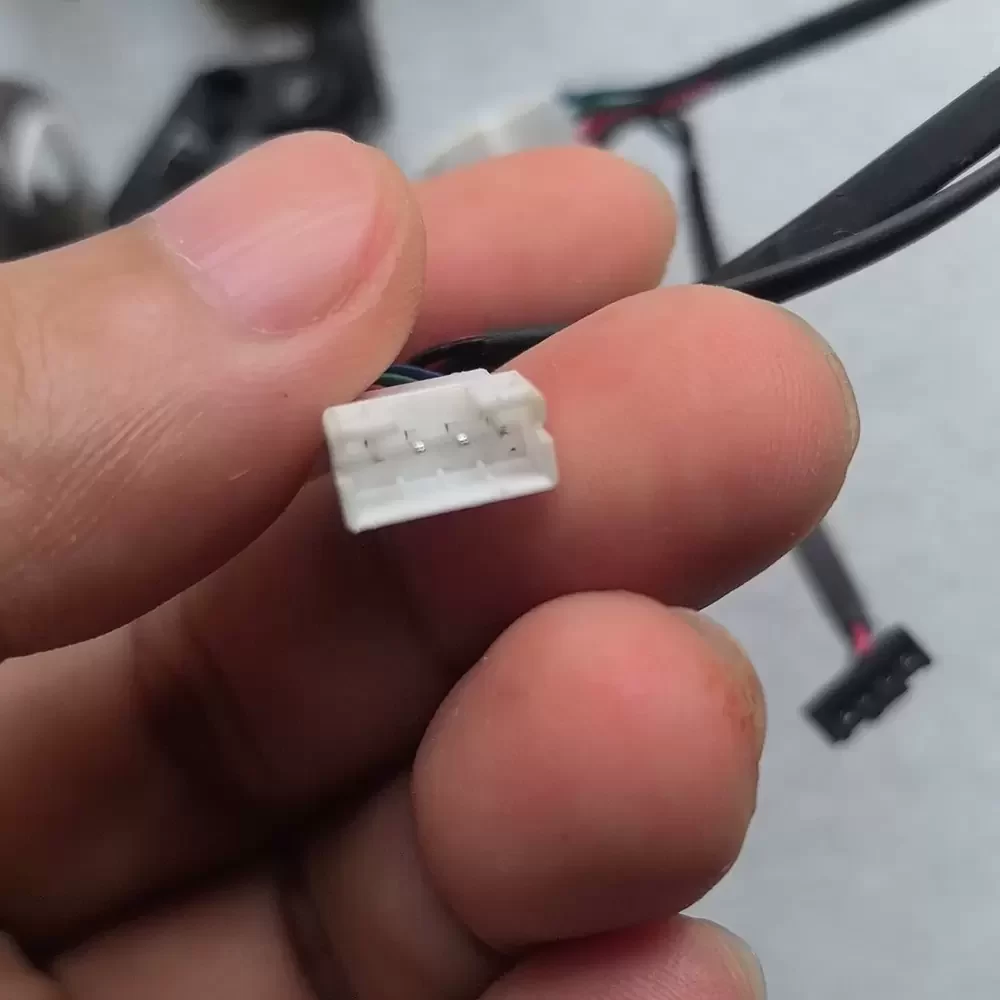

Connector: 4-pin PWM
Bearing Type: Hydraulic Bearing
Blade Count: 11 Blades
Motor Type: DC Brushless
Fan Speed: 2500 RPM
Airflow: 45 CFM
Noise Level: 16 dBA
Service Life: 100,000 hours
Material: PBT Plastic

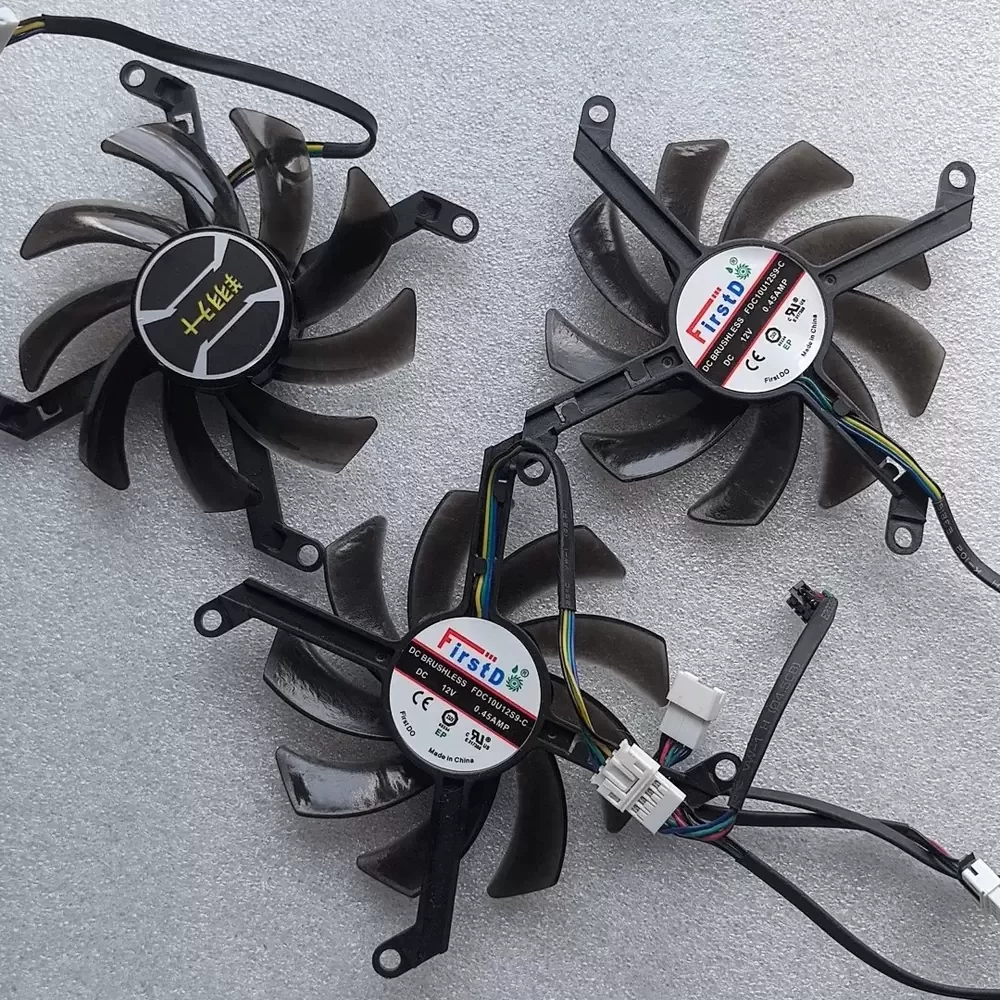

Wiring Configuration: 3-Fan Serial Chain
Rotation Direction: Clockwise

FDC10U12S9-C Applications
Primary applications include integration into ASL (翔升) GTX 1060, 1070, and 1080 series graphics card thermal modules. Deployed within high-performance GPU heatsink assemblies for localized heat dissipation in desktop computing systems and cryptocurrency mining rigs.
