Description

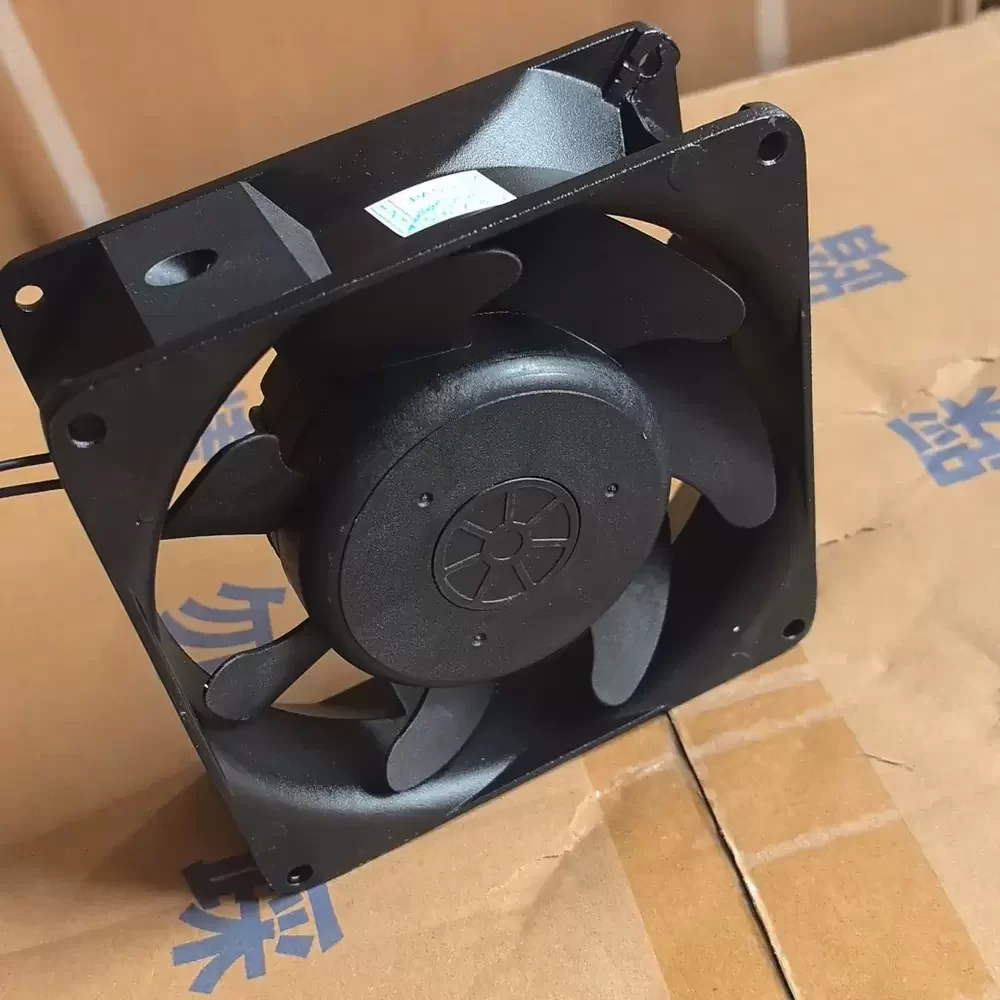

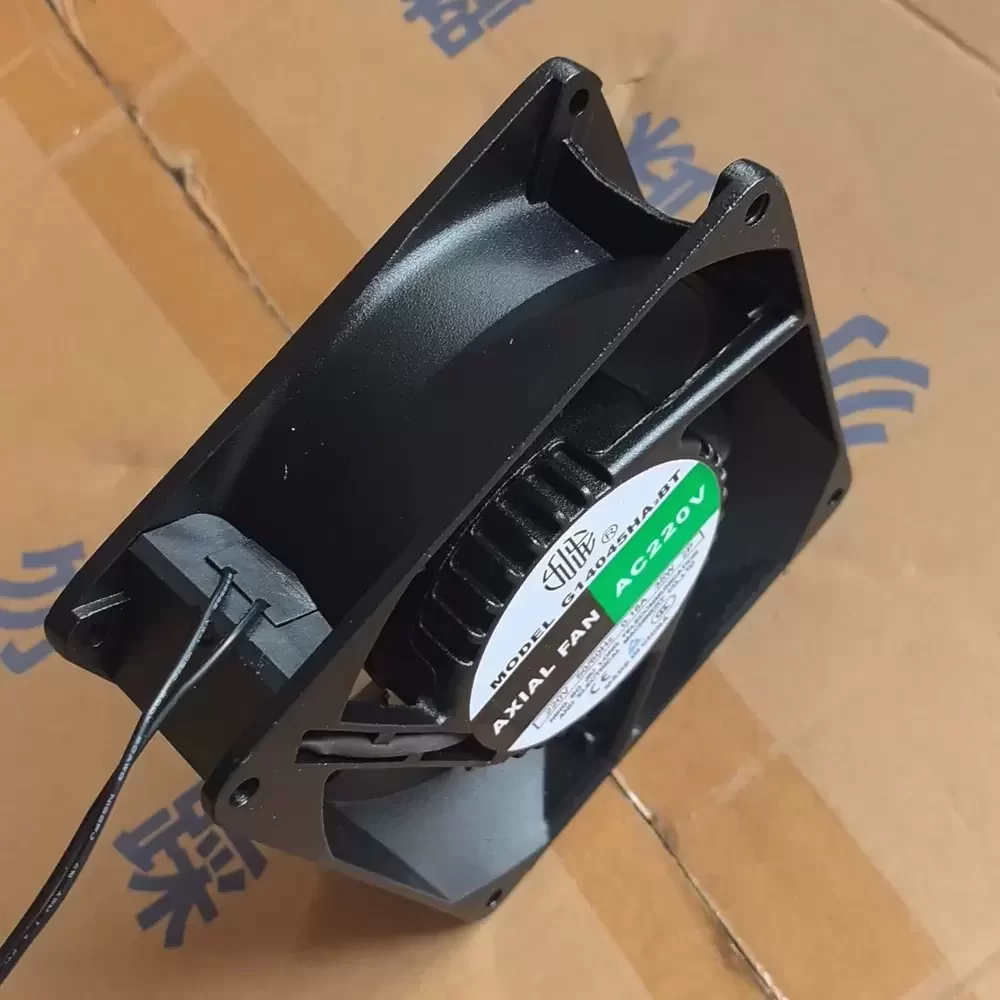

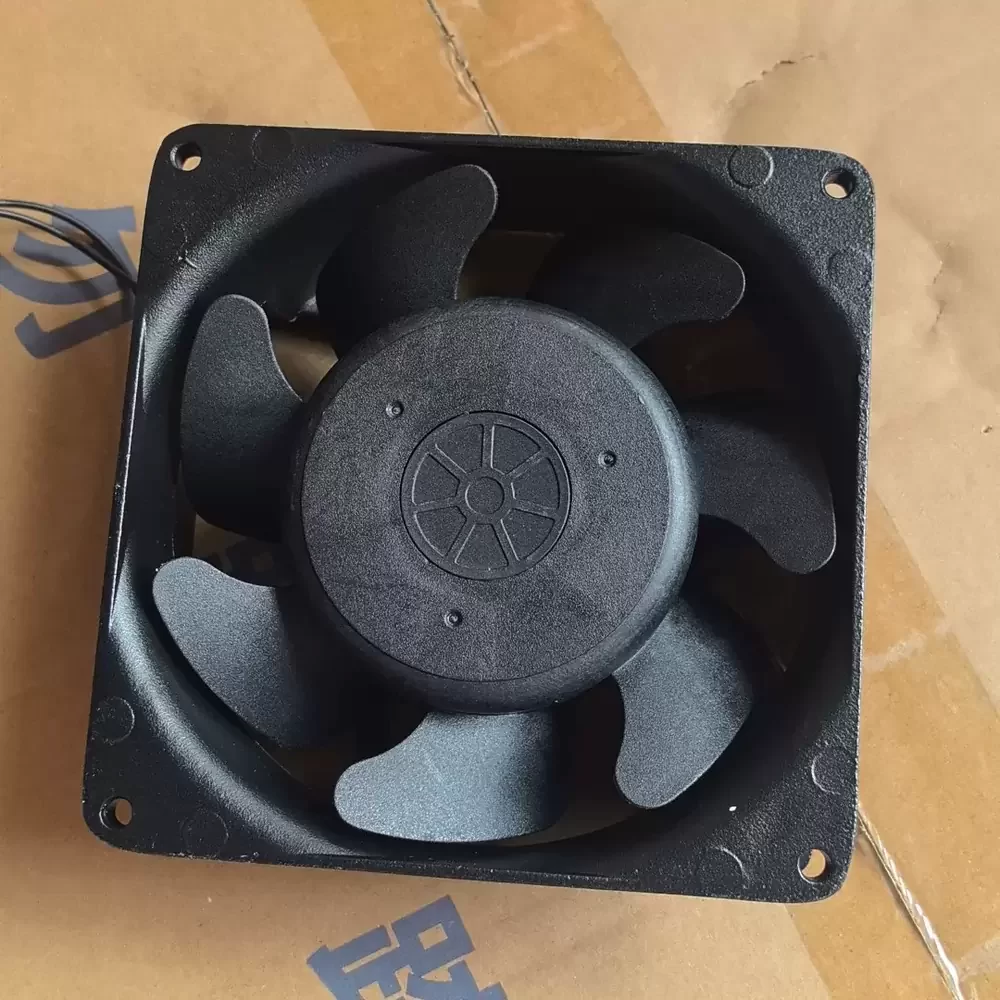

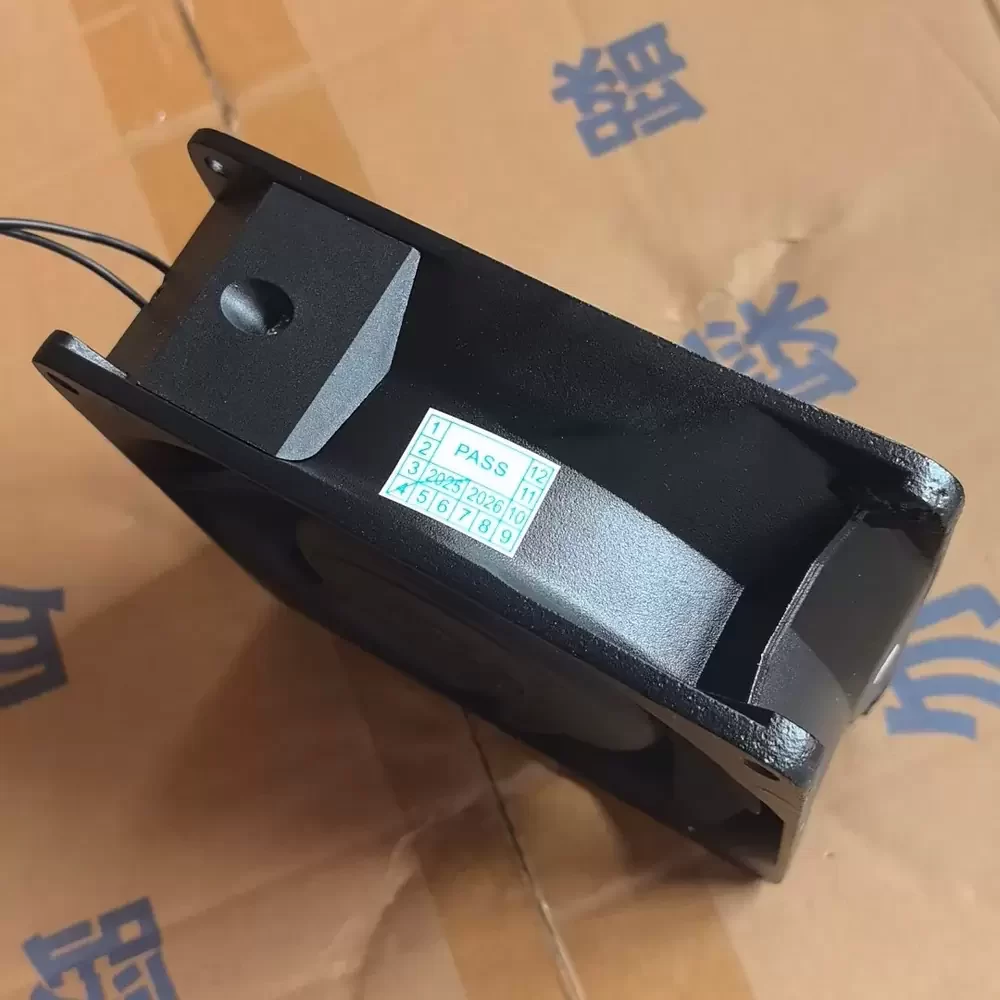

The Jiulong G14045HA2BT is a high-performance AC Axial Fan engineered for rigorous industrial thermal management applications. Utilizing a robust AC motor architecture paired with a precision Dual Ball Bearing system, this unit is designed to minimize frictional resistance and ensure extended operational service life under continuous duty cycles. The 140mm frame provides exceptional structural rigidity, while the aerodynamically optimized impeller maximizes airflow throughput to reduce thermal impedance in high-density electronic enclosures. Rated for 220V operation, this model delivers consistent cooling power, making it an ideal solution for maintaining optimal operating temperatures in critical infrastructure.
Model Number: G14045HA2BT
Brand: Jiulong
Product Type: AC Axial Fan
Rated Voltage: 220 VAC
Voltage Range: 200 – 240 VAC
Frequency: 50/60 Hz
Rated Current: 0.18 A
Power Input: 35 W
Rated Speed: 2700 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 220.0 CFM (373.8 m³/h / 6.23 m³/min)
Max. Static Pressure: 14.5 mmH₂O (142.2 Pa / 0.57 inH₂O)
Dimensions: 140 x 140 x 45 mm
Frame Material: Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: Terminal Type
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 Hours at 25°C
Mounting Orientation: Any
Weight: 850 g
The G14045HA2BT is specifically designed for direct integration into industrial chassis and cabinet cooling systems. Its high static pressure capabilities make it suitable for server racks, telecommunications equipment, and power supply units where dense componentry restricts natural airflow. Additionally, the G14045HA2BT is frequently utilized in CNC machinery and automated control panels, providing the necessary thermal regulation to prevent overheating in continuous-use manufacturing environments.
