Description

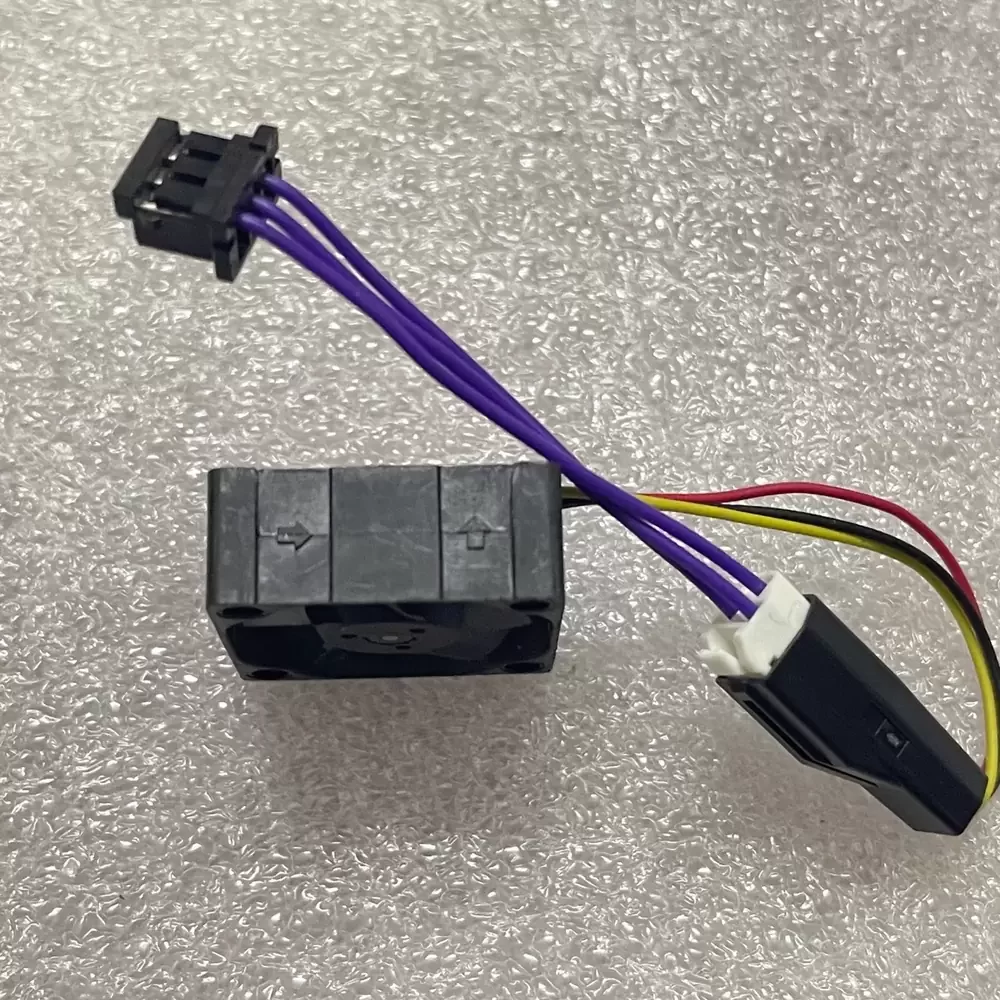

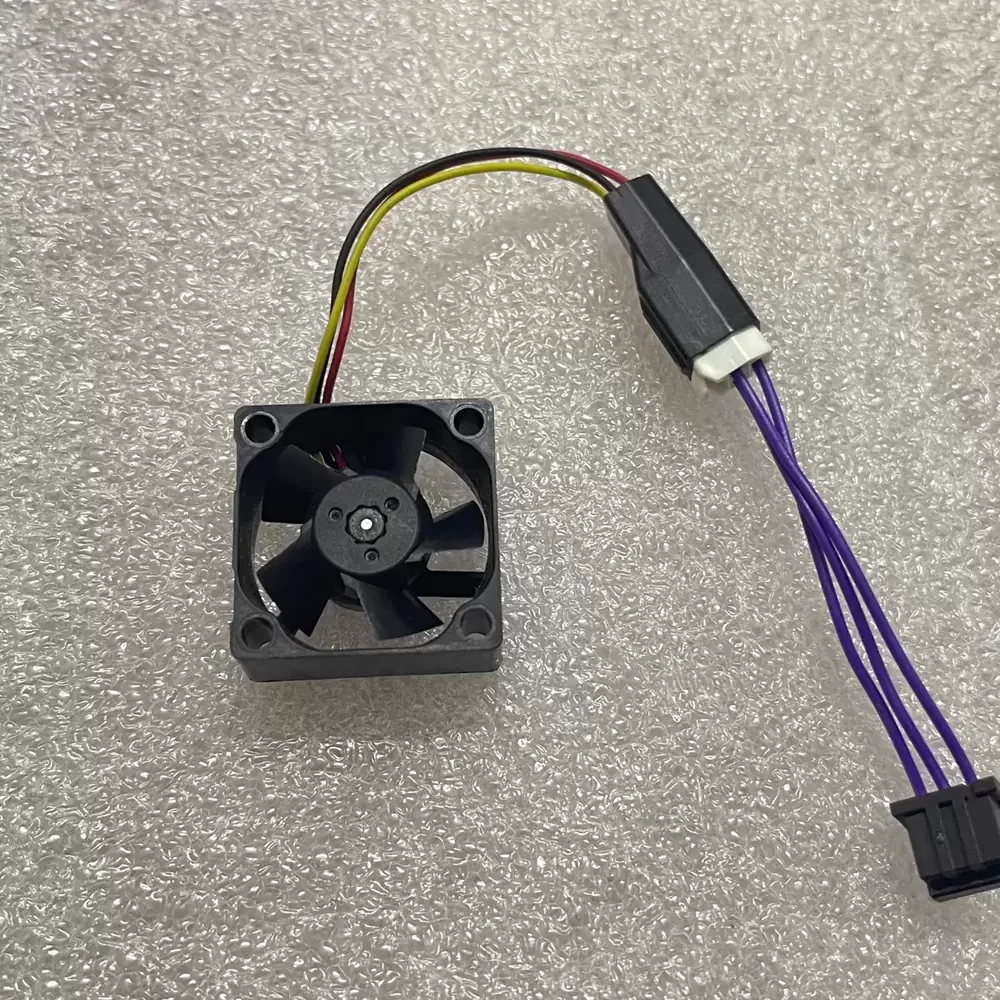

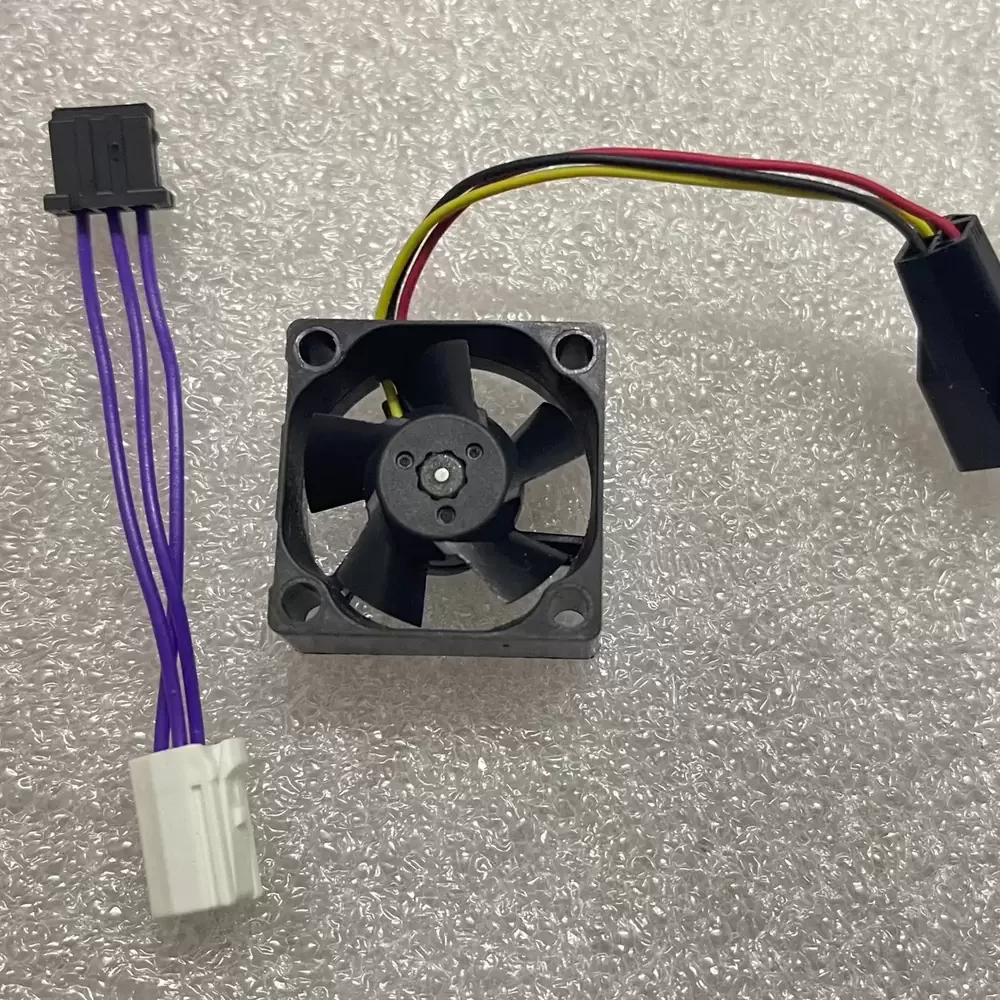

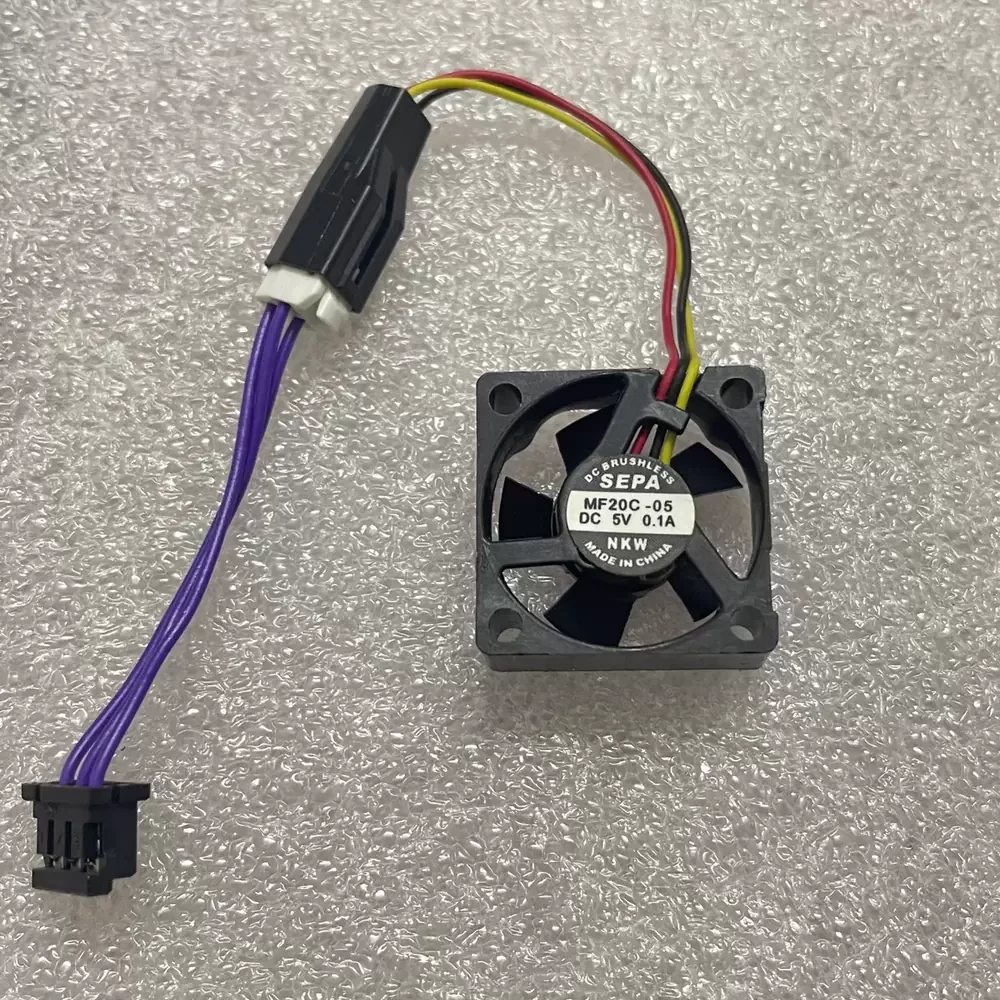

The SEPA MF20C-05 is a precision-engineered micro DC Axial Fan designed for high-density electronic applications requiring active thermal management within minimal spatial envelopes. Built upon a robust brushless DC motor platform, this unit ensures consistent rotational stability and reduced electromagnetic interference. The impeller geometry is optimized to maximize airflow efficiency while minimizing turbulence-induced noise, making it suitable for sensitive instrumentation. Featuring a durable bearing system and a structurally rigid frame, the MF20C-05 delivers reliable thermal impedance reduction, ensuring optimal operating temperatures for critical components in micro-robotics and compact computing systems.
Model Number: MF20C-05
Brand: SEPA
Product Type: DC Axial Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.1 A
Power: 0.5 W
Rated Speed: 9500 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 1.3 CFM (2.2 m³/h / 0.036 m³/min)
Max. Static Pressure: 2.8 mmH₂O (27.4 Pa / 0.11 inH₂O)
Dimensions: 20x20x8 mm
Weight: 5.0 g
Noise Level: 21 dBA
Termination: 3-Wire (Lead Wires)
Speed Control: Tachometer Output (FG Signal)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C
Life Expectancy: 30,000 Hours at 40°C
Mounting Orientation: Any
Ingress Protection: IP40
This miniature cooling solution is engineered for ultra-compact environments where standard cooling units cannot fit. The MF20C-05 is extensively used in micro-robotics, handheld medical diagnostic equipment, and portable sensing devices requiring reliable heat dissipation. Additionally, the MF20C-05 functions effectively in cooling specific chipsets within embedded systems, VRM arrays, and small-scale optical projectors, ensuring sustained performance and component longevity.
