Description

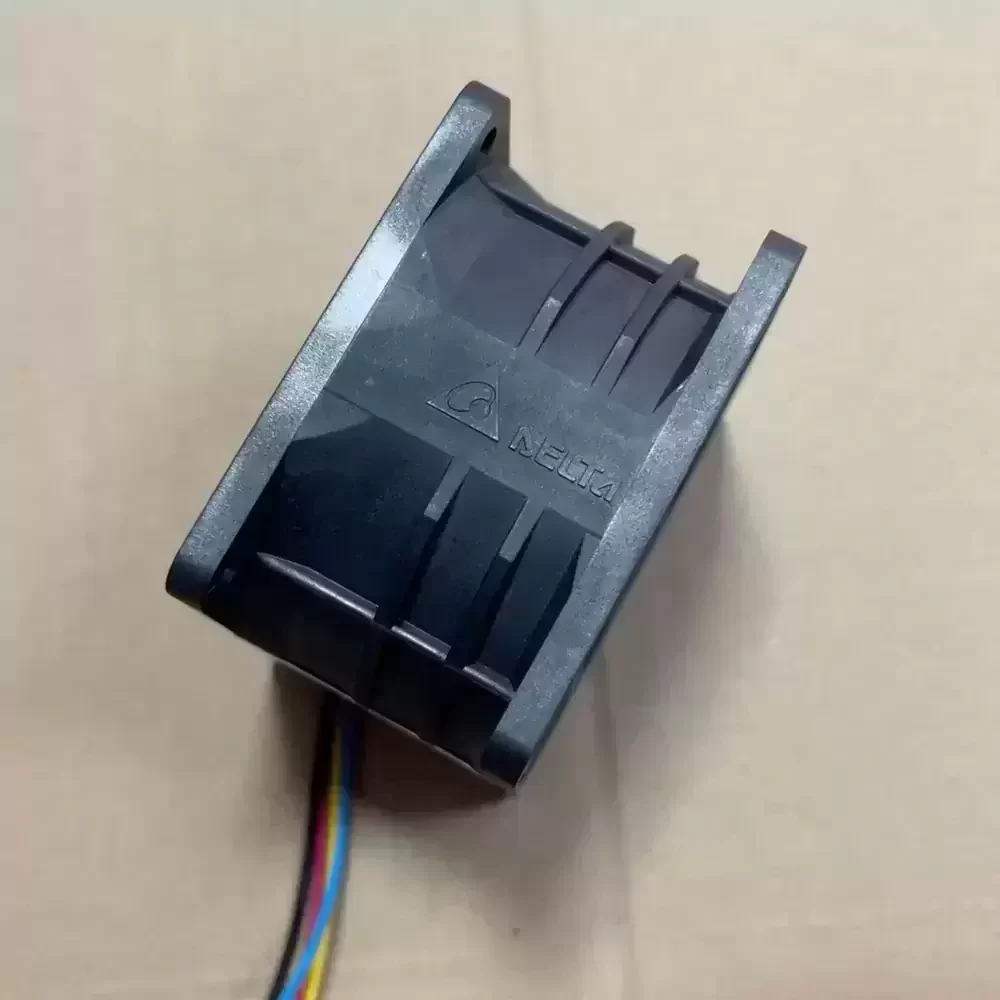

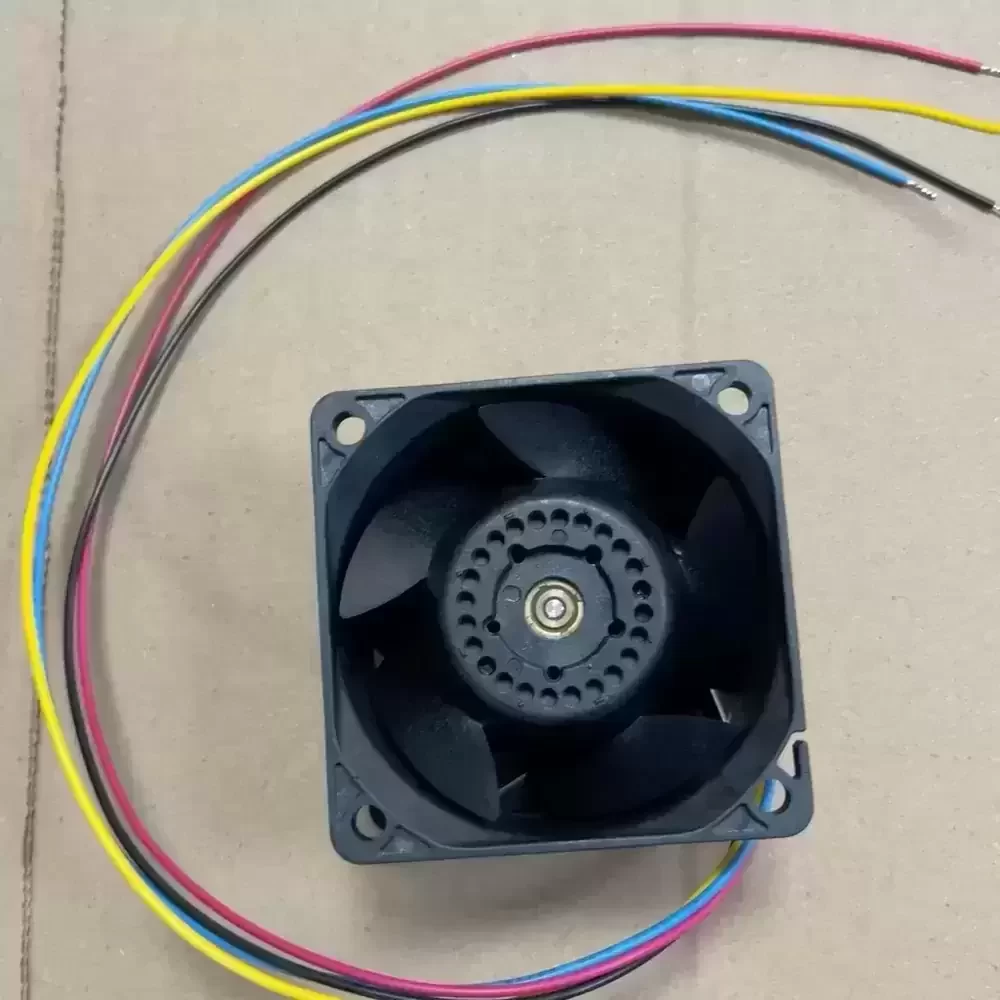

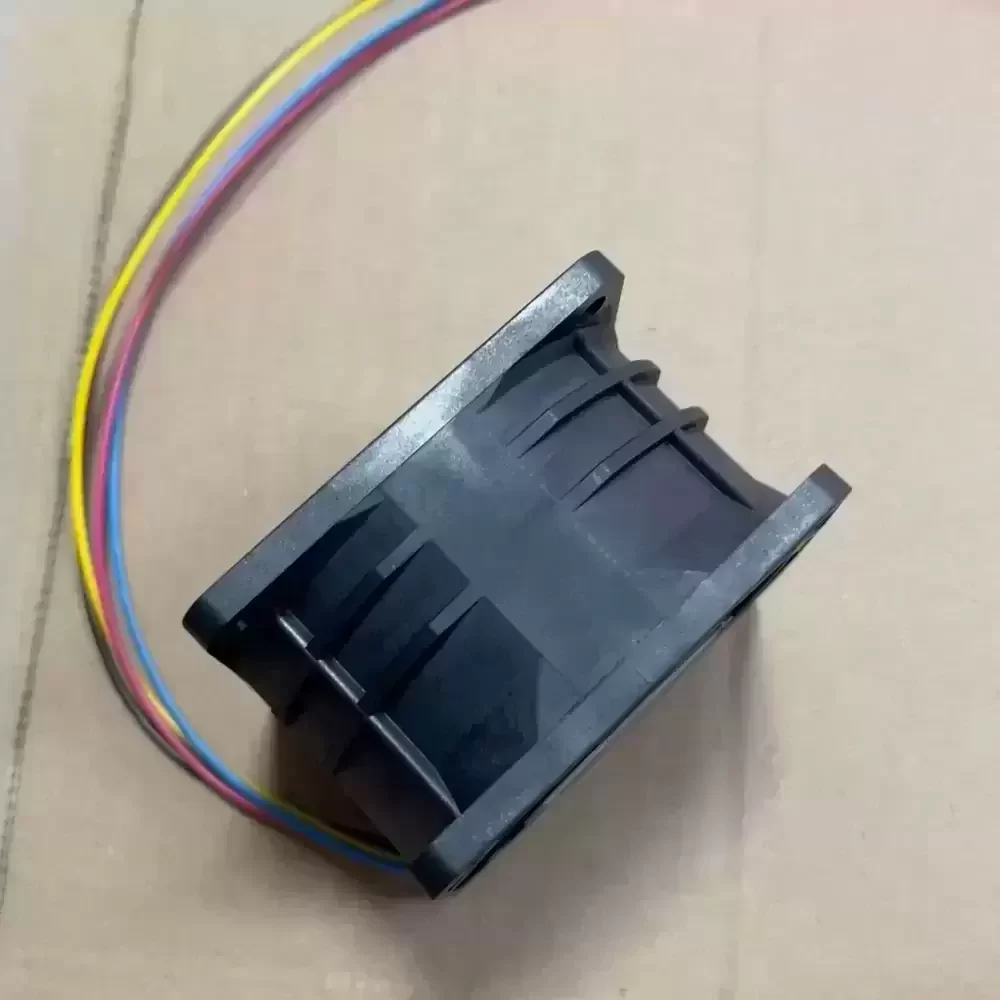

The Delta PFR0612XHE-CF1U is a high-static pressure DC Axial Fan engineered for mission-critical thermal management applications requiring extreme airflow density. Operating at a rated voltage of 12VDC with a significant current draw of 3.30A, this unit leverages a robust dual ball bearing architecture to ensure rotational stability and minimize frictional heat generation under continuous high-speed operation. The 60x60x38mm frame houses a precision-balanced impeller designed to overcome significant system impedance, delivering exceptional static pressure capabilities. Its structural rigidity and advanced motor commutation electronics make it ideal for densely packed enclosures where thermal impedance must be aggressively mitigated.
Model Number: PFR0612XHE-CF1U
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 8.0 – 13.2 VDC
Rated Current: 3.30 A
Power Consumption: 39.60 W
Rated Speed: 16500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 72.5 CFM (123.1 m³/h / 2.05 m³/min)
Max. Static Pressure: 2.85 inH₂O (72.4 mmH₂O / 710 Pa)
Dimensions: 60x60x38mm
Weight: 130 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Signal Output: 4-Wire (Tachometer/FG)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP51 (Standard)
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor, Reverse Polarity
The PFR0612XHE-CF1U is specifically deployed in high-density server racks and blade chassis where back-pressure is a significant factor. Telecom infrastructure and 1U/2U power supply units frequently utilize the PFR0612XHE-CF1U to maintain optimal operating temperatures for sensitive semiconductors. Additionally, this model is suitable for industrial automation equipment and precision cooling in CNC machinery where compact, high-velocity airflow is required to dissipate heat from concentrated sources.
