Description
The Protechnic MGT8012HB-W15 is a precision-engineered Axial Fan designed for high-density thermal management in industrial and computing environments. Utilizing advanced DC brushless motor technology, this unit delivers consistent airflow with optimized static pressure to overcome system impedance. The aerodynamic blade geometry is calibrated to minimize turbulence while maintaining structural rigidity under high-speed operation. Featuring a robust 4-wire interface, it supports precise Pulse Width Modulation (PWM) speed control, allowing for dynamic thermal regulation. This component is constructed to meet rigorous operational standards, ensuring low thermal impedance and extended service life in demanding server and chassis applications.

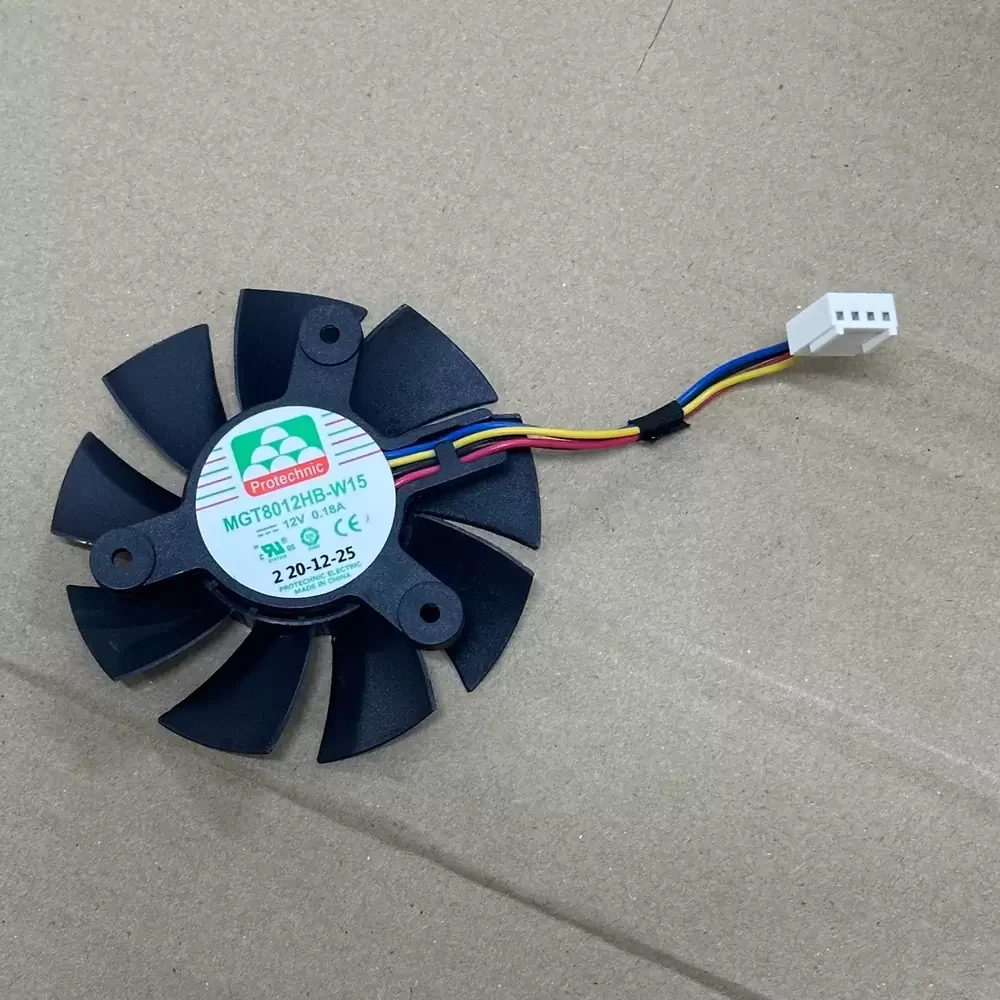

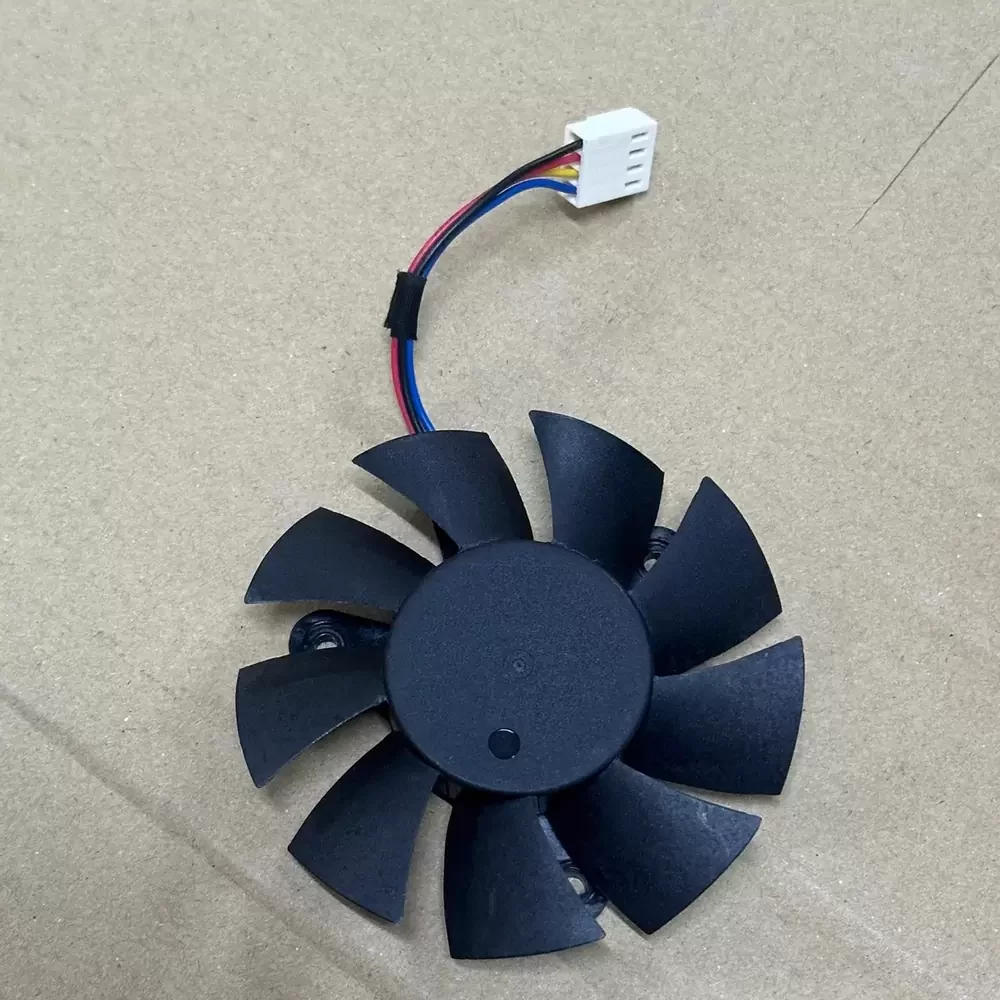

Model Number: MGT8012HB-W15
Brand: Protechnic (Magic)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.18 A
Power Consumption: 2.16 W
Rated Speed: 3500 RPM (±10%)
Bearing Type: Precision Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h / 1.09 m³/min)
Max. Static Pressure: 3.2 mmH₂O (31.4 Pa / 0.13 inH₂O)
Dimensions: 80x80x15mm
Weight: 65 g
Life Expectancy: 50,000 Hours at 40°C
Speed Control: 4-Wire PWM / Tachometer Output
Ingress Protection: IP40
Noise Level: 34.0 dB(A)
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Termination: 4-Wire Lead with Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Certifications: CE, UL, TUV, RoHS
Motor Protection: Locked Rotor Protection, Polarity Protection
Designed for critical heat dissipation, the MGT8012HB-W15 is frequently integrated into compact server racks and high-performance graphics card cooling assemblies where space is limited but airflow cannot be compromised. The MGT8012HB-W15 excels in maintaining optimal operating temperatures for sensitive electronic components, making it an ideal solution for telecommunications equipment, industrial chassis ventilation, and precision medical instrumentation requiring reliable thermal envelopes.
