MGT9212UB-W25 Protechnic 12VDC 1.10A 92mm Axial Fan

Description

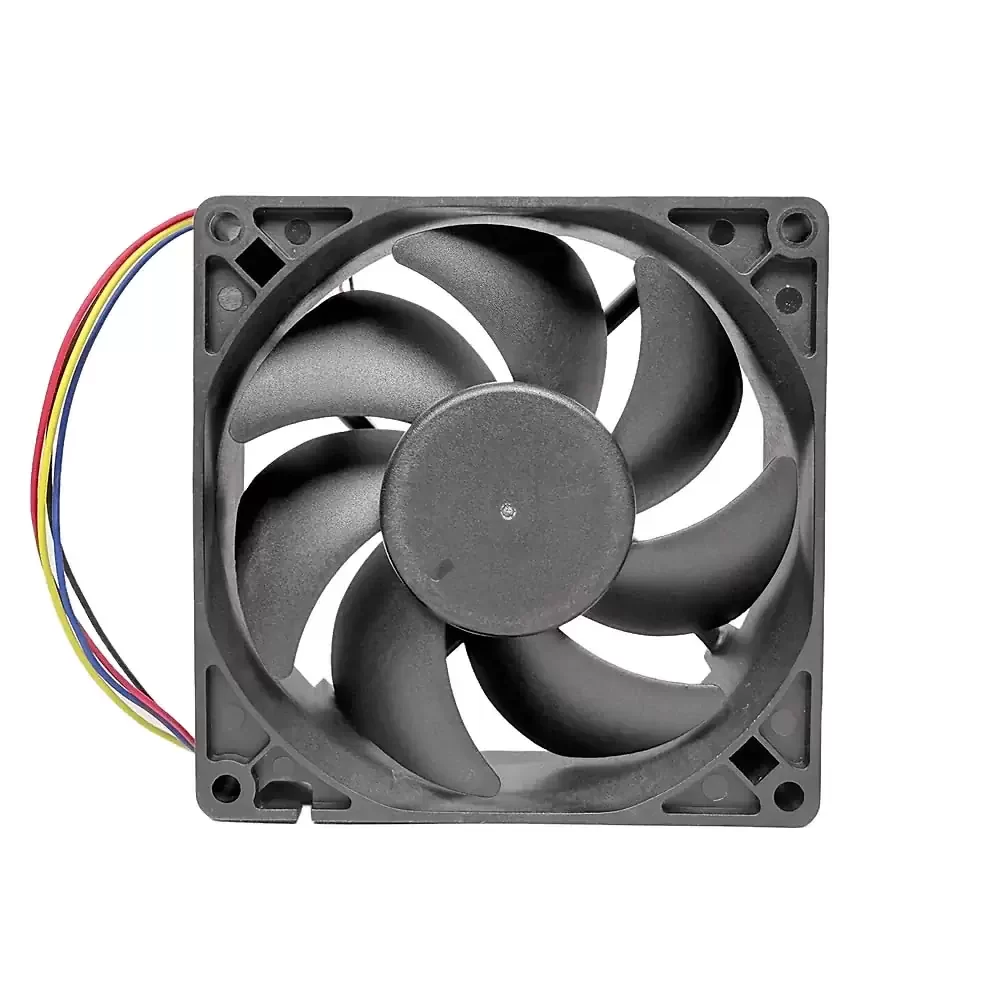

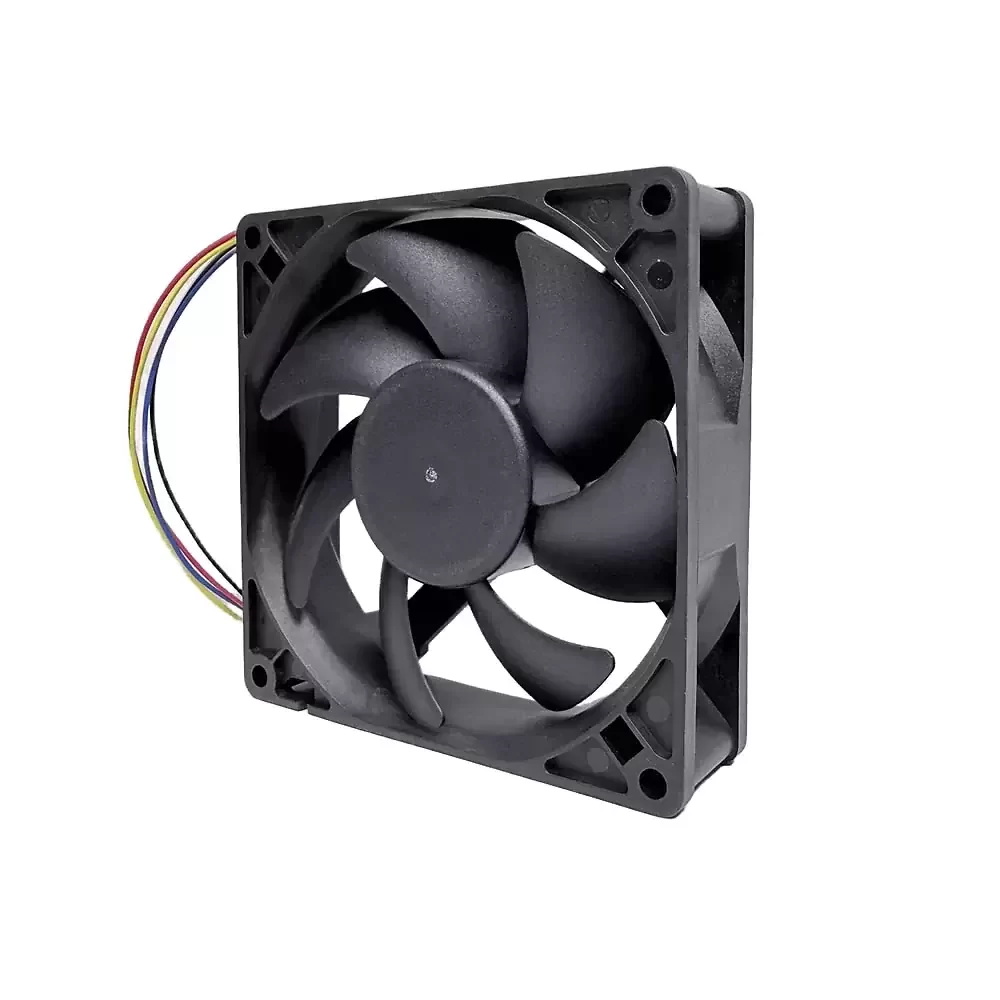

The Protechnic MGT9212UB-W25 is a high-performance axial cooling fan measuring 92 x 92 x 25 mm, operating at a nominal 12 VDC with a high-current draw of 1.10 A. This unit features a robust dual ball bearing system and a 4-wire interface supporting Pulse Width Modulation (PWM) for precise speed control and tachometer output. Constructed with a thermoplastic PBT frame and impeller, the brushless DC motor is designed for high-pressure air displacement and extended operational life in thermally demanding environments.

MGT9212UB-W25 Specifications
Model Number: MGT9212UB-W25
Brand: Protechnic (Magic)
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 1.10 A
Bearing Type: Dual Ball Bearing
Interface: 4-Wire (PWM Control, Speed Signal)
Connector Type: 4-Pin
Material: PBT Plastic (UL 94V-0)
Motor Type: Brushless DC
Speed Control: PWM (Pulse Width Modulation)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Life Expectancy: 70,000 hours at 40 °C
Insulation Resistance: 10 MΩ min at 500 VDC
Dielectric Strength: 5 mA max at 600 VAC

MGT9212UB-W25 Applications
Primary applications include integration into high-density server chassis, industrial power supply units, and telecommunications rack cooling systems. Deployed within CNC control cabinets and workstation CPU heatsinks requiring high static pressure and variable thermal management.
