Description

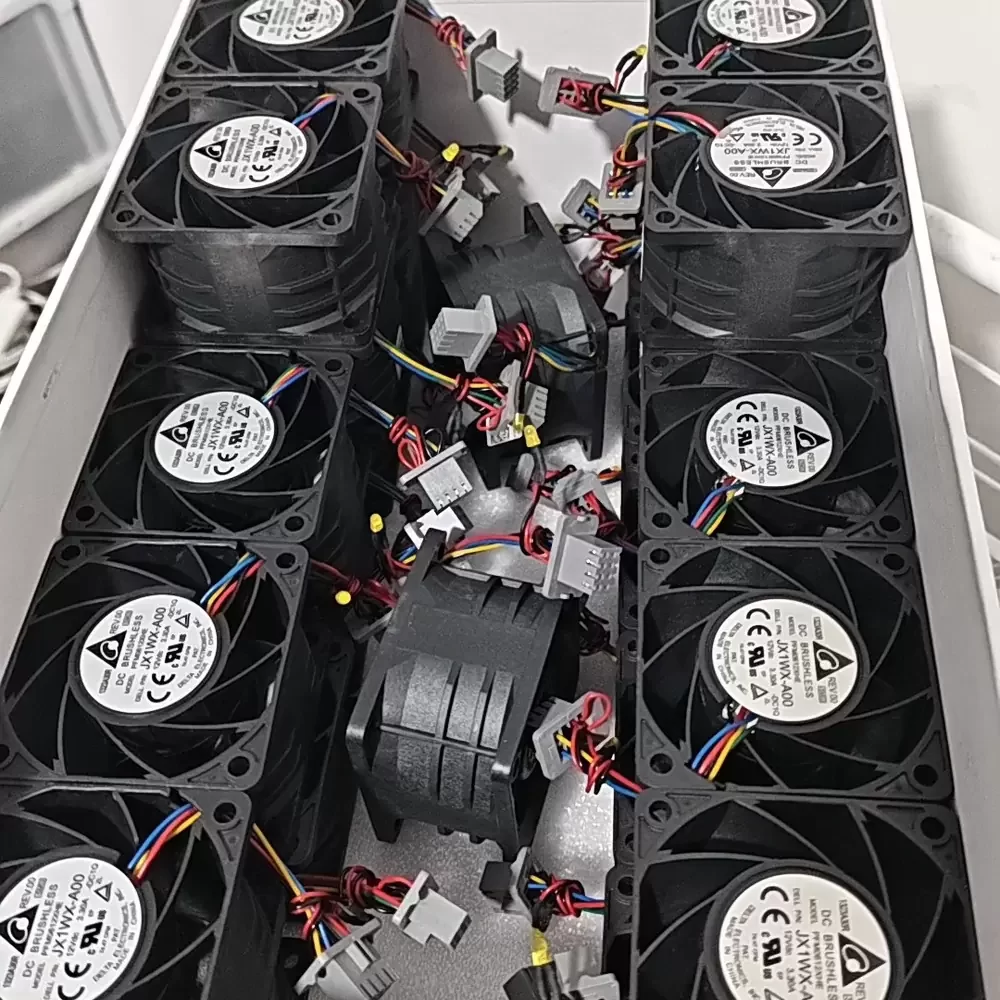

The Delta PFR0612XHE-DC1Q is a precision-engineered DC axial fan designed for mission-critical thermal management in high-density server environments and industrial workstations. Utilizing advanced motor technology and a robust dual ball bearing architecture, this unit delivers exceptional static pressure and airflow capabilities essential for overcoming high thermal impedance in restricted chassis spaces. The structural rigidity of the 60mm frame ensures stability under high rotational speeds, while the integrated PWM control circuit allows for dynamic speed modulation based on real-time thermal loads. Engineered for continuous operation, the PFR0612XHE-DC1Q maintains optimal performance metrics, ensuring reliability in demanding industrial and computing applications where efficient heat dissipation is paramount.
Model Number: PFR0612XHE-DC1Q
Brand: Delta Electronics
OEM Part Number: JX1WX-A00 (Dell)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Rated Current: 3.30 A
Input Power: 39.60 W
Dimensions: 60 x 60 x 38 mm
Max. Air Flow: 74.47 CFM (126.52 m³/h / 2.11 m³/min)
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (Speed Sensor)
Termination: Lead Wire
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Mounting Orientation: Any
Application: Server / Workstation Cooling
This high-performance cooling solution is specifically calibrated for deployment in enterprise-grade hardware, including rack-mount servers, blade chassis, and high-performance workstations requiring substantial airflow in compact form factors. The PFR0612XHE-DC1Q excels in environments where component density restricts natural convection, effectively forcing air through heatsinks and across VRMs. Additionally, the PFR0612XHE-DC1Q is suitable for industrial automation equipment and telecommunications racks, providing the necessary thermal headroom to prevent throttling and ensure hardware longevity in 24/7 operational cycles.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
