Description

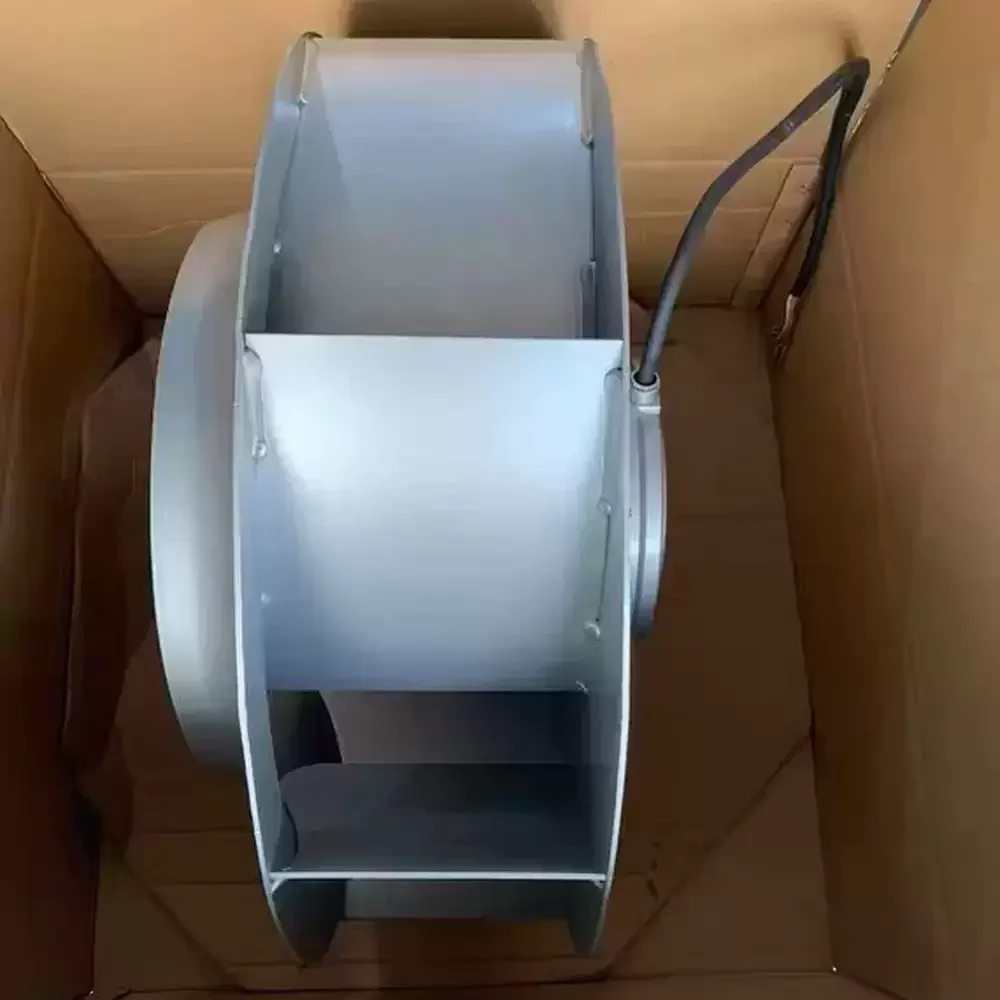

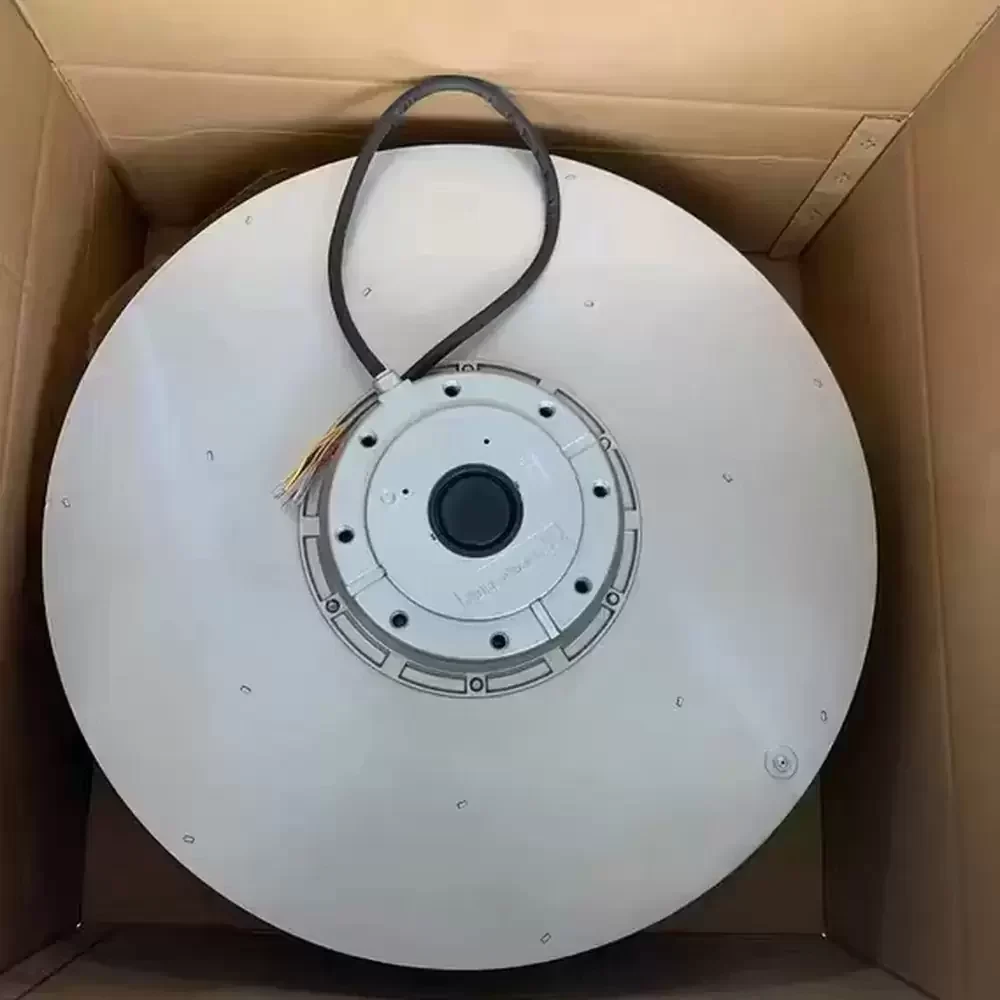

The Ziehl-Abegg RH63N-VDK.7M.AR is a high-efficiency Centrifugal Fan engineered for demanding industrial HVAC applications and precision cooling systems. Featuring an advanced external rotor motor integrated with a backward-curved impeller, this unit optimizes aerodynamic performance while minimizing structural vibration and noise generation. The design incorporates robust thermal impedance characteristics and high structural rigidity, ensuring reliable operation under continuous load. Its precision-balanced assembly reduces bearing stress, extending the operational lifespan in critical precision air conditioning environments. The fan delivers superior airflow dynamics, making it an ideal solution for systems requiring consistent static pressure and thermal regulation.
Model Number: RH63N-VDK.7M.AR
Brand: Ziehl-Abegg
Product Type: Centrifugal Fan (Motorized Impeller)
Rated Voltage: 400 VAC
Voltage Range: 380 – 480 VAC (3-Phase)
Frequency: 50 / 60 Hz
Rated Current: 4.60 A
Power Input: 2.90 kW
Rated Speed: 1260 RPM
Max. Air Flow: 8240 CFM (14000 m³/h)
Max. Static Pressure: 3.21 inH₂O (800 Pa)
Impeller Diameter: 630 mm
Bearing Type: Maintenance-free Ball Bearing
Motor Technology: AC External Rotor
Impeller Design: Backward Curved
Impeller Material: Sheet Aluminium / High-Performance Composite
Ingress Protection: IP54
Insulation Class: F (155°C)
Motor Protection: Thermal Overload Protector (TOP)
Operating Temperature: -20°C to +60°C
Mounting Orientation: Any
Termination: Terminal Box
Weight: 38.5 kg
Compliance: CE, UL, CCC
This cooling module is specifically configured for integration into large-scale climate control systems, including the Hiross precision air conditioning units found in data centers. The RH63N-VDK.7M.AR ensures optimal thermal stability for server racks and telecommunications infrastructure where downtime is not an option. Additionally, the RH63N-VDK.7M.AR is utilized in industrial ventilation, clean room filtration systems, and complex heat exchange units requiring sustained high-volume airflow.
