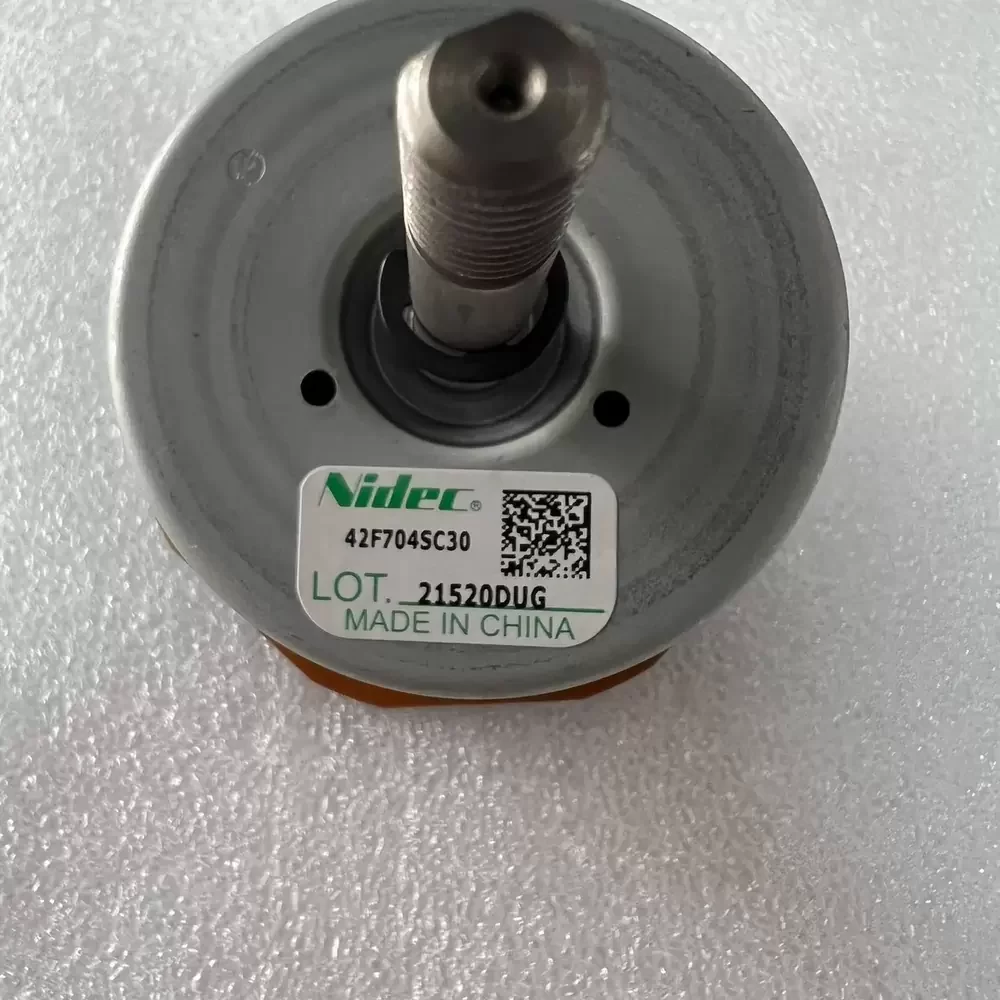

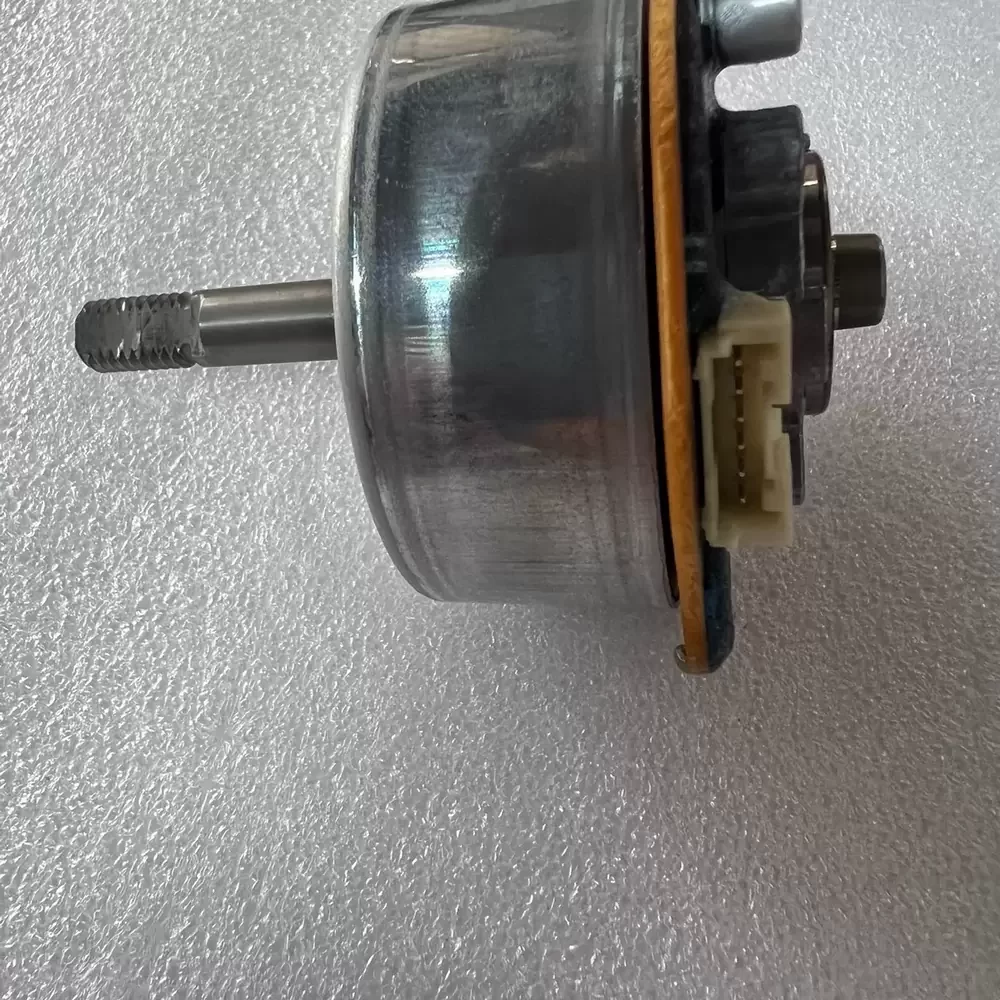

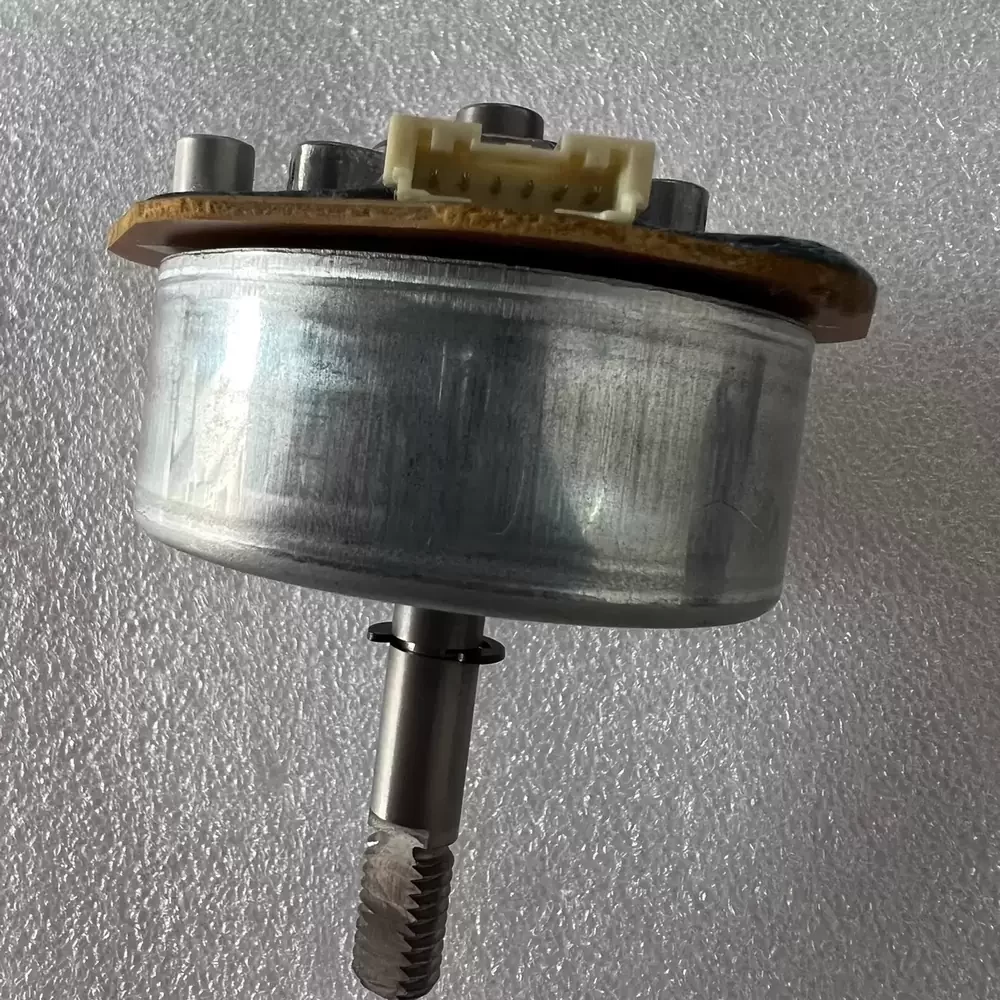

42F704SC30 Nidec 24VDC 10W 42.8mm Outer Rotor BLDC Motor

Description

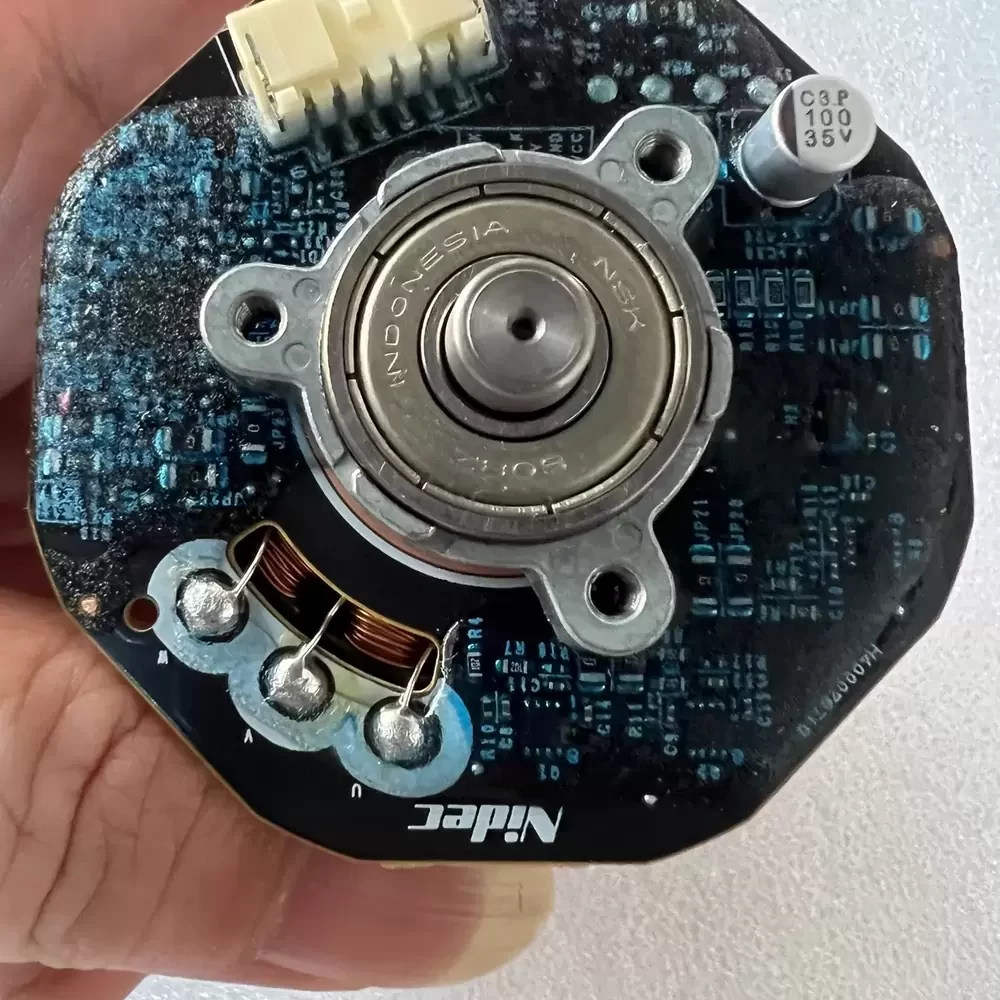

The Nidec 42F704SC30 is a 42.8 mm outer rotor brushless DC motor delivering a nominal 24 VDC input, 10 W output power, and a rated speed of 1000 RPM. This unit features an integrated drive control board with PWM speed regulation, dual ball bearings for extended operational life, and a compact 33 mm housing length. The motor generates 80 mN.m of torque while drawing a maximum operating current of 1.1 A, ensuring low vibration and high-efficiency energy conversion within a 0 to 40 °C thermal envelope.

42F704SC30 Specifications
Model Number: 42F704SC30
Brand: Nidec
Motor Type: Brushless DC (BLDC) Outer Rotor
Operating Voltage: 24 VDC
Output Power: 10 W
Operating Current: 1.1 A (Max)
Rated Speed: 1000 RPM
Rated Torque: 80 mN.m
Diameter: 42.8 mm
Length: 33 mm
Mass: 250 g
Operating Temperature: 0 to 40 °C
Speed Control: PWM / CLK Signal
Drive Type: Built-in Integrated Drive
Bearing Type: Dual Ball Bearings
Compliance: RoHS, REACH

42F704SC30 Applications
Primary applications include integration into air purification systems, commercial printing equipment, and HVAC ventilation fans. Deployed within automated cooking ovens and thermal management modules requiring precise PWM speed control and low acoustic noise profiles.
