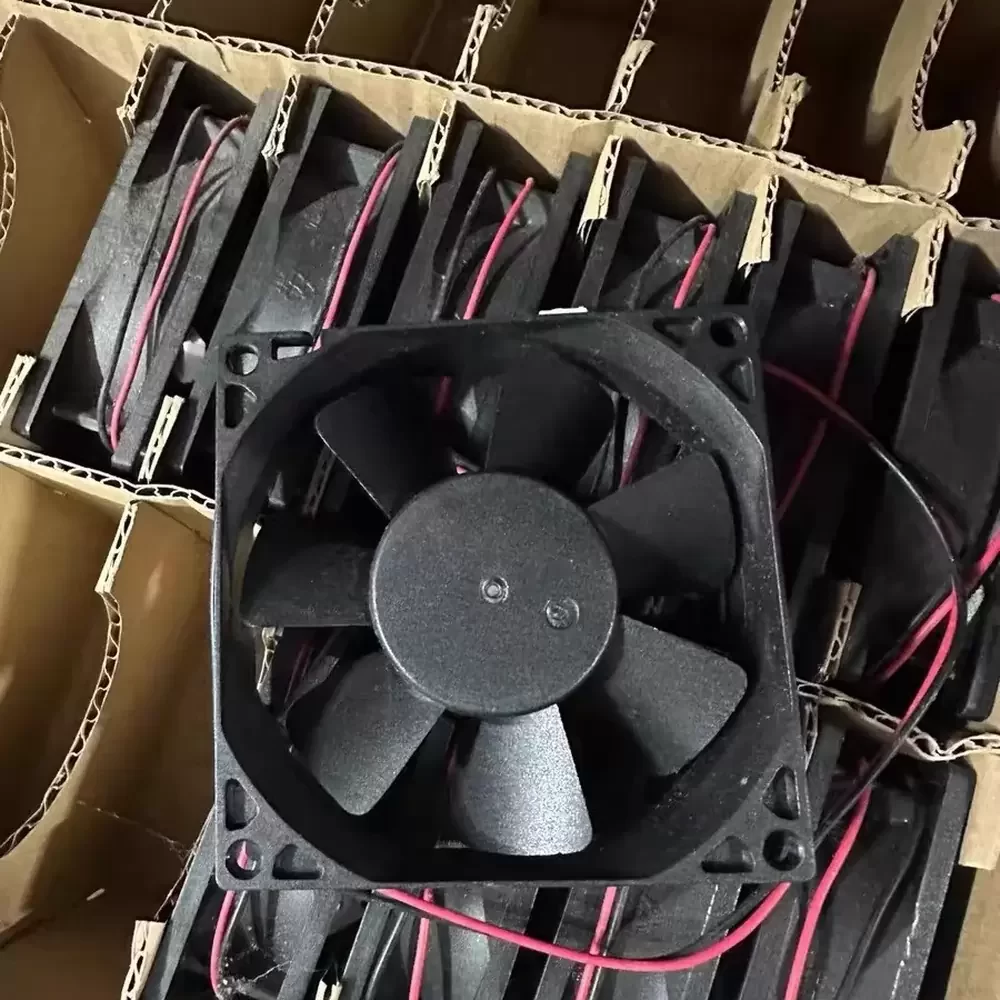

AD0812DB-A70GL ADDA 12VDC 0.09A 80x80x25mm Cooling Fan

Description

ADDA AD0812DB-A70GL is an 80 x 80 x 25 mm, 12 VDC, 20.5 CFM DC axial fan engineered with a durable plastic frame and impeller rated to UL 94V-0 flammability standards. It utilizes a precision ball bearing system to maintain a rotational speed of 1600 RPM while generating a minimal acoustic profile of 15.0 dB/A. Electrical connections are established via UL1007 AWG 24 lead wires, and the motor is designed to provide a static pressure of 0.050 InAq with a power consumption of 0.96 W.

AD0812DB-A70GL Specifications
Model Number: AD0812DB-A70GL
Brand: ADDA
Product Category: DC Axial Cooling Fan
Dimensions: 80 x 80 x 25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.08 A (Nominal) / 0.09 A (Max)
Power Consumption: 0.96 W
Rotational Speed: 1600 RPM
Maximum Airflow: 20.50 CFM (0.580 CMM)
Static Pressure: 0.050 InAq (1.27 mmAq)
Acoustic Noise Level: 15.0 dB/A
Bearing Type: Ball Bearing
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Lead Wire: UL1007 AWG 24
Weight: 86.0 g
Certifications: CE, TUV, UL, CSA

AD0812DB-A70GL Applications
Primary applications include integration into telecommunications enclosures, industrial control panels, and automated diagnostic equipment requiring continuous thermal management. Deployed within power supply units, CNC machine control boxes, and server racks to maintain optimal operating temperatures for sensitive microelectronics.
