Description

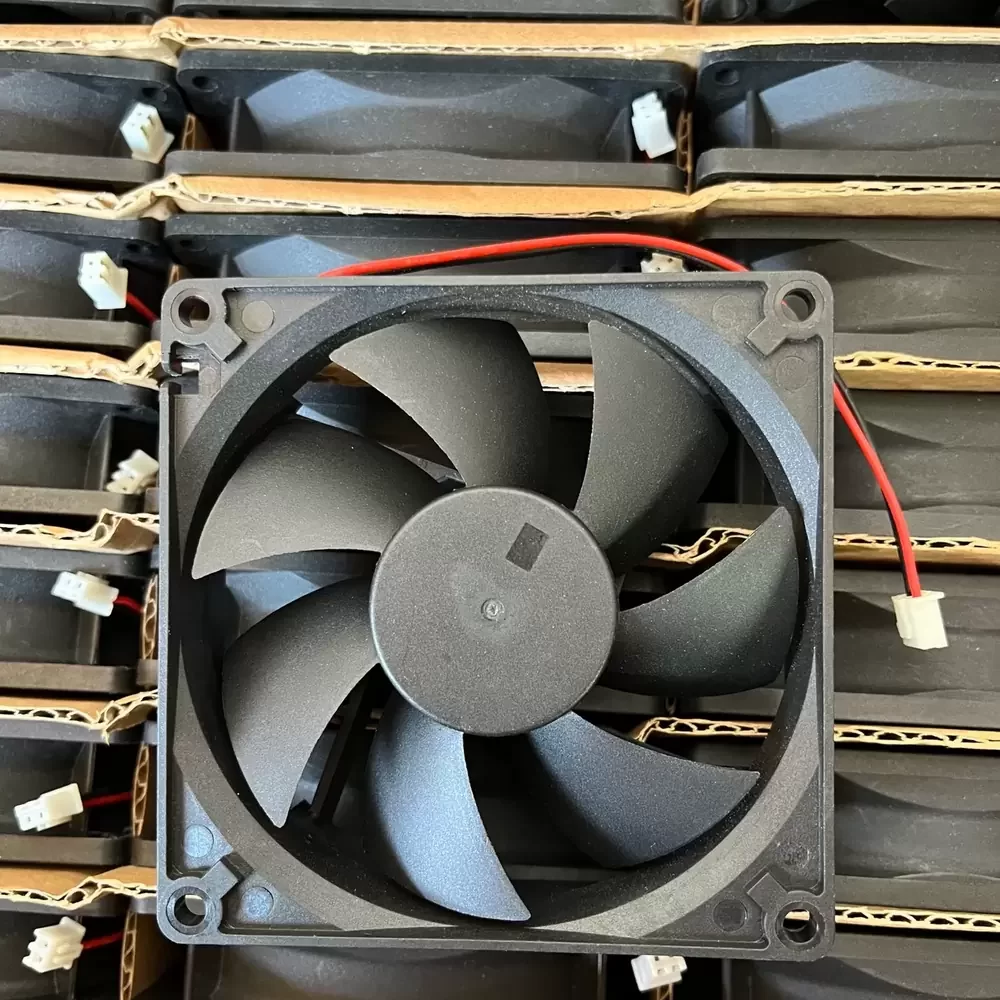

The Crown AGE09225B12M is a precision-engineered Axial Fan designed for critical thermal management in industrial and electronic enclosures. Utilizing advanced DC motor technology paired with a robust Dual Ball Bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance within high-density systems. Engineered for reliability, the AGE09225B12M delivers consistent cooling performance, making it an ideal solution for mitigating heat accumulation in sensitive electronic components.
Model Number: AGE09225B12M
Brand: Crown (Guan Zhan)
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.30 A
Power: 3.60 W
Rated Speed: 2800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 52.5 CFM (89.2 m³/h / 1.48 m³/min)
Max. Static Pressure: 3.81 mmH₂O (37.4 Pa / 0.15 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 34.0 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP20
The AGE09225B12M is frequently deployed in demanding industrial environments such as server rack cooling modules, telecommunications cabinets, and CNC machinery control panels. Its robust construction allows for integration into medical instrumentation and power supply units where consistent airflow is paramount. By maintaining optimal operating temperatures, the AGE09225B12M safeguards critical hardware from thermal throttling and component degradation in continuous-duty applications.
